Ranch Plan 575-00069


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,511
Beds 3
Bath 3
1/2 Baths 0
Car 3
Stories 1
Width 66' 6"
Depth 84' 4"

Floorplan Drawings

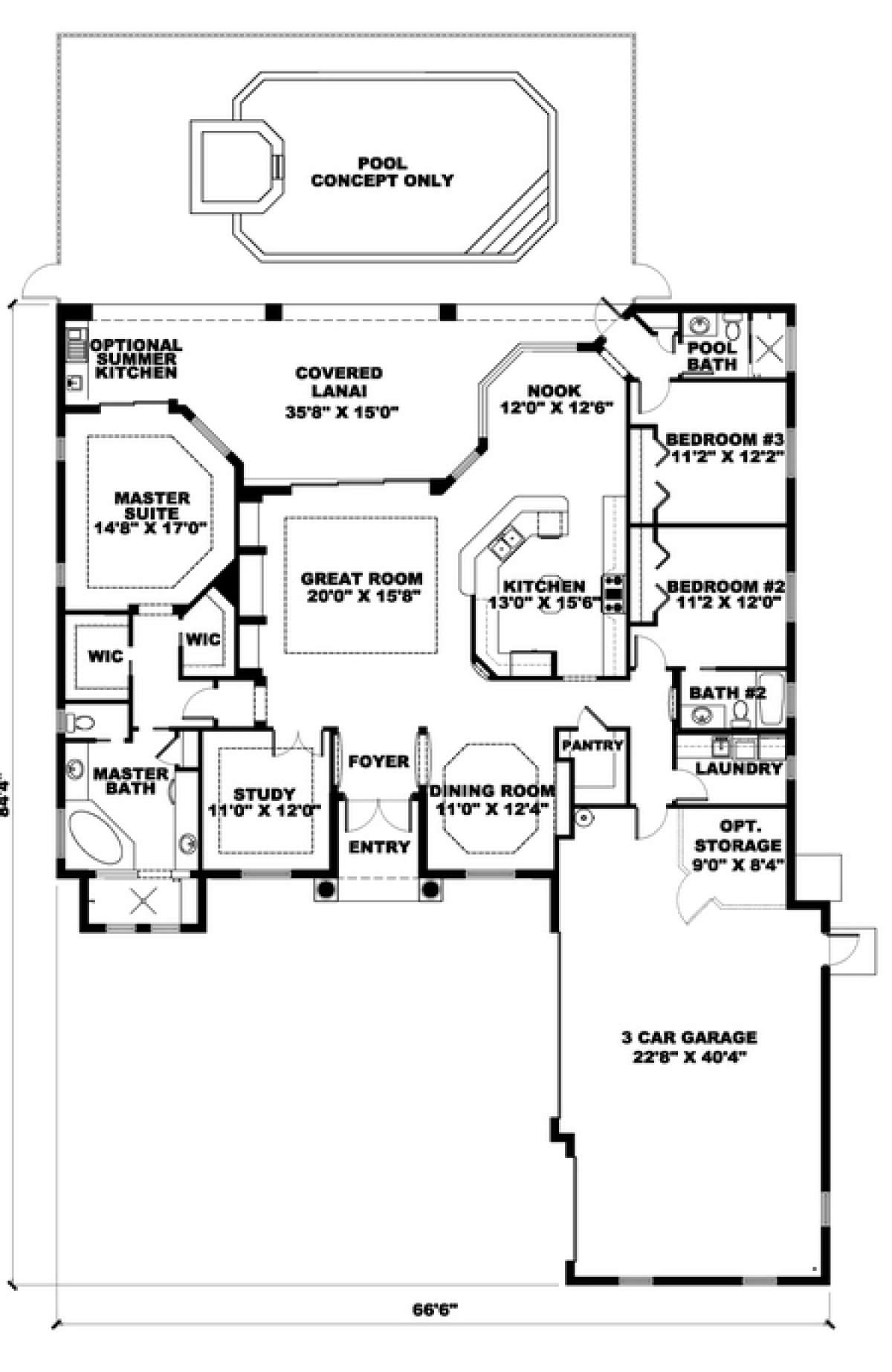

Floorplan 1
Floorplan 1 for House Plan #575-00069

What's Included in these plans?

  • Elevations:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Material Labels
    Floor-To-Floor Heights
    Roof Slope Indicators
  • Floor Plans:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Door and Window Sizes
    Completely Dimensioned Floor Plan
    Room Labels and Interior Room Sizes
  • Electrical Layouts:
    Building Section Markers
    All Electrical Outlets, Fixtures and Switching
  • Foundation or Slab Plan:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Floor and Deck Joist Sizes, Spacing and Direction
    Rough-In Plumbing Location (if applicable)
    Mechanical Equipment Locations (if applicable)
    Electrical Locations (if applicable)
  • Roof Design Plan:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    All Beam and Header Heights and Locations
    All Hips, Gables, Ridges and Valleys
    Building Section Markers
  • Building Sections:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    Floor Joist Size and Spacing
    Floor-To-Floor Heights
    Non-Typical Plate Heights Indicated
  • Typical Wall Sections:  Drawn at 1/8" to 1/2" = 1'0" Scale and Includes:
    All Labels Indicating Wall Construction
    Foundation Wall Thickness and Reinforcing
    Insulation Type and Thickness
  • Miscellaneous Notes and Details:
    Miscellaneous General Notes
    Stairway Details (if applicable)

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

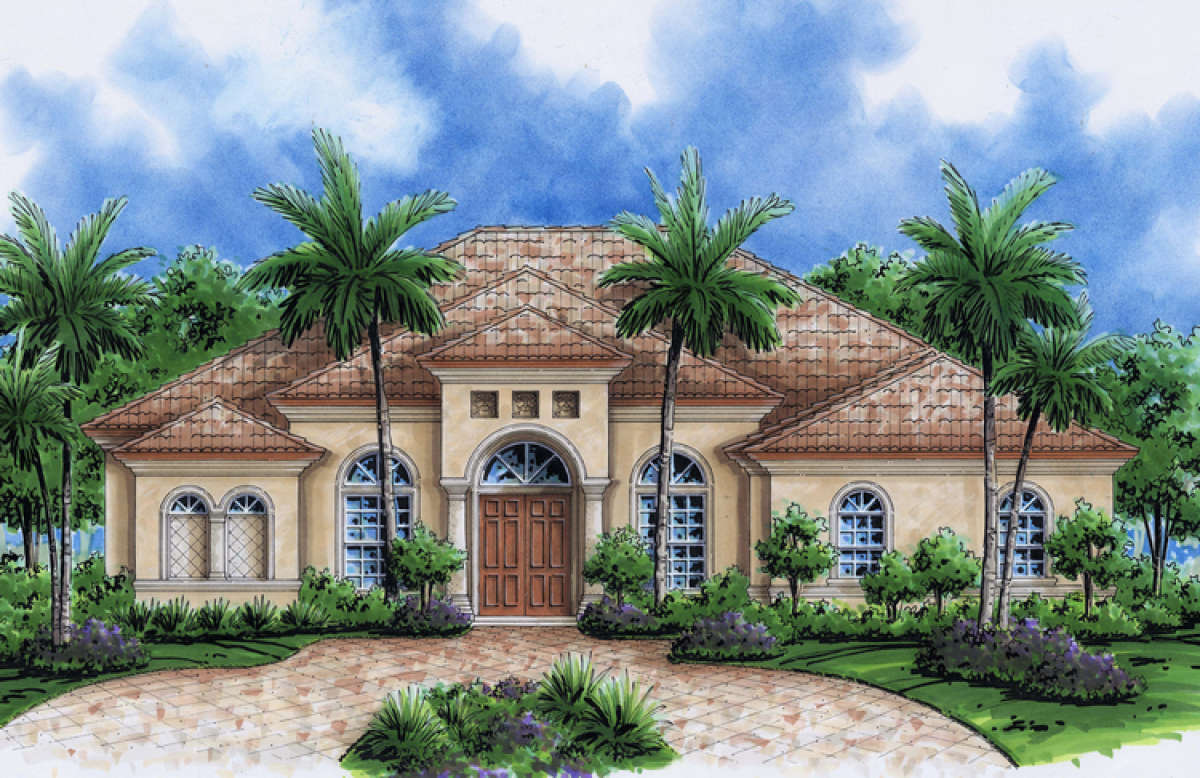

The combination of a modern and functional floor plan blends beautifully with the traditional Mediterranean exterior façade in this Ranch house plan. Design elements such as tiled roofing, gracefully arched windows, and a grand entrance make this home a standout in architectural structure. A courtyard entrance further enhances and provides a framework to balance the beauty and synergy of the home. This single-story home features approximately 2,500 square feet with three bedrooms, three bathrooms, and a three car garage.

The towering grand entrance leads to the foyer which then extends on either side to the formal dining room or study. The study has a tray ceiling, French door access and is a fantastic space to enjoy privacy and offers beautiful views to the front courtyard. The formal dining room also contains a tray ceiling, built-in shelving, and is open to the remainder of the home’s common spaces making this an ideal spot to entertain at family and holiday events. The great room is a commanding space, has a tray ceiling, optional built-in cabinetry, and stunning rear lanai views and access. The rear lanai spans the length of the home with wide open spaces and has a summer kitchen; this zone offers additional entertaining space and makes an ideal location for dining al fresco. The optional pool and deck area gives you an idea of just what this space could accomplish in terms of the ultimate in outdoor living. The breakfast nook has a triple bay window allowing for a bright and sunny spot to casually dine. The gourmet kitchen anchors the formal dining room and informal breakfast nook and features an outstanding space. The center island, an additional breakfast bar, and an abundance of additional counter and cabinet space allow this space to function artistically. An oversized walk-in pantry is adjacent to the kitchen and provides added space in which to store your supplies. The large utility room which has a sink and counter space is situated off the garage for convenience. The spacious three car garage has additional storage in the rear and a side yard exit as well.

The split bedroom plan offers two bedrooms on one side of the home and, both are presented with its own en suite bathroom and generous closet space. The master suite is simply sumptuous and features a walk-in hallway which gently fans to either the right or left. As you traverse to the right in the hallway, you first come upon large his and her master walk-in closets. The master bedroom, which is an impressive size has a tray ceiling and rear views and private access to the lanai. The en suite bathroom is highlighted by a corner garden tub, separate, oversized shower, dual vanities, and a compartmentalized toilet. This home offers tons of the modern amenities and conveniences your family desires and unites beautifully with the traditional Mediterranean exterior façade.
