Mediterranean Plan 575-00045

What's Included in these plans?

• Elevations:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
  Material Labels
  Floor-To-Floor Heights
  Roof Slope Indicators

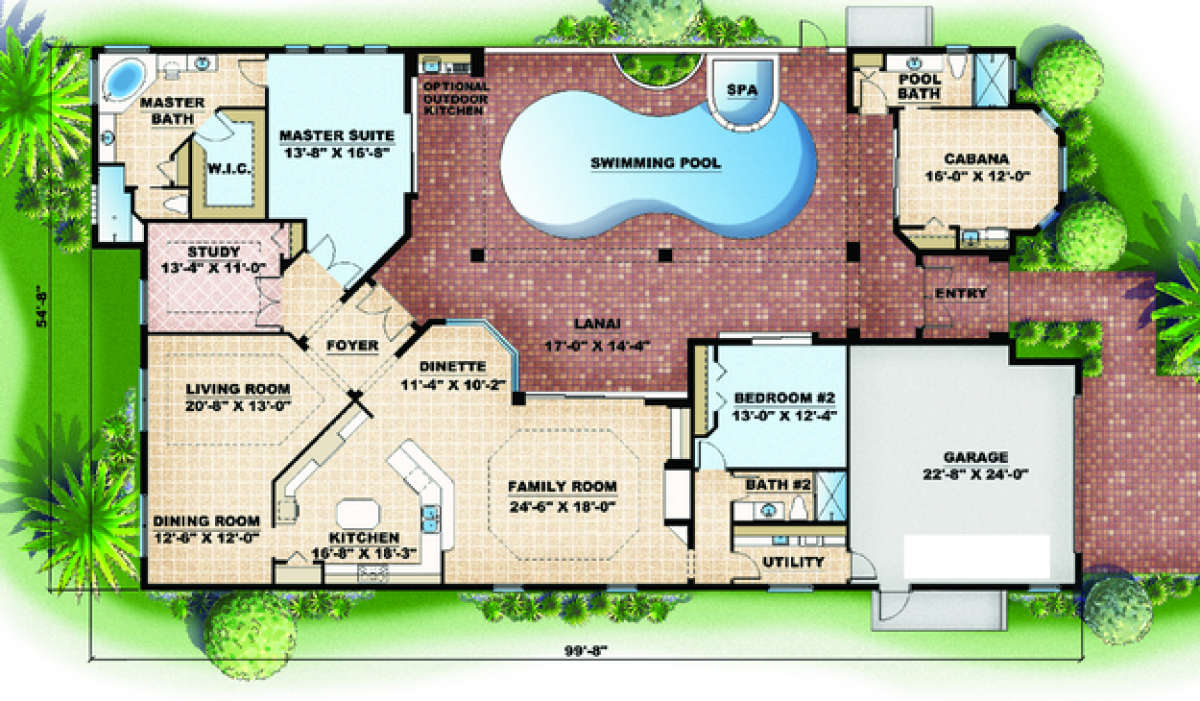

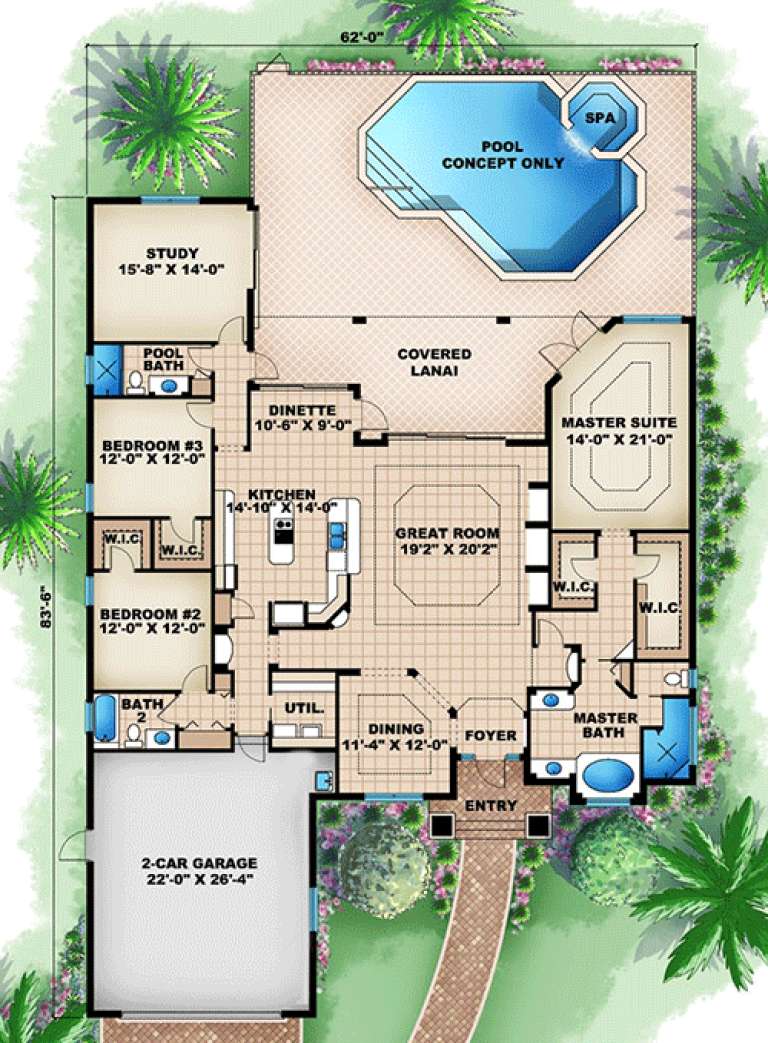

• Floor Plans:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes
• Electrical Layouts:
  Building Section Markers
  All Electrical Outlets, Fixtures and Switching
• Foundation or Slab Plan:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
  Floor and Deck Joist Sizes, Spacing and Direction
  Rough-In Plumbing Location (if applicable)
  Mechanical Equipment Locations (if applicable)
  Electrical Locations (if applicable)
• Roof Design Plan:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
  All Beam and Header Heights and Locations
  All Hips, Gables, Ridges and Valleys
  Building Section Markers
• Building Sections:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
  Floor Joist Size and Spacing
  Floor-To-Floor Heights
  Non-Typical Plate Heights Indicated
• Typical Wall Sections:  Drawn at 1/8" to 1/2" = 1'0" Scale and Includes:
  All Labels Indicating Wall Construction
  Foundation Wall Thickness and Reinforcing
  Insulation Type and Thickness
• Miscellaneous Notes and Details:
  Miscellaneous General Notes
  Stairway Details (if applicable)
