Mediterranean Plan 575-00006

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,208
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 64' 4"
Depth 70' 8"

Floorplan Drawings

Floorplan 1

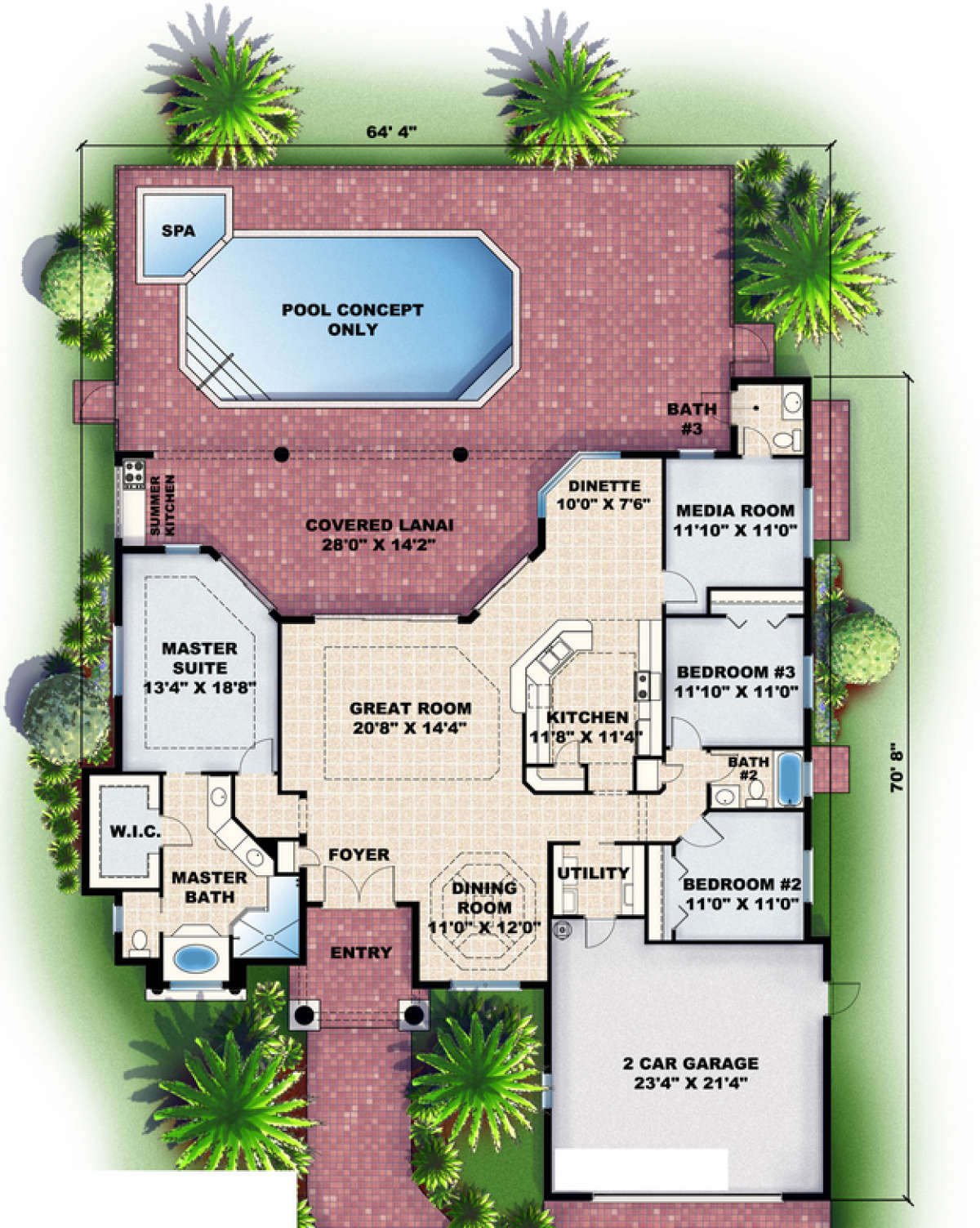

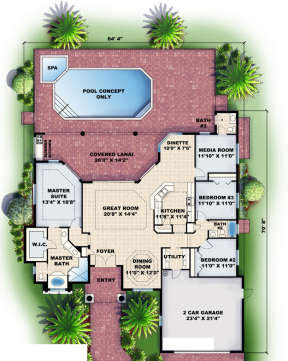

Floorplan 1 for House Plan #575-00006


What's Included in these plans?

  • Elevations:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Material Labels
    Floor-To-Floor Heights
    Roof Slope Indicators
  • Floor Plans:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Door and Window Sizes
    Completely Dimensioned Floor Plan
    Room Labels and Interior Room Sizes
  • Electrical Layouts:
    Building Section Markers
    All Electrical Outlets, Fixtures and Switching
  • Foundation or Slab Plan:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Floor and Deck Joist Sizes, Spacing and Direction
    Rough-In Plumbing Location (if applicable)
    Mechanical Equipment Locations (if applicable)
    Electrical Locations (if applicable)
  • Roof Design Plan:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    All Beam and Header Heights and Locations
    All Hips, Gables, Ridges and Valleys
    Building Section Markers
  • Building Sections:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    Floor Joist Size and Spacing
    Floor-To-Floor Heights
    Non-Typical Plate Heights Indicated
  • Typical Wall Sections:  Drawn at 1/8" to 1/2" = 1'0" Scale and Includes:
    All Labels Indicating Wall Construction
    Foundation Wall Thickness and Reinforcing
    Insulation Type and Thickness
  • Miscellaneous Notes and Details:
    Miscellaneous General Notes
    Stairway Details (if applicable)

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

IMPORTANT NOTE: BUILDING RESTRICTIONS APPLY IN CAMDEN COUNTY, GEORGIA, AND LEE AND COLLIER COUNTY, FLORIDA.
