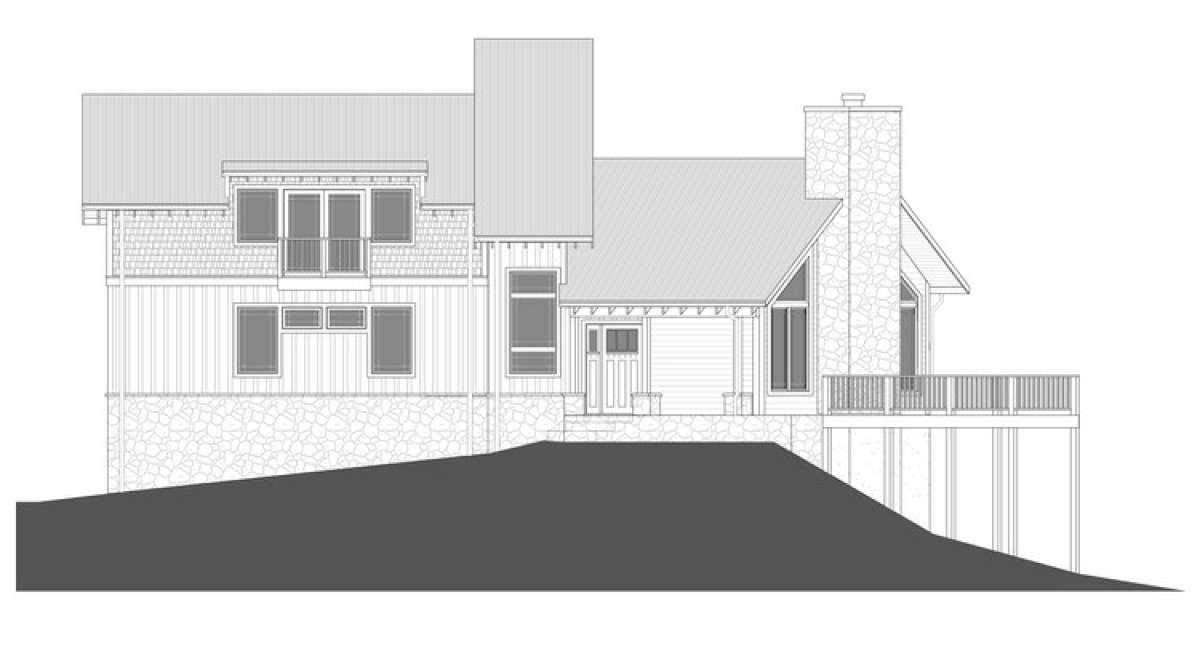

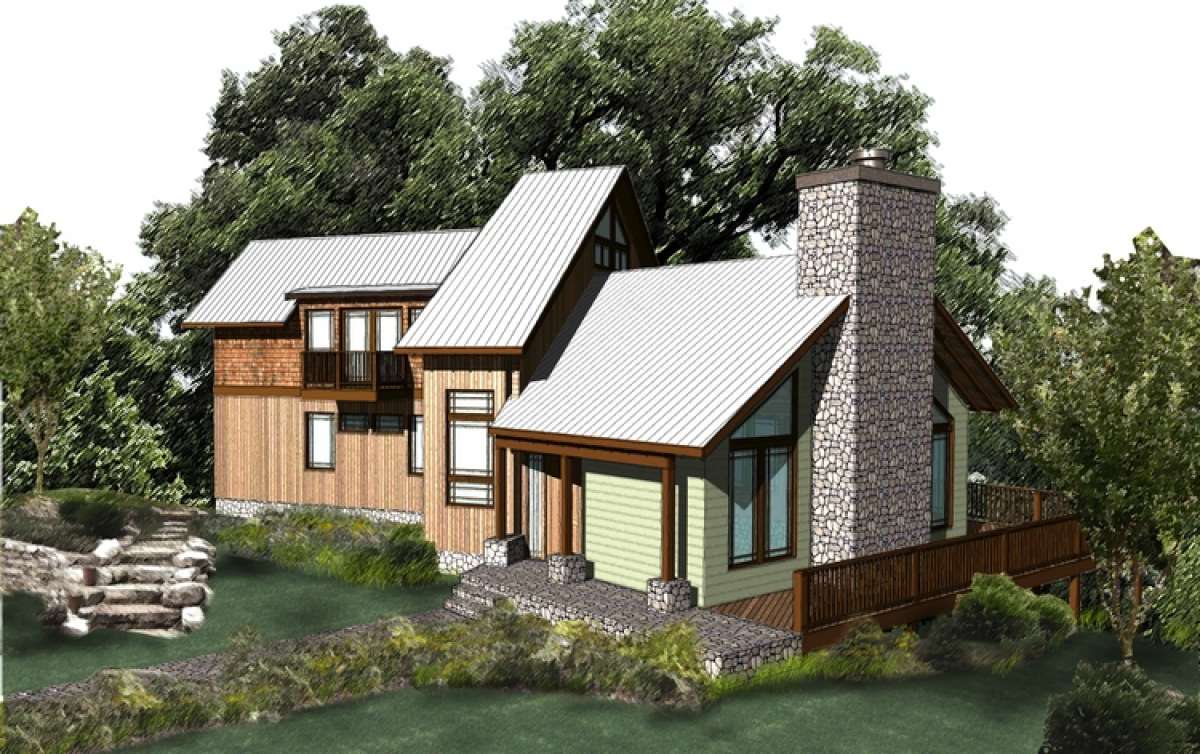

Contemporary House Plan #5738-00006 Elevation Photo

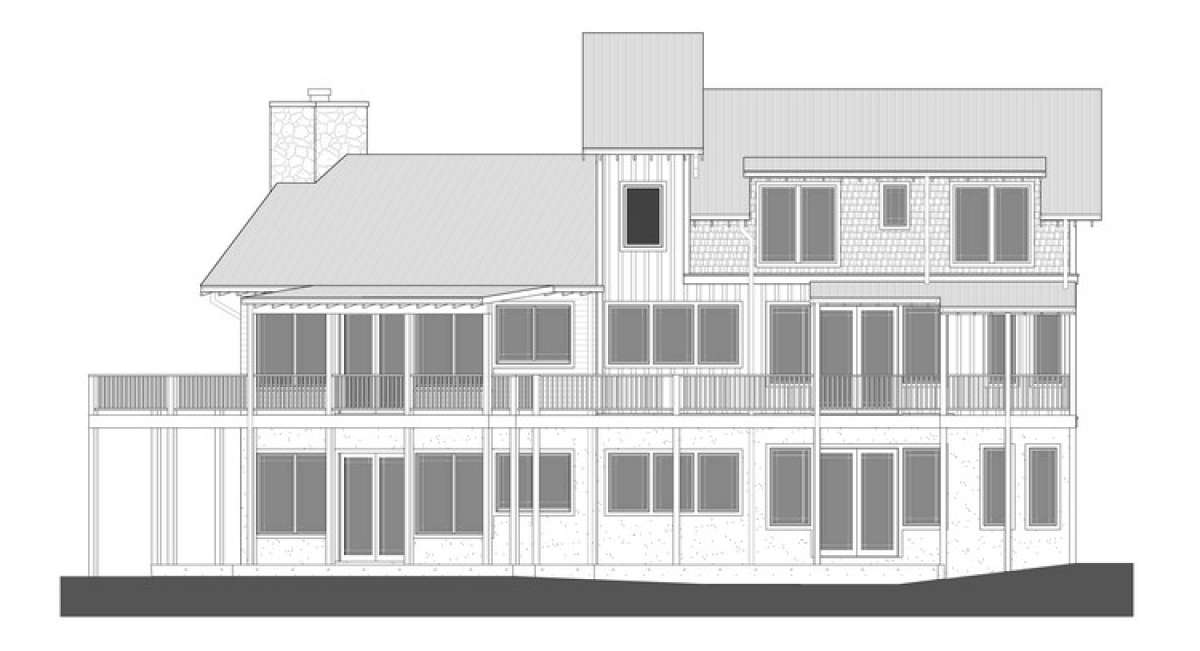

Contemporary House Plan #5738-00006 Additional Photo

EXCLUSIVE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,774

Beds 3

Bath 2

1/2 Baths 0

Car 0

Stories 1.5

Width 72' 11"

Depth 49' 4"

See What's Included

Select Package

PDF (Single Build)

$1,475.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

Select Foundation

Unfinished Basement $0.00

Slab Foundation $375.00

Crawlspace Foundation $375.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $75.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

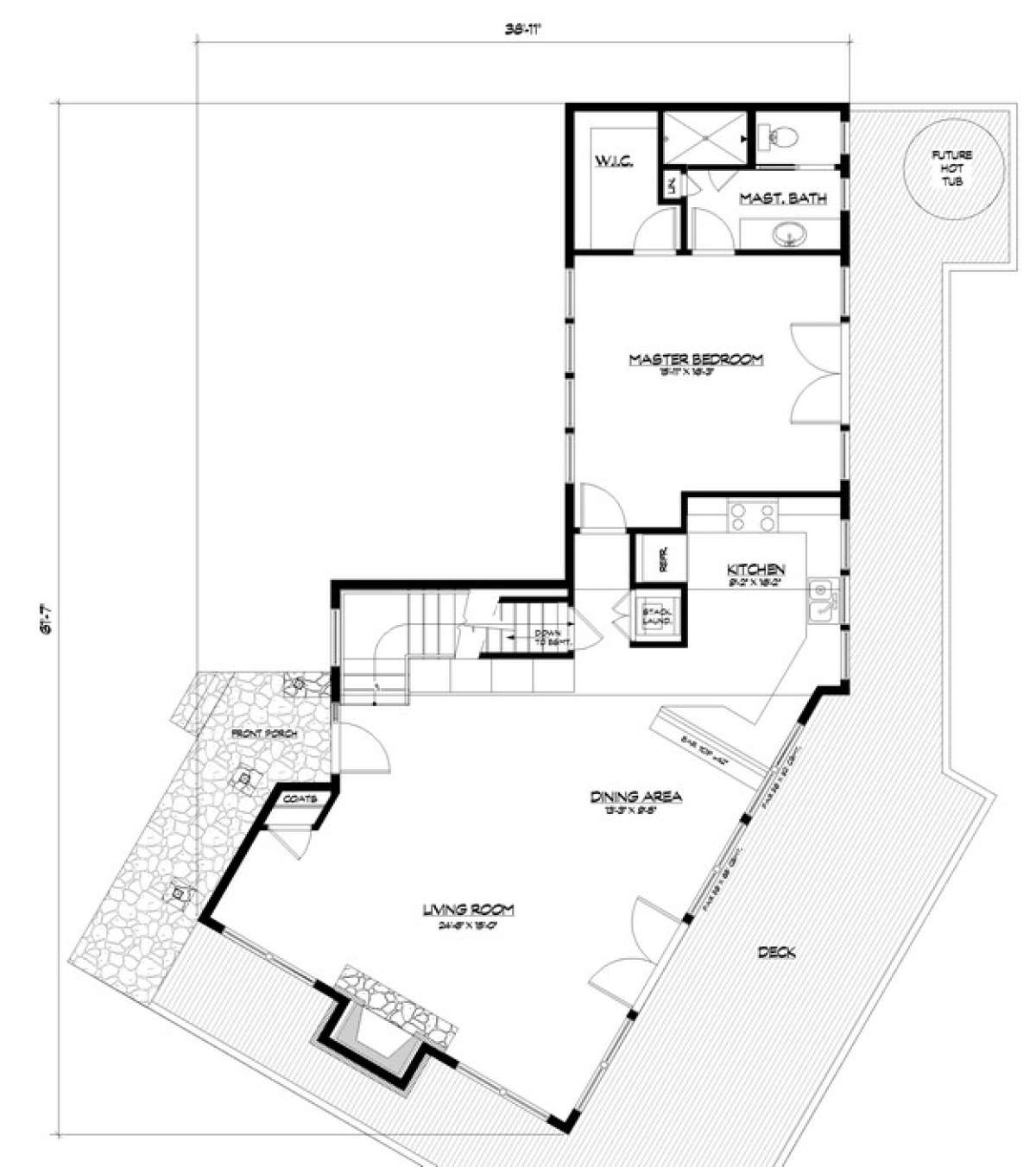

Floorplan 1

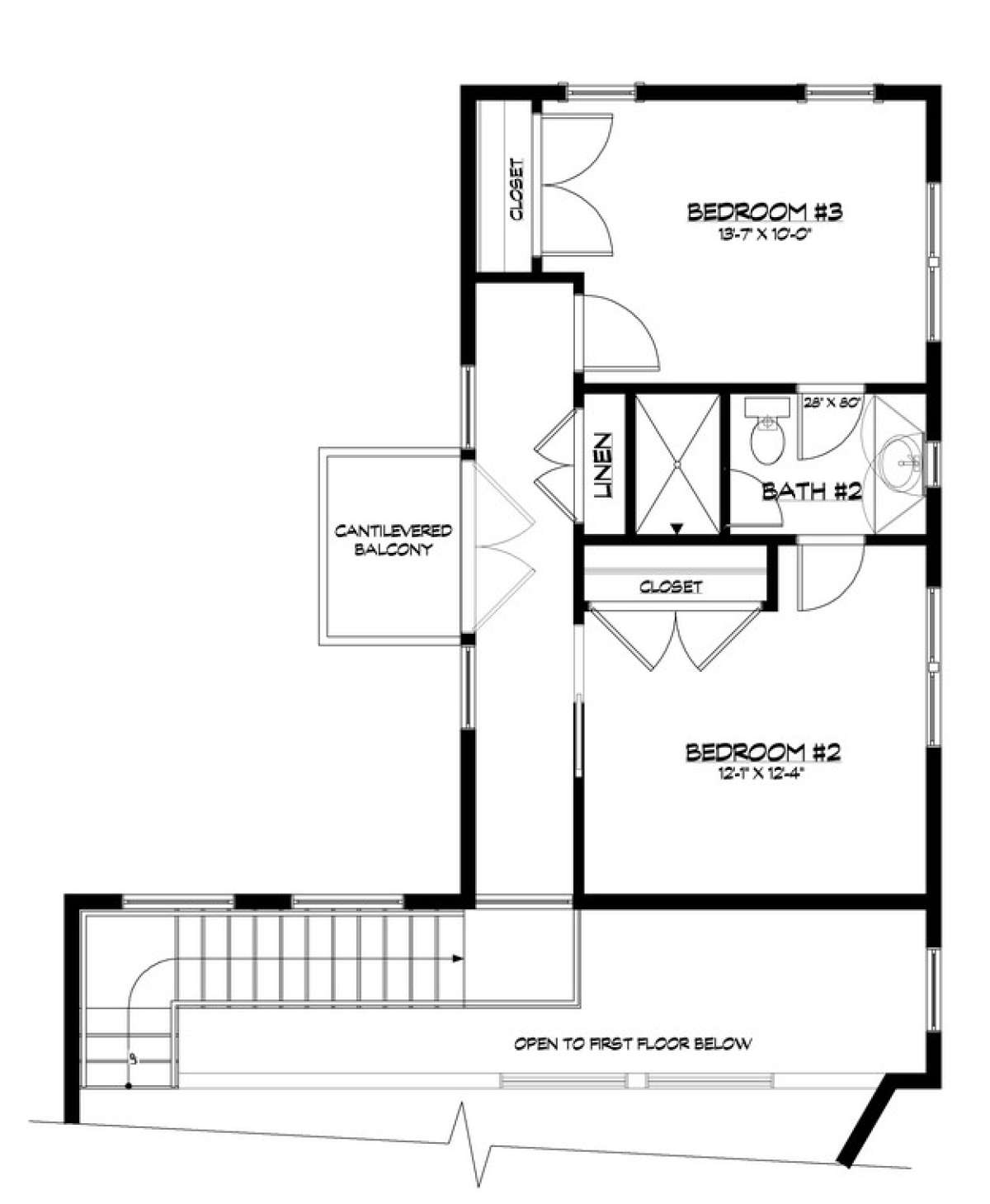

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet with general notes and artists rendering
Heated/Finished square footage calculations from outside of exterior studs, does not include decks, porches, garages, unfinished basements, or attic space.
Foundation Plan 1/4"=1'-0" (includes location and sizes of foundation walls, slabs, footings, and grade beams)
Floor Plans at each level 1/4"=1'-0" (includes door and window locations and sizes, all dimensions, room sizes, location of cabinetry and built-ins)
Floor Framing plans at each framed floor level 1/4"=1'-0" (includes floor framing member sizes and spacing and interior bearing walls and posts)
Exterior Elevations 1/4"=1'-0" (includes elevations of all sides of building with all exterior materials, window and door openings, detail callouts, floor heights
Building Section 1/4"=1'-0" (includes a section through the entire building showing construction materials, floor levels, foundation, roof, floors and walls)
Interior Elevations 1/4"=1'-0" (Cabinet elevations at bathrooms, kitchen and laundry rooms) -Roof Plan 1/4"=1'-0" (includes "birds eye" view of roof with roof slopes, valleys, ridges, saddles, crickets, and locations of gutters and downspouts)
Electrical Plans at each finished level 1/4"=1'-0" (includes suggested locations of lighting, switches, outlets, thermostats, fans, cable TV, data/telephone, and door bells)
Wall Sections and Details Scale varies (includes necessary foundation, framing, and trim and finish details)

Ask Us A Question

About This Plan

Interesting interior angles, an exterior offering an attractive countenance, and a wrap around deck take center stage in this exclusive Contemporary house plan. A one and a half story home plan over an unfinished basement foundation highlight approximately 1,774 square feet, three bedrooms, and two bathrooms. This is a great house for a view lot as the angled plan maximizes views to the rear of the house. There is an instant sense of the great open floor concept upon opening the front door as you are greeted with the living room, dining area, and kitchen. Great window views and access to the deck detail the family room as a bright and airy space with a fireplace paved with stone. The gourmet kitchen is highlighted with an elongated peninsula bar with additional seating and lovely window views over the sink. There is a stacked laundry room just before the staircase and master bedroom entrance. Natural light floods the master bedroom with plenty of window views and private access to the deck. The master bathroom highlights an oversized shower and vanity, and a private toilet area. The walk-in closet completes the master bedroom. Bedroom #2 and #3 are on the upper level and they share a Jack and Jill bathroom with an oversized shower and vanity. Both bedrooms enjoy window views and ample closet space. There are a linen closet and balcony access which completes this level. The unfinished basement lays out a number of possibilities as it mirrors the wall of windows below. This Contemporary house plan outlines craftsman details with contemporary lines, a versatile interior layout, and a wrap around deck, making it ideal for a lot with scenic views.
