Craftsman Plan 5738-00001



To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,229
Beds 2
Bath 2
1/2 Baths 0
Car 0
Stories 1
Width 43' 4"
Depth 33'

Floorplan Drawings

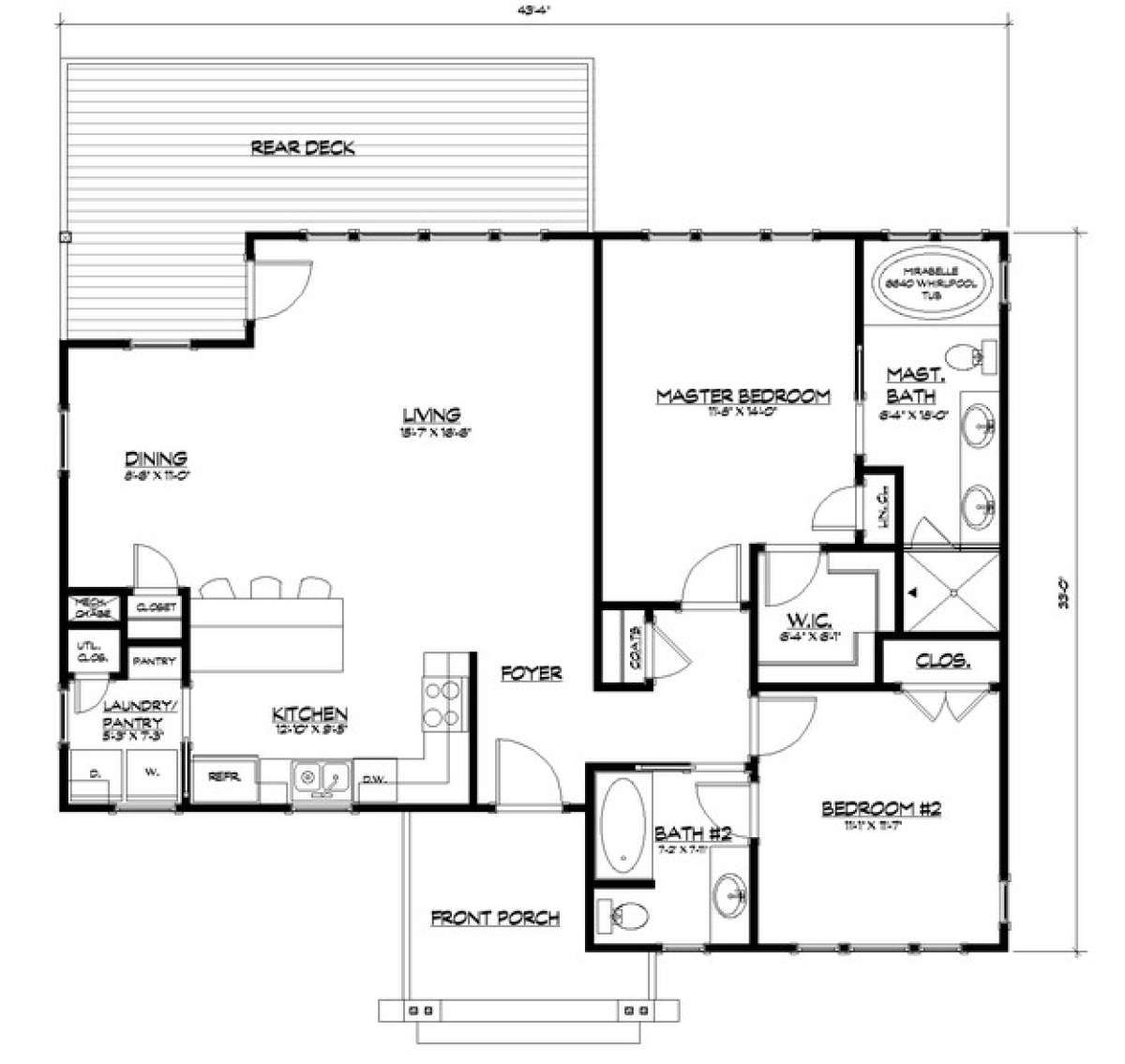

Floorplan 1
Floorplan 1 for House Plan #5738-00001

What's Included in these plans?

  • Cover Sheet with general notes and artists rendering
  • Heated/Finished square footage calculations from outside of exterior studs, does not include decks, porches, garages, unfinished basements, or attic space.
  • Foundation Plan 1/4"=1'-0" (includes location and sizes of foundation walls, slabs, footings, and grade beams)
  • Floor Plans at each level 1/4"=1'-0"  (includes door and window locations and sizes, all dimensions, room sizes,  location of cabinetry and built-ins)
  • Floor Framing plans at each framed floor level 1/4"=1'-0" (includes floor framing member sizes and spacing and interior bearing walls and posts)
  • Exterior Elevations  1/4"=1'-0"  (includes elevations of all sides of building with all exterior materials, window and door openings, detail callouts, floor heights
  • Building Section  1/4"=1'-0"  (includes a section through the entire building showing construction materials, floor levels, foundation, roof, floors and walls)
  • Interior Elevations 1/4"=1'-0"  (Cabinet elevations at bathrooms, kitchen and laundry rooms) -Roof Plan 1/4"=1'-0"  (includes "birds eye" view of roof with roof slopes, valleys, ridges, saddles, crickets, and locations of gutters and downspouts)
  • Electrical Plans at each finished level 1/4"=1'-0"  (includes suggested locations of lighting, switches, outlets, thermostats, fans, cable TV, data/telephone, and door bells)
  • Wall Sections and Details  Scale varies (includes necessary foundation, framing, and trim and finish details)

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

The primary façade of this Craftsman house design creates a beautiful exterior with its use of cedar shakes tucked into the gables, tapered beams and bold exterior design materials. Exposed rafters, wide decorative eaves, and wood columns complete the front exterior composition that is particularly suitable for Craftsman and Bungalow homes. The home would make an outstanding vacation home or forever home for a small family, empty nesters or young professionals. There are two bedrooms and two bathrooms in approximately 1,229 square feet of living space and the width and depth dimensions are ideal for a small or narrow lot. Distinctive wide open spaces occupy the main living areas which are conducive to entertaining and family relaxing.

There is a foyer which extends into the large living and dining rooms and leads to the rear deck. These spaces provide optimal furniture placement to be configured in such a way as to assist the homeowner with a myriad of stylistic choices resulting in a good flow and layout. The inclusion of the deck off the main living spaces offers entertaining space to continue uninterrupted. A large peninsula breakfast bar provides casual dining space and an arrangement to include the family chef in conversation while preparing meals. There is a separate pantry and laundry room set off the kitchen and the kitchen, itself, provides window views over the double sink, and a large amount of counter and cabinet space. The second bedroom is quite spacious with good closet space and private entry into the second bathroom which includes a large vanity and a garden tub. The primary suite is situated at the rear of the home for privacy and is highlighted with a large bedroom and a triple window wall. There is an attached walk-in closet, linen closet, and an elegant en suite bathroom. The bathroom is highlighted with dual vanities, a huge walk-in shower, and a whirlpool tub encased in window views. This Exclusive house plan, while compact, “packs a punch” with its open layout, plentiful outdoor space, and large bedrooms and bathroom floor plan.
