Craftsman House Plan #5633-00269 Elevation Photo

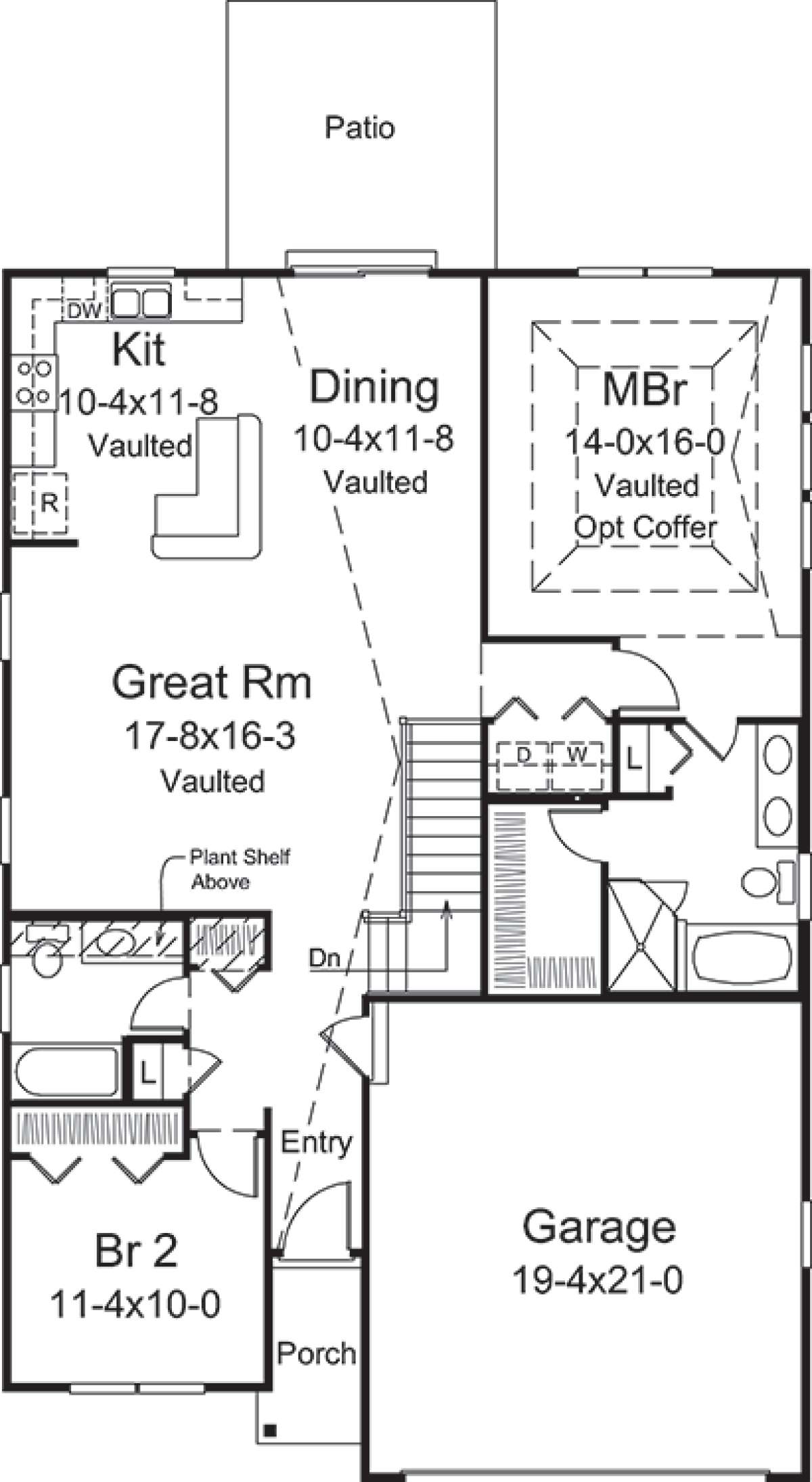

Main Floor Plan for House Plan #5633-00269

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,433

Beds 2

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 36'

Depth 54'

See What's Included

Select Package

PDF (Single Build)

$949.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,299.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$949.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,049.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,449.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$1,799.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Basement Foundation $0.00

Slab Foundation $250.00

Crawlspace Foundation $250.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $150.00

Convert the exterior framing to 2x6 walls.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Main Floor Plan

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')
Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

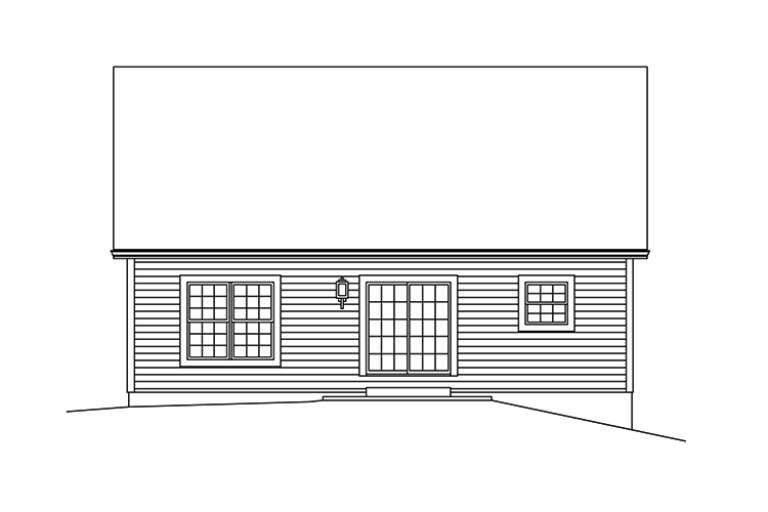

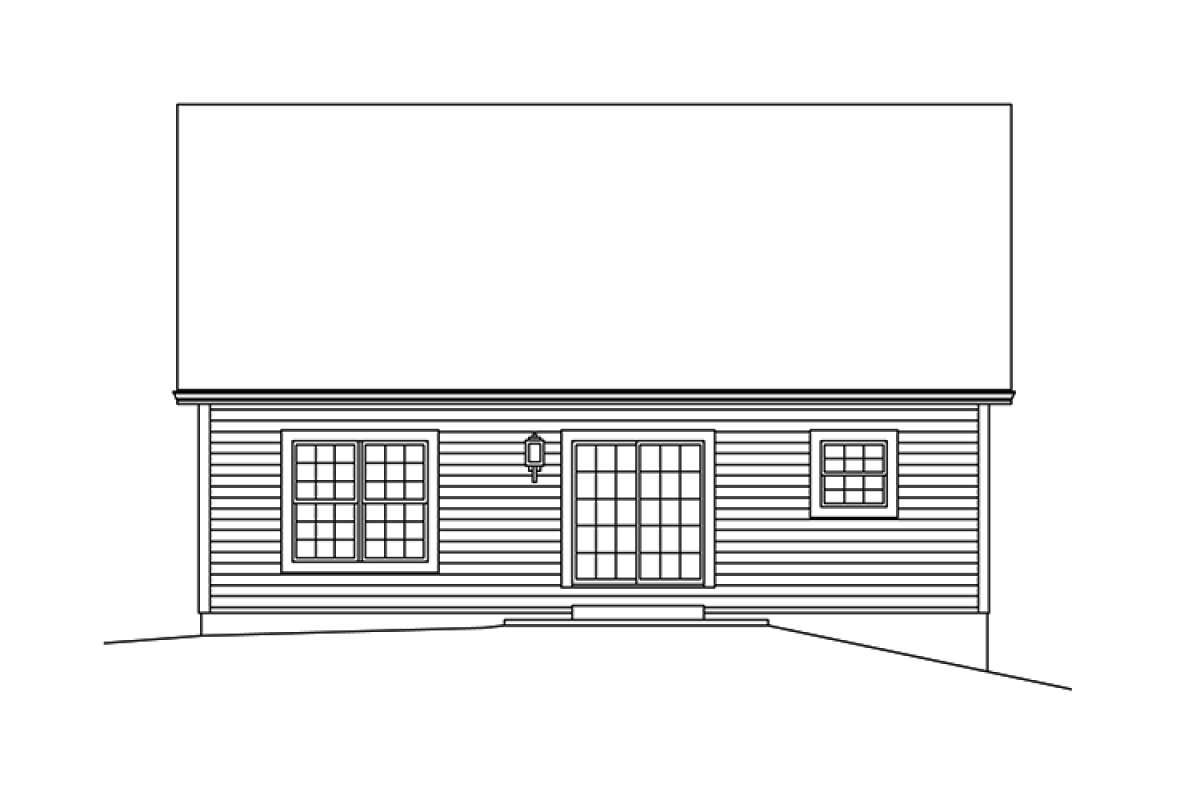

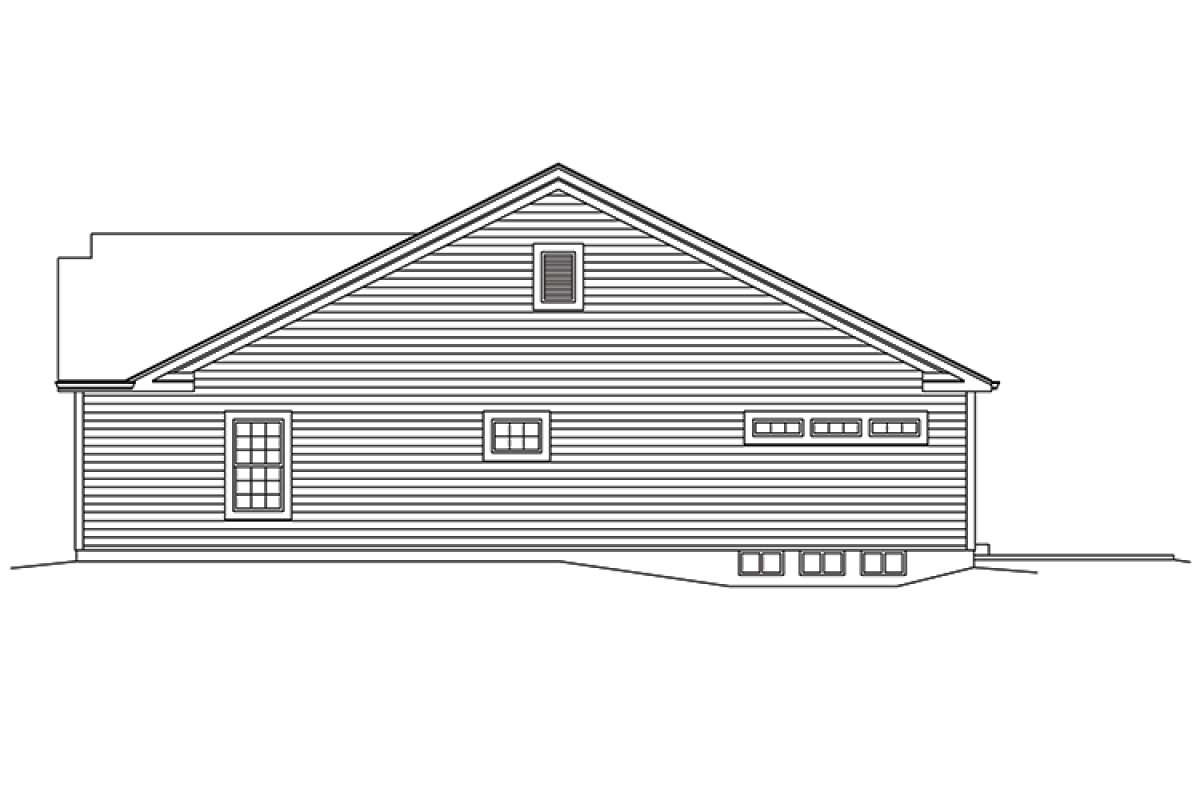

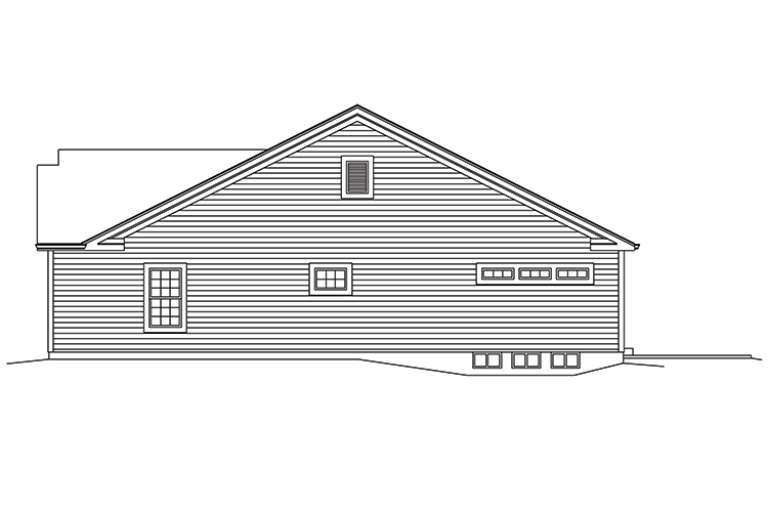

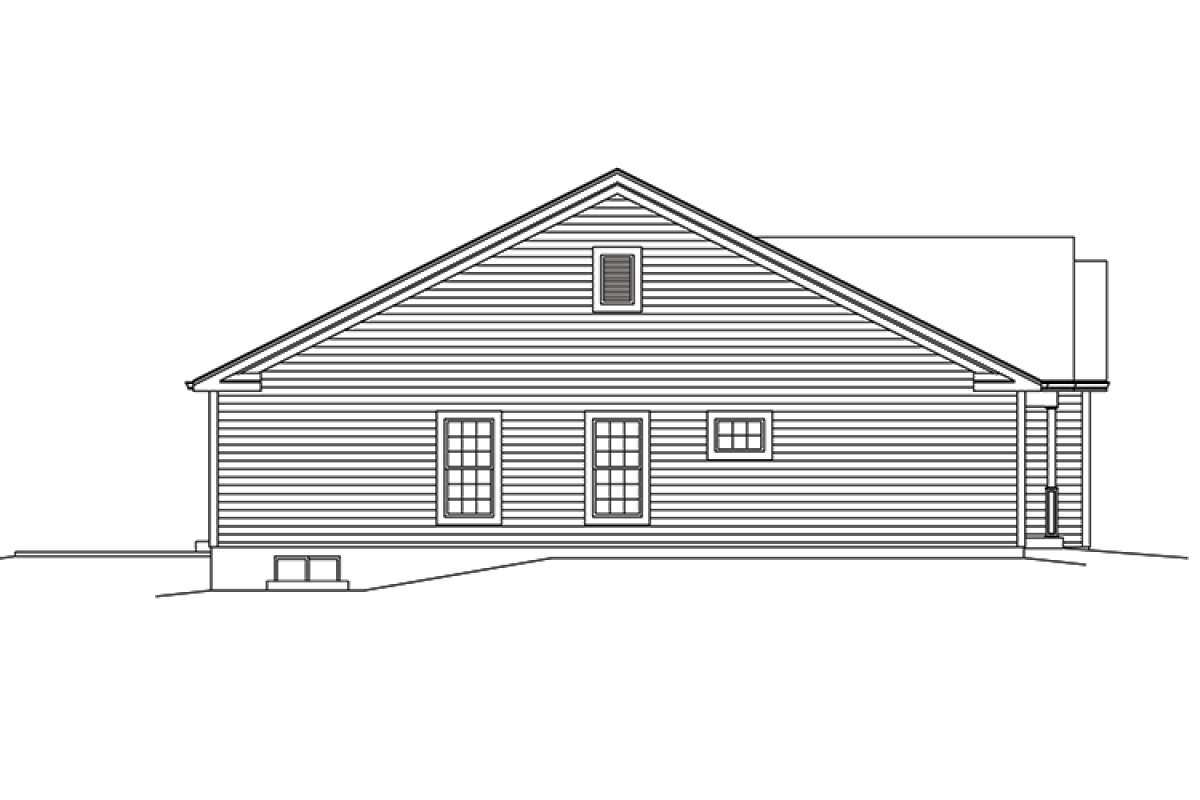

SET OF ELEVATIONS
This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

This modern and fresh Craftsman house plan features visually appealing architectural design details and a strong, bold exterior. Wide window casements, substantial eaves trimming the overhead gables and a front loading two car garage that beautifully complements the home’s exterior are featured highlights of this plan. The front covered porch features a recessed alcove into the home’s entrance where there is a foyer, coat closet and entrance into the home’s interior off the garage. The home’s interior floor plan offers approximately 1,433 square feet of living space in a single story with two bedrooms and two baths. The home is situated on a basement foundation with 1,331 additional square feet; perfect for future expansion as family needs arise or the space could be configured now as additional bedrooms, an in-law suite or multi-purpose family rooms. Ideally suited for a narrow lot, the home’s width dimension is perfectly sized at 36’. Situated beyond the front foyer are the home’s common rooms; this space is open and attractively designed for maximum entertaining and family space. There is a large great room that is vaulted with wonderful window views. The adjoining dining space and kitchen are also vaulted and there are attached sliders onto the outdoor patio. The kitchen features an L-shaped breakfast bar for additional seating, plentiful counter and cabinet space and double sink window views. A coat closet, basement level staircase and a laundry nook complete the main floor of the home.

The master suite is positioned at the rear of the home for privacy and features generous floor space, a vaulted ceiling with an option for a coffered ceiling and fantastic window views; both on the rear and side of the bedroom. The master bath is highlighted with dual vanities, an enclosed linen closet, a garden tub, toilet area and a separate shower. Located directly off the master bath is the oversized master walk-in closet. The second bedroom features beautiful double window views, good floor space and wall-to-wall closet space. There is a hall linen closet and a nearby full bath with a large vanity, toilet area and a tub/shower combination. Beautiful design details highlight the exterior and interior floor plan while amazing expansion space make this home ideal for growing families, young professionals or empty-nesters.
