Ranch House Plan 5633-00217

Sq Ft2,037
1/2 Baths1
Width70' 8"
Depth47' 0"
Ranch House Plan #5633-00217 Elevation Photo

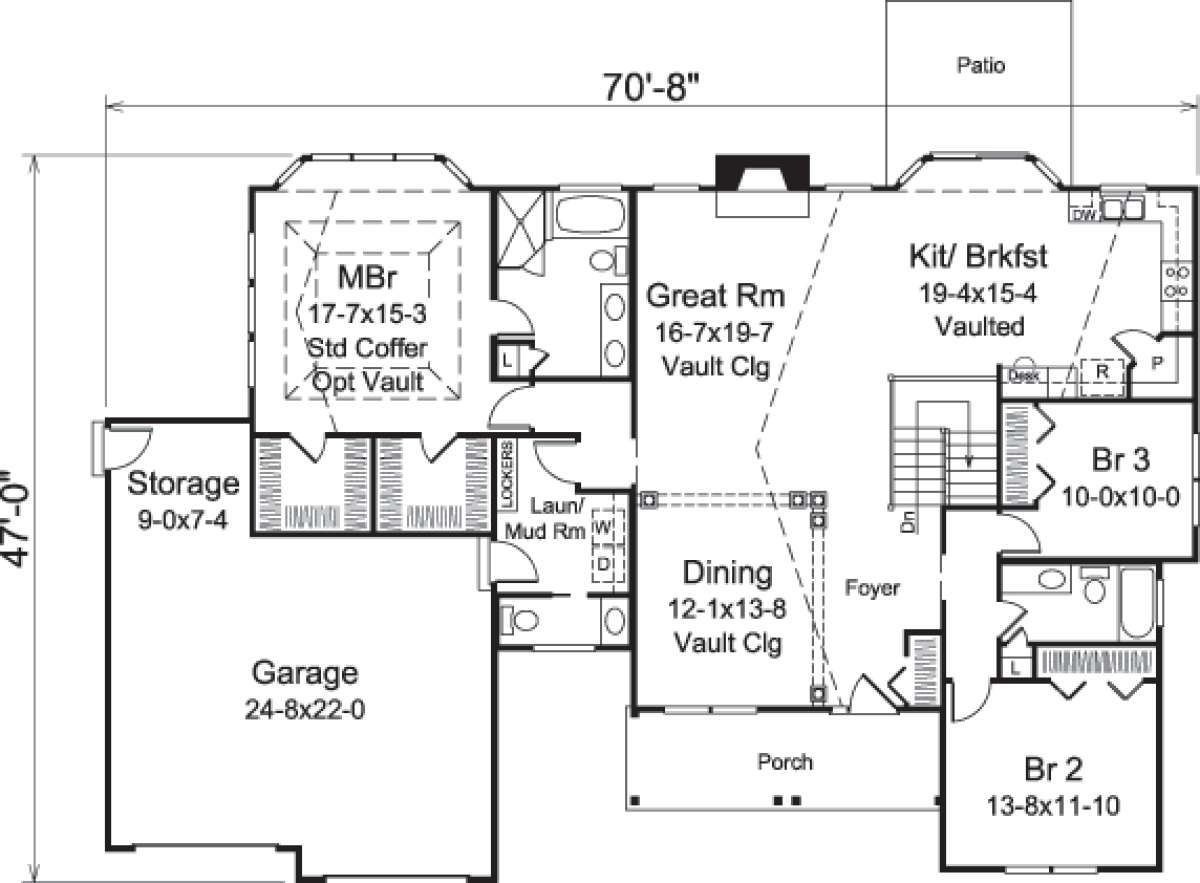

Floorplan 1

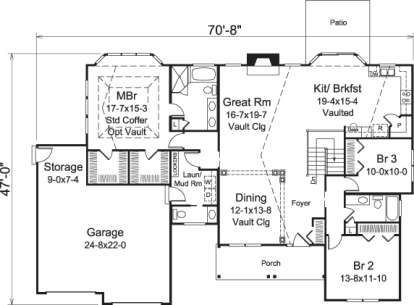

Floorplan 1 for House Plan #5633-00217
Ranch House Plan #5633-00217 Elevation Photo
Floorplan 1 for House Plan #5633-00217
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00217
Floorplan 1
Floorplan 1 for House Plan #5633-00217

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This All American Ranch family home features a spectacular exterior and an interior floor plan consisting of three bedrooms and two plus bathrooms. The interior floor plan is highlighted by approximately 2,037 square feet of living space with an open floor plan and split bedroom plan. The home’s drawings feature a basement foundation which substantially increases the home’s value and versatility. The sky’s the limit in this additional space which could be enhanced to include family entertaining space and private sleeping space or it could function as a teen or in-law suite. The handsome exterior features clean lines, multiple gables and a country front covered porch. Vehicles and lawn and sporting equipment will be conveniently stored in the oversized two car garage which houses additional storage space. The ever popular and increasingly needed mudroom/laundry room features lockers and plenty of space and an adjacent powder room for guests is available. The open concept design offers soaring ceiling heights throughout and an abundance of entertaining and family relaxing space. The front facing dining room is highlighted with columned beams and is open to the foyer and great room which features a rear wall fireplace flanked by sun drenched window views. Modern elegance and good flow continue into the gourmet kitchen and sunny breakfast room where you will find an oversized walk-in pantry, a desk area, plenty of counter and cabinet space and a large bay window provides rear patio access.
The split bedroom plan features two spacious bedrooms with generous closet space and a shared hall bath and hall linen closet situated on one side of the home. The master retreat is inviting, elegantly designed and situated on the opposite side of the home for privacy. The master suite is a true oasis and features a large bedroom with a beautifully designed coffered ceiling and optional vaulted ceilings. The entire room is surrounded by walls of windows with the rear wall housing an expansive bayed window. Double walk-in master closets are ideally designed for the homeowner’s and the spa inspired master bath features relaxing and modern amenities. There are dual vanities, a private toilet area, linen closet, separate shower and a large soaking tub. This family friendly home features great entertaining and private family space along with an abundance of additional expansion possibilities and storage space.
