Ranch House Plan 5633-00213

Sq Ft1,582
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width42' 4"
Depth54' 0"
SALE
  REVERSE    Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

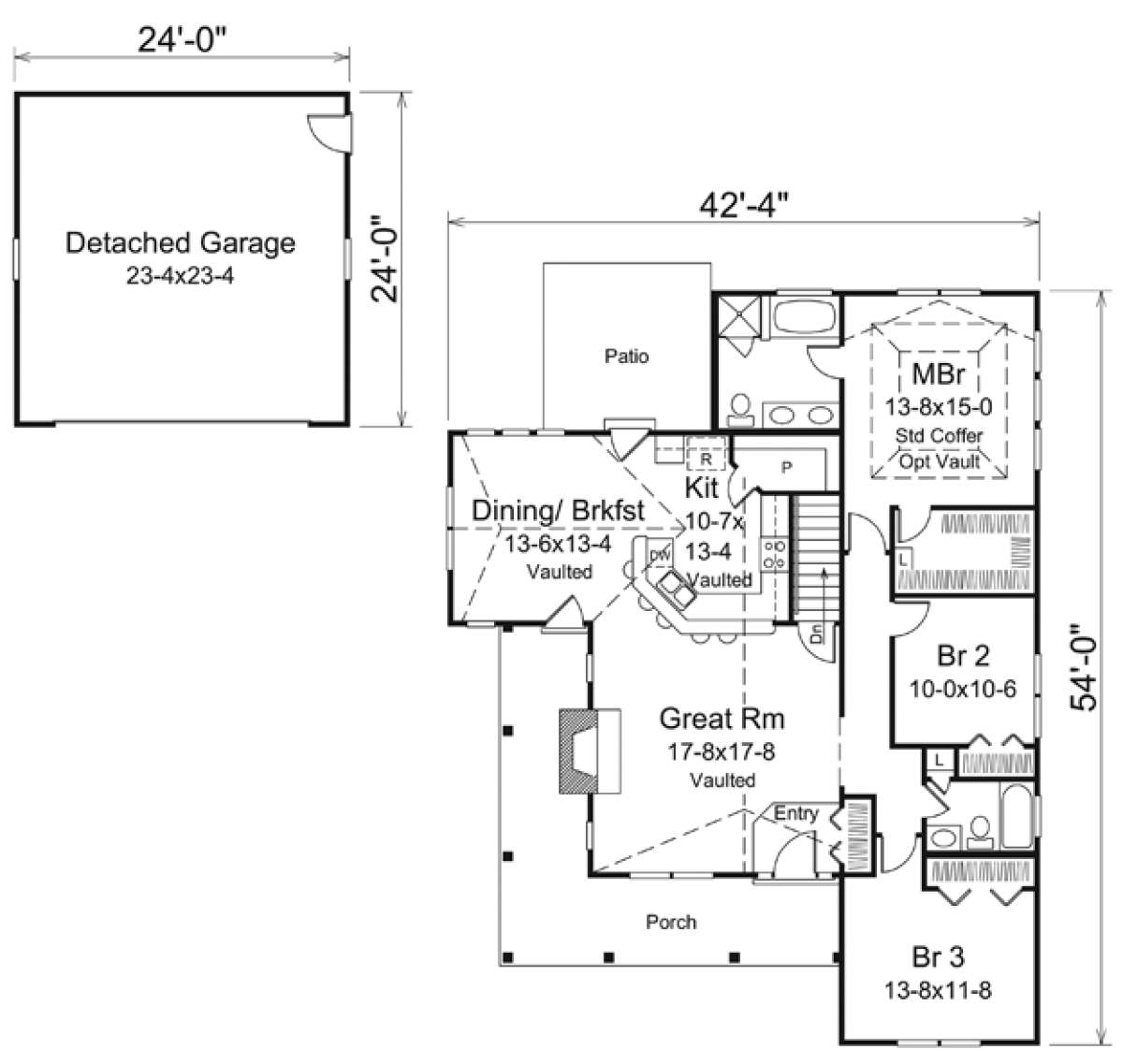

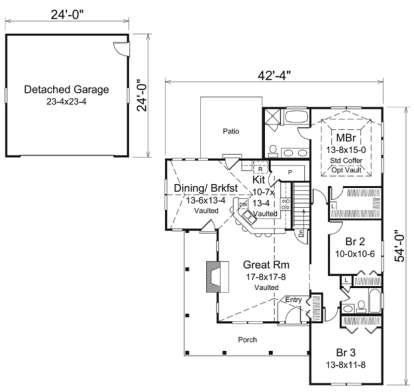

Floorplan 1


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

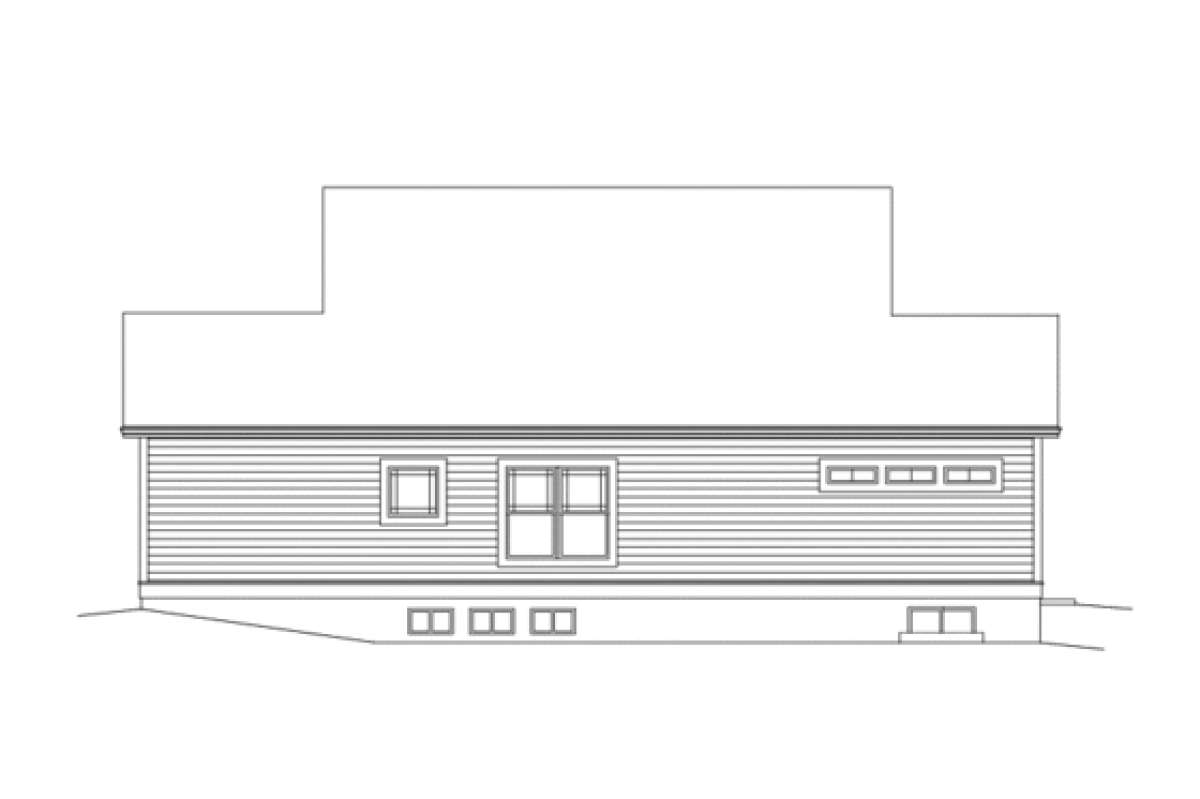

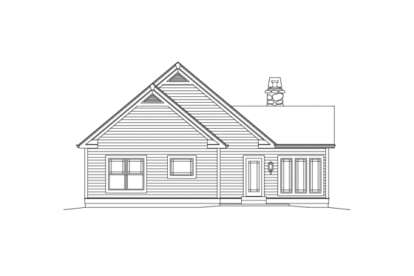

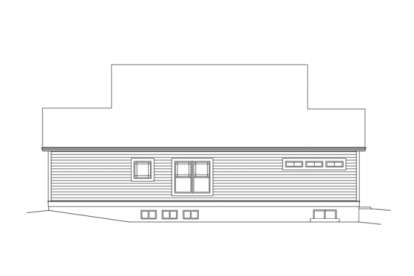

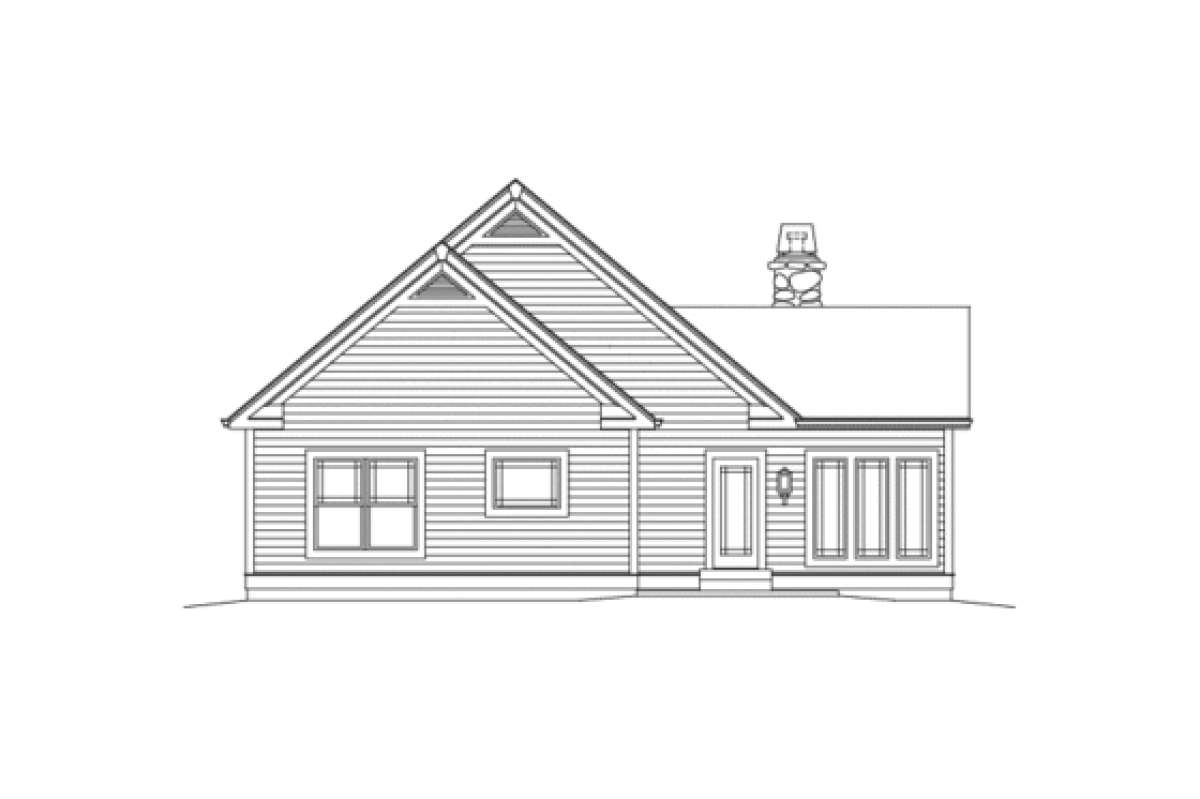

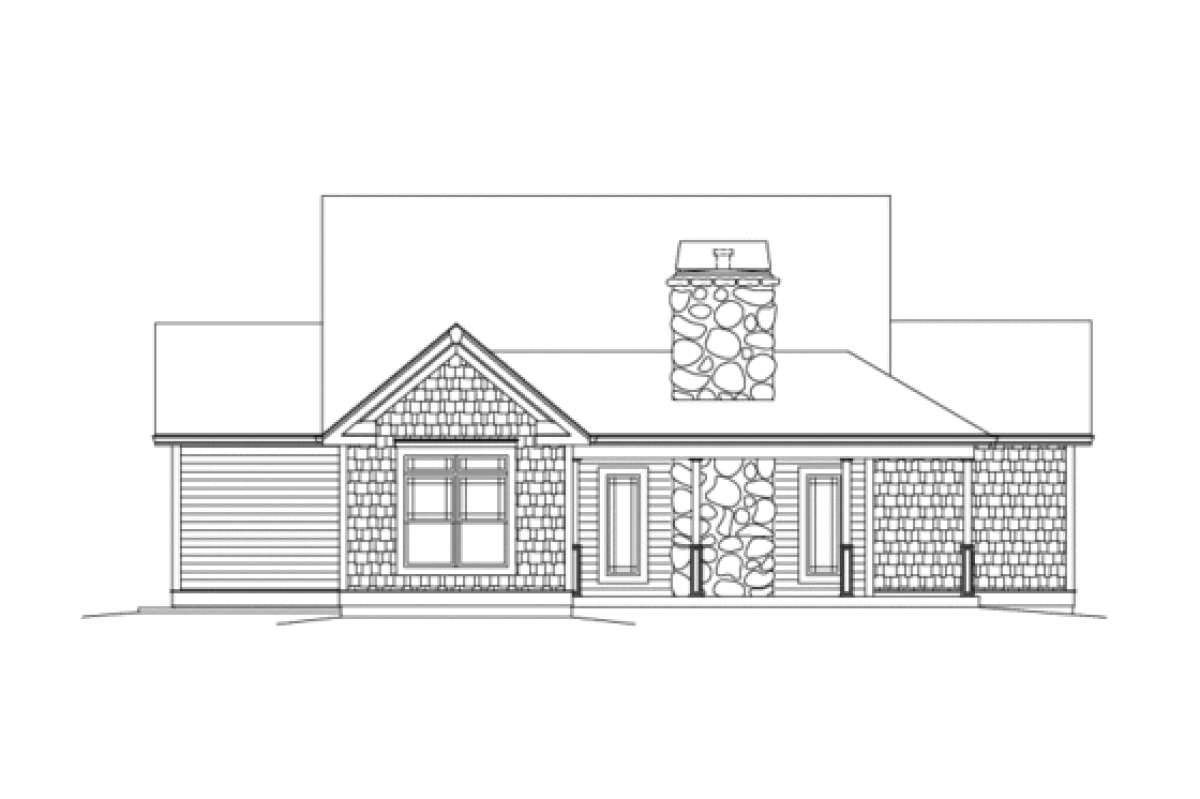

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This is a beautiful styled Ranch house plan with outstanding architectural design features and a functional and comfortable interior floor plan. There are approximately 1,582 square feet of living space on the main floor which incorporates three bedrooms and two baths into the home design. The home’s drawings are on a basement foundation which further enhances the home value and square footage by an additional 1,465 square feet. The detached two car garage features another 576 square feet of space; plenty for vehicle and other storage items. A striking exterior features an enormous wraparound front covered porch which is ideal for relaxing and entertaining large gatherings of family and friends. The home’s charming exterior is fully complemented with a simple construction roof line, columned beams, multiple gables and a stacked stone chimney. Entrance into the home’s interior is highlighted by numerous vaulted ceilings and an open concept design. The greeting foyer houses a coat closet before opening onto the vaulted great room which measures in excess of 17’x17’ and houses a handsome fireplace flanked with picturesque window views. The vaulted dining room has a plethora of window views and double access points onto the front covered porch and rear patio. An expansive angled breakfast bar is highlighted in the gourmet kitchen and further includes an enormous walk-in pantry and an abundance of additional counter and cabinet space.
The home’s main hallway contains the family sleeping and bathing quarters. Bedroom two features a spacious room with window views and ample closet space while the third bedroom has a generous floor plan, closet space and window views. There is a shared hall bath which features a vanity space, linen closet, toilet area and a shower/tub combination. The master suite is situated at the rear of the home for privacy and the master bedroom has a lovely design highlighted by coffered ceilings and an optional vaulted ceiling height. There is a triple and double set of windows which allow for a lighted filled and sunny space along with an oversized walk-in master closet off the bedroom which also contains linen space. The master bath is elegantly designed with dual vanities, a toilet area, a separate shower and a soaking tub with a window view. This home features expansive outdoor space, a comfortable interior floor plan and valuable expansion possibilities.
