Ranch House Plan 5633-00209

Sq Ft1,281
1/2 Baths0
Width37' 6"
Depth52' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

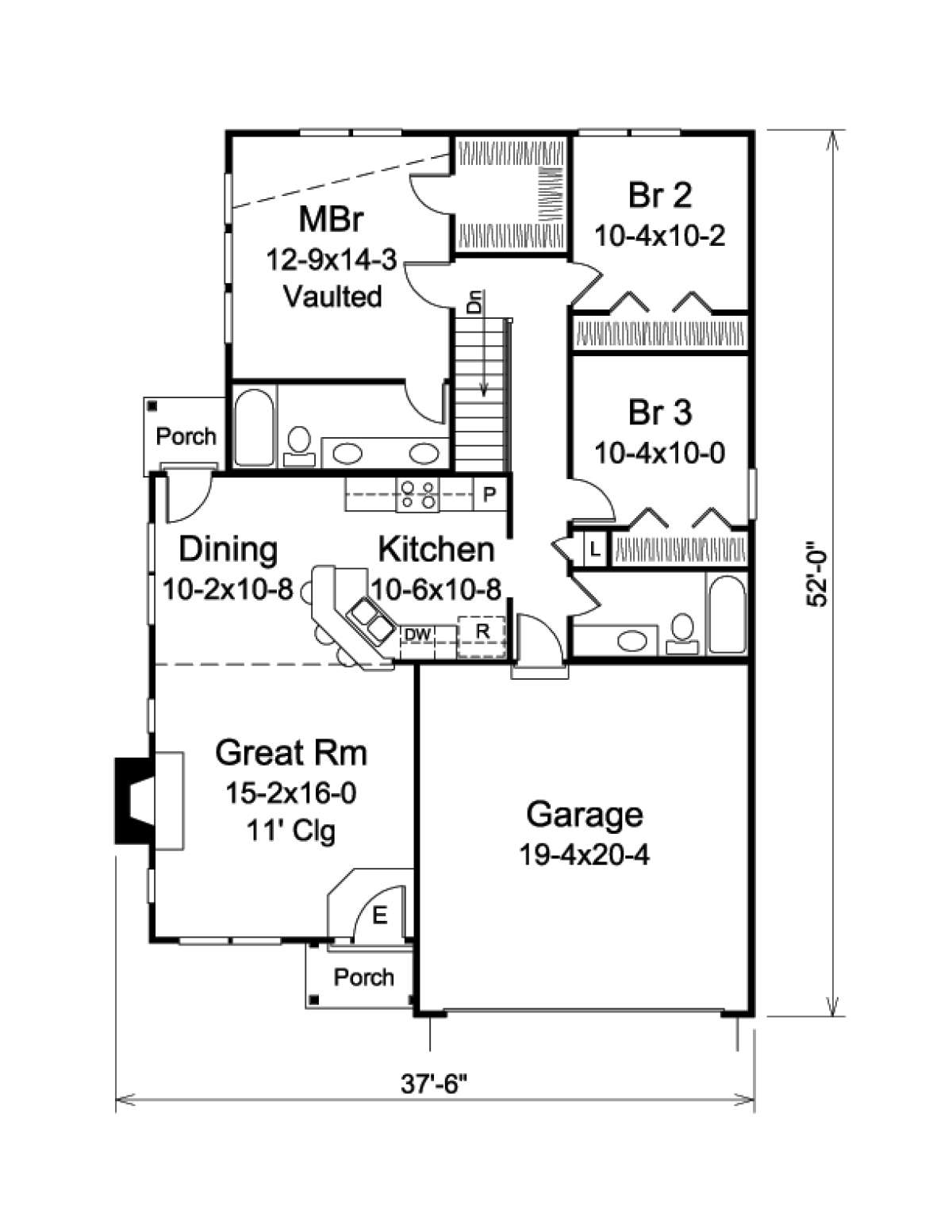

Floorplan 1 for House Plan #5633-00209
Floorplan 1
Floorplan 1 for House Plan #5633-00209

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

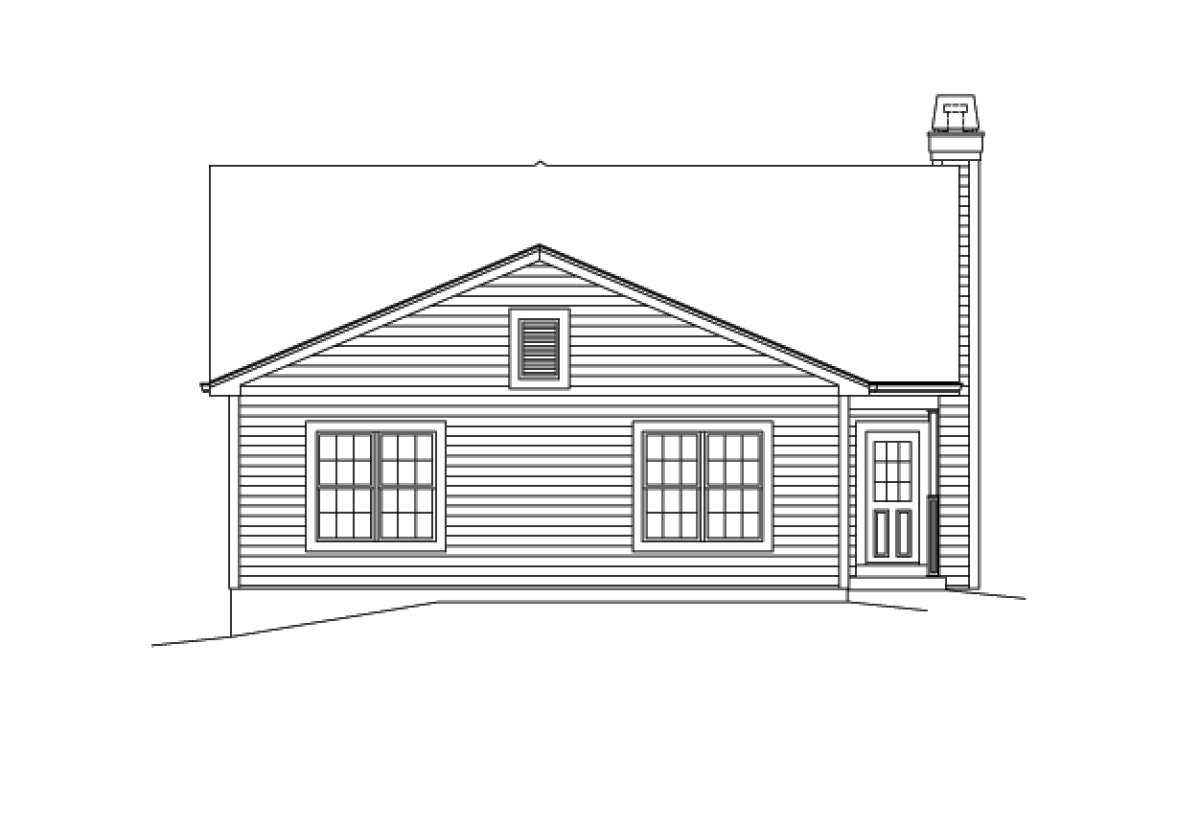

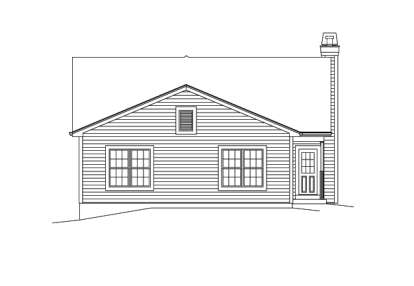

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch style home design boasts of a stylish exterior façade that features a myriad of window accents allowing for a light filled home overflowing with warmth and character. Multiple gables, siding and a front covered porch blend beautifully to enhance the home’s exterior. There are in excess of 1,280 square feet of living space on the main floor which incorporates three bedrooms and two baths in the floor plan. An additional 408 square feet of space is highlighted in the two car garage which is expansive allowing for plenty of vehicle storage. This home enjoys a basement foundation which increases the home’s versatility and value. The greeting foyer opens onto the great room and open concept design; the great room features a handsome fireplace, 11’ ceiling heights and a plethora of window views. The dining room is highlighted by window views, as well, and has access to the side porch. The family friendly kitchen offers an angled raised breakfast bar, perfect for casual dining and entertaining, along with a separate pantry and an abundance of additional counter and cabinet space.
Two family style bedrooms, a linen closet and a shared bathroom line the hallway. Both bedrooms feature window views and abundant closet space. The shared hall bath features an impressive sized vanity, a toilet area and a tub/shower combination. The master suite is highlighted by a large, vaulted bedroom which is bright with its abundance of window views and there is an oversized master walk-in closet. The master bath features a large vanity with dual sinks, a toilet area and a tub/shower combination. This beautiful floor plan makes for a comfortable and versatile home with expansion possibilities on the basement level.
