Cape Cod House Plan 5633-00200

Sq Ft2,215
Beds3
Baths2
1/2 Baths1
Stories1
Cars2
Width91' 10"
Depth52' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

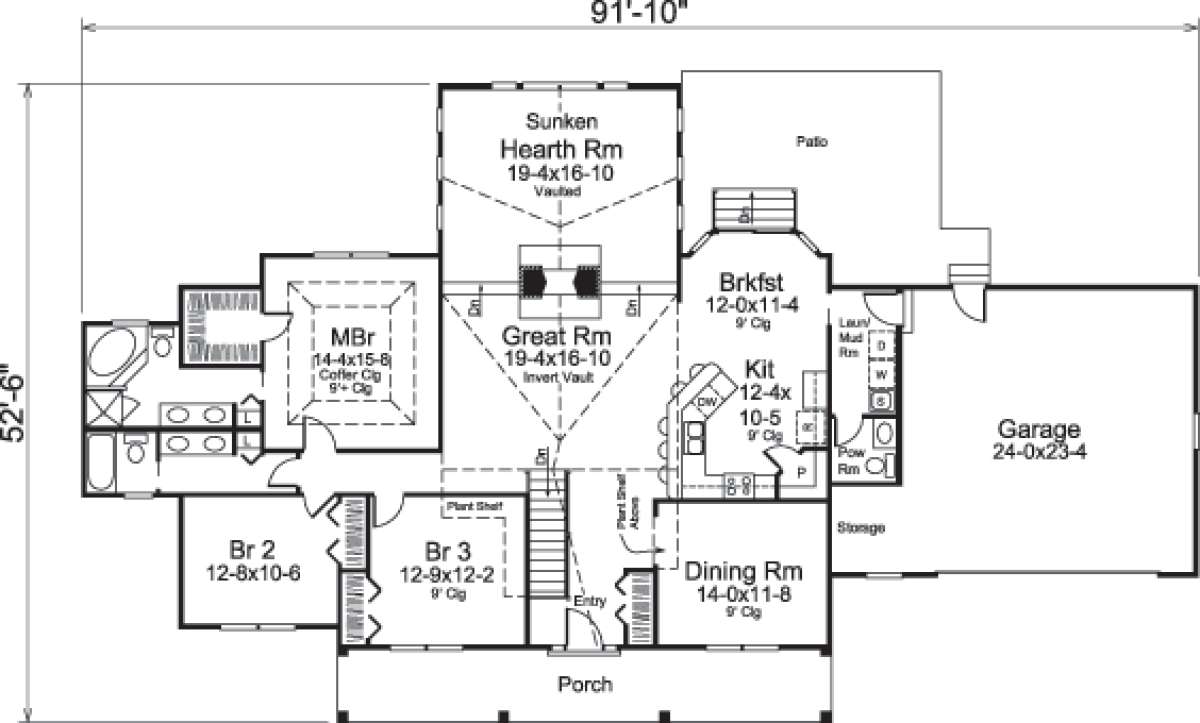

Floorplan 1 for House Plan #5633-00200
Floorplan 1
Floorplan 1 for House Plan #5633-00200


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

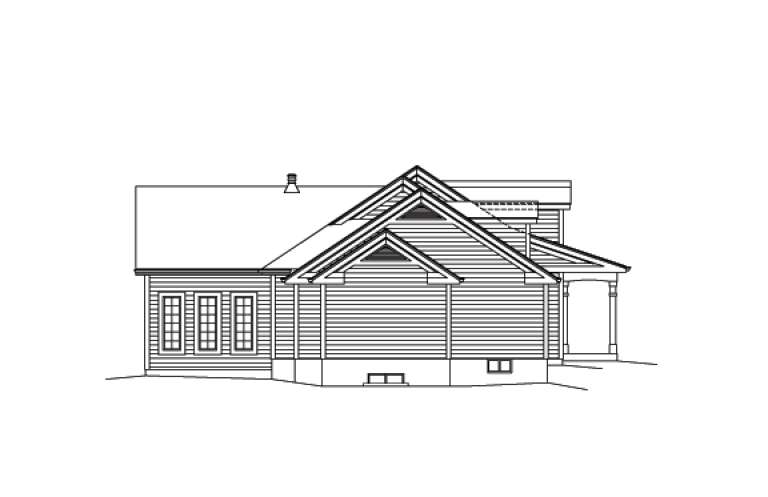

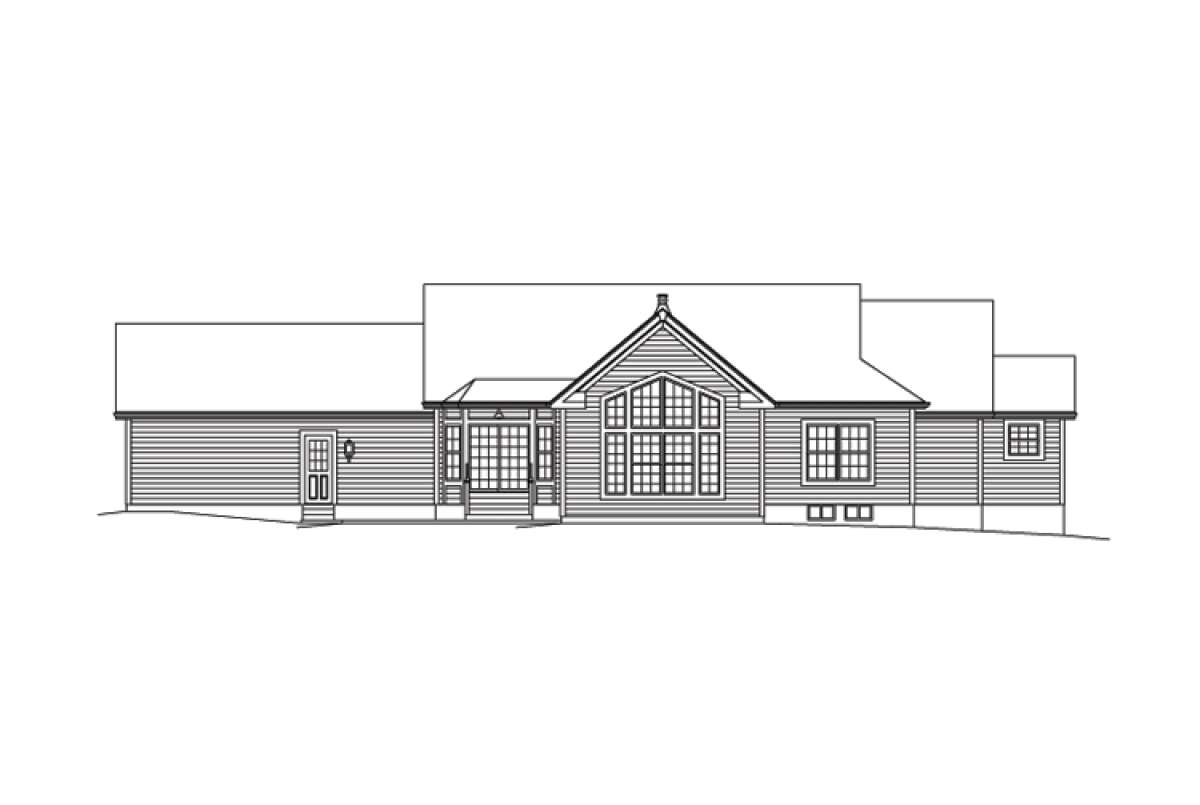

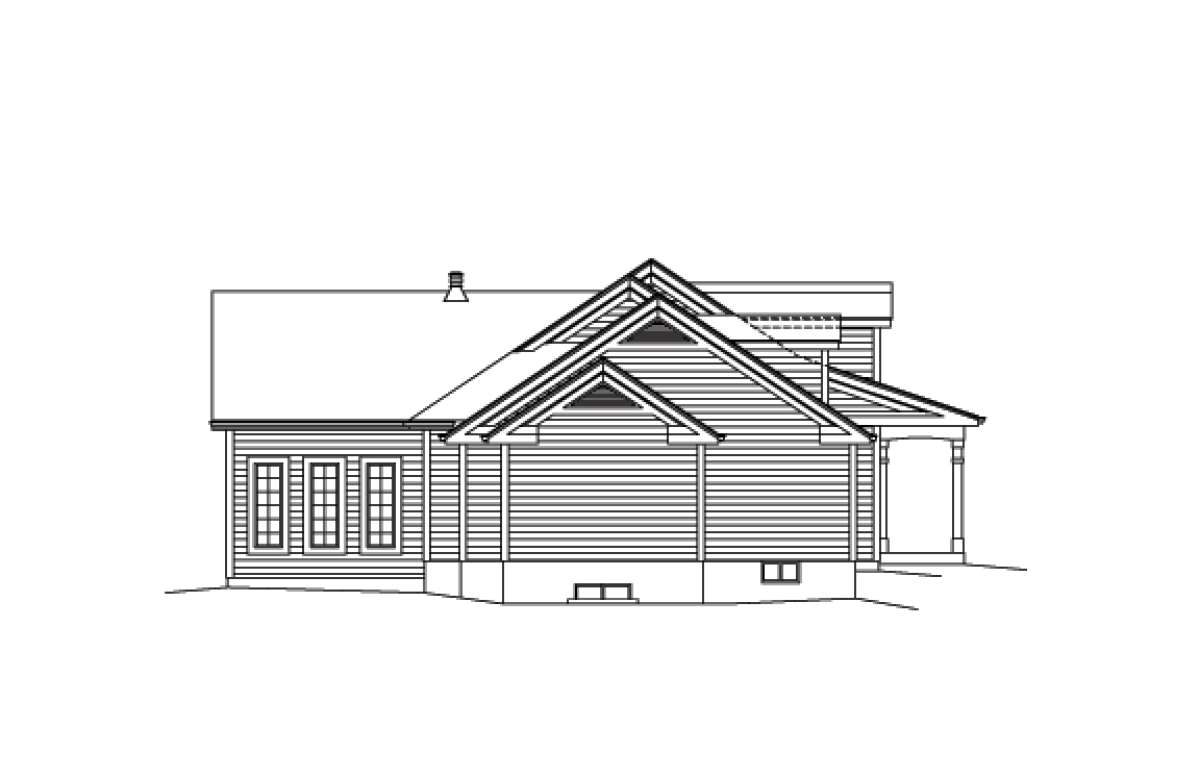

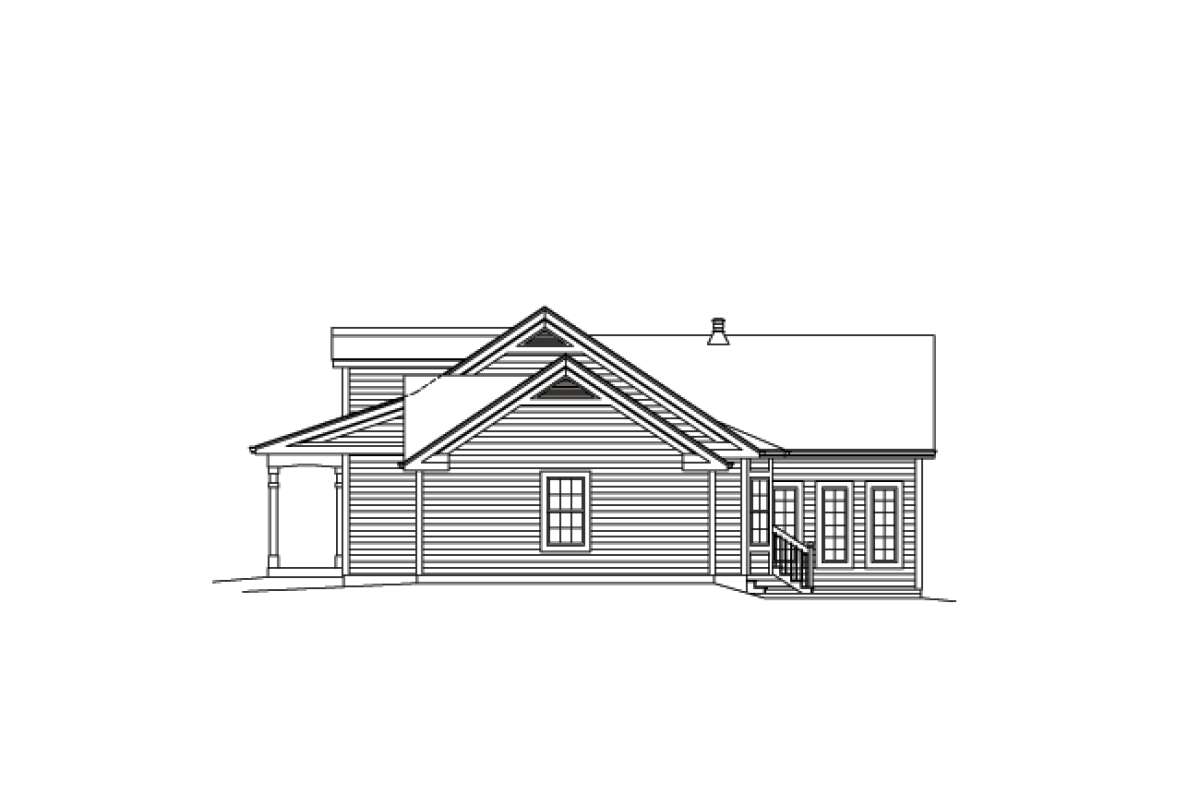

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Simple construction blends beautifully with an expansive front covered porch and an abundance of window dormers creating a welcoming exterior façade. An imaginative and desirable floor plan is enhanced by an open concept floor plan featuring light filled rooms and great entertaining space. An extended foyer houses the lower level staircase and a coat/storage closet before simultaneously opening onto the magnificent great room and formal dining room. This space is topped with an inverted vaulted ceiling and enjoys warm ambience from the see-thru stone surround fireplace. At the rear of the space is a sunken hearth room with soaring ceiling heights and surrounding window views providing an enjoyable space for entertaining and/or “hanging out” with the family. The sun kissed breakfast room is nestled in a large bayed window that provides step-down access to the rear patio while the family friendly kitchen has additional casual dining space and a separate walk-in pantry. The two car garage leads to the interior laundry/mud room and a powder room for guests.
Bedroom two has great window views and plentiful closet space while the third bedroom offers an L-shaped plant shelf running atop the wall space and identical closet space. Both bedrooms have great window views and there is a shared hall bath with double vanities and a hall linen closet as well. The master suite is situated at the rear of the home for privacy and convenience and beautiful coffered ceilings are highlighted in the master bedroom. There is an oversized master walk-in closet and a luxurious master bath. The bath is outfitted with dual vanities, a corner garden tub along with a linen closet and a separate shower is included. The home has a versatile floor plan which includes in excess of 2,200 square feet on the main level; however, the home’s drawings include a basement foundation which almost doubles the square footage adding immeasurable value to the home.
