Ranch House Plan 5633-00197

Sq Ft2,254
1/2 Baths1
Width75' 0"
Depth59' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

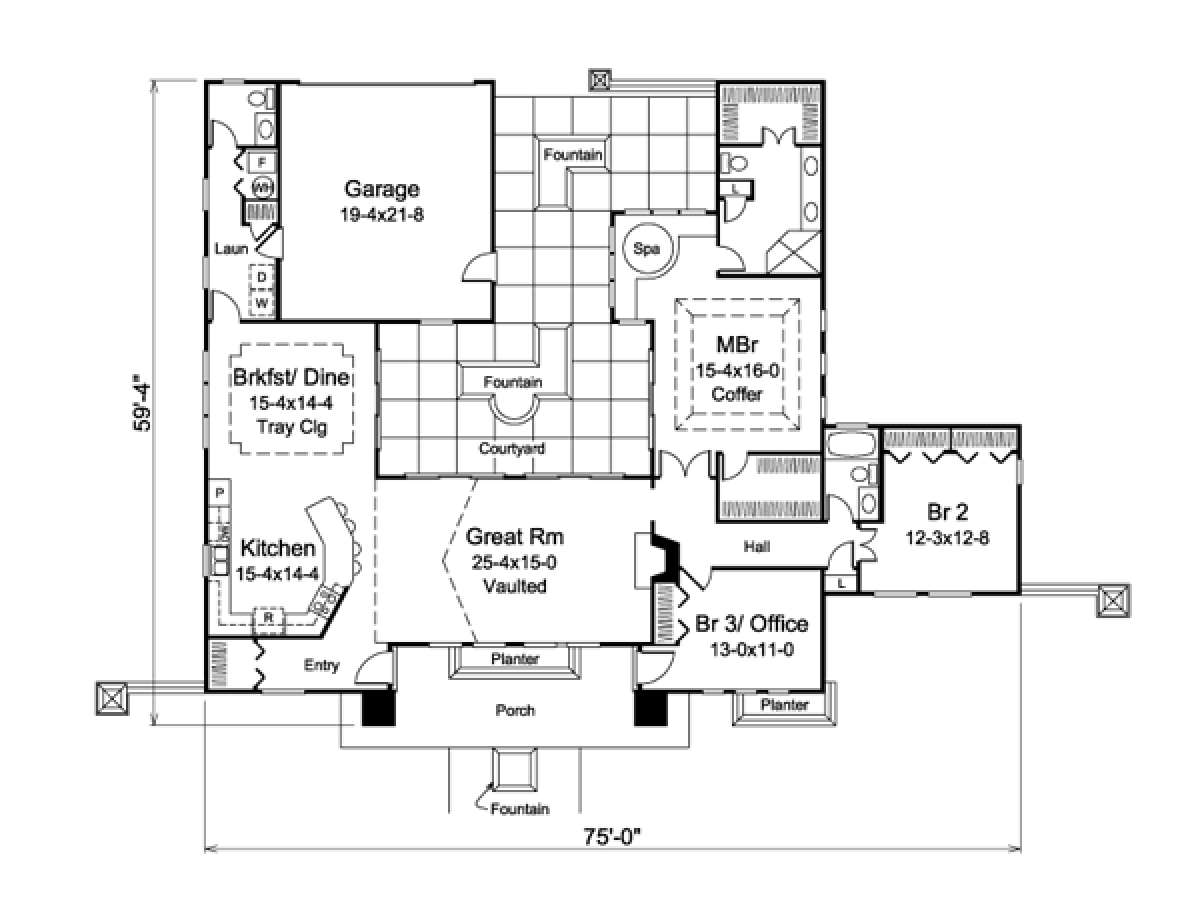

Floorplan 1 for House Plan #5633-00197
Floorplan 1
Floorplan 1 for House Plan #5633-00197

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This expansive Ranch styled home is highlighted with an impressive amount of outdoor space along with an interior floor plan brimming with unique architectural design features. The one story home comes complete with three bedrooms and two plus bathrooms in approximately 2,254 square feet of living space. Additionally, there is a large two car, rear entry garage containing 438 square feet; plenty of space for vehicles and other gear storage. This unique floor plan is a combination of indoor and outdoor space blending beautifully to attain the highest satisfaction in casual living. The front entrance is highlighted with a fountain and planter box and successfully alludes to what awaits you once you step inside. The centrally located great room is massive highlighted by vaulted ceilings and a warming fireplace. Beyond the great room is an enormous amount of outdoor space complete with a courtyard and additional fountains; this space is highly coveted for its entertaining value and anchors the indoor living space providing multiple points of access into the home. The gourmet kitchen features an impressive amount of counter space resulting in an end breakfast bar and there is a separate pantry. A breakfast room features a trey ceiling, a triple wall of windows and overlooks the rear courtyard. There is an interior laundry room and powder room for guests situated off the garage.
Bedroom two is spacious with double closets, French door access and there is an adjacent full bath and linen closet. The third bedroom is large with ample closet space, great window views and two access points making it ideal for use as a home office or study. The master retreat is a light filled suite with a massive amount of window views and multiple access point overlooking the center courtyard. The master bedroom is accessible through French doors and is highlighted with coffered ceilings, his and her walk-in master closets and a lavish en suite master bath. The master bath features a gorgeous spa area with courtyard views; additionally, there are double vanities, a separate shower, linen closet and a private toilet area. This home offers a fully functional interior floor plan and outstanding outdoor space.
