Ranch House Plan #5633-00195 Elevation Photo

Ranch House Plan #5633-00195 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,740

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 58' 8"

Depth 41' 4"

See What's Included

Select Package

PDF (Single Build)

$1,049.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,449.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,049.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,149.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,649.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$2,049.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $150.00

Convert the exterior framing to 2x6 walls.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Floorplan 1

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')
Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS

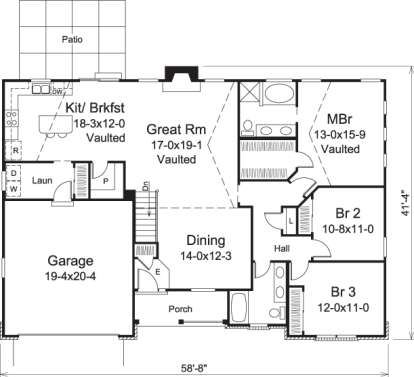

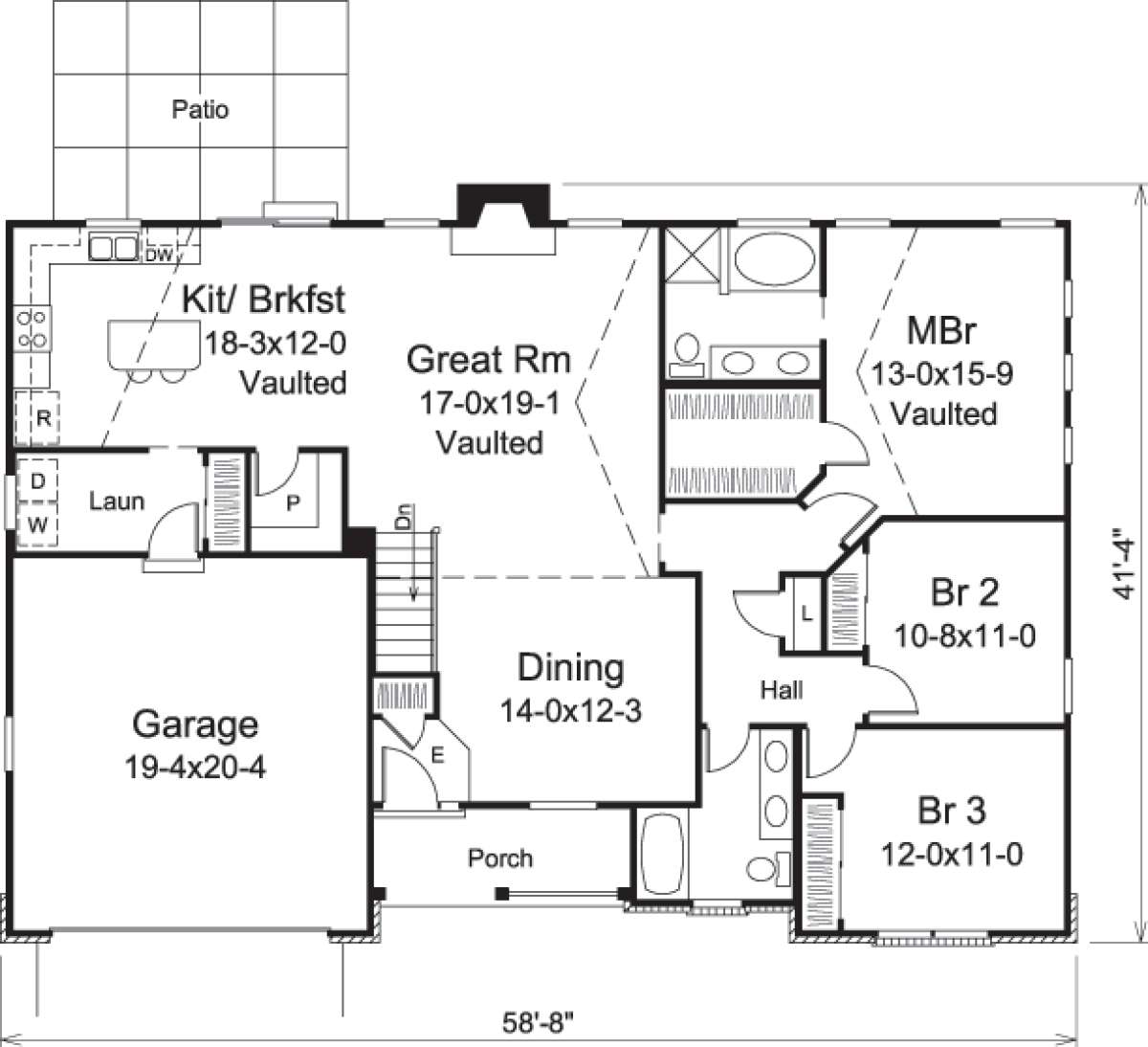

This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
SET OF ELEVATIONS

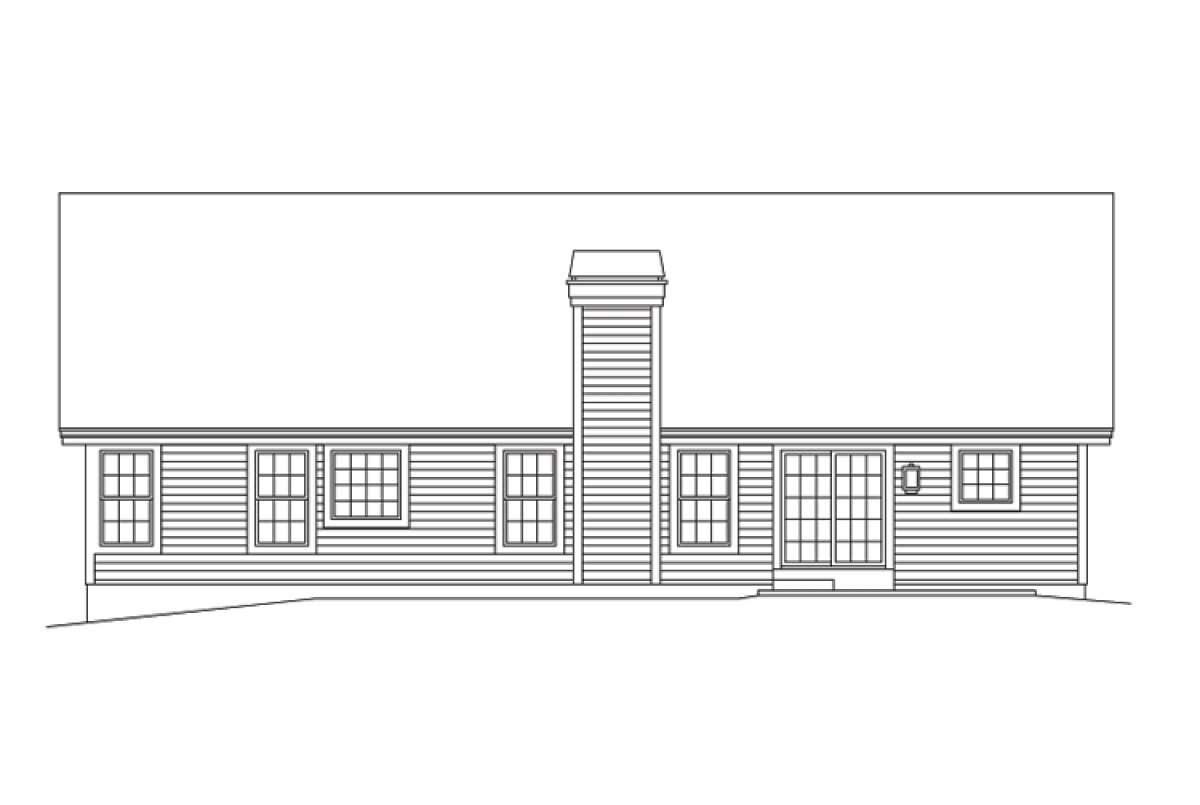

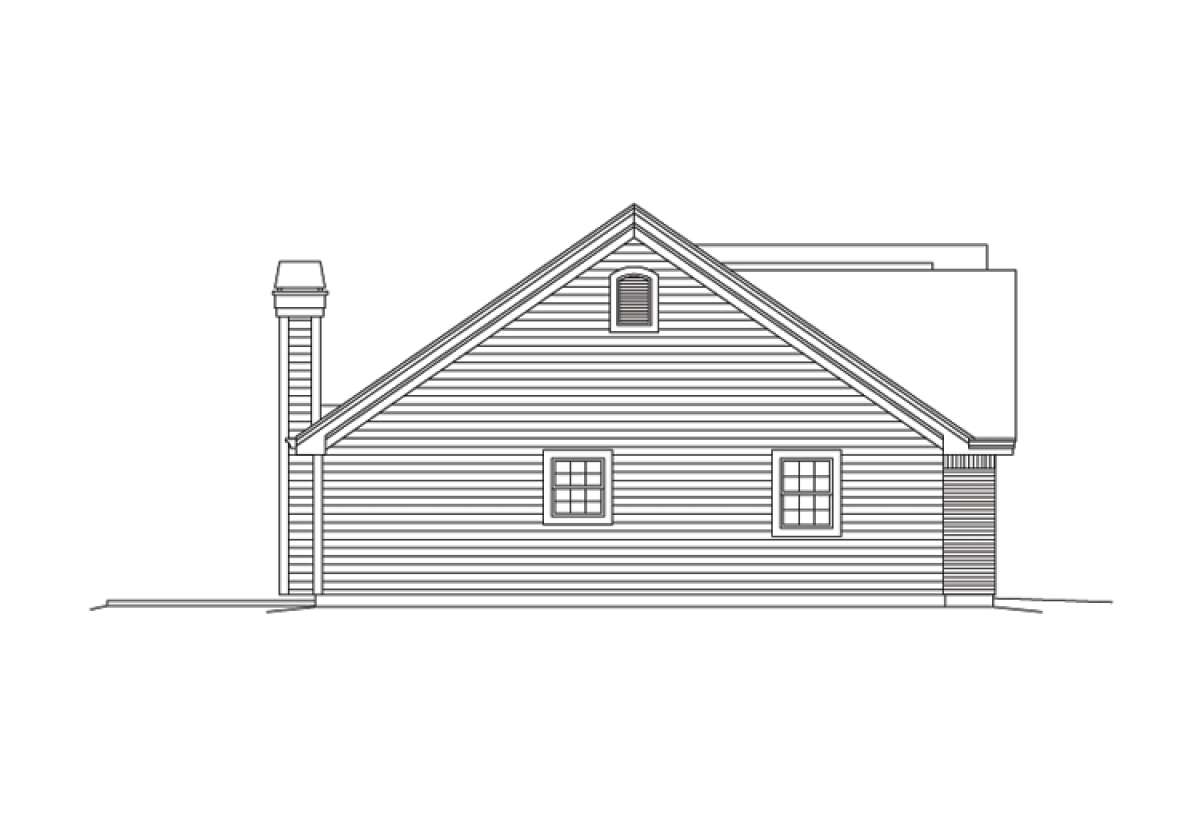

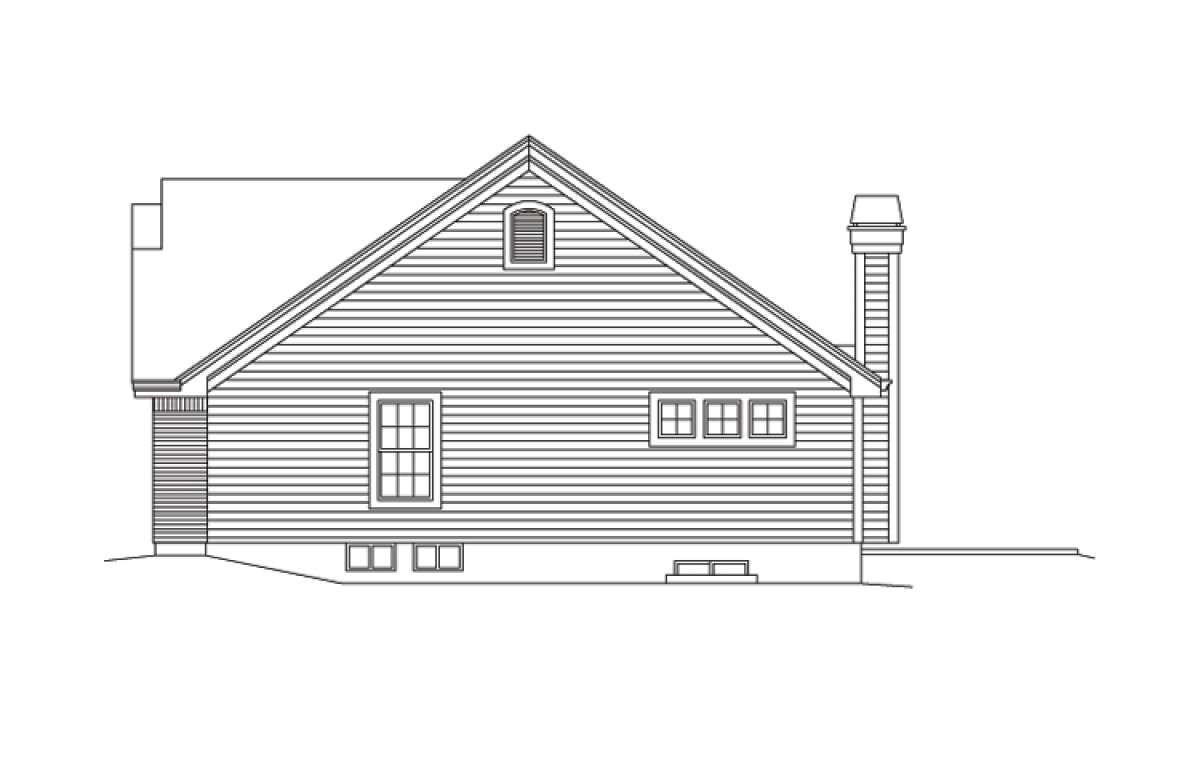

This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

Brick, siding and cedar shakes accentuate the exterior façade and blend beautifully with the front covered porch in this Ranch style home design. There are two cedar shake encased window dormers with wide eaves, a brick central exterior wall feature and a front covered porch highlighted with open railing which add visual and architectural design interest to the home. The interior floor plan incorporates three bedrooms and two bathrooms into approximately 1,740 square feet of living space. The single story home features a basement foundation which adds an additional 1,614 square feet of space, value and versatility. There is a two car, front loading garage which offers another 411 square feet of vehicle and other storage space. Entrance into the home features a greeting foyer and coat/storage closet before opening onto the vast open concept living plan. There is a spacious formal dining room which opens onto the vaulted great room, measuring in excess of 17’x19’, with a warming fireplace and picture window views overlooking the rear yard. The vaulted kitchen and breakfast room is expansive and highlighted by an oversized walk-in pantry, a large center island with breakfast bar, loads of additional counter and cabinet space and rear patio access. The interior laundry room is spacious, has closet and storage space and is situated off the garage for ease and convenience.
The other side of the home features a master suite, two family styled bedrooms and two bathrooms. Bedroom two is highlighted with a window view, generous closet space and spacious floor space while the spacious third bedroom features double window views and plentiful closet space. There is a shared hall bath with double vanities, a toilet area and a shower/tub combination along with a hall linen closet. The master suite is situated at the rear of the home for privacy and features a lavish master bedroom with vaulted ceilings, a multitude of window views and an oversized master walk-in closet. The elegantly designed bathroom is highlighted with dual vanities, a separate shower, toilet area and a garden tub with a window view. This beautifully designed home is family friendly with a functional floor plan and unlimited expansion possibilities.
