Ranch House Plan 5633-00192

Sq Ft1,605
1/2 Baths0
Width59' 0"
Depth52' 0"
Ranch House Plan #5633-00192 Elevation Photo

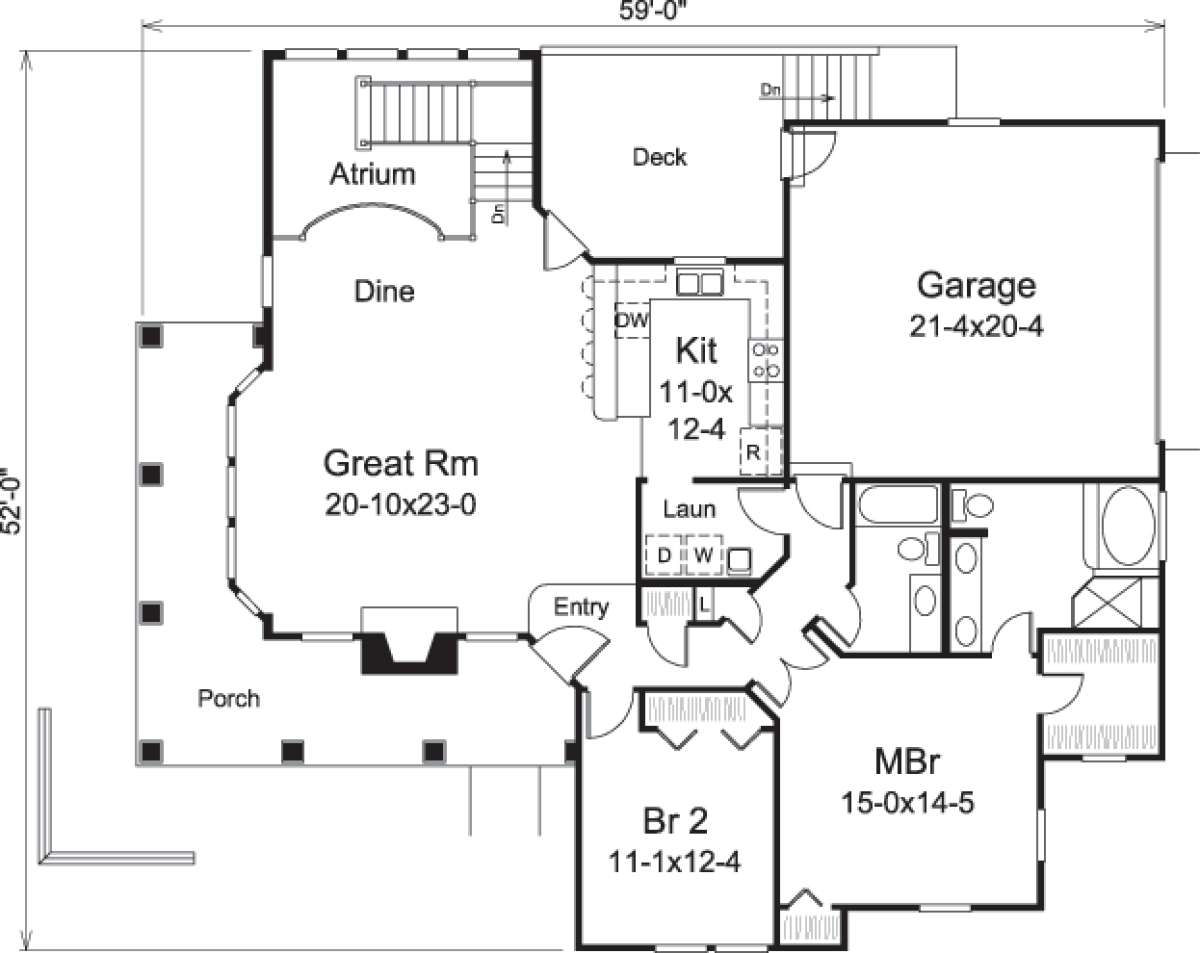

Floorplan 1

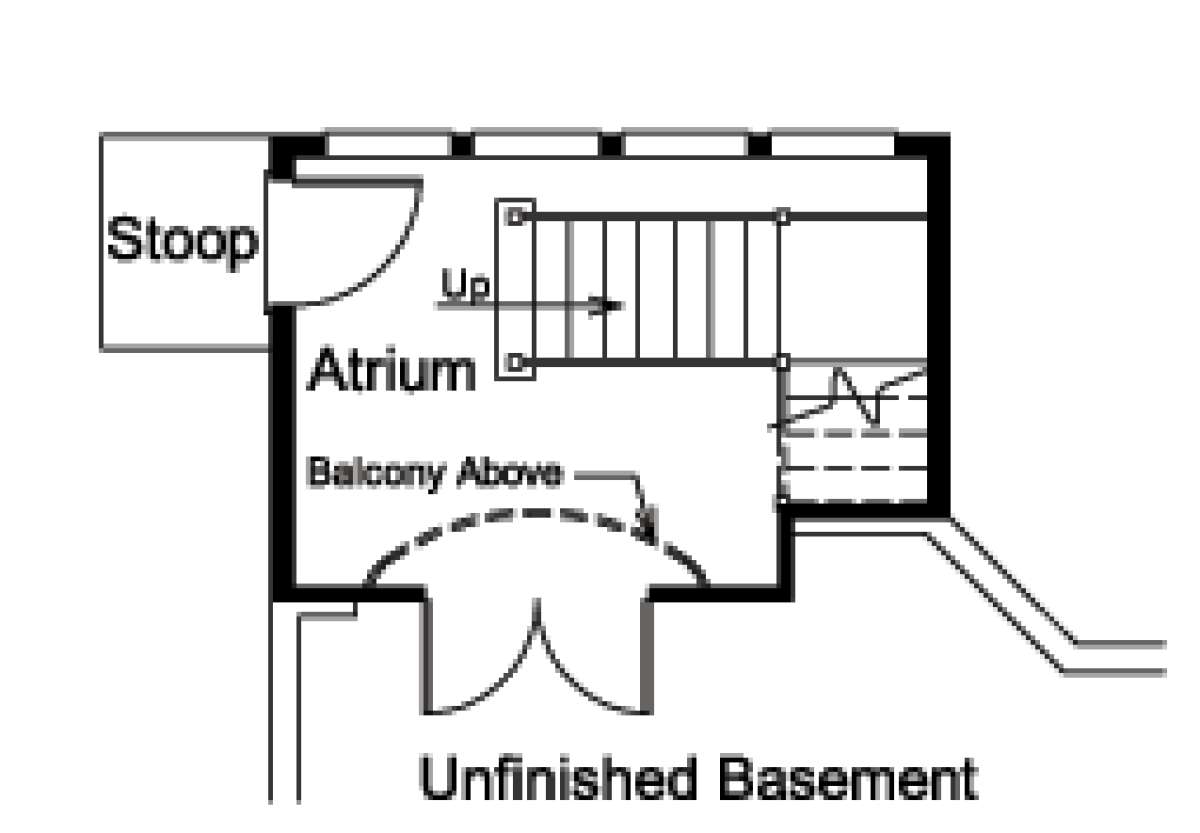

Floorplan 1 for House Plan #5633-00192
Floorplan 2
Floorplan 2 for House Plan #5633-00192
Ranch House Plan #5633-00192 Elevation Photo
Ranch House Plan #5633-00192 Elevation Photo
Floorplan 1 for House Plan #5633-00192
Floorplan 2 for House Plan #5633-00192
Ranch House Plan #5633-00192 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00192
Floorplan 2 for House Plan #5633-00192
Floorplan 1
Floorplan 1 for House Plan #5633-00192
Floorplan 2
Floorplan 2 for House Plan #5633-00192

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Florida Style house plan is accentuated with a striking exterior façade highlighted with a stucco exterior, wrap-around columned porch and a Palladian styled window with custom grilles. The atrium home with Sunbelt style features 1,605 total square feet of living space and incorporates two bedrooms and two bathrooms in a single story. The home’s drawings include a walk-out basement with an additional 1,320 square feet of space which provides future expansion possibilities. There is a two car, side entry garage with another 450 square feet of space; plenty of room for vehicle and other storage gear. There is a greeting foyer off the front covered porch that extends into the enormous great room. The great room measures in excess of 20’x23’, houses a handsome fireplace and is sun drenched with a plethora of fabulous window views. The dining space is adjacent to the atrium and provides rear deck access. A breakfast bar overlooks the dining space and great room and the U-shaped kitchen provides plenty of additional counter and cabinet space. There is a spacious utility room with convenient sink area.
Bedroom two is large with great window views and plentiful closet space. A linen closet and coat/storage closet line the hallway and there is a hall bath, as well, which is highlighted by a vanity space, a toilet area and a tub/shower combination. The master suite enjoys a generous footprint which includes a large master bedroom which double window views. There is an oversized master walk-in closet along with a second, smaller, walk-in closet. The elegantly designed master bath features dual sinks, a private toilet area, separate shower and a gorgeous garden tub with window views. This home is ideal for young professionals, a young family and/or empty nesters and the expansion options fulfill additional space requirements, if needed.
