Ranch House Plan 5633-00191

Sq Ft1,663
1/2 Baths0
Width60' 8"
Depth50' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

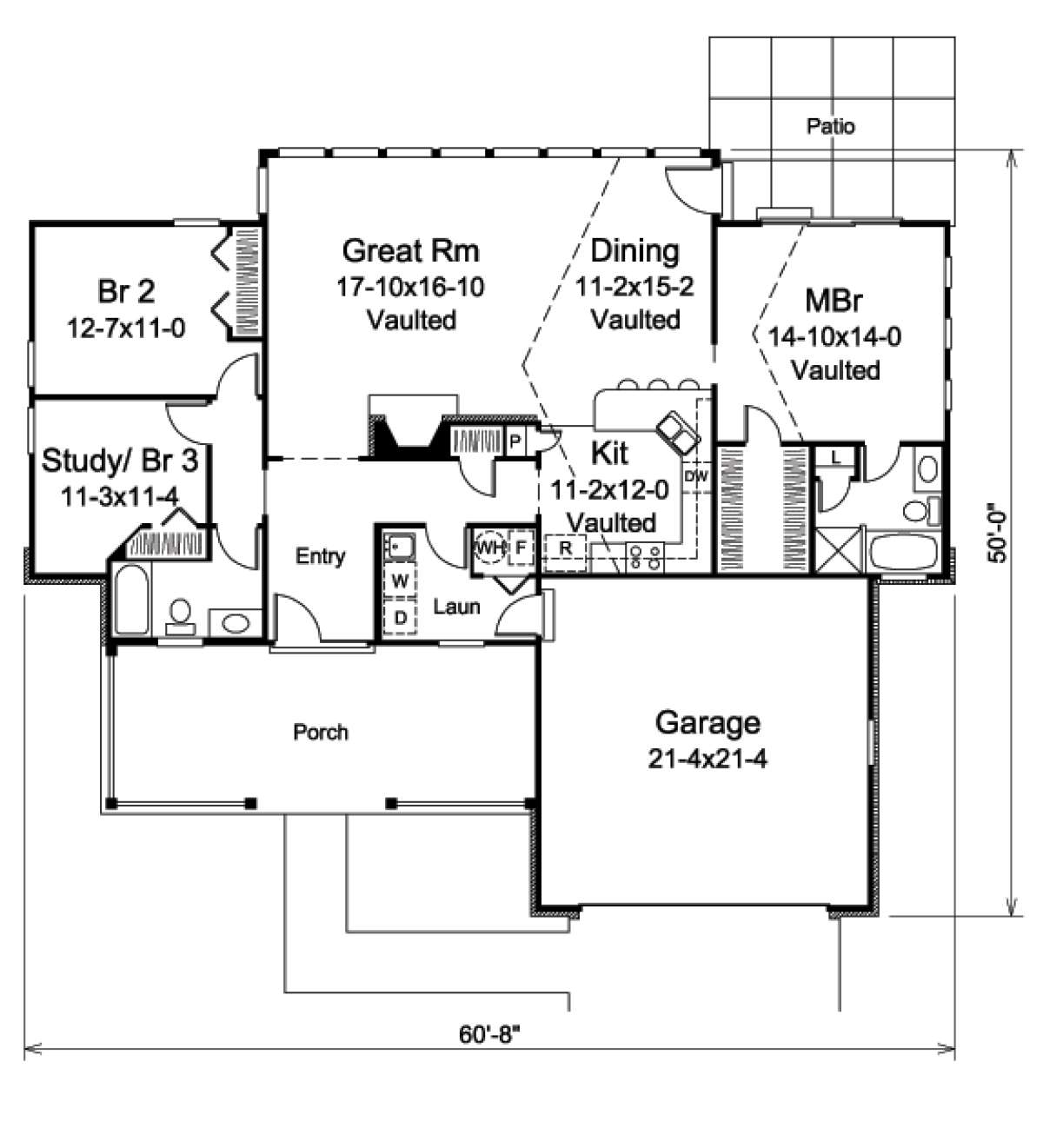

Floorplan 1 for House Plan #5633-00191
Floorplan 1

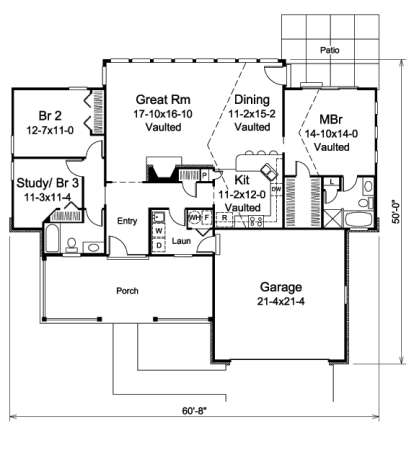

Floorplan 1 for House Plan #5633-00191

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch home features an appealing exterior façade with enormous curb appeal and an equally striking interior floor plan. There are in excess of 1,660 square feet of living space comprised of three bedrooms and two baths. The two car garage has an additional 468 square feet of space that features an abundance of room for vehicles and other storage gear. The exterior façade of the home is both functional and aesthetically pleasing with its expansive and deep set front covered porch. This is a great space to relax, greet neighbors and friends and offers an inviting entrance into the home. Open railing on the porch front, triple window dormers, wide eaves, brick highlights and a balanced exterior enhance the beauty of the home’s exterior. Double doors provide entrance into the home’s spacious foyer and open concept floor plan. The enormous great room has a handsome fireplace and is vaulted along with the dining room. Both rooms provide fantastic entertaining space and the entire rear wall of the home is highlighted with window views and there is rear patio access as well. The U-shaped kitchen features a breakfast bar, a separate pantry and an abundance of additional counter and cabinet space. There is an interior laundry room situated off the garage for ease and convenience; it is a large space and includes a sink area.
The split bedroom plan features two family style bedrooms and a bath on one side of the home. Bedroom two is spacious, has great window views and plentiful closet space. The third bedroom could function as a home office/study and has generous closet space. There is a shared hall bath with large vanity space, a toilet area and a tub/shower combination. The master suite is located on the opposite side of the home for privacy and features a large vaulted bedroom with private access to the rear patio and an oversized master walk-in closet. The master bath is highlighted by a vanity space, toilet area, linen closet, separate shower and soaking tub. This family friendly home has spectacular curb appeal, outstanding outdoor space and a fully functional floor plan.
