Ranch House Plan 5633-00186

Sq Ft1,140
1/2 Baths0
Width38' 0"
Depth50' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

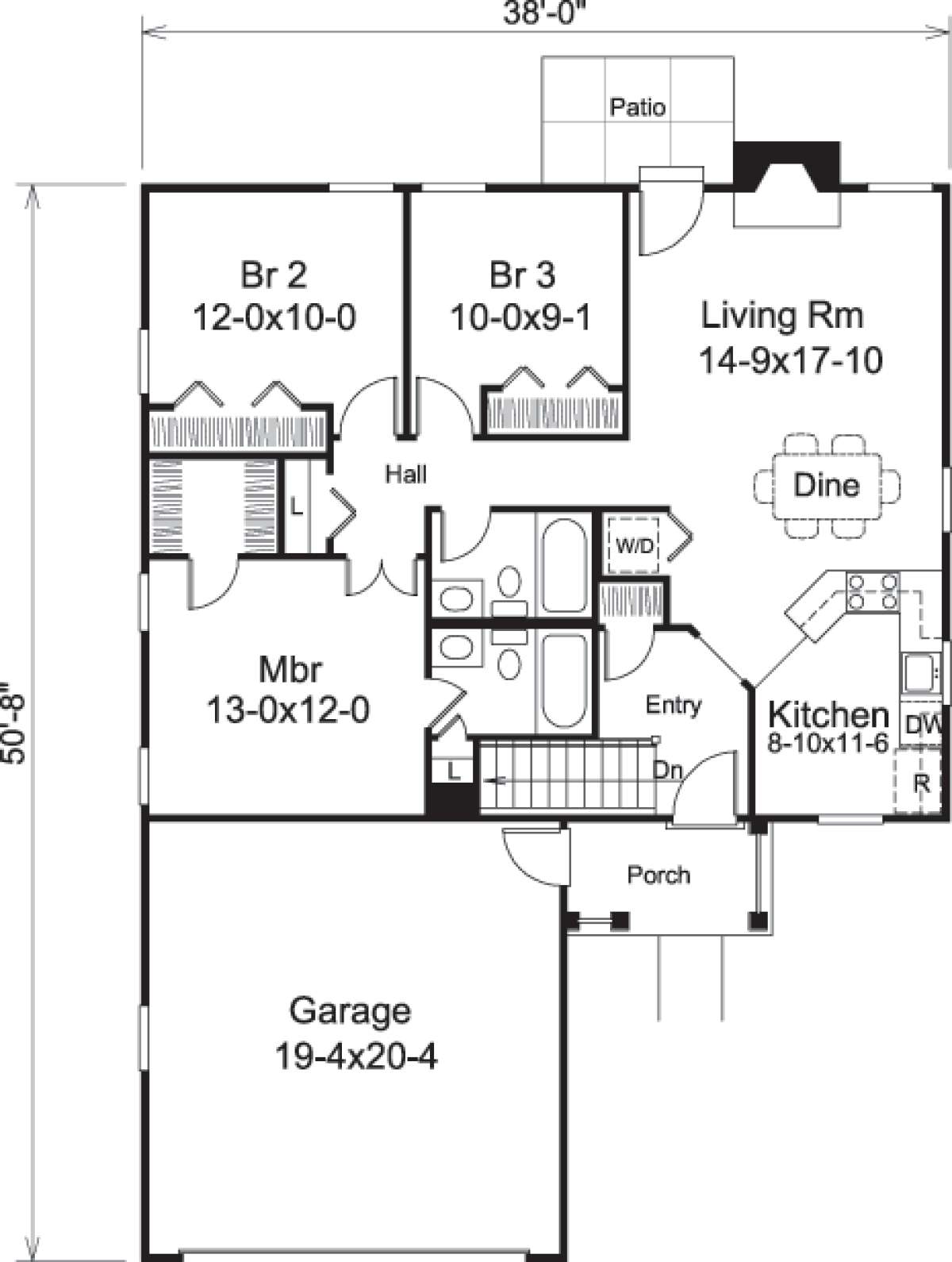

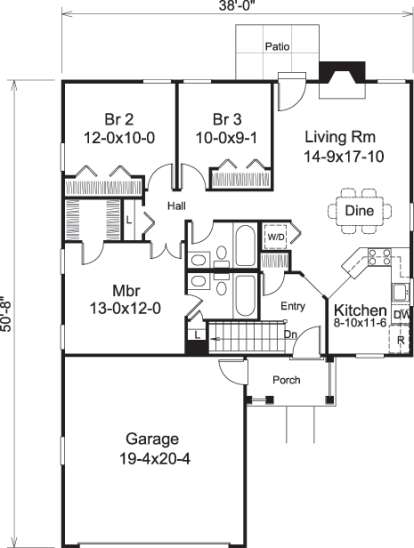

Floorplan 1 for House Plan #5633-00186
Floorplan 1
Floorplan 1 for House Plan #5633-00186

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

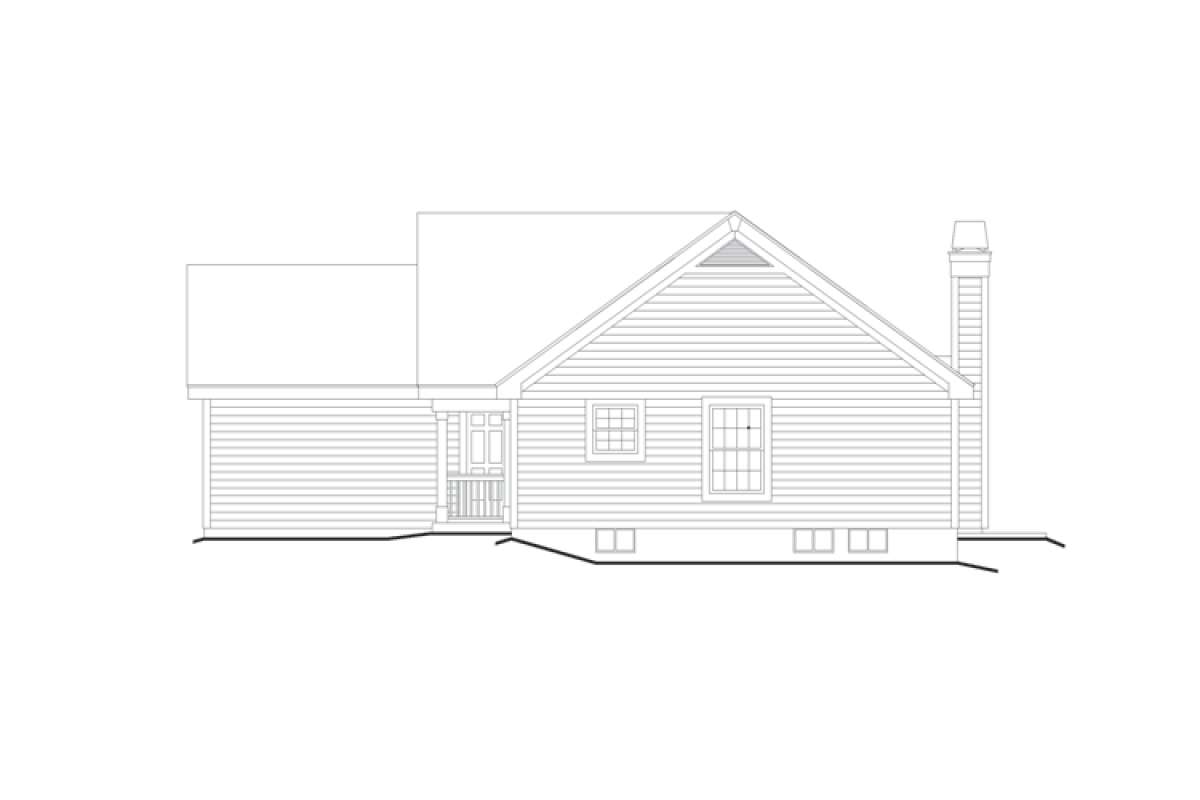

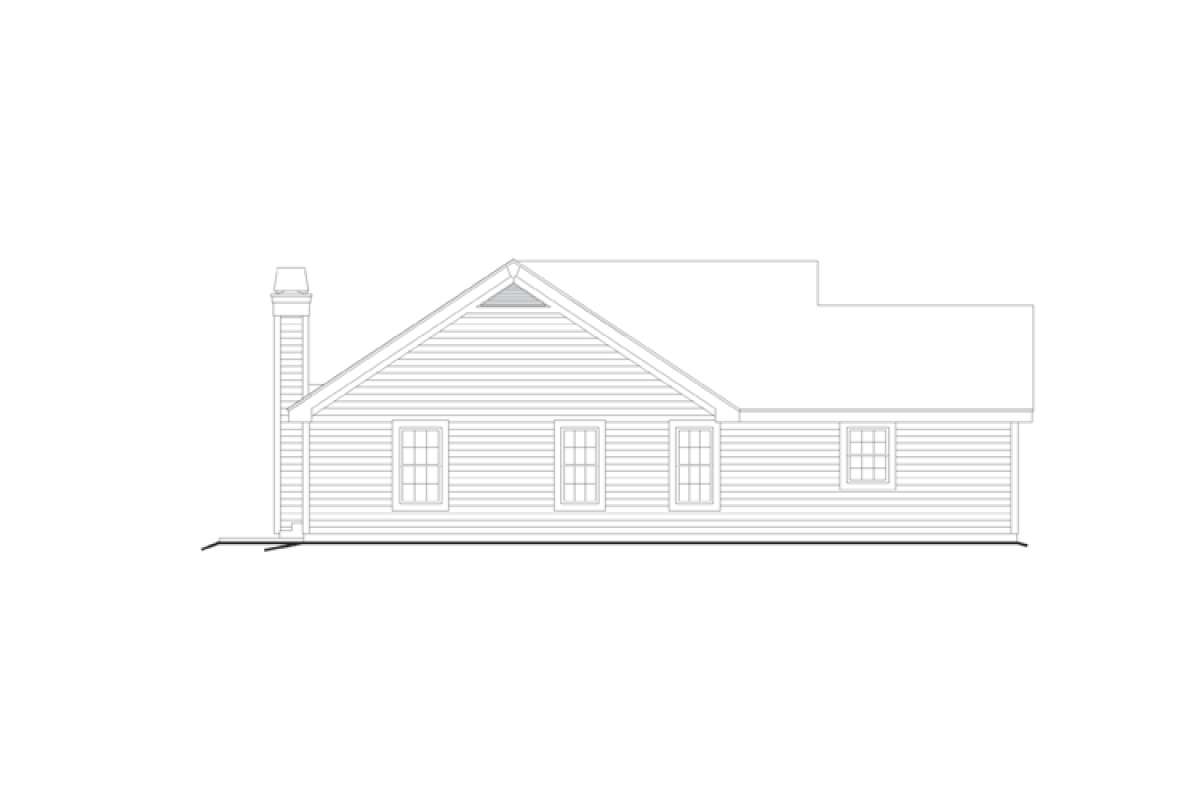

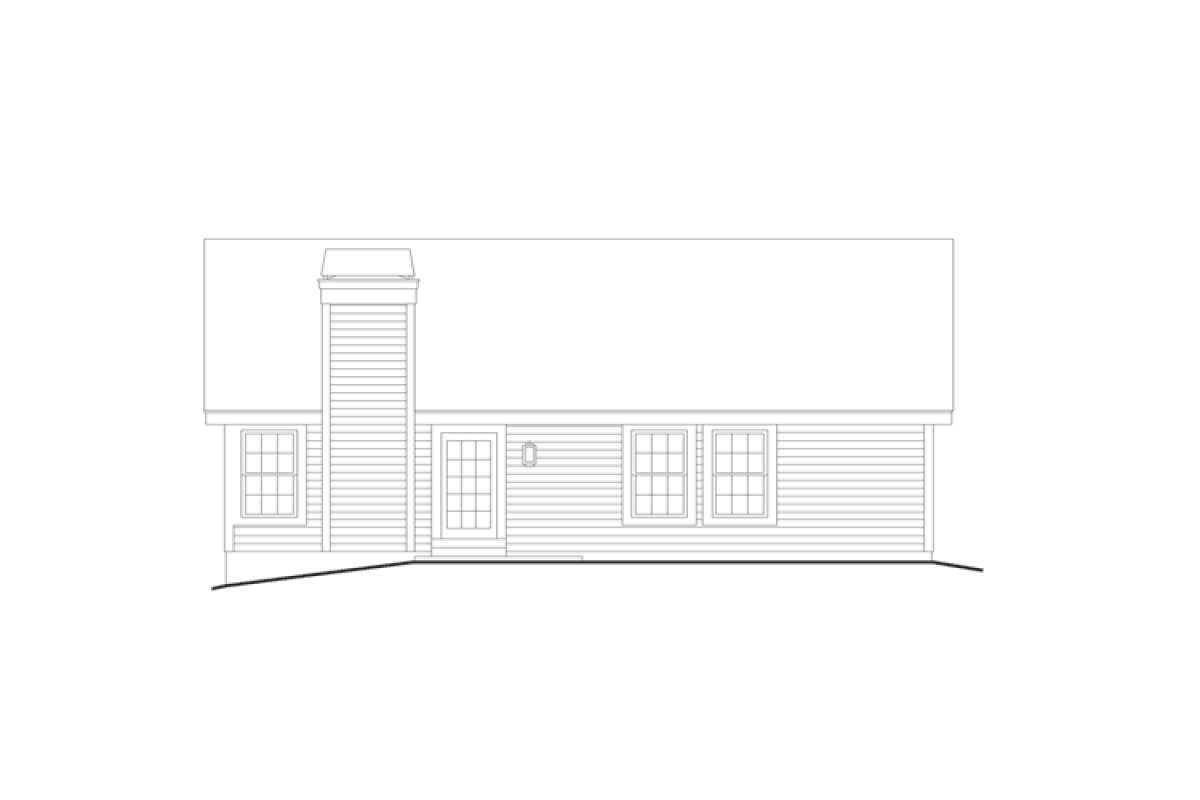

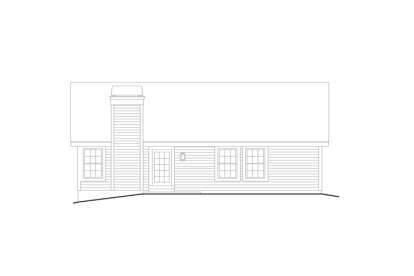

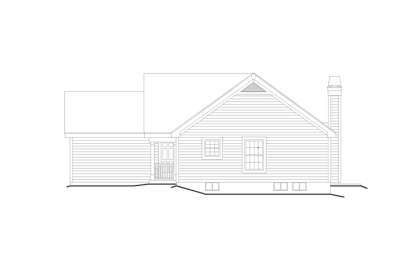

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This traditional style Ranch house plan features an exterior façade brimming with country flair and an interior floor plan that is spacious and comfortable. The exterior of the home is a simple construction of siding on a basement foundation which offers extended value and versatility; the drawings also include a slab or crawl space design. The interior floor plan is highlighted by approximately 1,040 square feet of living space and the basement level would mirror the main level floor space. Additionally, there is a two car garage which features 420 additional square feet of space for vehicle and other equipment storage. Entrance into the home is off the front covered porch into the greeting foyer which houses the lower level staircase and a coat closet. The open concept design is highlighted by a large living room featuring a handsome fireplace and access to the rear patio. The casual dining space anchors the living room and kitchen; the kitchen features a breakfast bar and plenty of additional counter and cabinet space. The family laundry nook is available before travelling the hallway to the family styled bedrooms and baths. Bedrooms two and three are spacious with wonderful window views and ample closet space. There is an adjacent shared hall bath and linen closet for the two bedrooms. The master suite enjoys a generous footprint with double window views and an oversized walk-in master closet. The private en suite master bath includes a vanity, linen closet, toilet area and a tub/shower combination. This delightful Country Ranch features an attractive exterior façade and a comfortable and expandable interior floor plan.
