Traditional Plan 5633-00183

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,203
Beds 4
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 42'
Depth 48' 8"

Floorplan Drawings

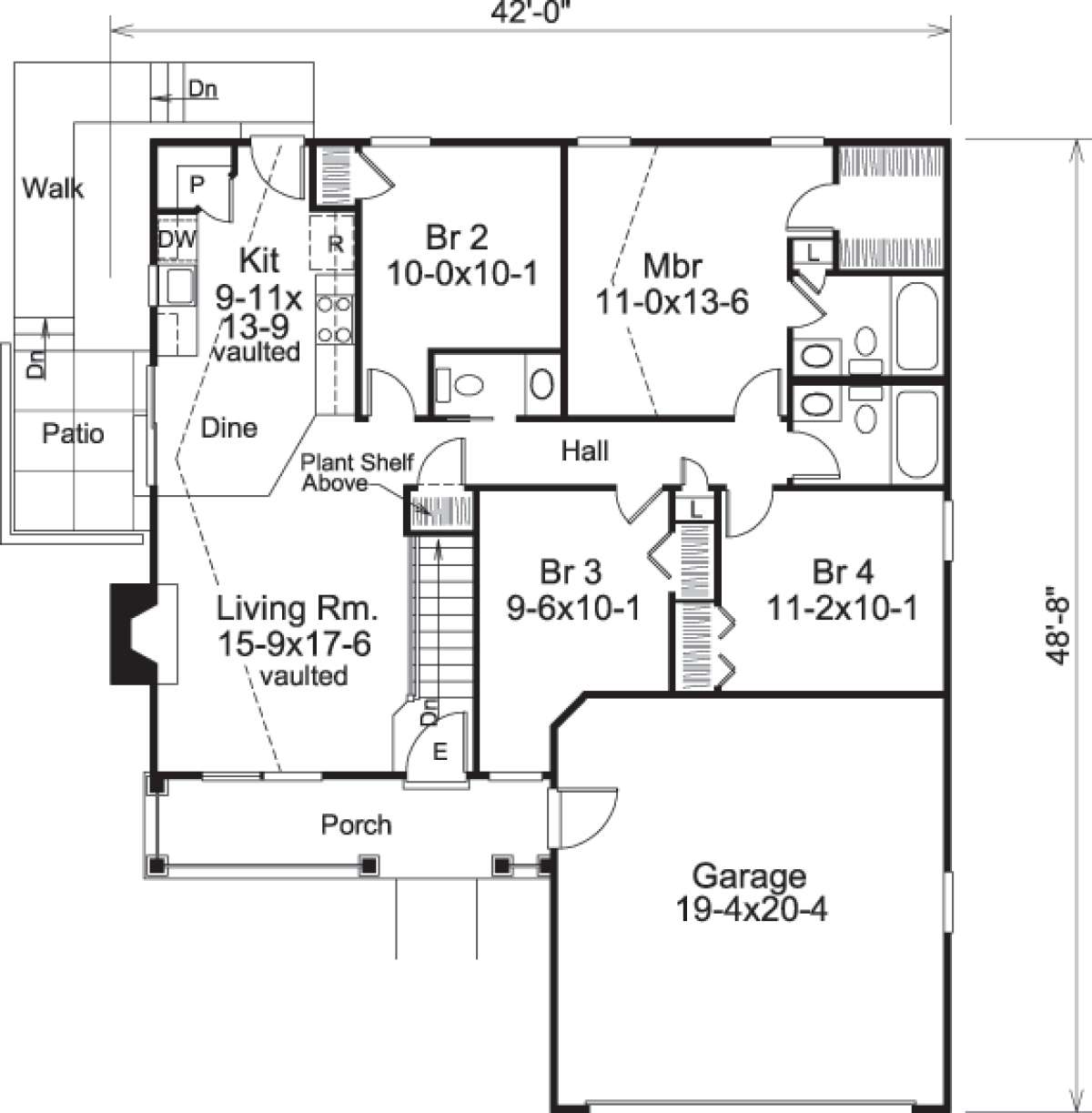

Floorplan 1
Floorplan 1 for House Plan #5633-00183


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

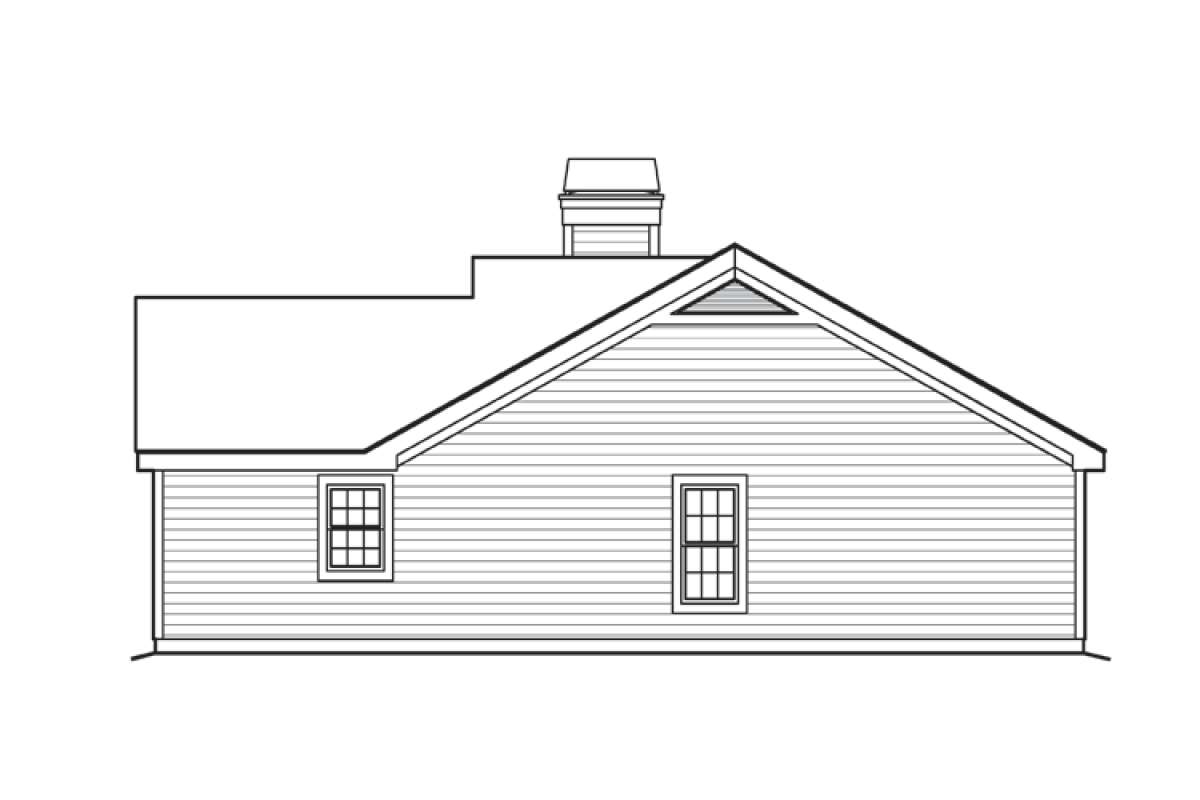

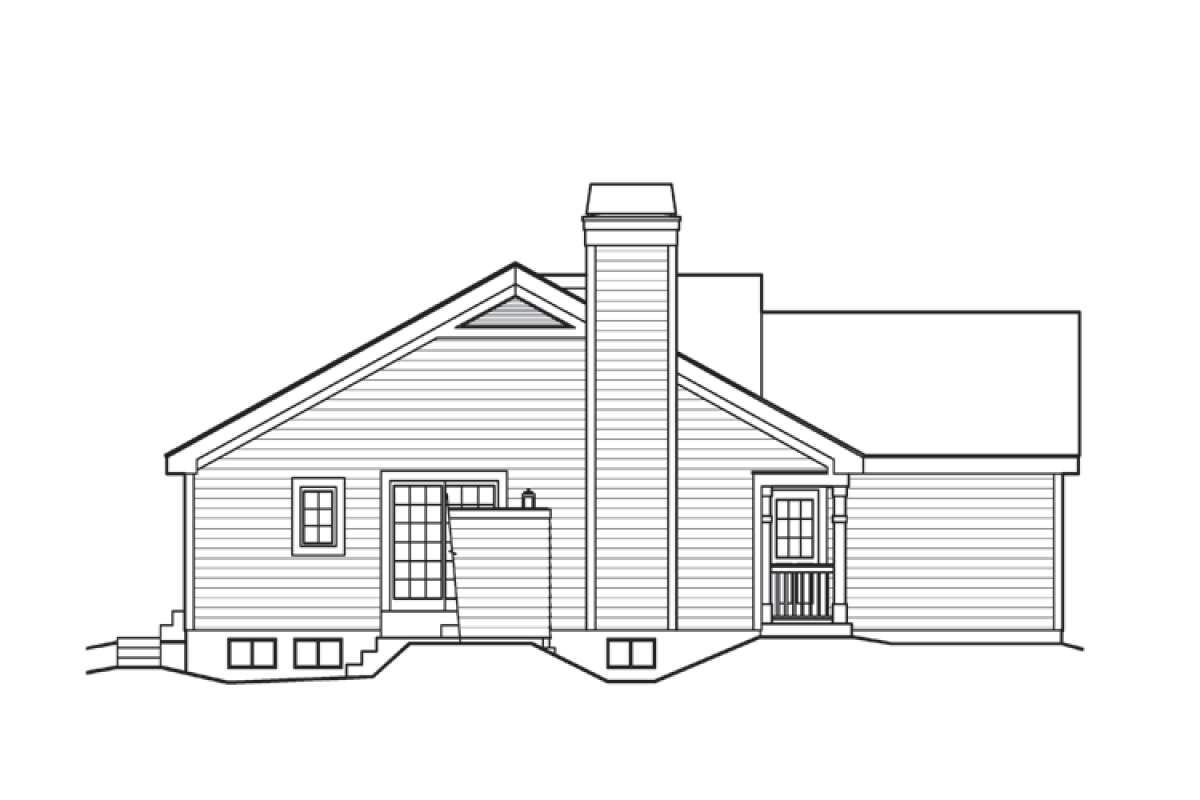

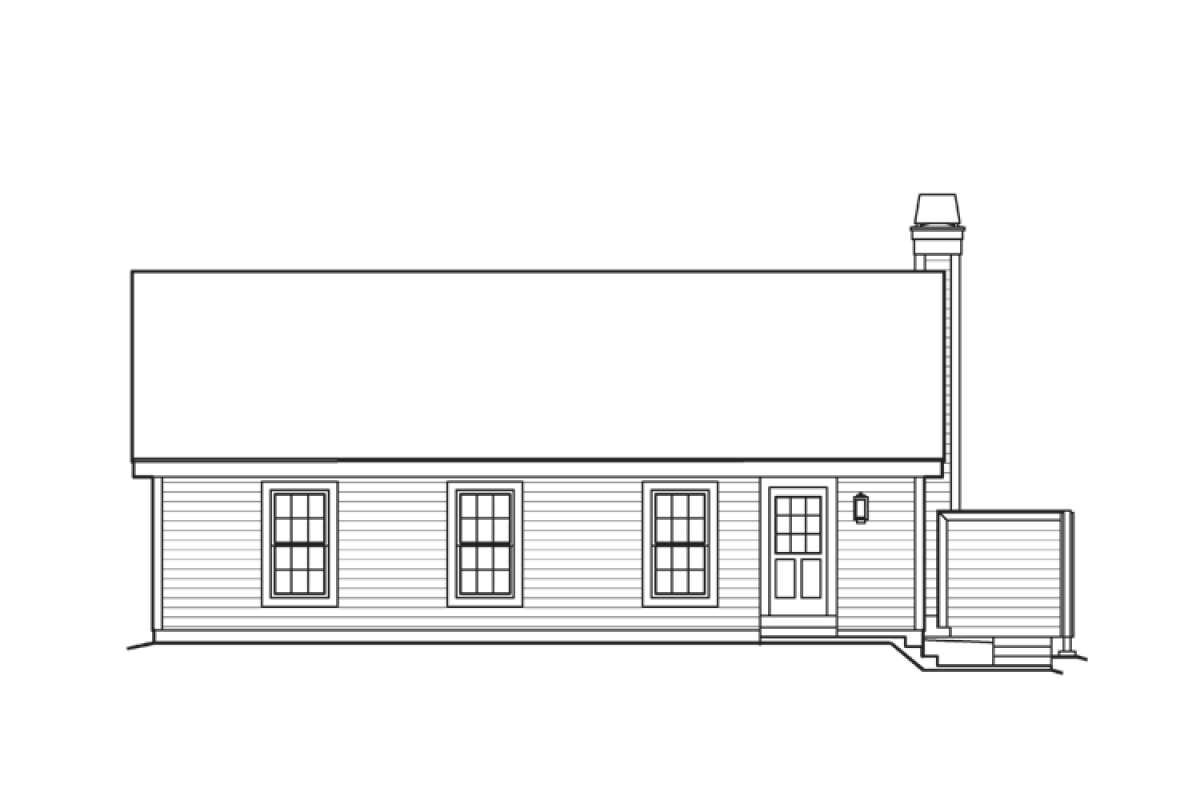

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This traditional floor plan features four bedrooms and two plus bathrooms in a one story Ranch home. There are approximately 1,203 square feet in the interior floor plan and the two car garage contains an additional 394 square feet; plenty for vehicle and other gear storage. The exterior façade possesses enormous curb appeal with its expansive front covered porch highlighted by open railing. The plan drawings include a crawl space, slab and basement foundation; the basement foundation would allow for future expansion possibilities. Entrance into the home is off the front porch into the greeting foyer which houses the lower level staircase and ultimately opens onto the open concept living space. There is a vaulted living room, measuring in excess of 15’x17’, and features a handsome fireplace and fantastic window views overlooking the front porch. The dining space and U-shaped kitchen are also vaulted and the kitchen is further highlighted by a separate pantry and an abundance of counter and cabinet space. Access to the private, enclosed side patio is off the dining room and wraps around the back of the home allowing for a second point of access through the kitchen.
The main hallway features a coat closet with plant shelf atop the space and a linen closet. The shared hall bath includes a vanity space, a toilet area and tub/shower combination and is situated at the end of the hallway. There are three family styled bedrooms along the hallway; bedroom two features a walk-in closet and an adjacent half bath. Bedrooms three and four are spacious with ample closet space contained in each room. The vaulted master suite enjoys a generous footprint with lovely window views and an oversized master walk-in closet. The master bath is private with a vanity, toilet area, tub/shower combination and a linen closet. This is a functional and comfortable family home with an exceptional exterior façade and includes a basement foundation with unlimited expansion options.
