Ranch House Plan 5633-00181

Sq Ft1,202
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width40' 0"
Depth47' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

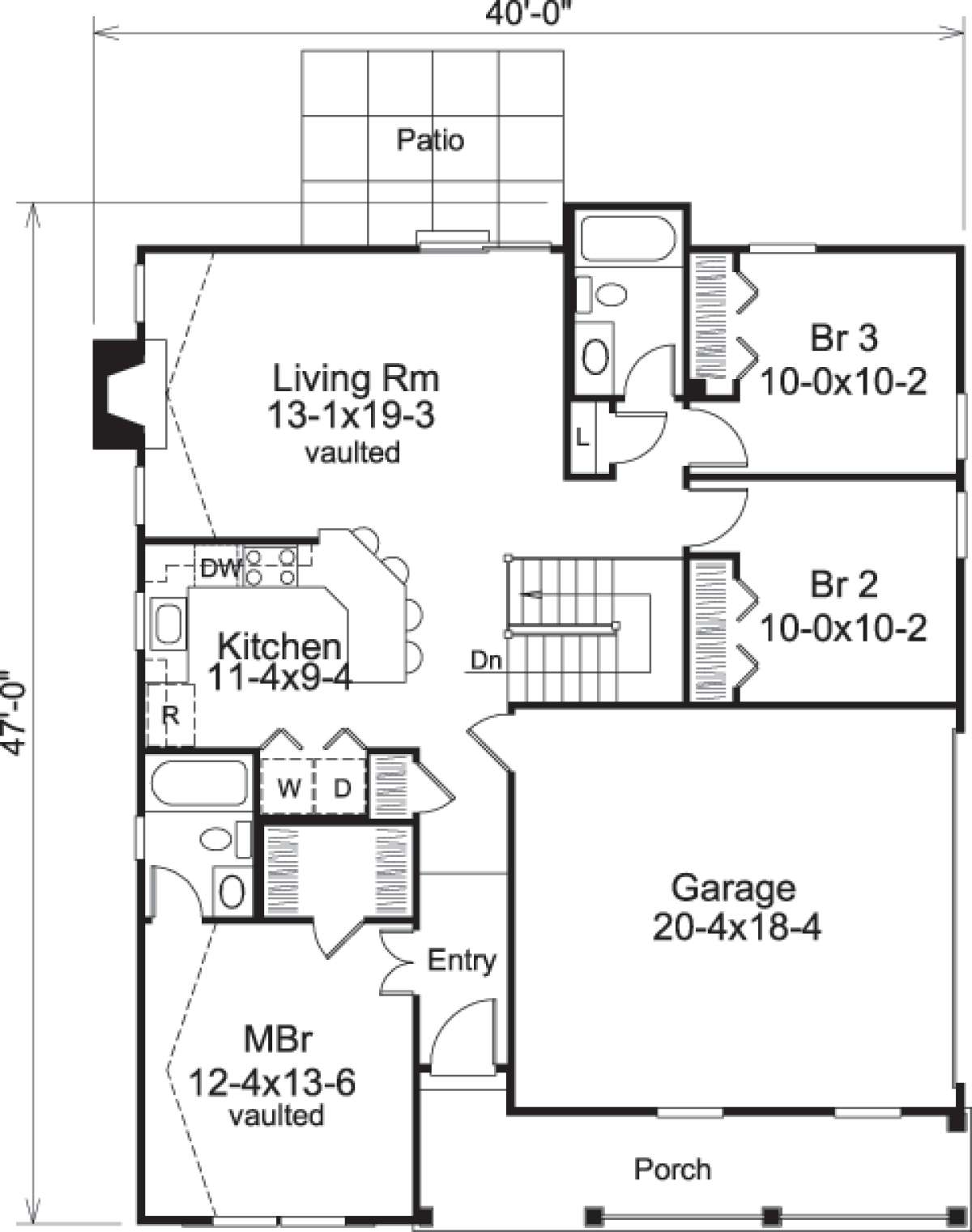

Floorplan 1 for House Plan #5633-00181
Floorplan 1
Floorplan 1 for House Plan #5633-00181


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This attractive home features spectacular country flair on the exterior façade and an interior floor plan consistent with the iconic American style. There are three bedrooms and two baths features in approximately 1,202 square feet of living space and the two car, side entry garage includes an additional 373 square feet. This cozy Ranch style home’s drawings include a slab, crawl space or basement foundation; the basement foundation would be ideal for further expansion options. The exterior façade of the home is highlighted by a broadly proportioned front covered porch with column beams, open railing and simple gabled roofing. The front porch leads to a spacious foyer and the subsequent open concept design incorporating the home’s living and dining space. There is a large vaulted living room which features a handsome fireplace flanked by picturesque window views and access to the rear patio space. The family friendly kitchen features a spacious angled breakfast bar and loads of additional counter and cabinet space. The laundry nook is situated on the back wall of the kitchen for ease and convenience and is directly accessible to the two car garage. There is a coat closet and the lower level staircase to the basement is conveniently placed off the living and dining space.
The split bedroom plan features two family styled bedrooms and a bath at the rear of the home. Both bedrooms are equally sized and contain plentiful closet space. There is a shared hall bath with vanity space, a toilet area, a tub/shower combination and a hall linen closet, as well. The master suite features a lovely, vaulted bedroom with great window views and an oversized master walk-in closet. The en suite bathroom includes a vanity and toilet area along with a tub/shower combination. This home is ideal for a small family, young professionals or empty nesters.
