Traditional House Plan 5633-00178

Sq Ft2,121
1/2 Baths1
Width47' 0"
Depth42' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

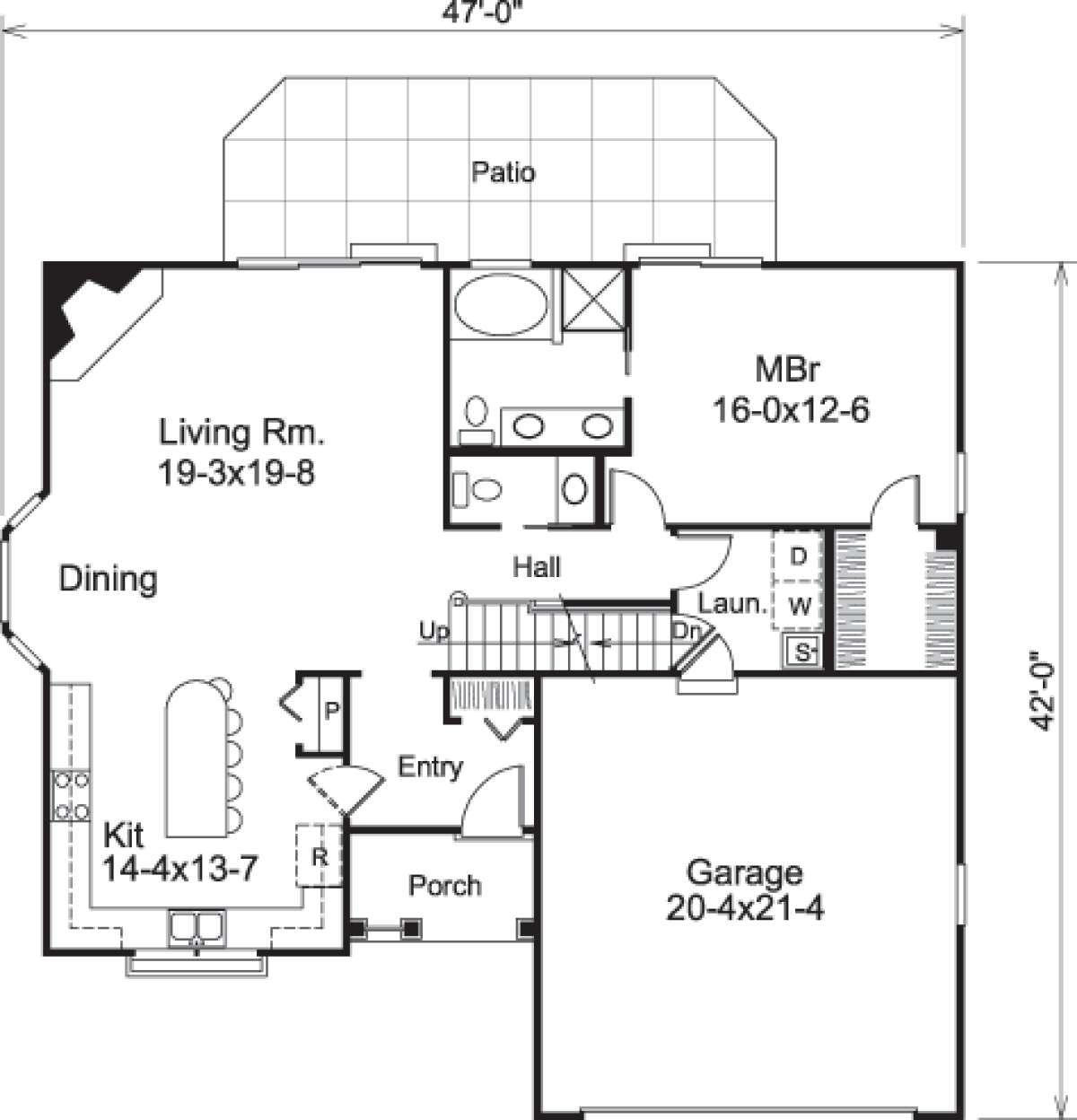

Floorplan 1 for House Plan #5633-00178

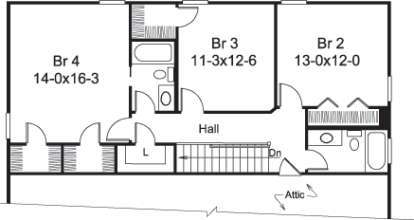

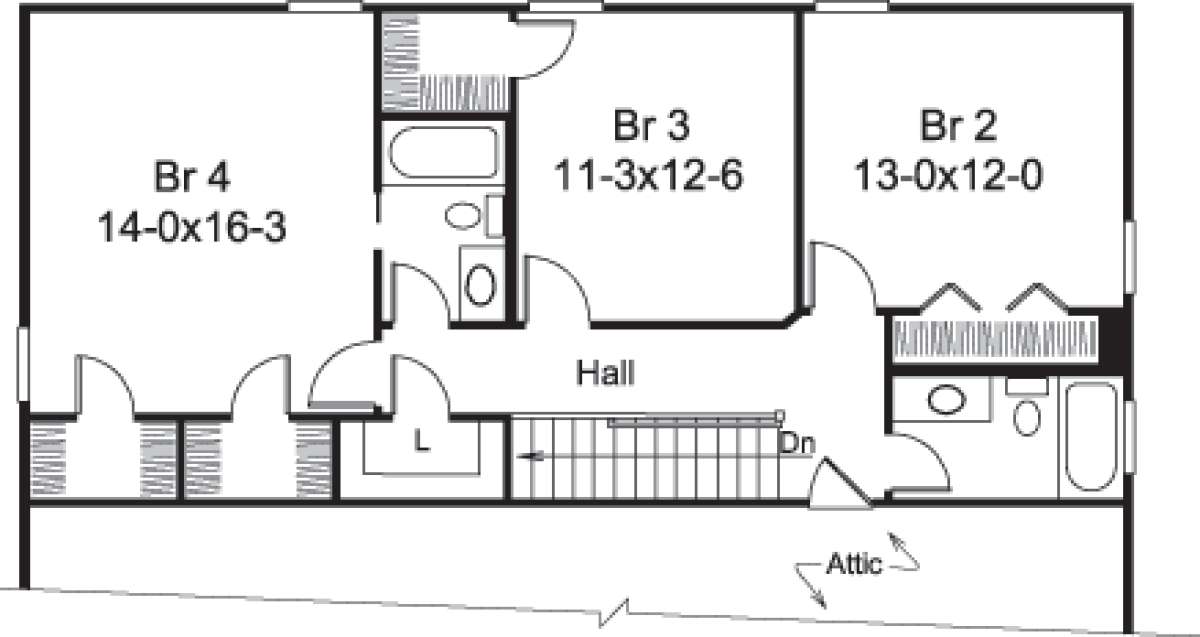

Floorplan 2 for House Plan #5633-00178
Floorplan 1
Floorplan 1 for House Plan #5633-00178
Floorplan 2
Floorplan 2 for House Plan #5633-00178

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

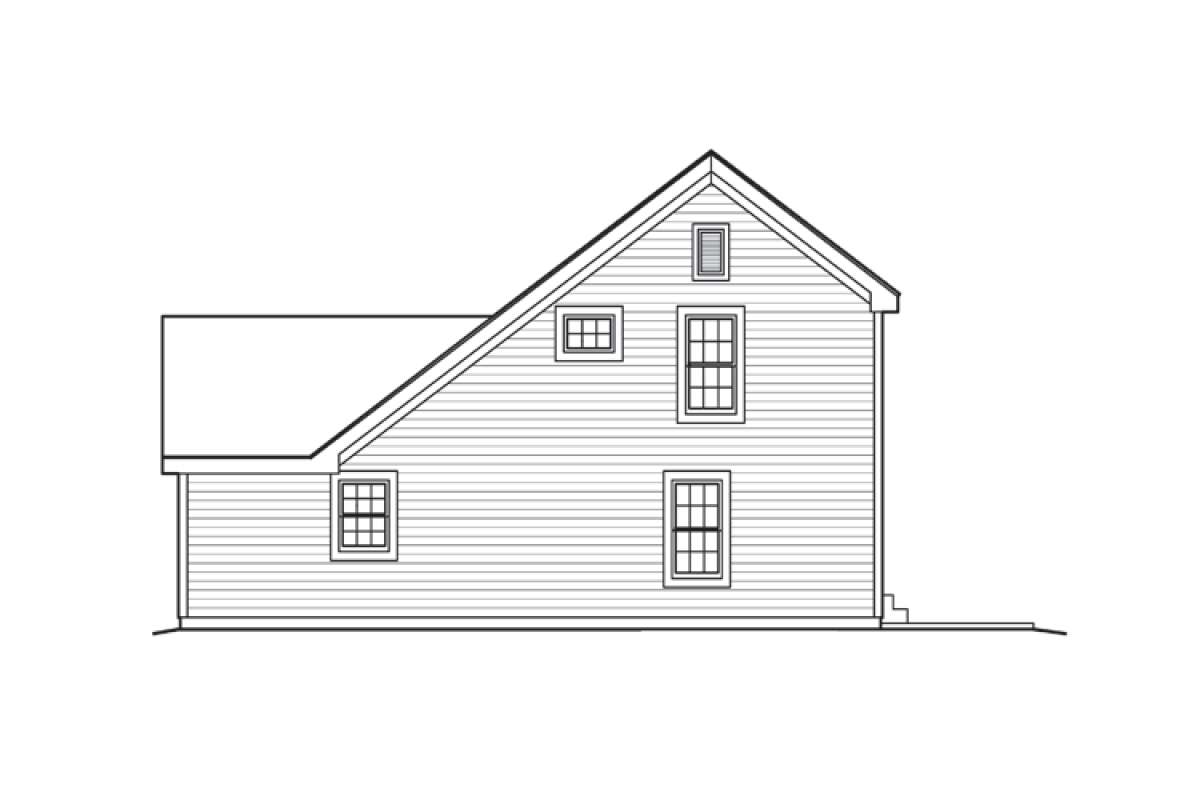

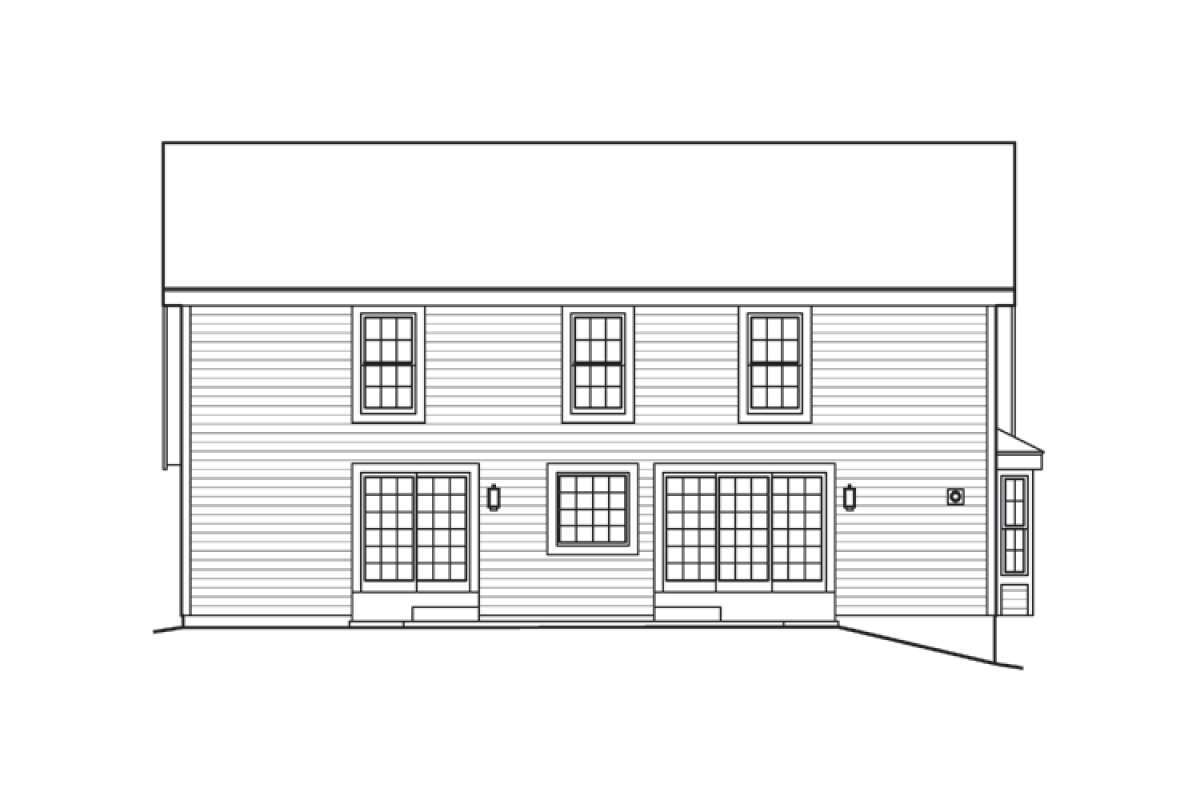

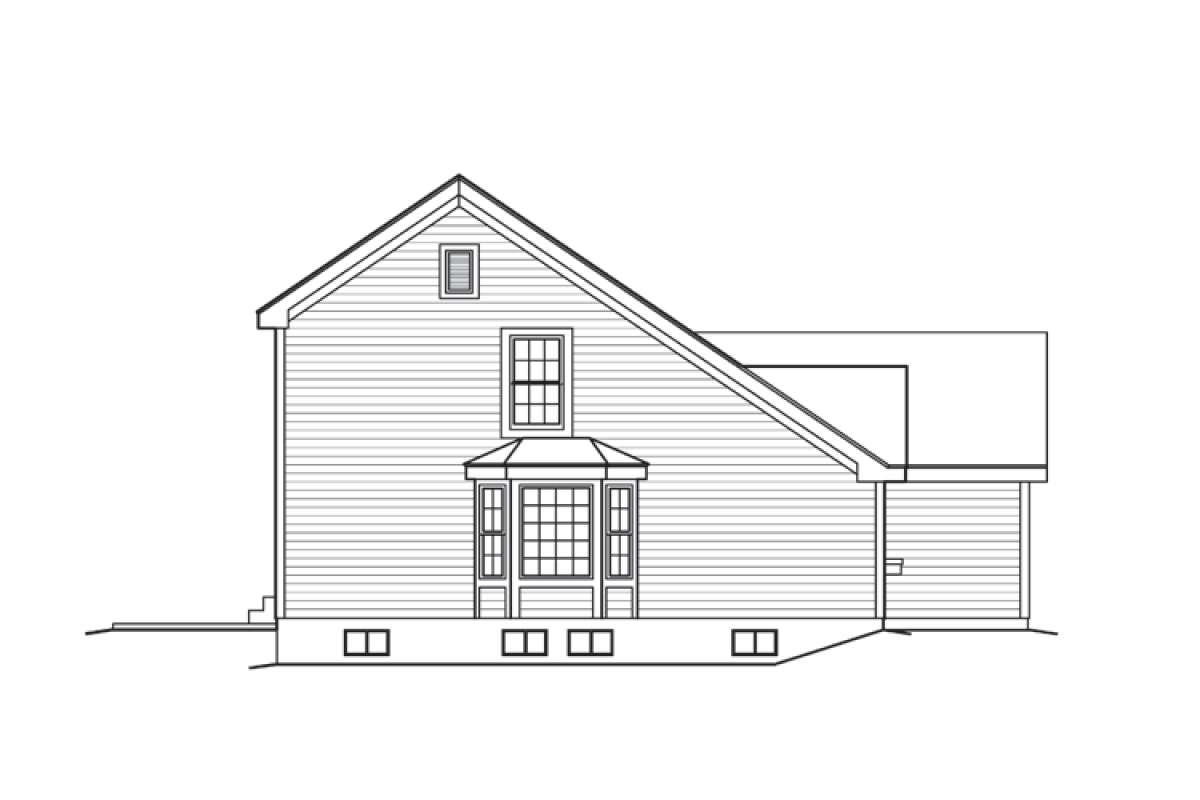

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Form and function blend beautifully in this two storied traditional floor plan. A charming exterior is highlighted with simple construction and a front covered porch while the interior floor plan features approximately 2,121 square feet on the main living floors and a basement foundation adds an additional 1,200 square feet. The home’s drawings include a crawl space and slab foundation as well. This is a large amount of living and entertaining space perfect for the family who loves to entertain and conversely values their private “down time.” The two car, front loading garage has loads of space for vehicle and other paraphernalia and conveniently leads to the interior laundry room with sink area providing a tidy environment in which to enter the home. Open and airy living spaces are situated off the greeting foyer and consist of a living room with corner fireplace, a dining room tucked into the triple bay window and a gourmet kitchen where food preparation and spending time with family and friends is made enjoyable. An enormous center island bar is the showpiece of the kitchen and there is a separate pantry and counter and cabinet space dominate the rear and side walls. Patio access is available from the living room and there is a powder room for guests. The main level master suite features a private oasis for the homeowners which include a large master bedroom with private patio access and an oversized master walk-in closet. The en suite master bath is highlighted with dual vanities, a separate shower, garden tub and private toilet area.
Additional sleeping quarters, two full baths, attic/storage space and an enormous hall linen closet are located on the second floor. This space is great for children and/or guests as there is separation and privacy. The second bedroom is spacious with ample closet space while bedroom three features a walk-in closet. The fourth bedroom is clearly oversized with double walk-in closets. Two full baths are situated on opposite ends of the hallway for ease and convenience. This home boasts of the absolute best in function, form and expansion possibilities.
