Traditional House Plan 5633-00177

Sq Ft1,646
1/2 Baths0
Width56' 4"
Depth61' 4"
Traditional House Plan #5633-00177 Elevation Photo
Floorplan 1

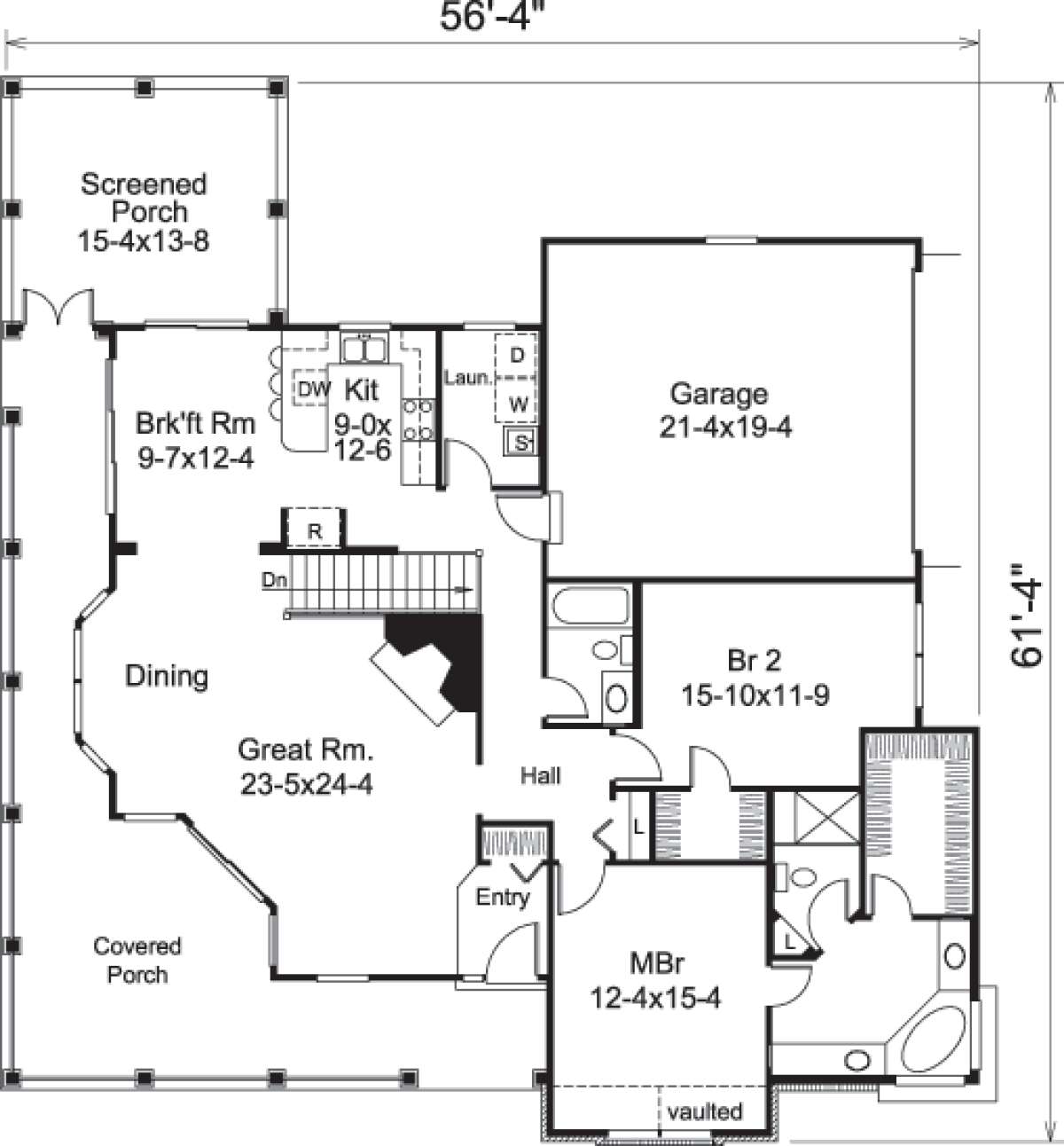

Floorplan 1 for House Plan #5633-00177
Traditional House Plan #5633-00177 Elevation Photo
Traditional House Plan #5633-00177 Additional Photo
Traditional House Plan #5633-00177 Additional Photo
Traditional House Plan #5633-00177 Elevation Photo
Floorplan 1 for House Plan #5633-00177
Traditional House Plan #5633-00177 Elevation Photo
Traditional House Plan #5633-00177 Additional Photo
Traditional House Plan #5633-00177 Additional Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00177
Floorplan 1
Floorplan 1 for House Plan #5633-00177

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')

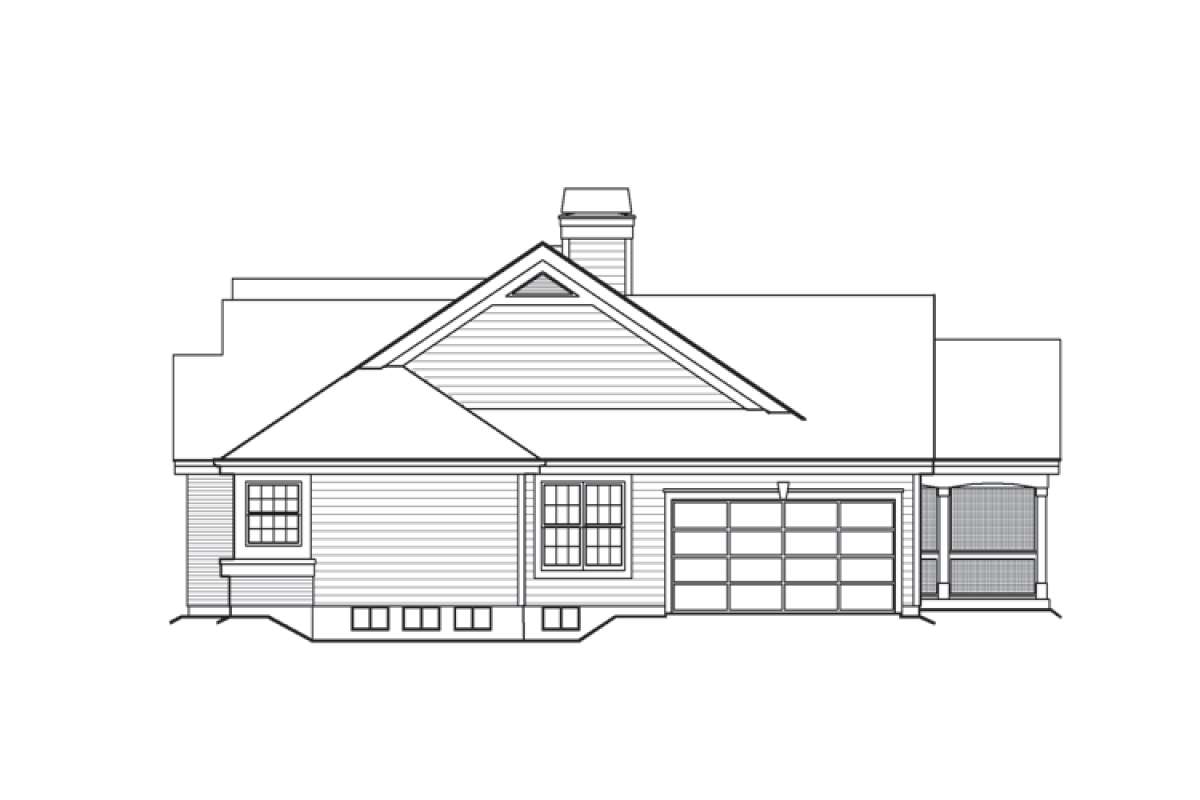

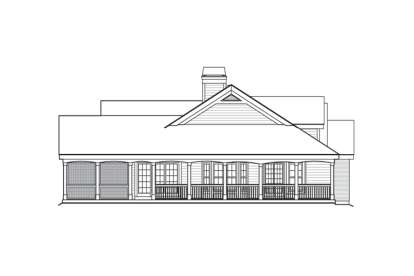

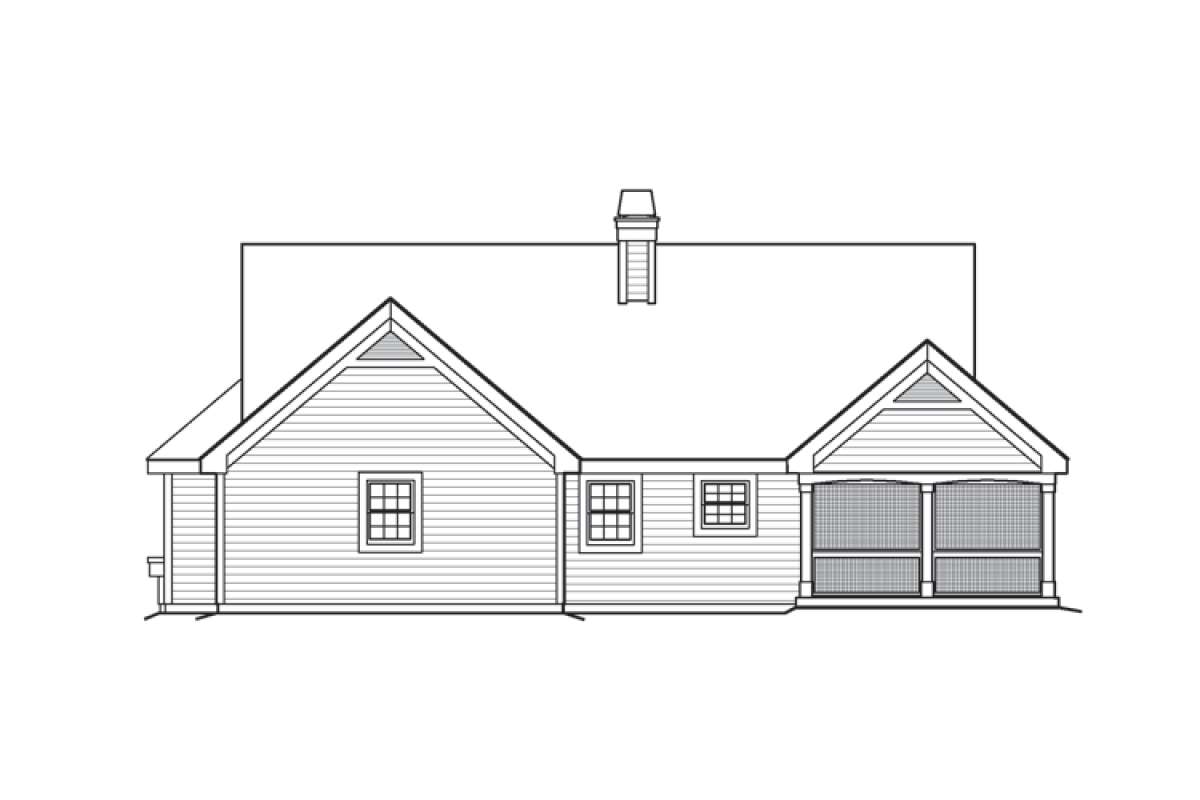

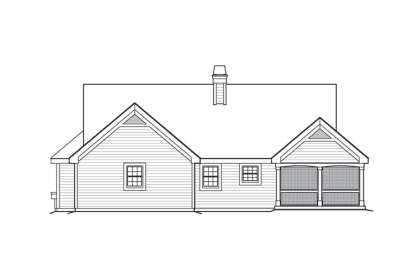

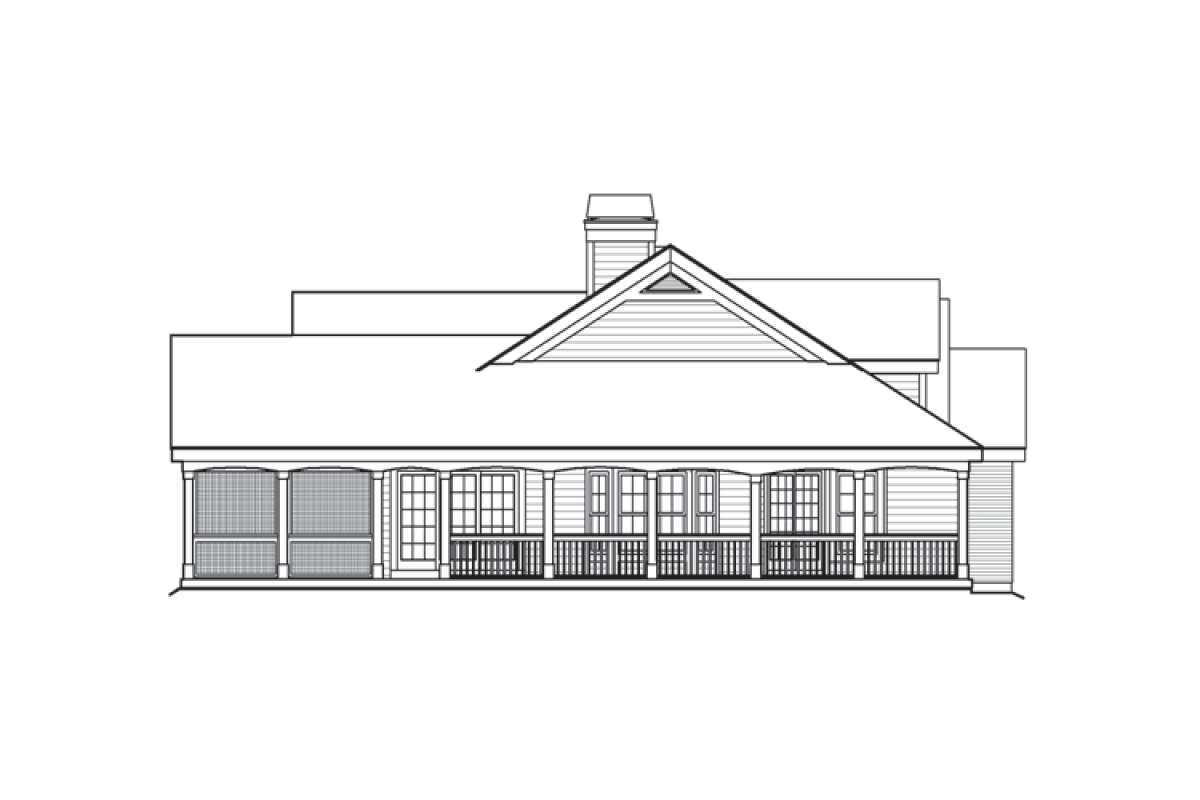

  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This traditional house plan has architectural features designed for gracious outdoor living as well as a comfortable and versatile interior floor plan. There is a deep and expansive wraparound porch which subsequently leads to the rear screened in porch allowing for great entertaining and private family relaxing space. A triple window dormer, multiple gables and brick accent wall with a Palladian style window feature blend beautifully to create an aesthetically pleasing exterior façade. The interior floor plan is highlighted by approximately 1,646 square feet of total living space on one floor. The home’s drawings include a basement foundation which substantially increases the home’s square footage and versatility and, the drawings include a slab and crawl space foundation as well. The two car, side entry garage provides an additional 412 square feet of vehicle and other gear storage space. The greeting foyer provides entrance into the home and houses a coat closet before opening onto the main living areas. The open concept design is sun drenched with a plethora of window views highlighted throughout the common areas. There is a great room which measures in excess of 23’x24’ and contains a corner fireplace. The dining space is nestled into an expansive bayed window and the breakfast room provides access to the wraparound porch as well as the screened in porch. There is an open breakfast bar and the U-shaped kitchen features additional counter and cabinet space. The interior laundry room is spacious with a sink area and is situated off the garage for ease and convenience.
Two bedrooms and two baths are located off the home’s main hallway along with a linen closet. Bedroom two is oversized with wonderful window views and a large walk-in closet. There is an adjacent full bath which offers a vanity space, toilet area and a tub/shower combination. The master suite enjoys a large footprint and is elegantly designed. The master bedroom features soaring ceiling heights along the window feature wall. The master bath is highlighted by separate dual vanities, a gorgeous corner garden tub with window views, a linen closet, a compartmentalized toilet area and a shower. At the rear of the master bath is an oversized walk-in closet. This home is beautifully designed, has great outdoor and interior space and the basement foundation offers unlimited expansion possibilities.
