Traditional Plan 5633-00174

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,114
Beds 2
Bath 1
1/2 Baths 0
Car 1
Stories 1
Width 53' 8"
Depth 38' 8"

Floorplan Drawings

Floorplan 1

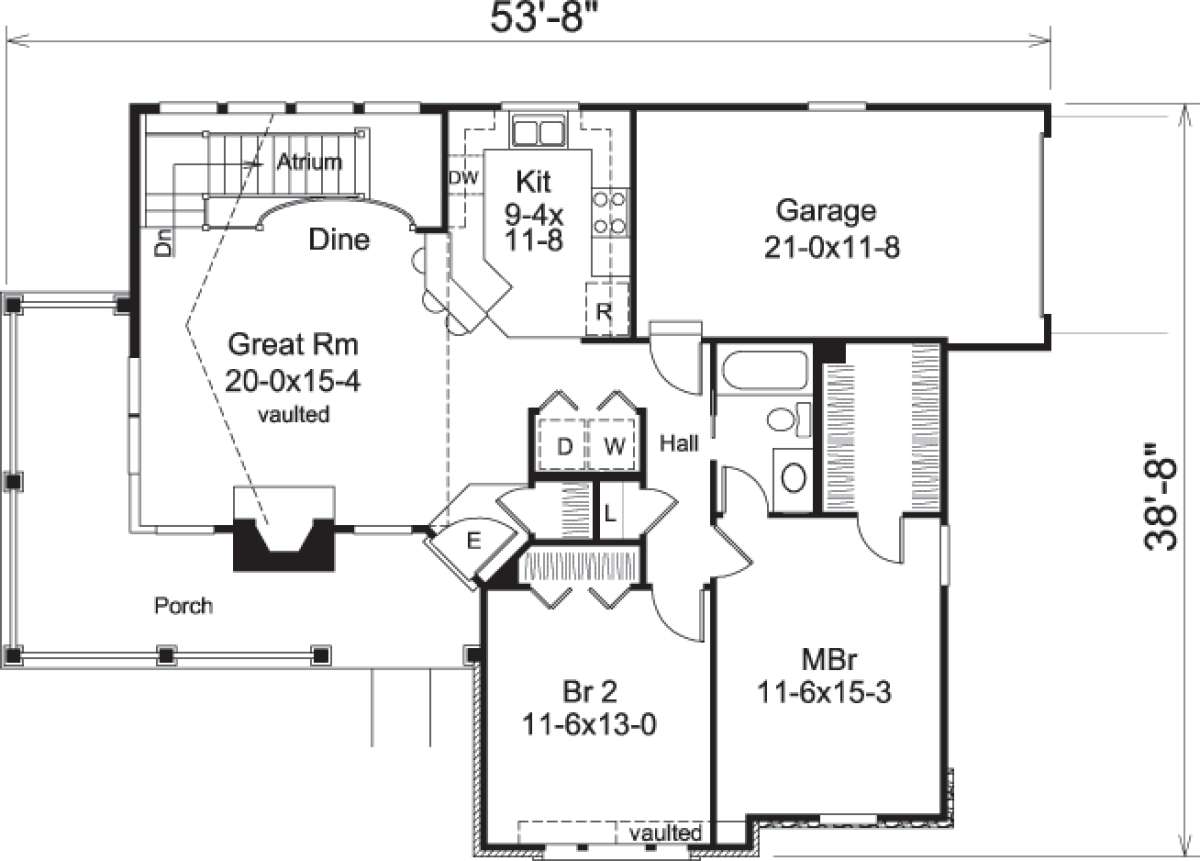

Floorplan 1 for House Plan #5633-00174
Floorplan 2

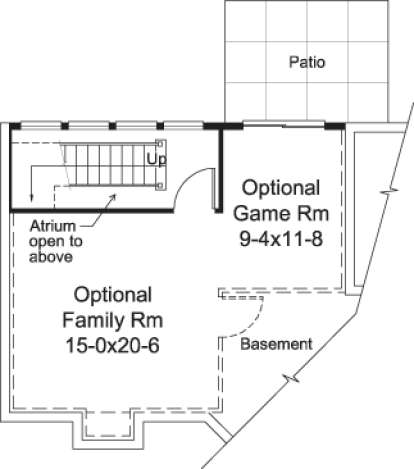

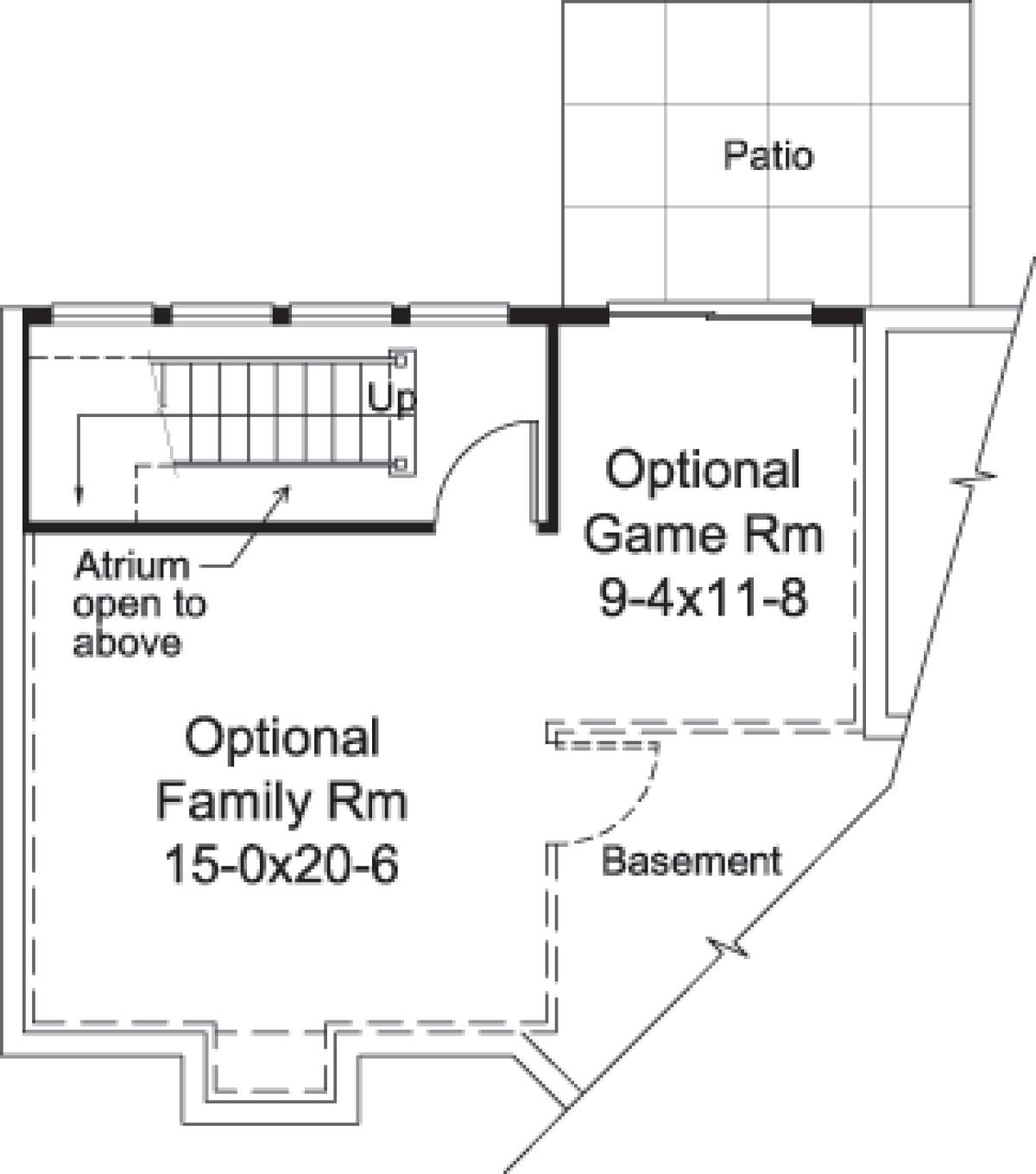

Floorplan 2 for House Plan #5633-00174


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

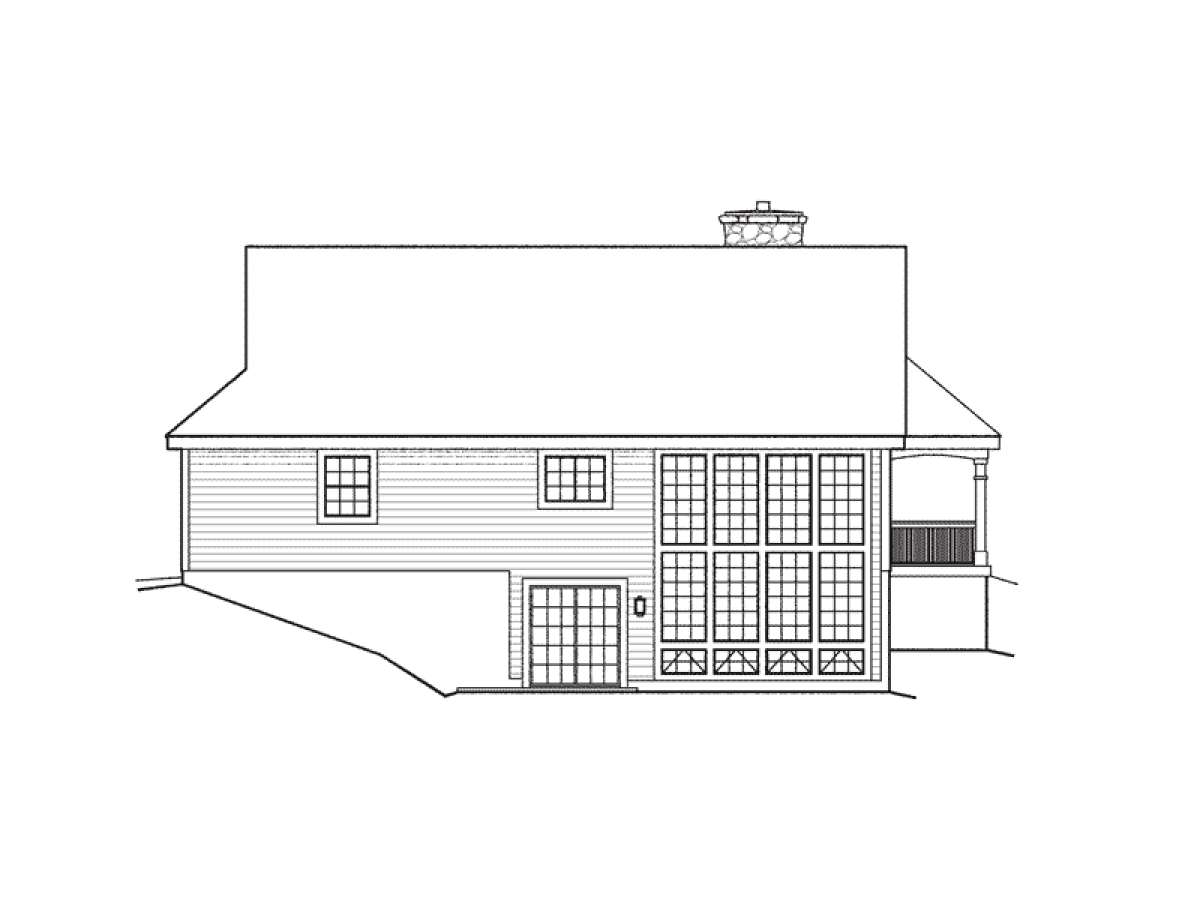

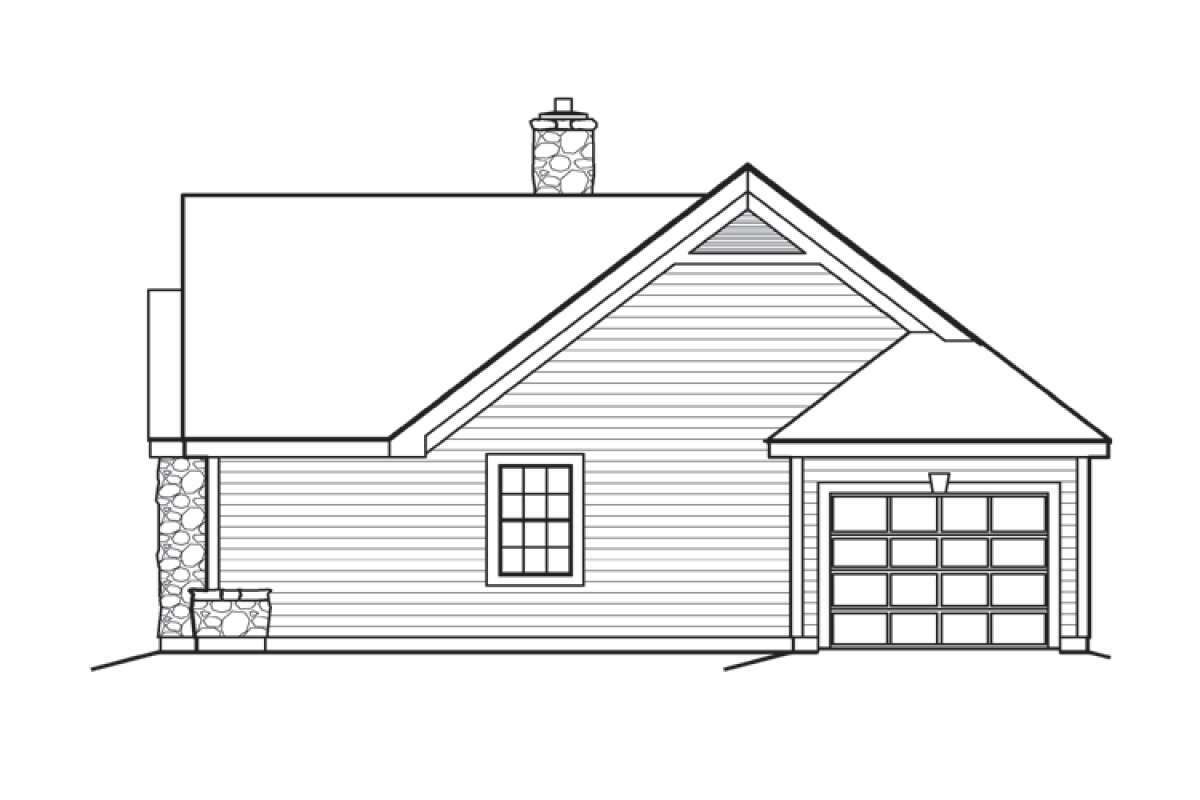

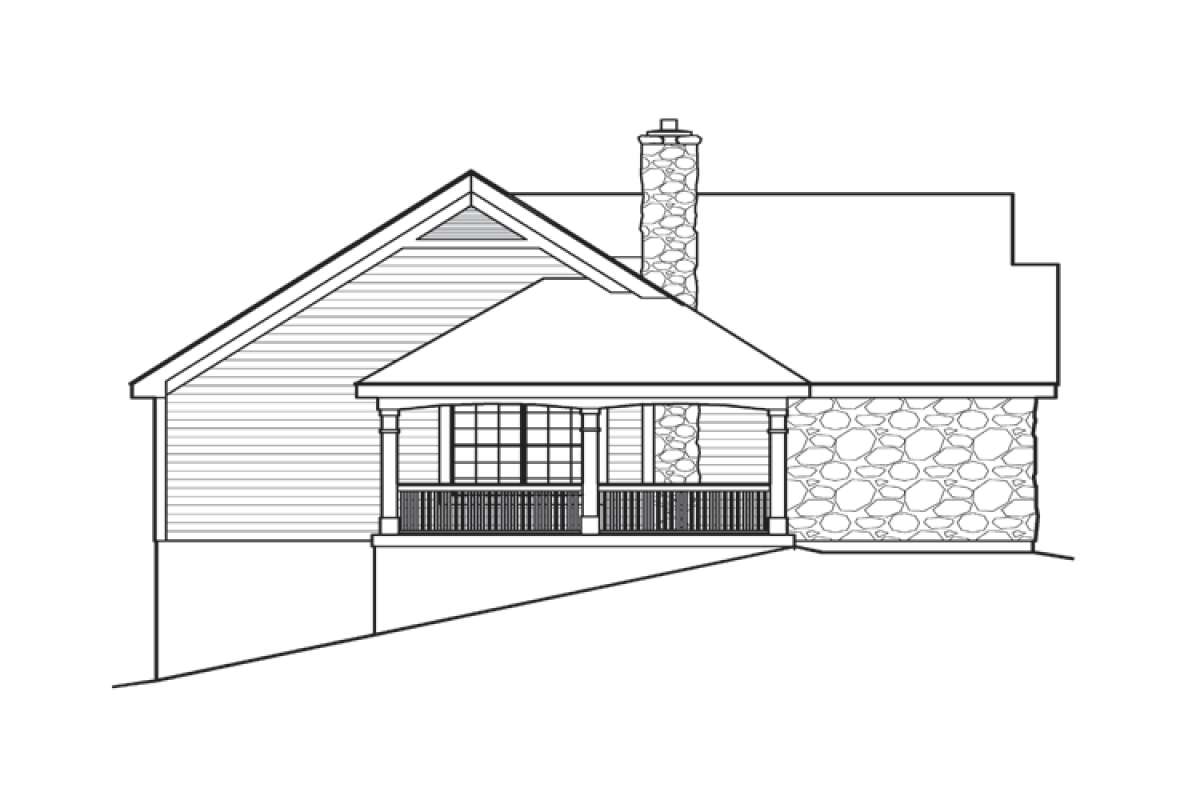

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This traditional house plan has outstanding curb appeal and an interior floor plan featuring an abundance of living space. The exterior façade is highlighted by a plethora of architectural design features that appeal to a wide variety of people and styles. There is a large wraparound front covered porch, a stacked stone center wall feature along with a stone chimney and gorgeous window inserts. Approximately 1,114 square feet of living space is featured on the main floor of the home and the walkout basement features an additional 364 square feet of space. A side entry garage houses an additional 290 square feet of space for vehicle and other paraphernalia storage. Entrance into the home spills into an open concept design which features an enormous amount of room and unique design features. The vaulted great room houses a handsome fireplace and surrounding windows which overlook the wraparound porch and there is a balcony/dining area that overlooks a two story atrium. The family friendly kitchen boasts of an angled breakfast bar and an abundance of counter and cabinet space. The hallway houses the family laundry nook, a linen closet, a bathroom and leads to the garage and bedrooms. The second bedroom is highlighted by great window views, a large floor space and generous closet space. The master suite features a large bedroom with an oversized master walk-in closet and private access to the hall bath. The optional lower level offers additional square footage and value to the home. There is an additional 364 square feet of space which translates into plenty of family room and fun. This is a versatile and functional floor plan with expansion options and an attractive exterior façade.
