Southern Plan 5633-00173


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,814
Beds 3
Bath 2
1/2 Baths 0
Car 3
Stories 1
Width 89' 1"
Depth 40' 2"

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00173

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

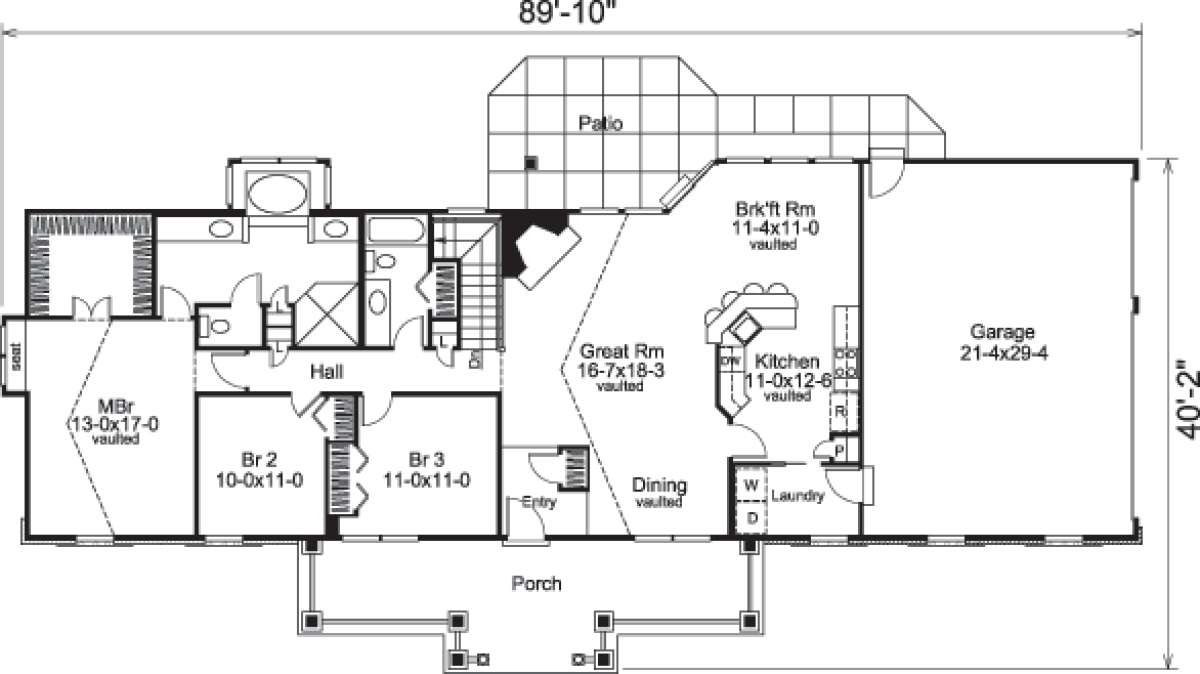

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

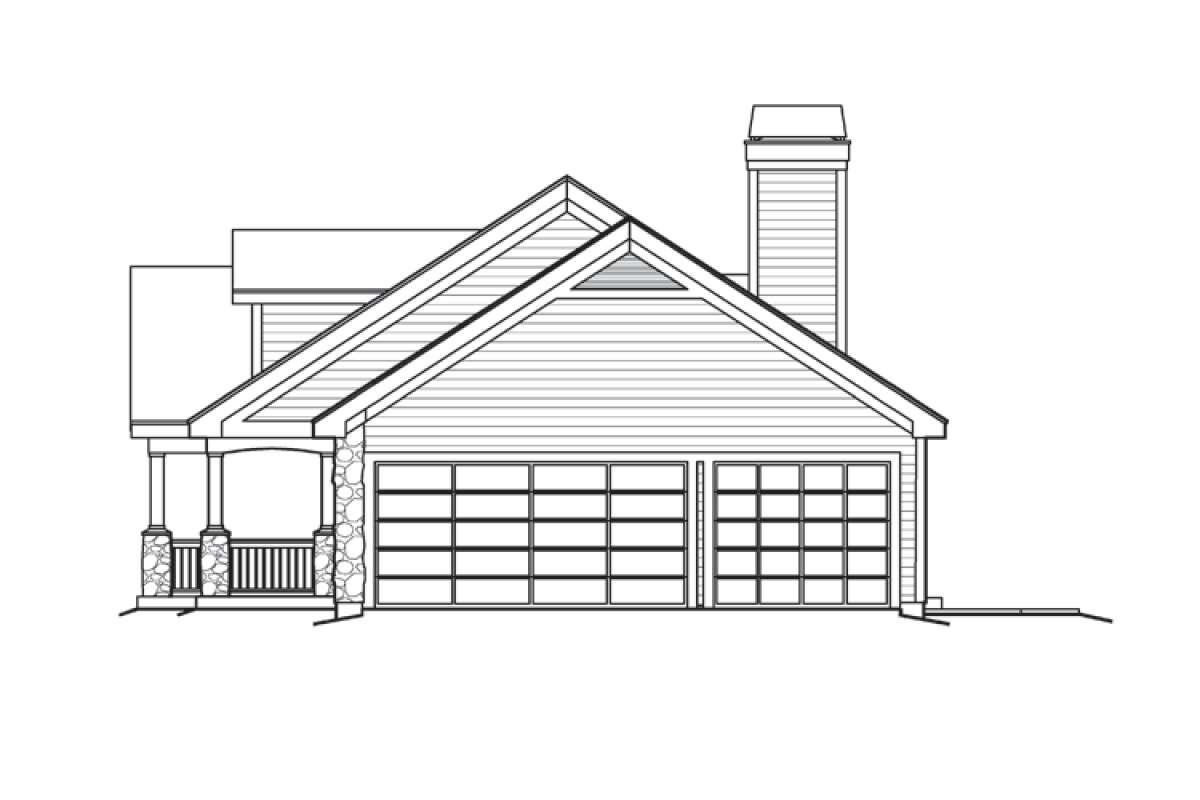

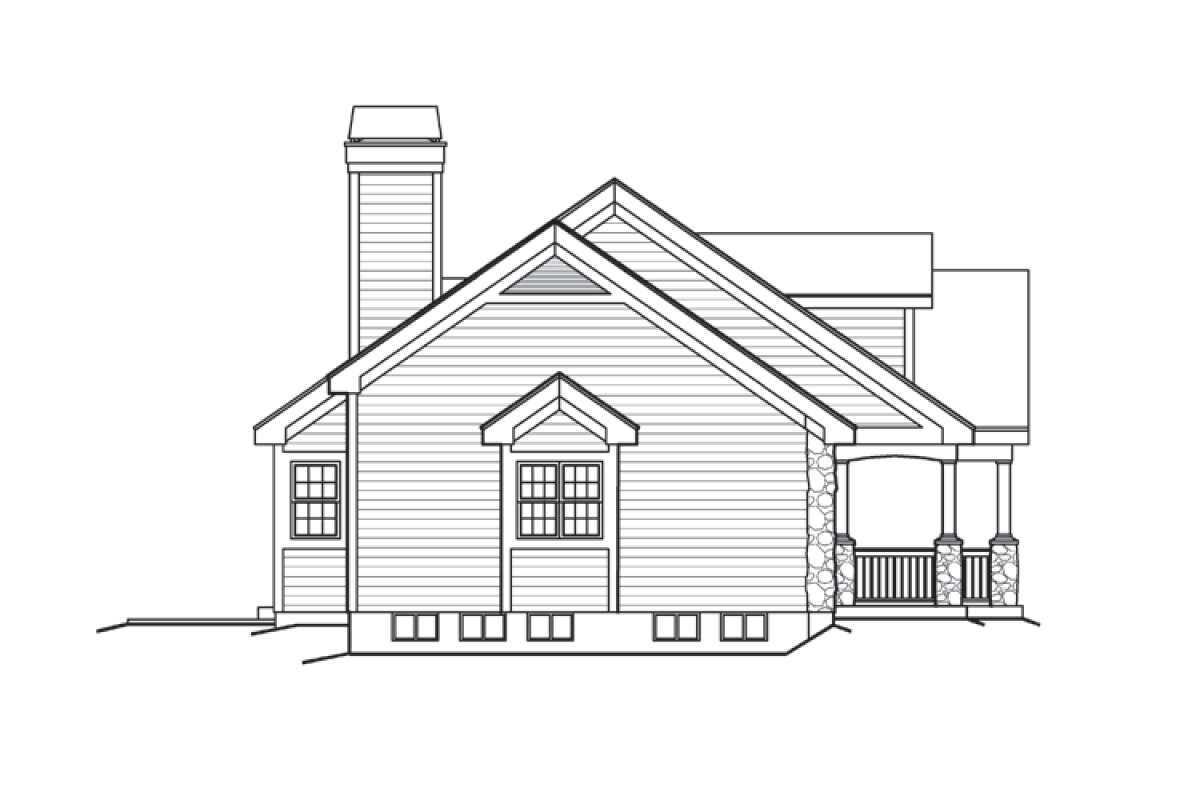

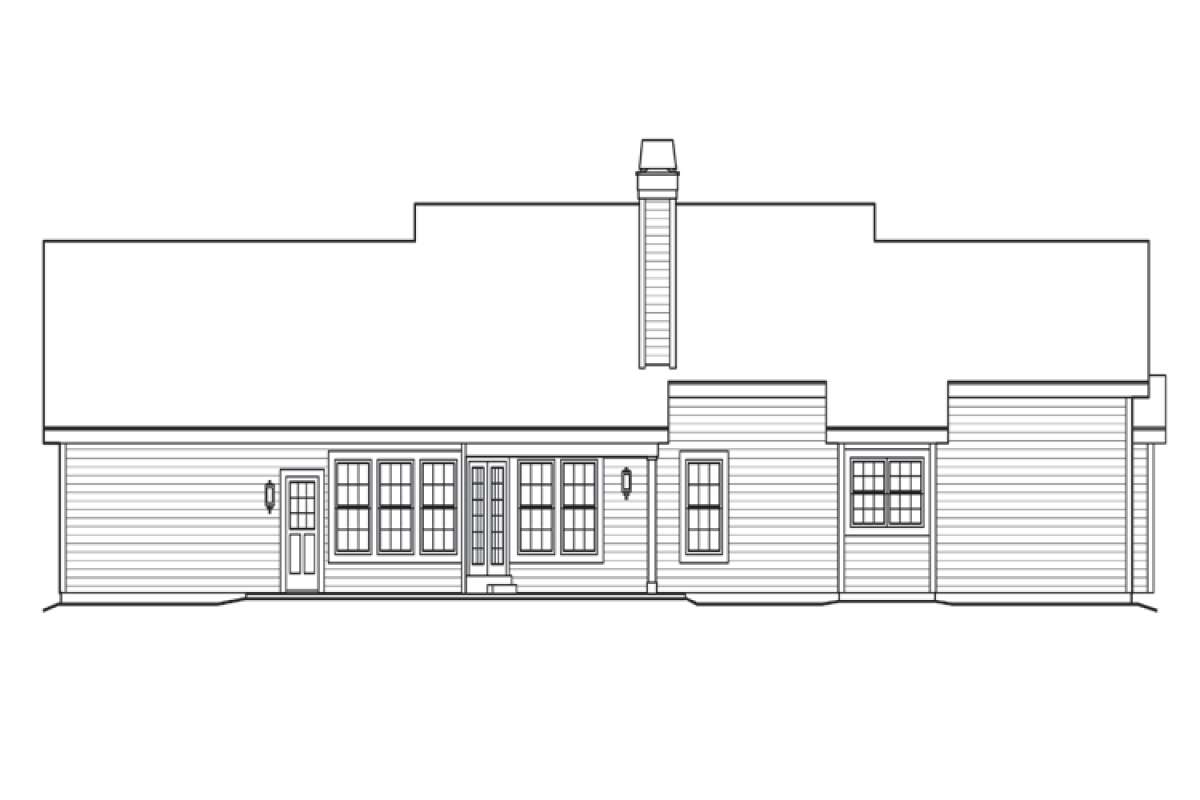

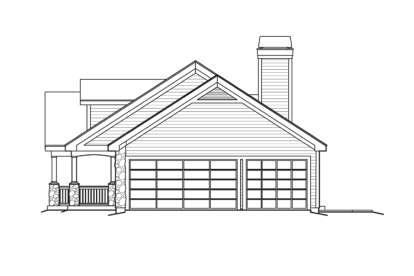

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This luxurious Southern house plan boasts of an expansive front covered country porch, stonework, siding and two window dormers. The exterior façade is aesthetically pleasing and an inviting space in which to relax and/or greet family and friends. The interior floor plan is no less stunning and offers an abundance of space in 1,814 square feet of living space. There are three bedrooms and two bathrooms in the one story home; however, the home’s drawings are on a basement foundation which mirror the home’s first floor living space. A two car, side entry garage features 626 square feet of space that translates into plenty of room for vehicle and other storage items. Entrance off the front covered porch leads to the greeting foyer which houses a convenient coat closet before opening onto the main living areas. This open concept design features an enormous amount of space and unlimited entertaining and family relaxing possibilities. The vaulted great room is highlighted by a corner warming fireplace and great window views overlooking the rear patio. There is a vaulted dining space as well and an open breakfast bar highlights the kitchen space. The gourmet kitchen features a separate pantry and a plethora of additional counter and cabinet space as well. The vaulted breakfast room has a rear wall of windows and provides patio access. The interior laundry room is situated off the garage for ease and convenience.
The main hallway of the home features the home’s sleeping quarters and bathrooms. Bedrooms two and three have generous floor space, great window views and plentiful closet space. There is a shared hall bath containing a large vanity space, toilet area and a tub/shower combination along with double hall linen closets. The master suite sits at the rear of the home for privacy and is highlighted by a spacious, vaulted bedroom with a window seat and French door access into the oversized master walk-in closet. The elegantly designed master bath enjoys a large footprint with separate dual vanities, a compartmentalized toilet area, linen closet, separate shower and a lavish step-up whirlpool tub surrounded by window views. This beautiful home has an exciting exterior façade and a fully functional interior floor plan.
