Ranch Plan 5633-00172


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,210
Beds 3
Bath 2
1/2 Baths 1
Car 3
Stories 1
Width 80'
Depth 51'

Floorplan Drawings

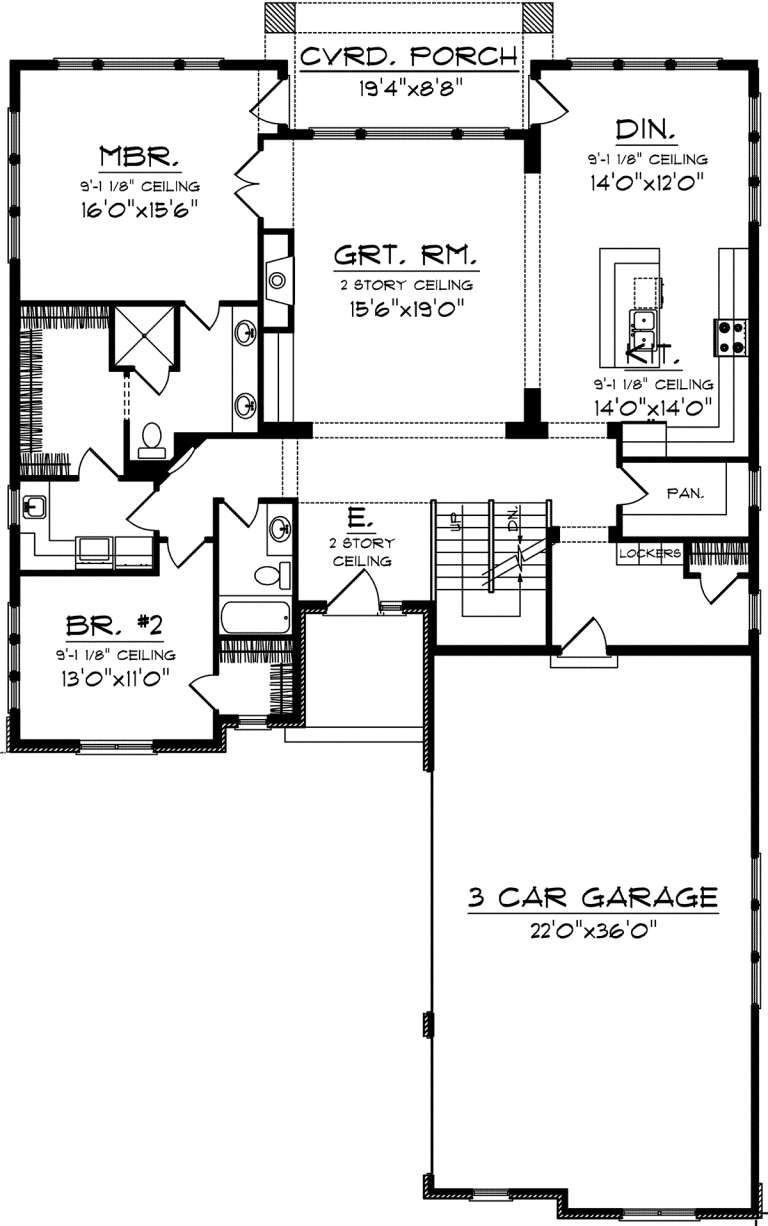

Floorplan 1
Floorplan 1 for House Plan #5633-00172

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

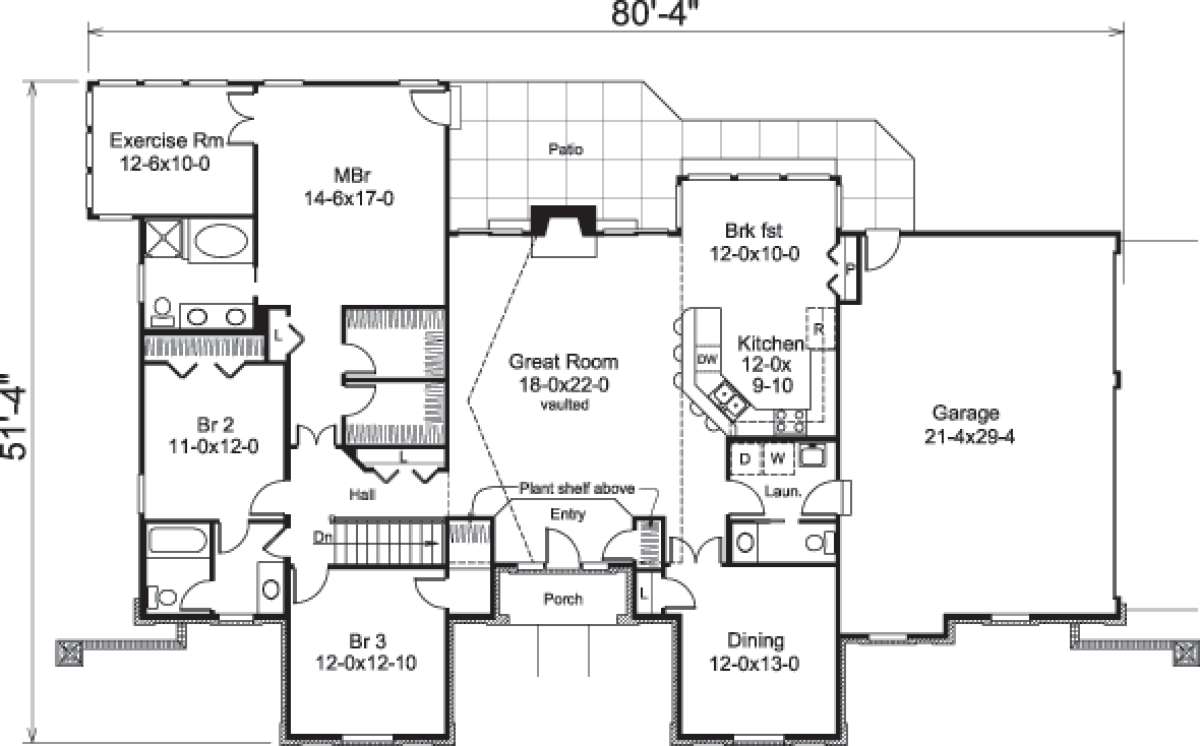

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

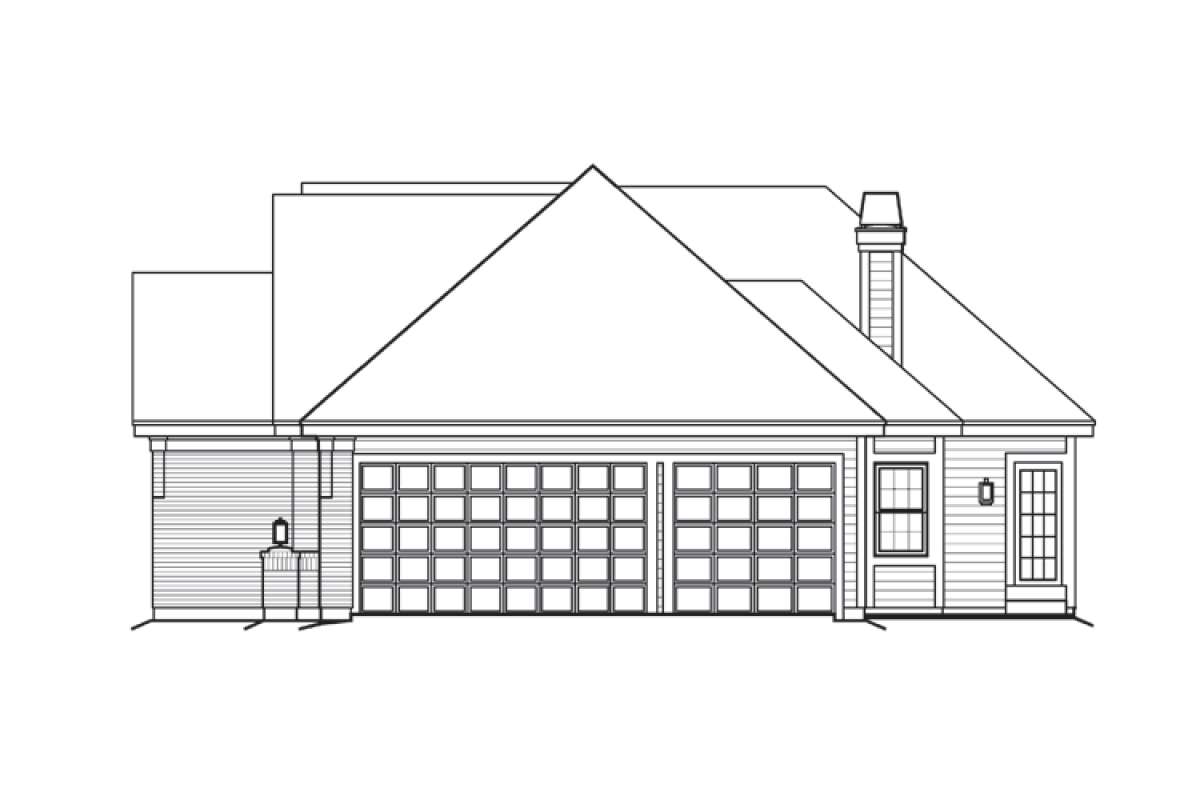

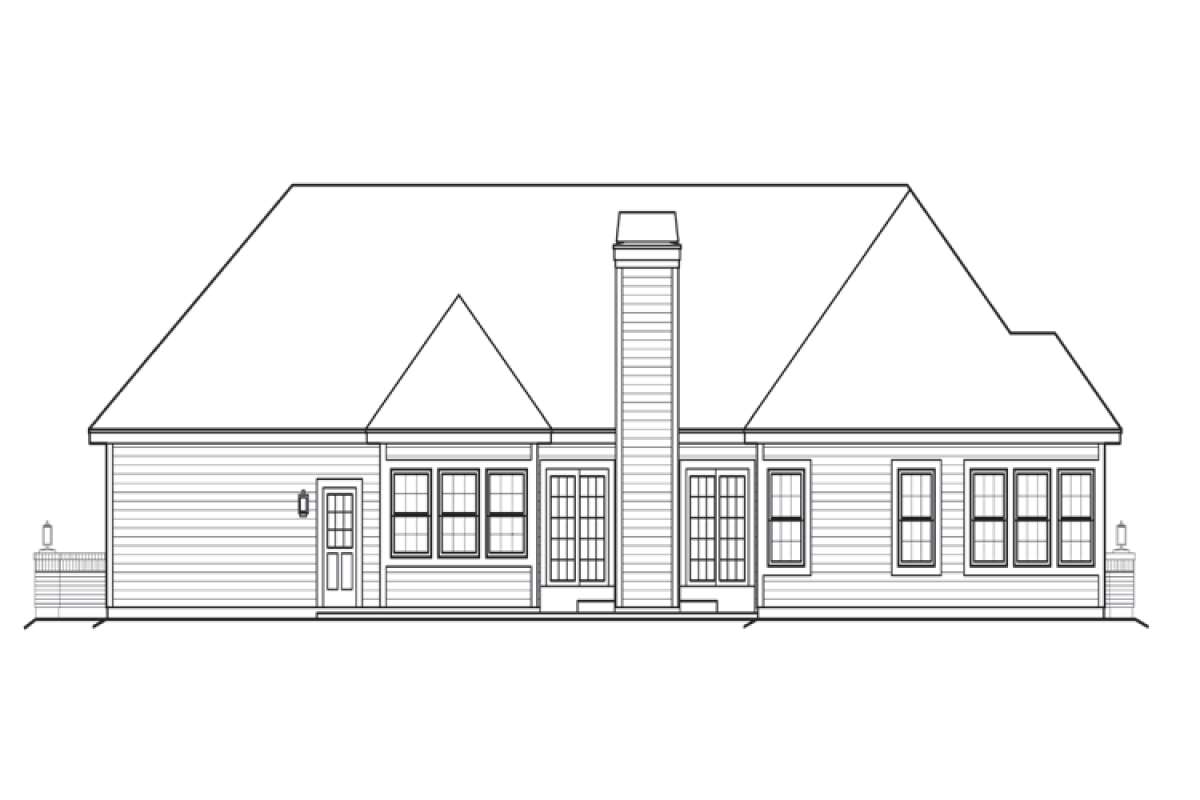

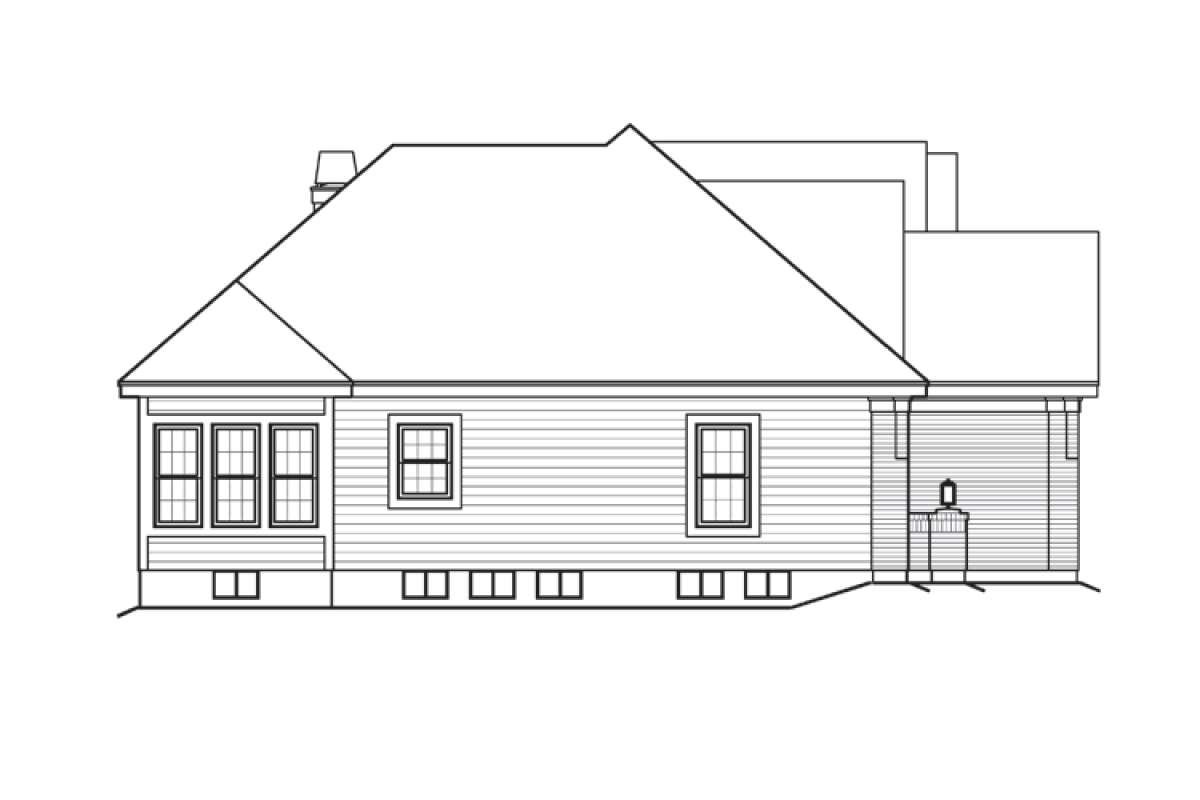

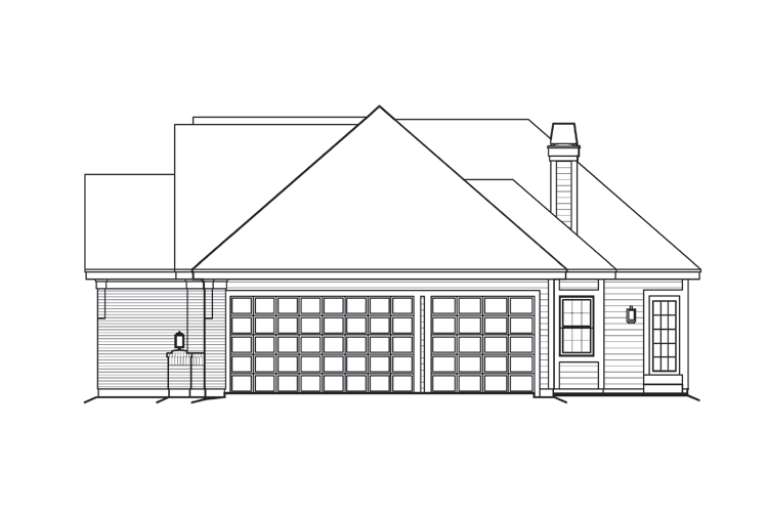

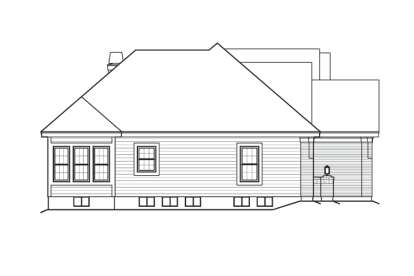

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A balanced approach and symmetrical exterior lines are highlighted in this home’s façade. Multiple gables, a decorative triple window dormer and a brick enclosed front covered entrance makes for an inviting entrance into the home. Superb planning is evident in the interior floor plan that features an abundance of functional space in the three bedroom, two plus bath Ranch home. The home’s square footage comes in at 2,210 square feet and the basement foundation mirrors the main floor’s floor space. There is a three car, side entry garage which is ideal for a large family who values their vehicle and lawn/sporting equipment space. The home’s grand entrance features access into the 18’x22’ great room with rear wall fireplace and patio access. The gourmet kitchen has an open breakfast bar and sight lines into the great room which make the space ideal for entertaining large gatherings of family and friends. There is a separate enclosed pantry and the casual breakfast room is enveloped in fabulous window views. A formal dining space is accessible through French doors and includes a linen/storage closet; this space could be easily converted into a fourth bedroom or could function as a home office/study due to its private entrance.
Two large bedrooms are accessible from the main hallway; both are spacious and have window views. The second bedroom features ample closet space and private access to the shared bath while the third bedroom is highlighted with a walk-in closet. An accompanying hall linen closet is oversized and easily reached by both bedrooms. The master retreat is spectacular with French door access into the suite. Two oversized master walk-in closets feature space for the homeowners and there is a linen closet adjacent to the en suite bath. The master bedroom has private patio access and a second set of French doors which open onto a sun filled flex space. This space is enveloped on two sides with a bevy of window views making it ideal for a sitting room, exercise room or hobby room. The luxurious master bath is highlighted with double vanities, a separate shower and a garden tub. This home features great entertaining space and private family space along with a basement foundation which offers versatility and value.
