Ranch House Plan 5633-00171

Sq Ft1,948
Beds3
Baths2
1/2 Baths1
Stories1
Cars2
Width76' 0"
Depth44' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

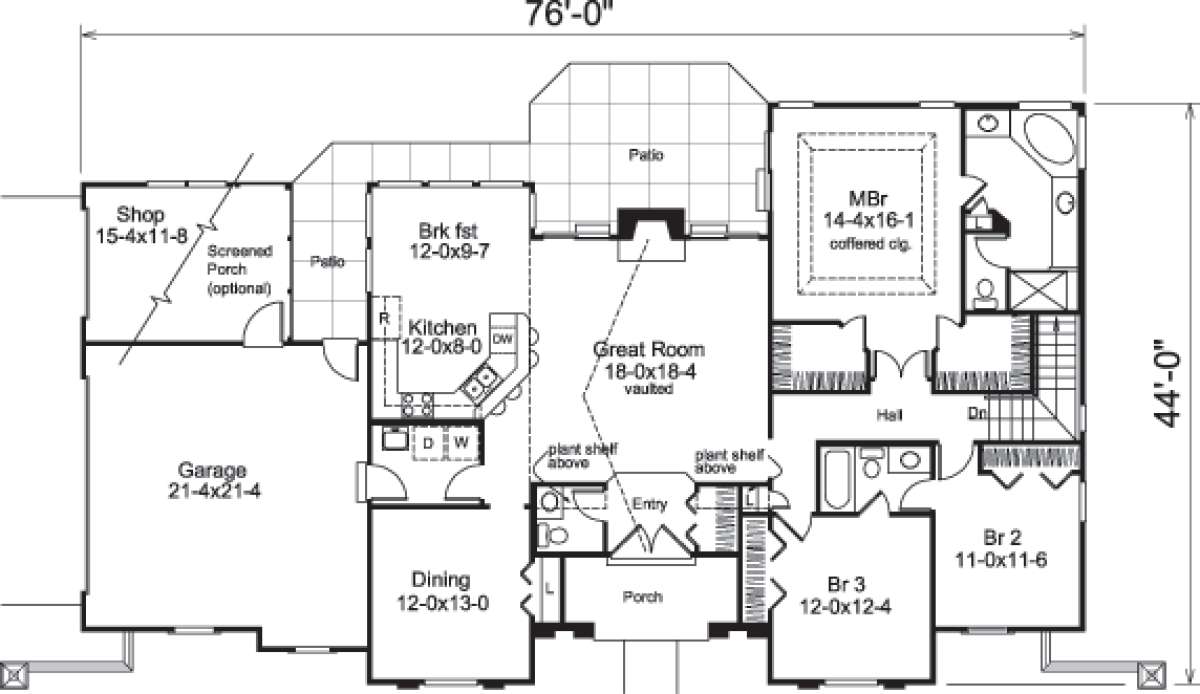

Floorplan 1 for House Plan #5633-00171
Floorplan 1
Floorplan 1 for House Plan #5633-00171


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

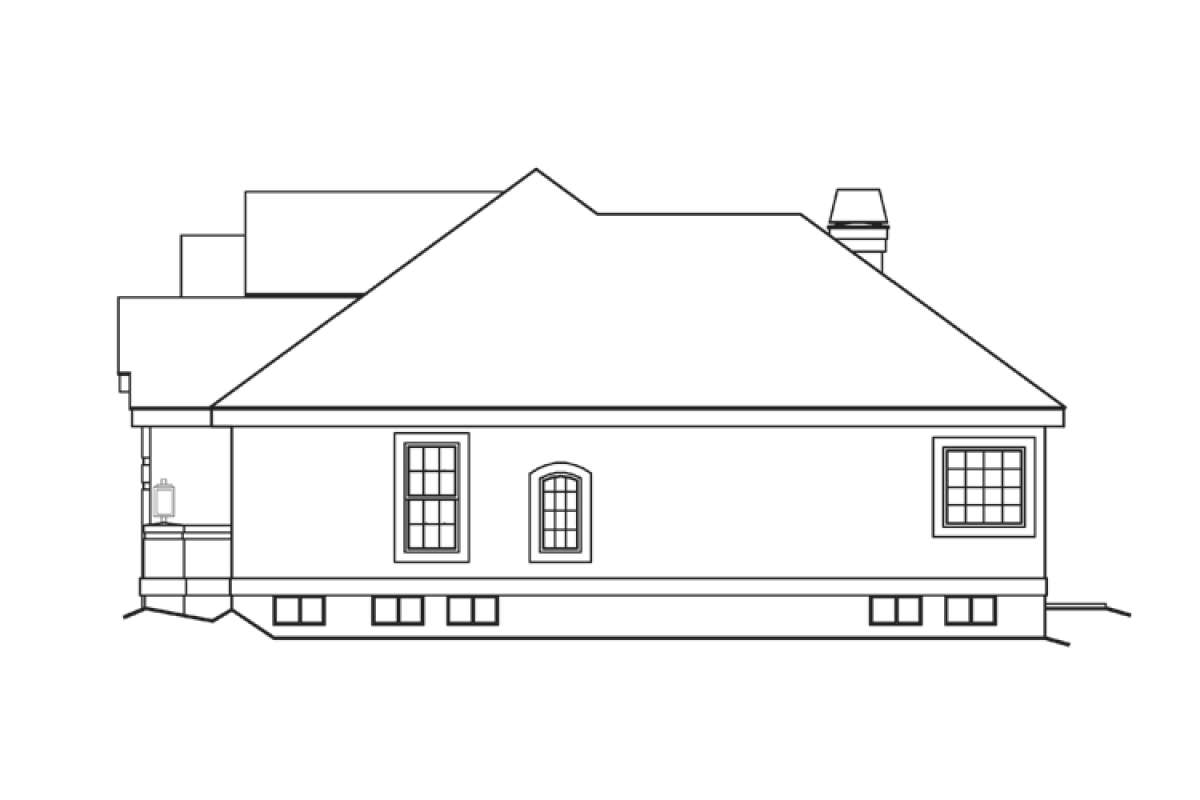

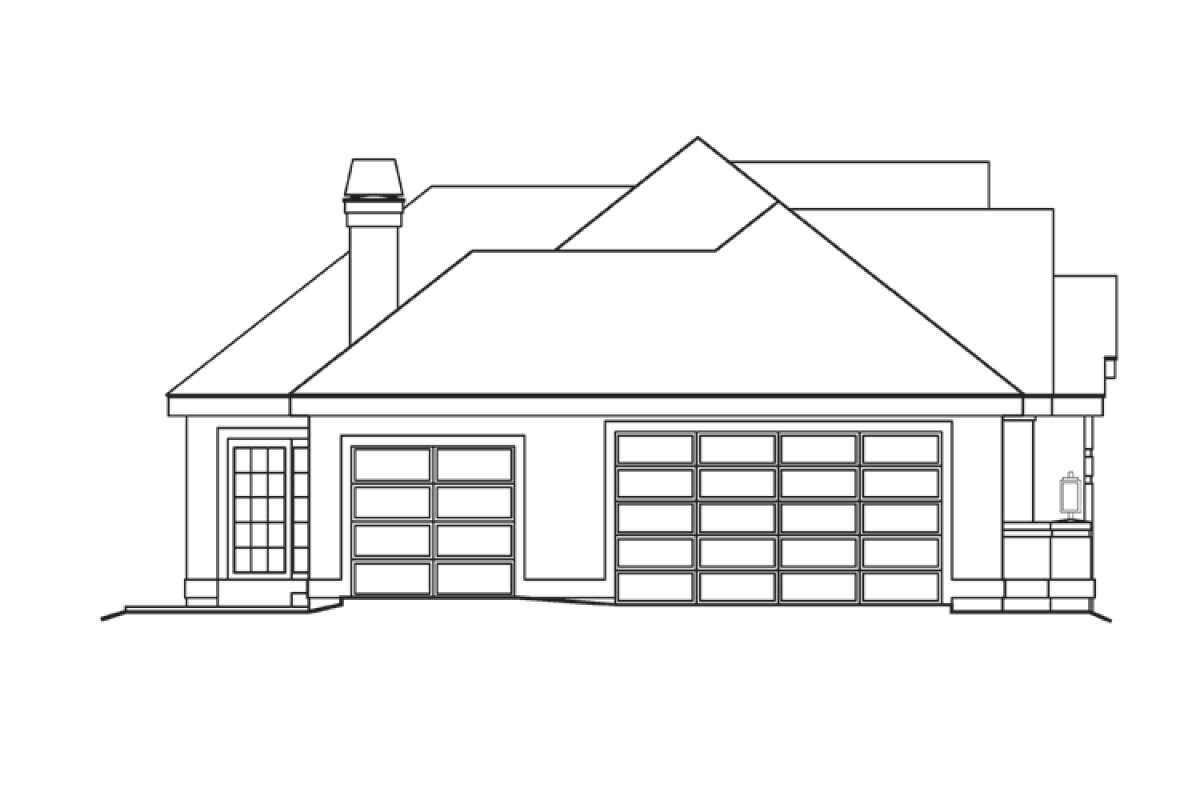

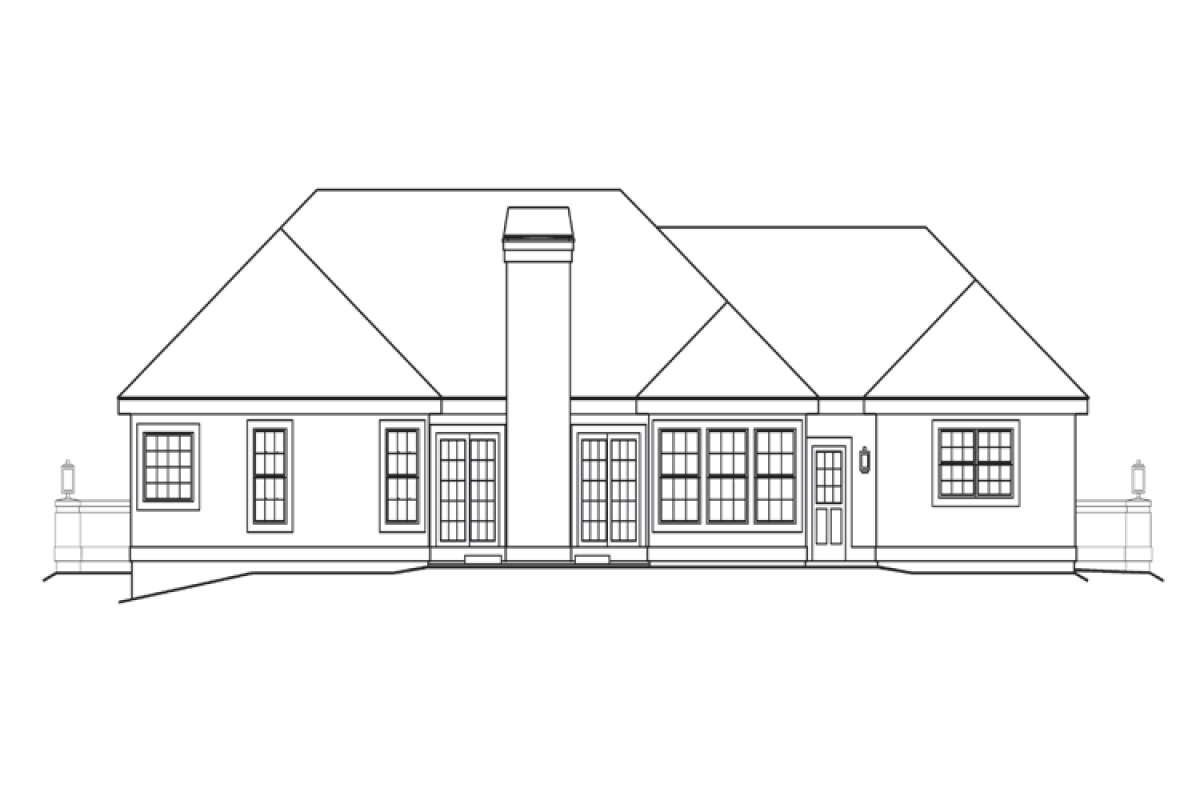

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This large luxurious house design features a spectacular stucco exterior, a multi-gabled roof line and a grand entrance. An excellent floor plan includes an abundance of interior space and an option for customization in order to best match the homeowner’s needs; this house plan includes design options for either a workshop or screened in porch adjacent to the two car, side entry garage. A basement foundation mirrors the first floor’s 1,948 square feet of space thereby, increasing the home’s value and expansion possibilities. Three bedrooms, two plus baths and an exciting interior floor plan ensure comfort and flexibility whether entertaining or enjoying private family time. The spacious and well-appointed living spaces feature an enormous vaulted great room with warming fireplace and patio access; a perfect space for entertaining business associates and close friends. A separate spacious dining room lends itself to family holiday dinners and Sunday potlucks as well. A gourmet kitchen and fabulous breakfast room enveloped in delightful window views provides an airy space. There is a large laundry room with sink area conveniently situated off the garage.
The master suite is simply stunning with French door access, his and her oversized walk-in closets and beautiful coffered ceilings in the bedroom along with private patio access. The en suite master bath is an elegant design beginning with the commanding corner garden tub surrounded by window views. There are dual vanities, a separate shower, linen closet and a compartmentalized toilet as well. Two family style bedrooms are spacious; each has generous closet space, window views and both have private access to the shared bath. This family friendly home boasts of plentiful floor space and a harmonious exterior façade.
