Ranch House Plan 5633-00169

Sq Ft1,741
1/2 Baths0
Width52' 4"
Depth54' 8"

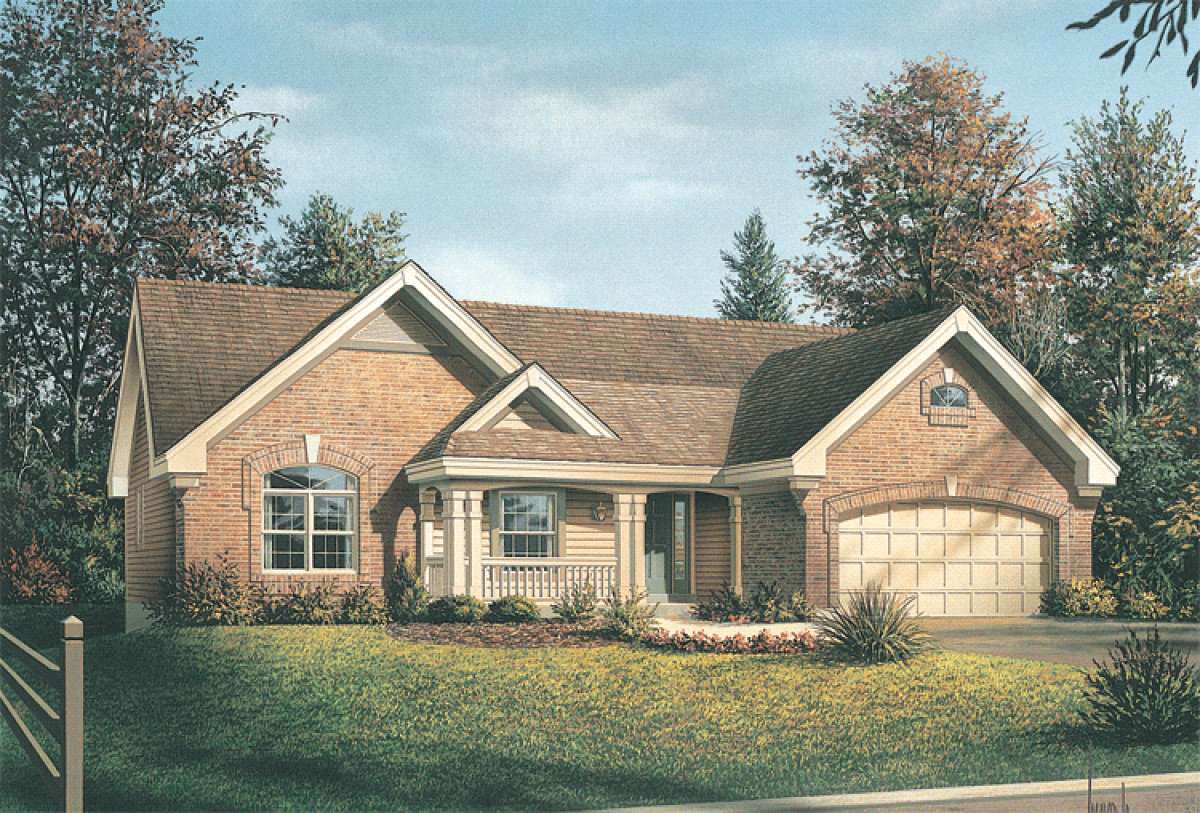

Ranch House Plan #5633-00169 Elevation Photo
Floorplan 1

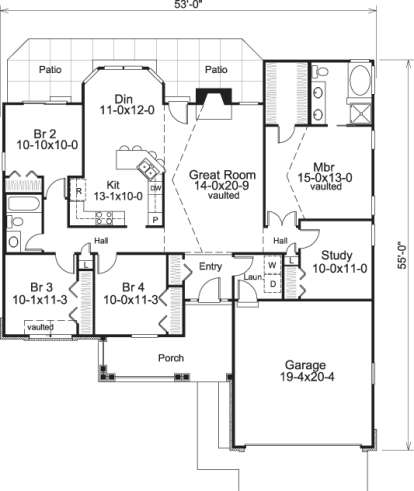

Floorplan 1 for House Plan #5633-00169
Ranch House Plan #5633-00169 Elevation Photo
Ranch House Plan #5633-00169 Additional Photo
Ranch House Plan #5633-00169 Additional Photo
Ranch House Plan #5633-00169 Elevation Photo
Floorplan 1 for House Plan #5633-00169
Ranch House Plan #5633-00169 Elevation Photo
Ranch House Plan #5633-00169 Additional Photo
Ranch House Plan #5633-00169 Additional Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

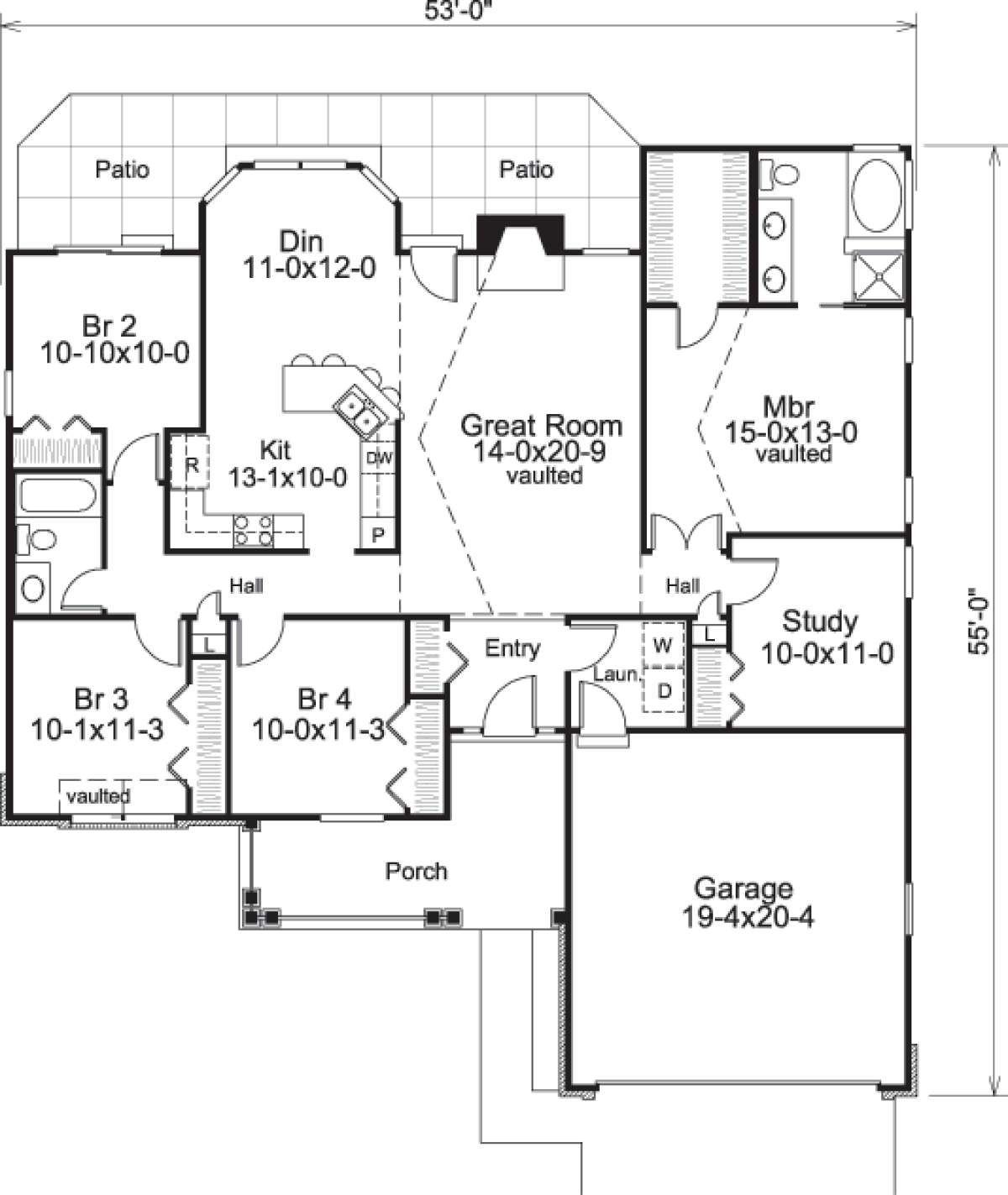

Floorplan 1 for House Plan #5633-00169
Floorplan 1
Floorplan 1 for House Plan #5633-00169

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

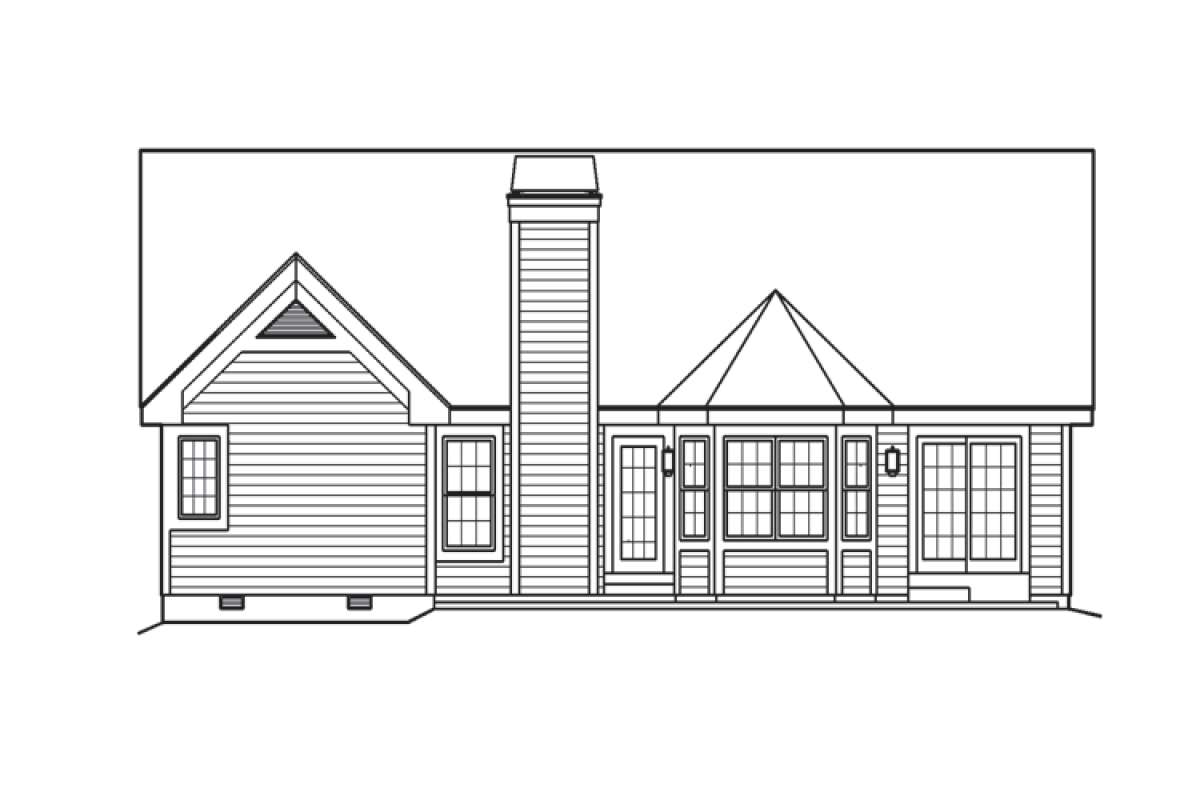

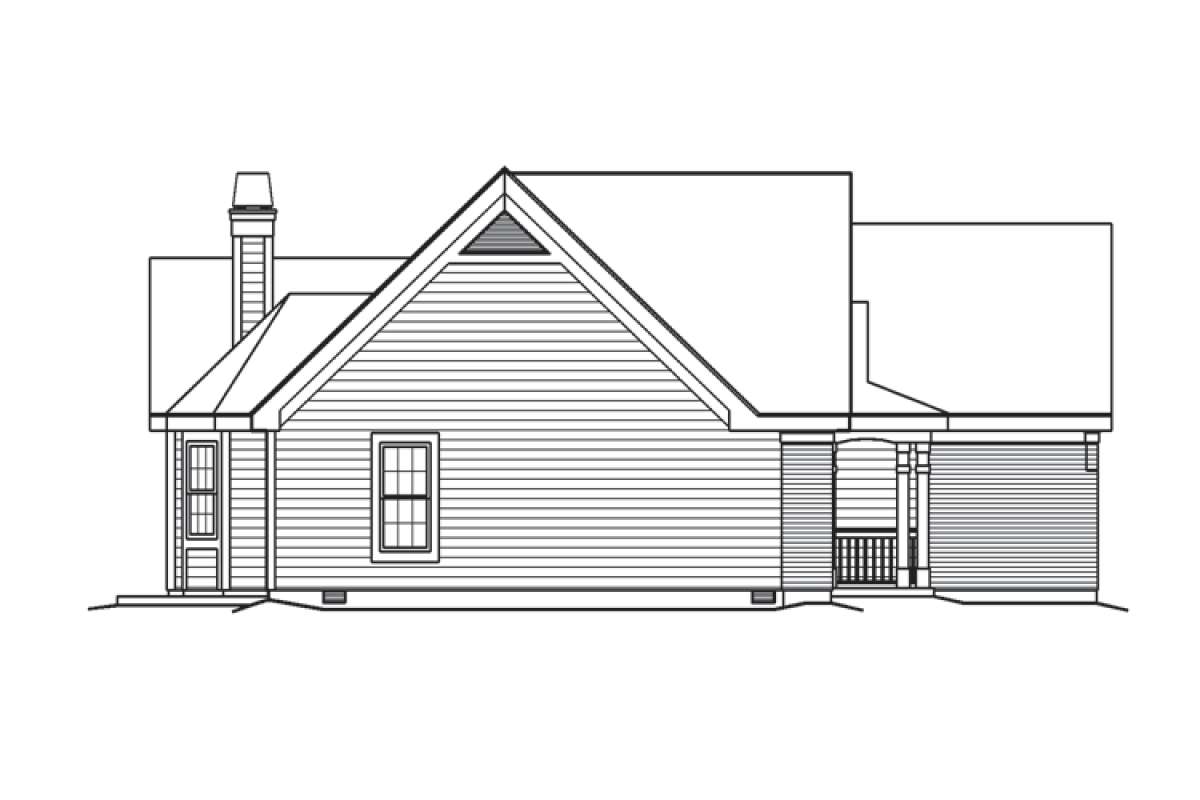

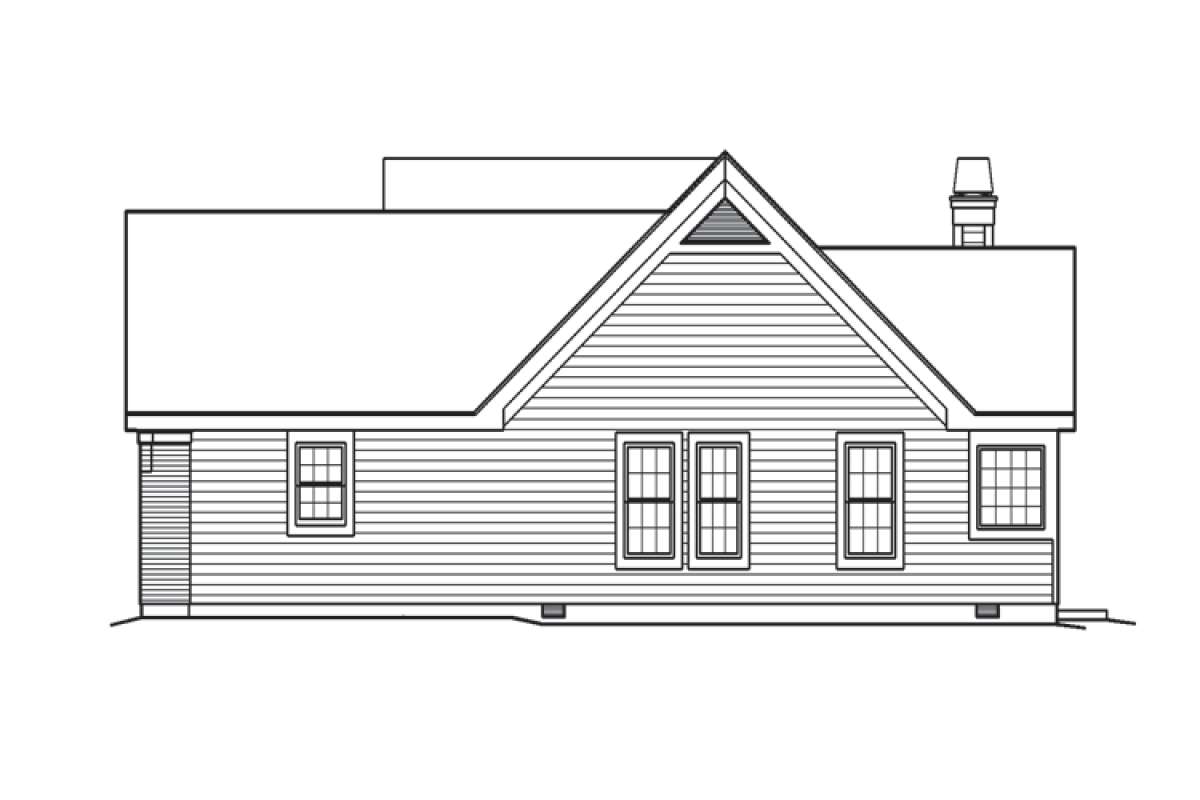

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This traditional Ranch house design features a lovely exterior façade and a generous and versatile interior floor plan. There are in excess of 1,740 square feet of living space in the home comprised of four bedrooms and two baths in the single story home. The home’s drawings are on a crawl space foundation; however, slab and a basement foundation are also included. The basement foundation would substantially increase the home’s square footage, value and versatility. There is a two car, front loading garage with 393 square feet of vehicle and other storage space available, as well. Elegant brickwork, multiple gables and a front covered porch highlighted with open railing and columned beams create a handsome exterior. A spacious entry foyer features a coat/storage closet and subsequently opens onto the numerous living spaces. There is an oversized, vaulted great room with a warming fireplace and rear patio access. The gourmet kitchen features an angled breakfast bar which is open to the great room; additional amenities include a separate pantry and loads of counter and cabinet space. The casual dining space is tucked into the expansive bayed window feature overlooking the rear patio. The interior laundry room is situated off the garage for ease and convenience with an additional access point into the room.
The split bedroom plan features three family style bedrooms and bath on one side of the home. Bedroom two features private patio access and generous closet space while the third bedroom contains a vaulted window feature and plentiful closet space. The fourth bedroom has a window view overlooking the front covered porch and a spacious closet. There is a shared hall bath with vanity space, a toilet area and a shower/tub combination along with a hall linen closet. The master suite is situated on the opposite side of the home for privacy and is magnificently designed. Access into the suite is through French doors where the vaulted master bedroom is located; it features great window views and an oversized master walk-in closet. The master bath is highlighted with dual vanities, a separate shower, private toilet and a garden tub surrounded with window views. The small hallway leading to the master suite contains a linen closet and access into the front study; this space could be enjoyed as a home office or could equally function as a fifth bedroom or nursery as it contains plenty of closet space. This beautiful home is ideally suited for a large family and has unlimited expansion possibilities located in the lower level.
