Luxury House Plan 5633-00166

Sq Ft3,974
Beds4
Baths3
1/2 Baths1
Stories2
Cars3
Width65' 8"
Depth68' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

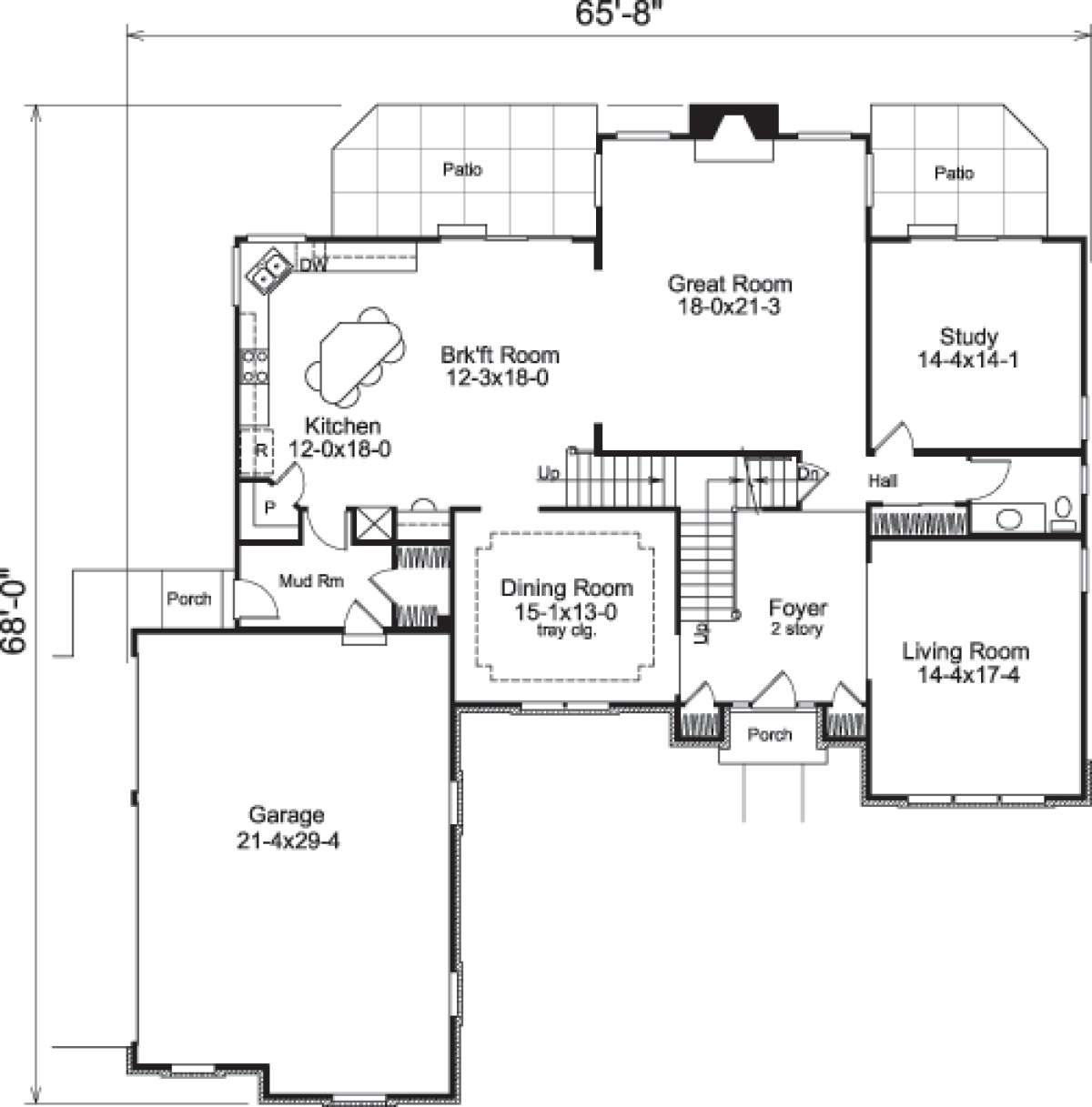

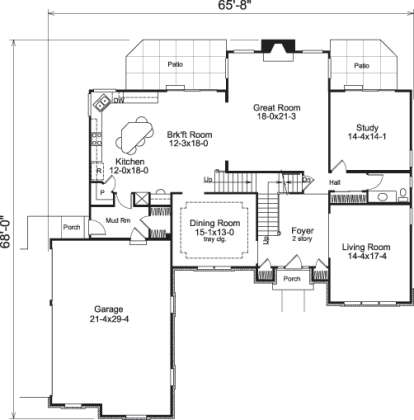

Floorplan 1 for House Plan #5633-00166

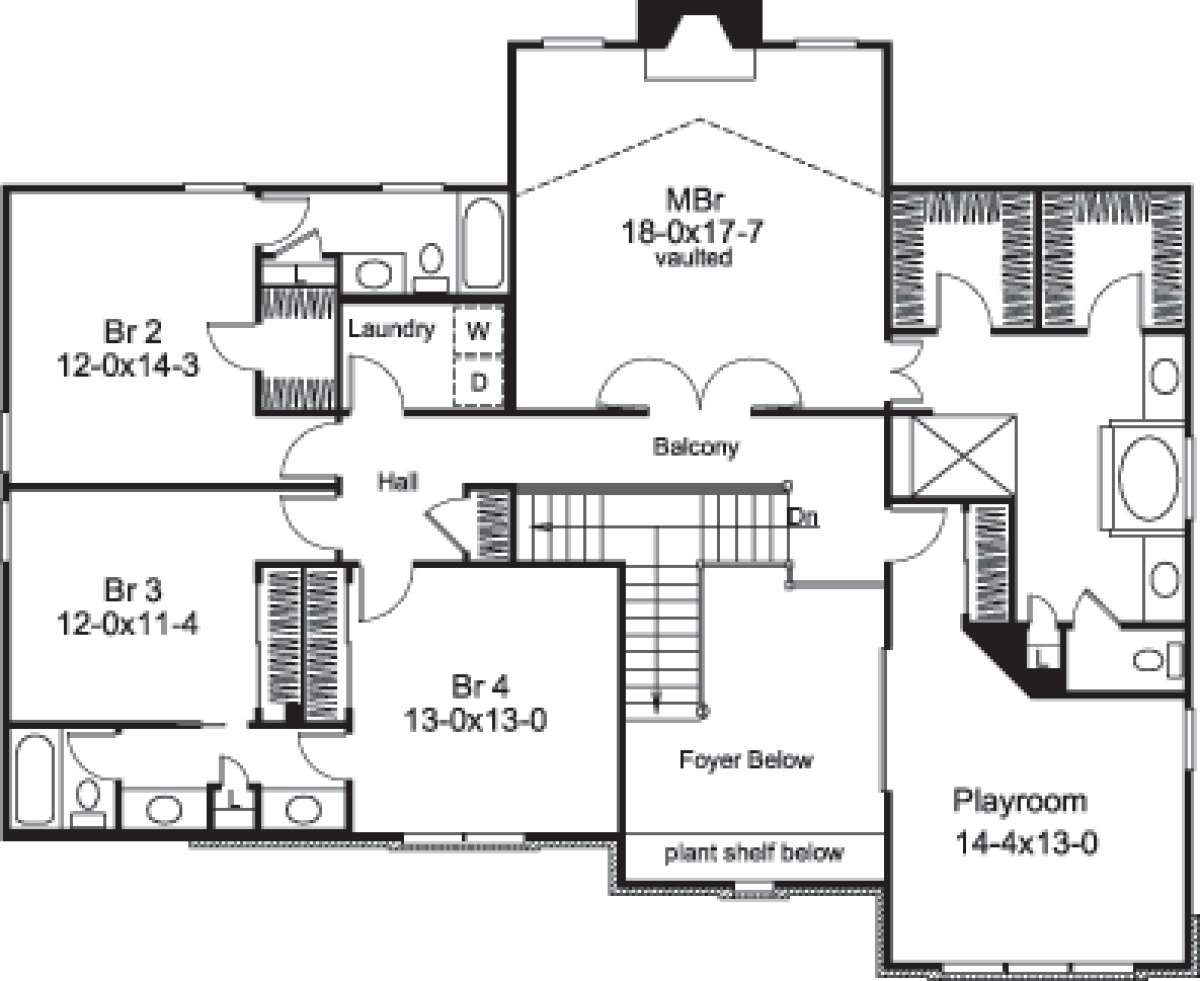

Floorplan 2 for House Plan #5633-00166
Floorplan 1
Floorplan 1 for House Plan #5633-00166
Floorplan 2
Floorplan 2 for House Plan #5633-00166


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Sophisticated architecture takes center stage with the use of stately brickwork and Old World stone which provides distinction and form to this stately manor. The grand exterior harkens back to the days of meaningful craftsmanship and design where a blend of formal and classical styles were often inspired by country villas. The interior is no less stunning and features approximately 3,974 square feet of living space including four bedrooms and three plus baths. The home’s drawings are cleverly designed for a basement foundation which would substantially increase the home’s square footage, value and flexibility. The traditional floor plan features a dramatic two story foyer highlighted with a T-shaped staircase and flanked by a formal living and dining room. Both rooms are generously proportioned with front facing windows and the dining room boasts of a trey ceiling accent. A rear study is private and cozy with rear patio access making it ideal for entertaining business associates and peers. The family friendly great room has a warming fireplace, wood beam ceiling and picturesque window views before opening onto the breakfast room and kitchen. The kitchen is a chef’s delight with modern amenities highlighted by a center island bar, a walk-in pantry, a menu desk and a plethora of counter and cabinet space along with rear patio access. The mudroom features a side porch for easy cleanup, a large closet and is conveniently located off the three car side entry garage.
The second story landing features balcony overlooks onto the foyer and houses the family’s bedrooms and baths. There are three spacious bedrooms; bedroom two features a walk-in closet and private full bath while the other two bedrooms have plentiful closet space and share a jack and jill bathroom with double vanities. The laundry room is situated on this floor for ease and comfort. An additional flex space is quite large and contains closet space; it could be used as a multi-purpose family room, playroom for the children or a fifth bedroom. The master retreat offers an impressive sized vaulted bedroom with a handsome fireplace. Double his and her walk-in closets are available and conveniently located adjacent to the master bath. The en suite bath features dual vanities, a separate shower, linen closet and a gorgeous garden tub. This family home has plenty of private family space and entertaining space along with a striking exterior façade.
