Cabin House Plan 5633-00164

Sq Ft809
Beds1
Baths1
1/2 Baths0
Stories1
Cars0
Width36' 8"
Depth30' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00164
Floorplan 1
Floorplan 1 for House Plan #5633-00164


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')

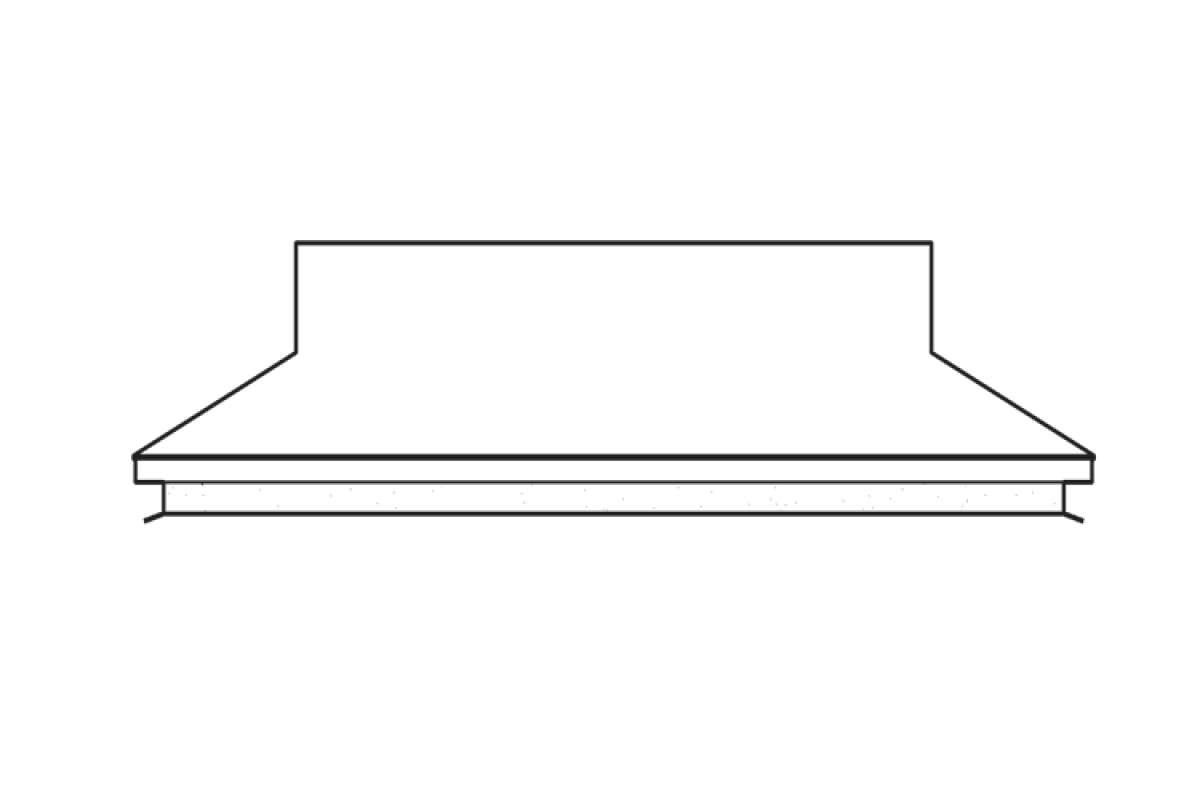

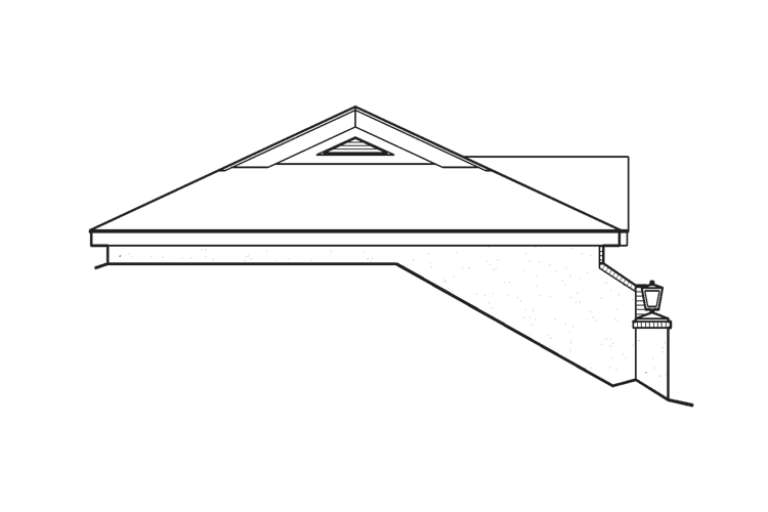

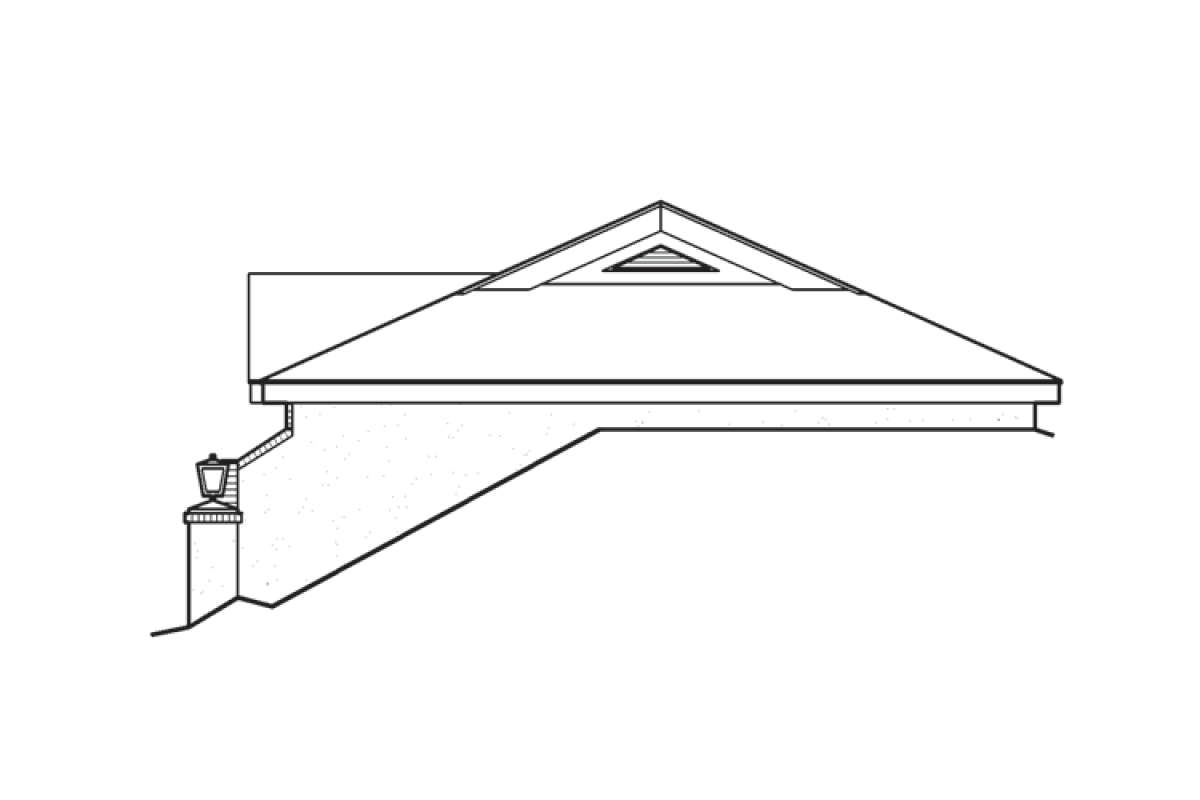

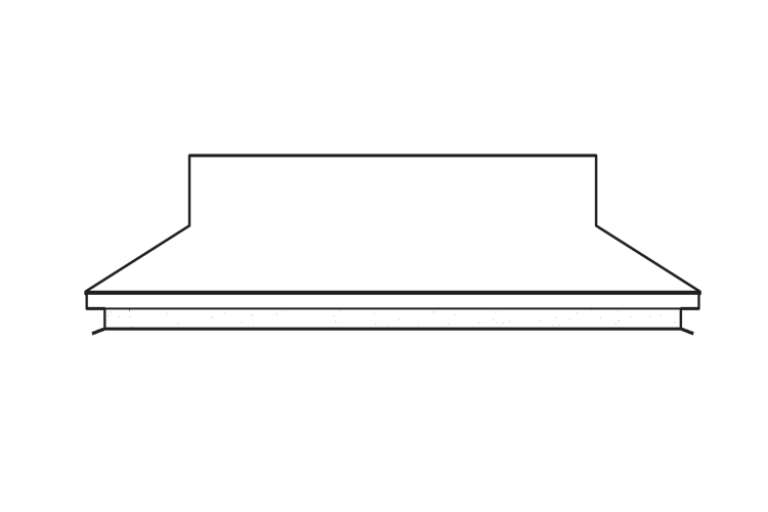

  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This enchanting Cabin plan has an attractive exterior façade bursting with excellent architectural design elements which enhance the home’s value and appeal. The centrally located entrance is flanked by an expansive covered front porch highlighted by open railing and the grand entrance provides a barrel arched opening. Stone highlighted with brick line the side walls and capture the essence of the home’s beauty with the finishing light features. This home is perfectly suited for a narrow lot with its 36’+ width and commands a mountain view property or serene lakefront viewing. The interior floor plan features approximately 809 square feet of living space which incorporates one bedroom and one bath. The entry foyer and coat closet ultimately lead into the enormous living room and open concept design. A fantastic breakfast bar opens onto the dining space and the kitchen contains modern amenities and additional counter and cabinet space. The conveniently located laundry room is spacious and there is a hall linen closet as well. The bedroom features generous floor space, double window views overlooking the front porch and an oversized walk-in closet. The bathroom has great vanity space, a toilet and a tub/shower combination. This home is punctuated with a beautiful exterior façade, an open living and entertaining floor plan and makes a wonderful vacation or forever home for a young couple or empty nesters.
