Country Plan 5633-00162


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,196
Beds 3
Bath 2
1/2 Baths 0
Car 1
Stories 1
Width 40'
Depth 42'

Floorplan Drawings

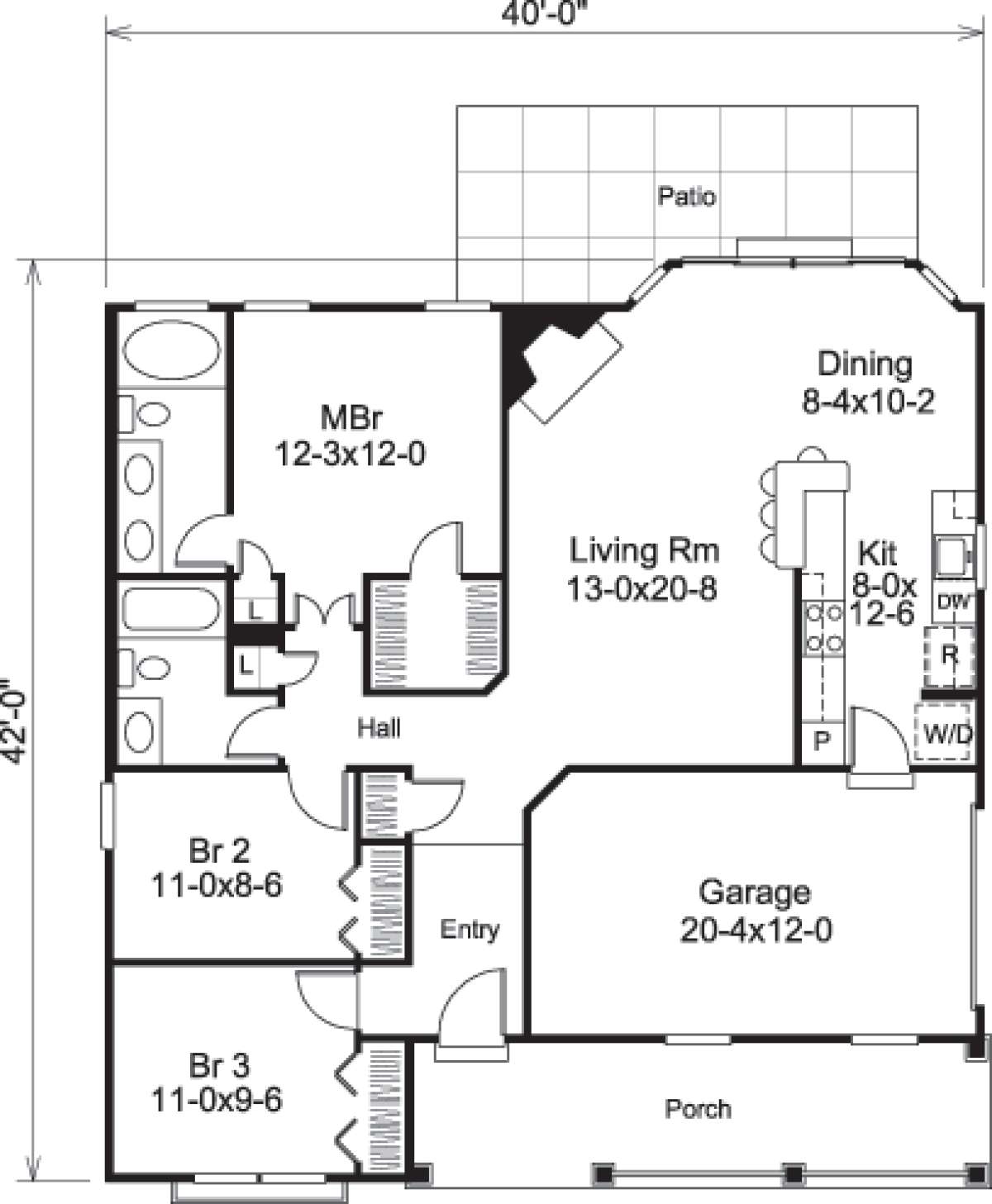

Floorplan 1
Floorplan 1 for House Plan #5633-00162

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

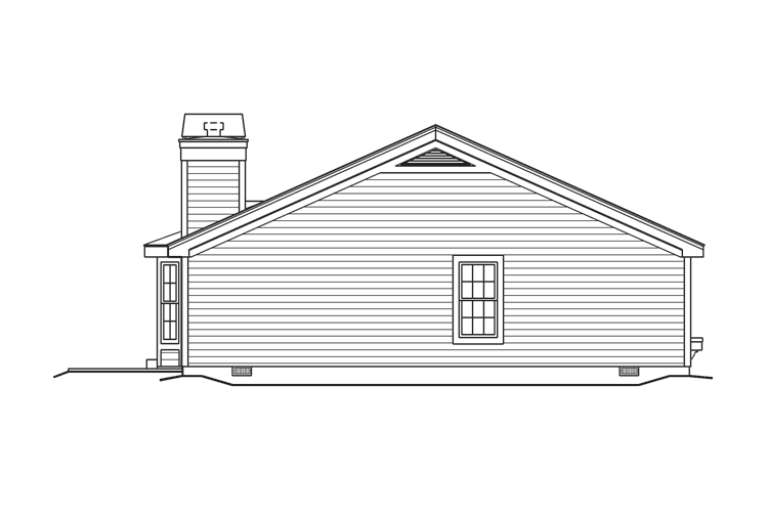

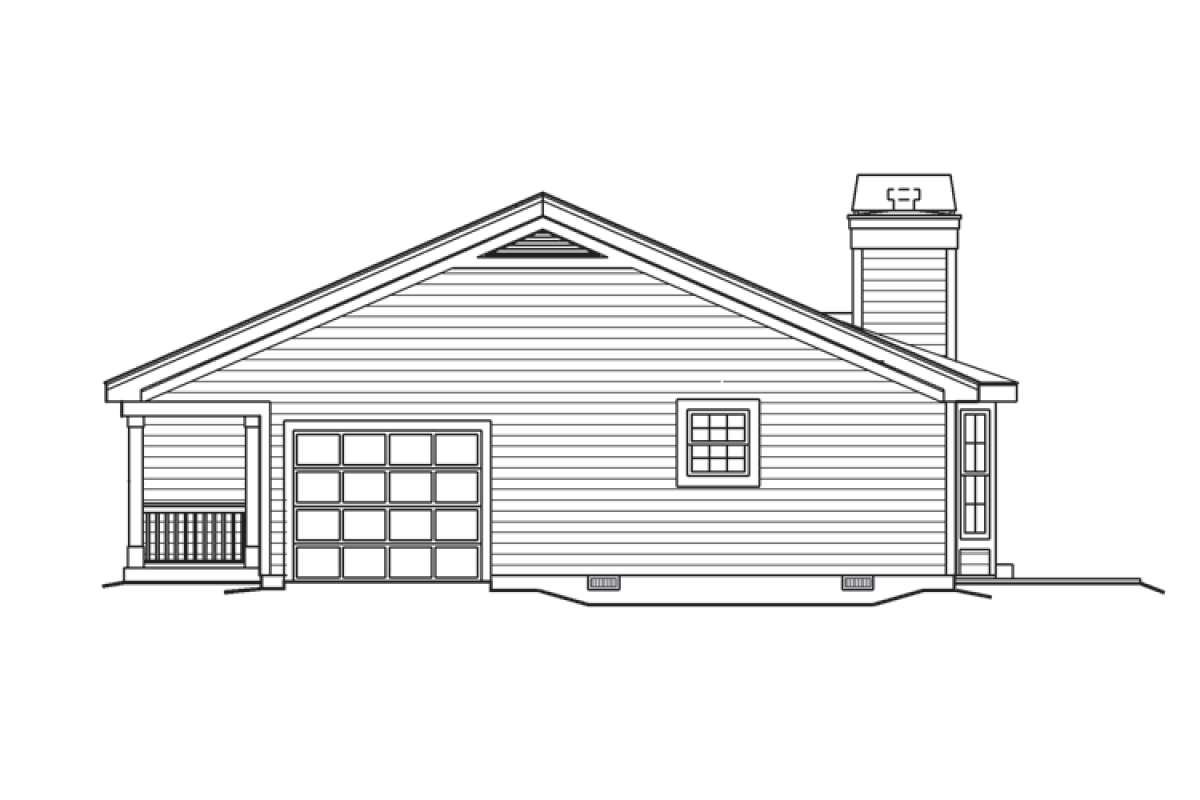

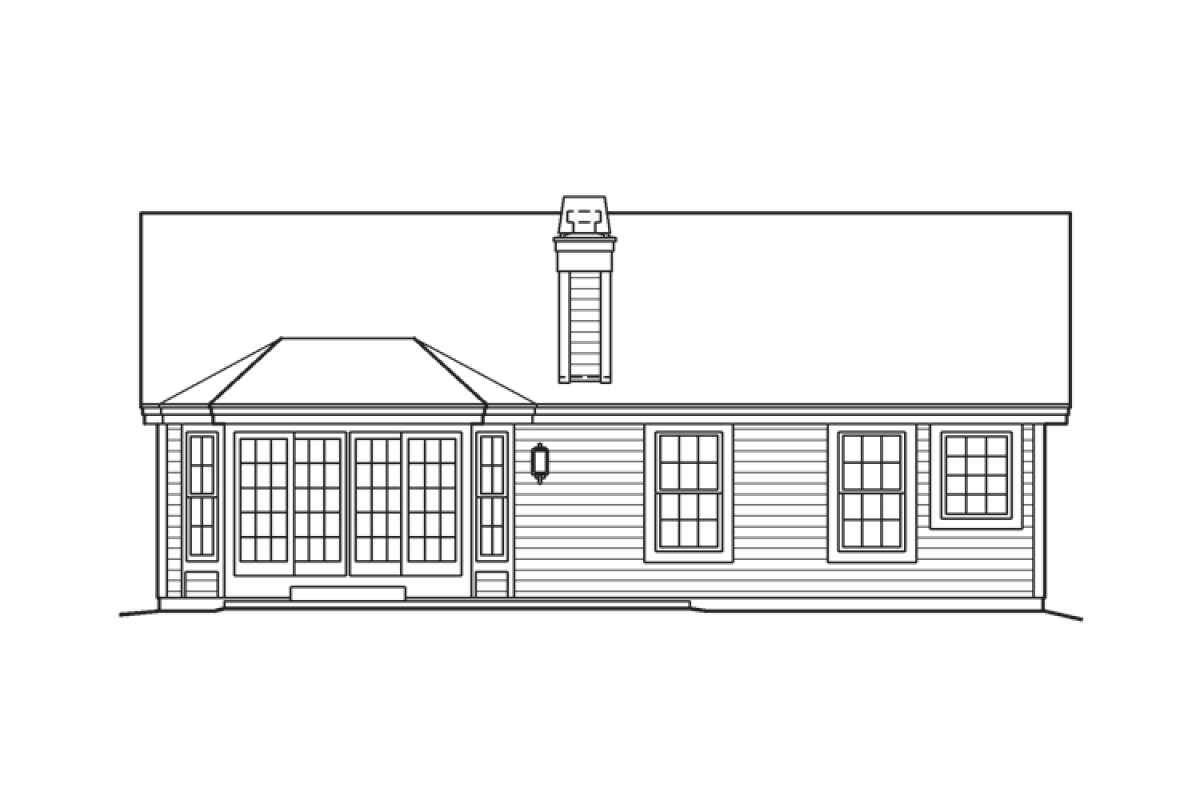

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

An abundance of living space is highlighted in this Country home which features approximately 1,190 square feet in the one story home and offers three bedrooms and two baths. The exterior façade is highlighted by simple construction and an expansive front covered porch highlighted by open railing and columned beams. The one car, side entry garage results in uninterrupted sight lines on the front exterior and offers an additional 244 square feet of space. Entrance into the home off the inviting front porch leads to a spacious foyer and subsequent open concept family living and dining space where entertaining is enjoyable and effortless. The living room is large; measuring in excess of 13’x20’, where a corner fireplace and open breakfast bar off the kitchen is highlighted. The adjacent dining room is bright, surrounded by a wide bay window and features rear patio access. The kitchen has a breakfast bar, a separate pantry, plenty of additional counter and cabinet space and houses the family laundry nook. The open concept living and dining spaces along with a rear patio are ideal for entertaining large gatherings of family and friends. There are two spacious secondary bedrooms; both enjoy plentiful closet space and wonderful window views. The shared hall bath is highlighted by a large vanity space, toilet area and a shower/tub combination along with a shared hall linen closet. The master suite features French door access into the master bedroom which is large, has great window views and contains an oversized master walk-in closet. The elegantly designed master bath features dual vanities, a linen closet, toilet area and a garden tub with a window view. This one story Ranch house plan features expansive entertaining space and plenty of private family spaces in a functional and comfortable floor plan.
