Traditional House Plan 5633-00161

Sq Ft3,978
Beds4
Baths3
1/2 Baths2
Stories2
Cars3
Width76' 4"
Depth48' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

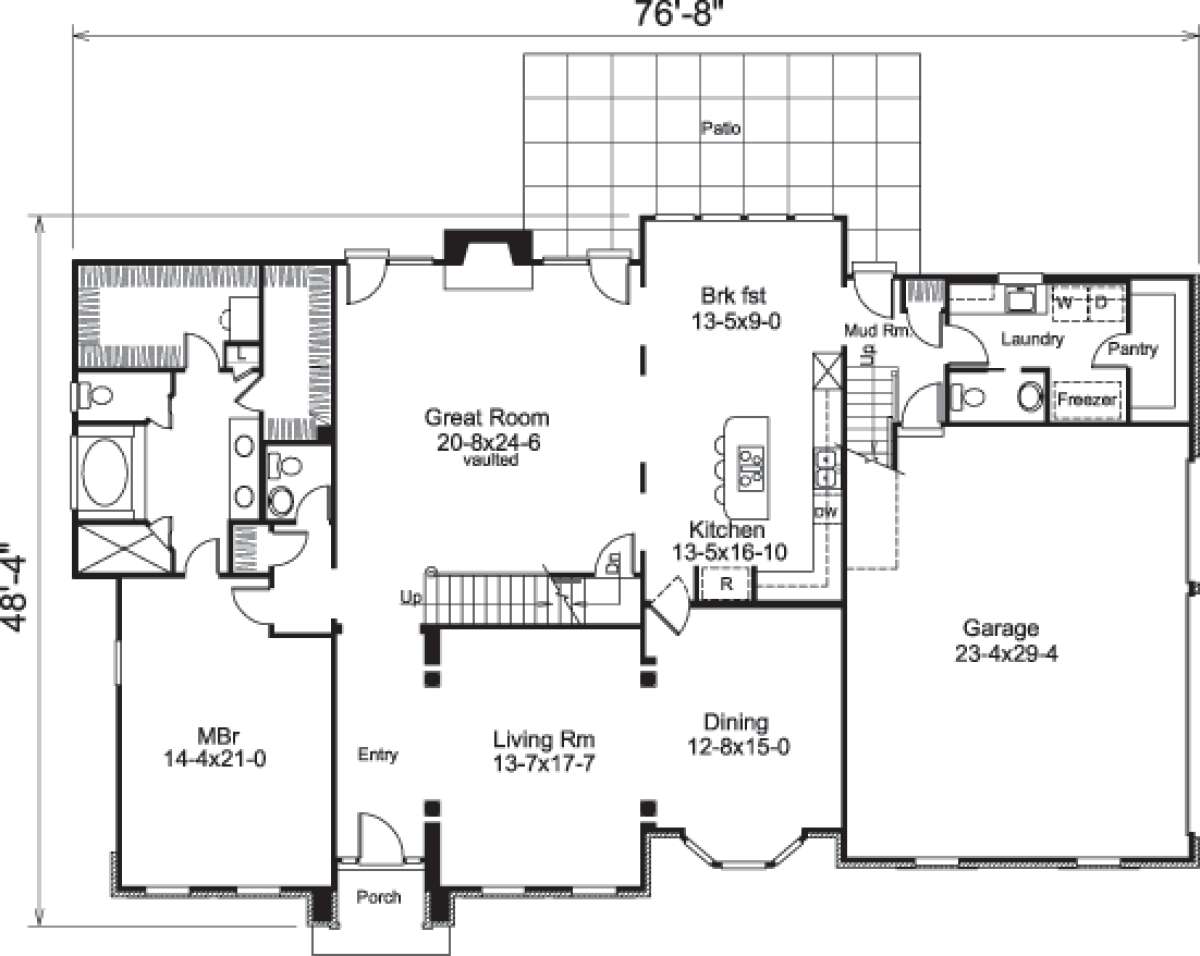

Floorplan 1 for House Plan #5633-00161

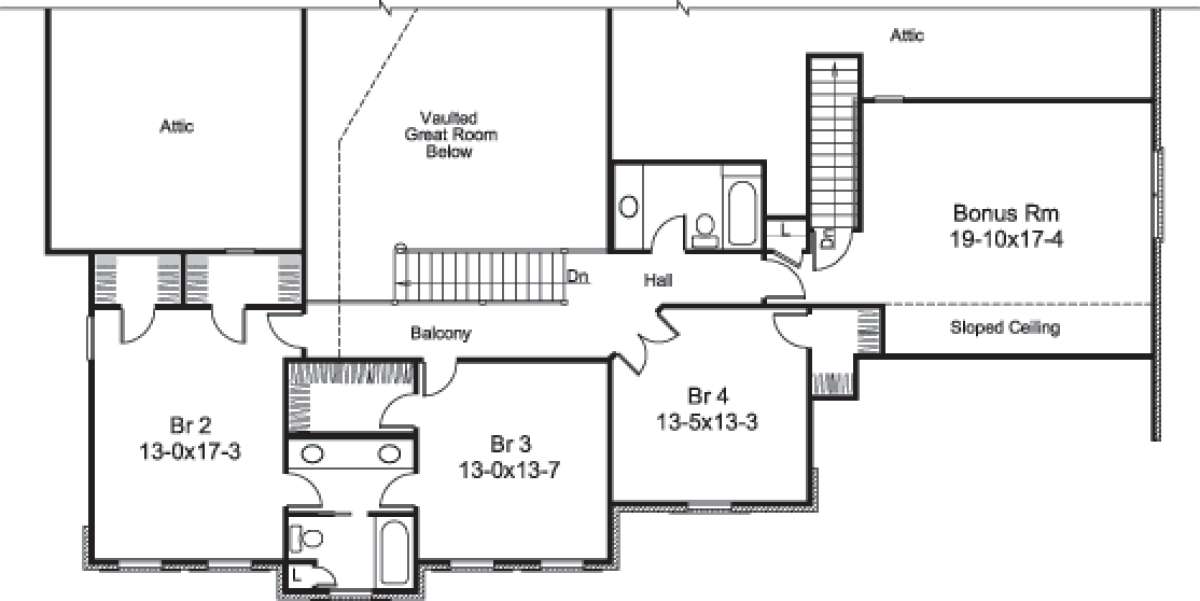

Floorplan 2 for House Plan #5633-00161
Floorplan 1
Floorplan 1 for House Plan #5633-00161
Floorplan 2
Floorplan 2 for House Plan #5633-00161


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This richly designed exterior façade is comprised of a centrally located stone chimney highlighted by an enormous window feature and a front covered porch. The interior floor plan features two bedrooms and two baths in approximately 1,687 square feet of living space. There is a one car garage which offers an additional 247 square feet of vehicle and storage space. Entrance into the single story Ranch home is through the spacious foyer which houses a coat/storage closet and is open to the vaulted great room. The great room is sunken, has a handsome fireplace and fabulous window features. Across the gallery hall is the formal dining space; this room is large with a wet bar and provides outdoor access to the rear patio area. An open breakfast bar connects the dining space and kitchen where you will find additional counter and cabinet space. In the U-shaped kitchen there is a separate pantry and the rear wall of the kitchen is highlighted with a wall of windows overlooking the yard. An interior laundry room is directly situated off the garage for ease and convenience where there is an accompanying sink, a window view and plenty of space.
Off the main hallway of the home is the second bedroom which is quite spacious, has a large walk-in closet and a triple wall of windows. There is a shared hall bath and a hall linen closet. The master suite is a gorgeous design with a striking bayed window spanning the length of one wall allowing for a sun drenched retreat. The bedroom is quite spacious and contains a master walk-in closet along with additional closet space. There is an elegantly designed master bath which features a sunken bath with windows surrounding the tub area, and dual vanities, built-in cabinetry, a private toilet area, a separate shower and private access to the rear patio. This home has a striking exterior façade and a spacious interior floor plan.
