Country Plan 5633-00160


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,670
Beds 4
Bath 4
1/2 Baths 1
Car 3
Stories 2
Width 89' 4"
Depth 42' 4"

Floorplan Drawings

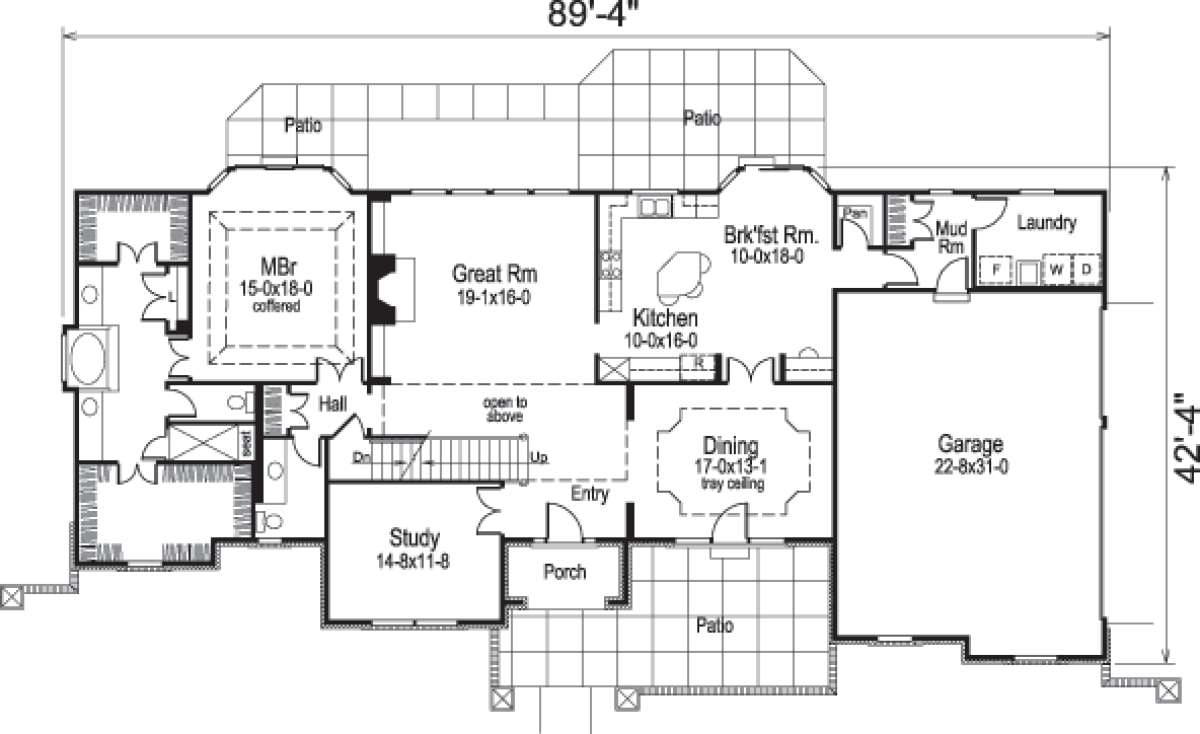

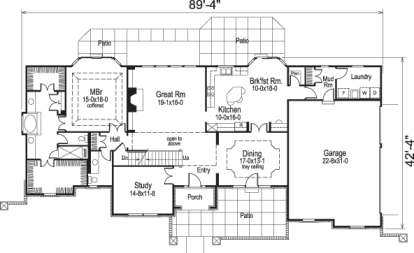

Floorplan 1
Floorplan 1 for House Plan #5633-00160

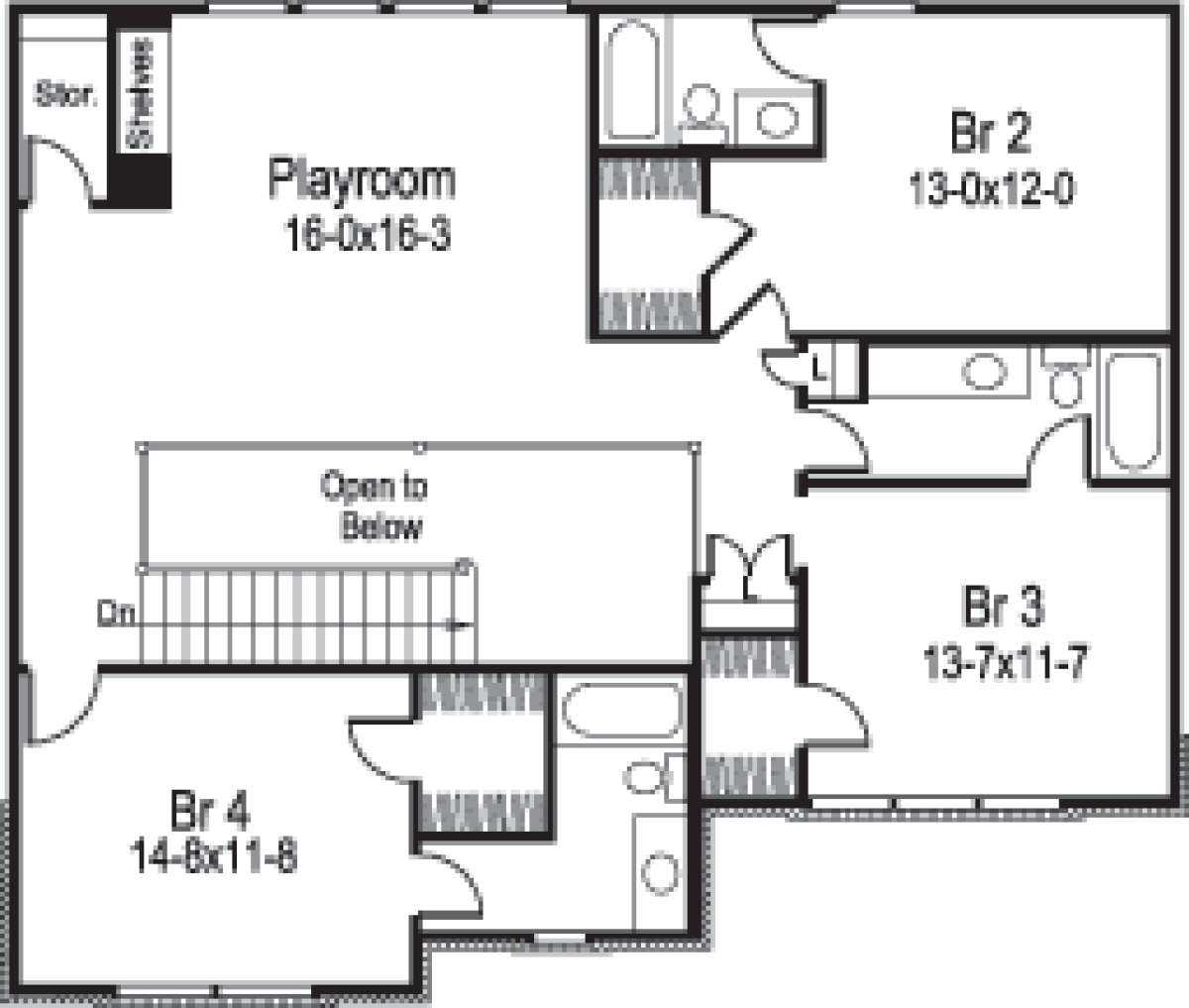

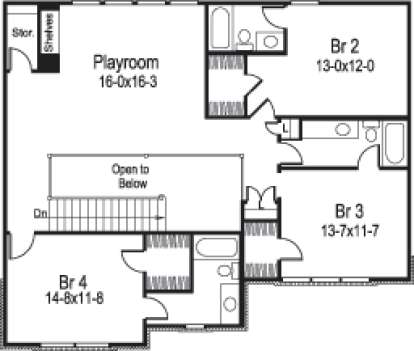

Floorplan 2
Floorplan 2 for House Plan #5633-00160

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

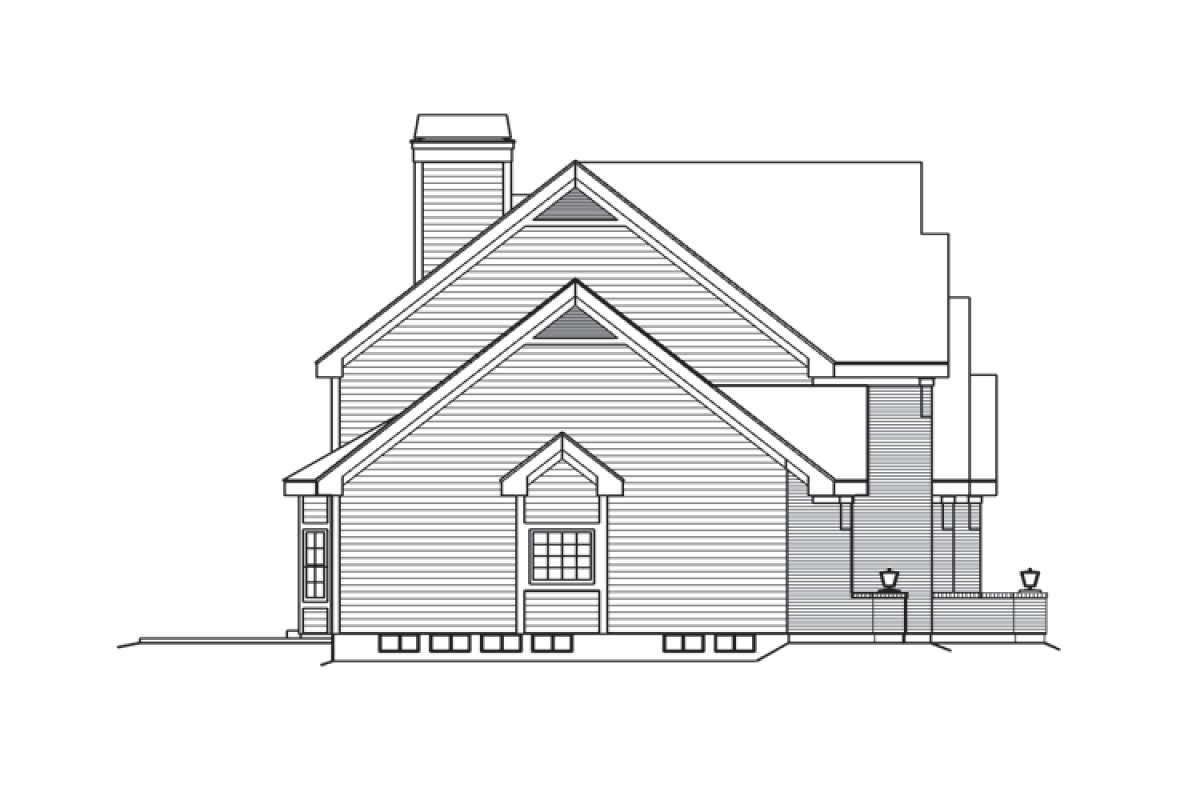

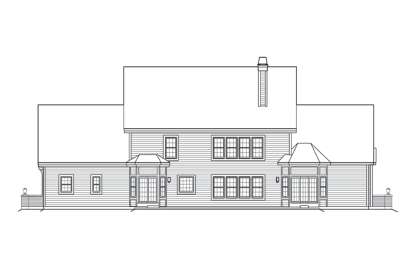

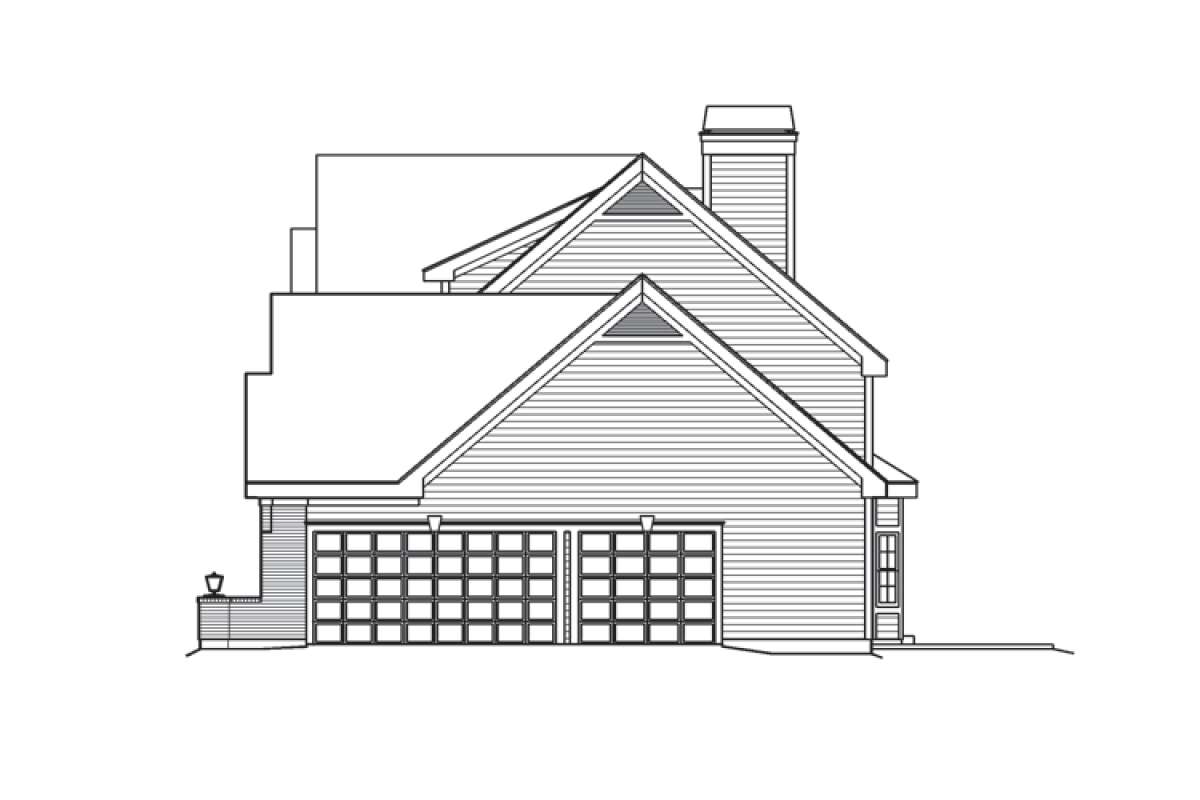

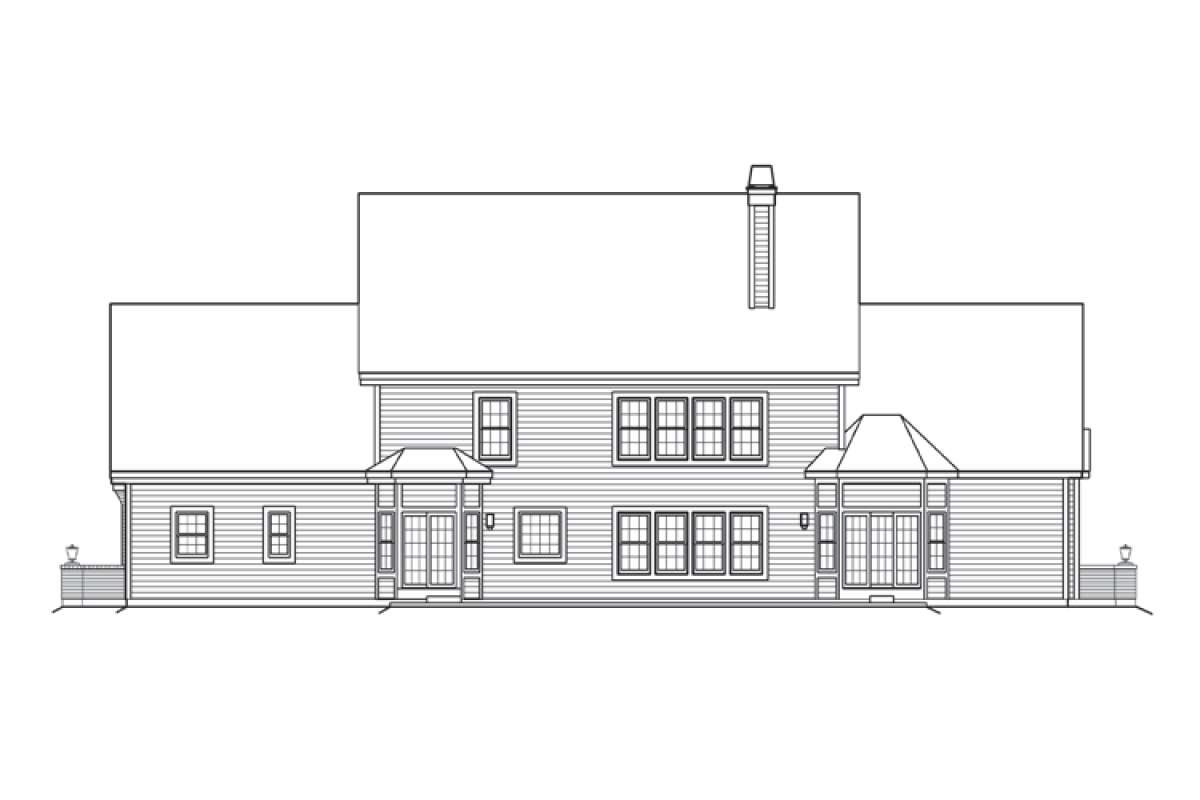

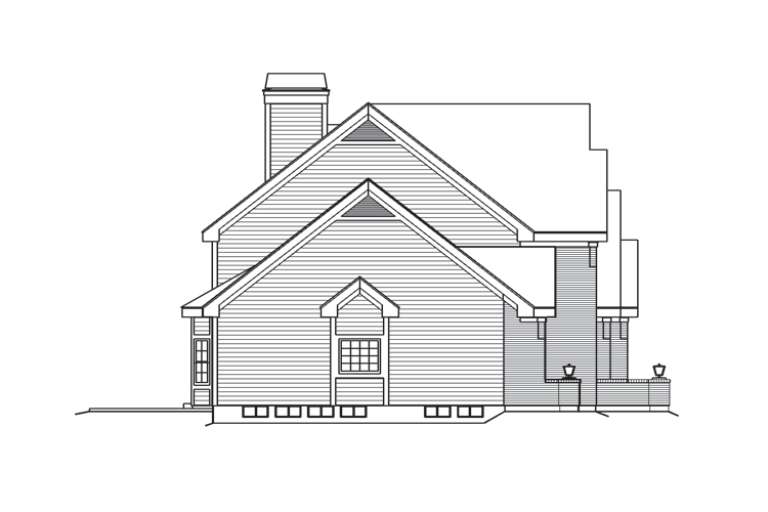

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Classic elegance and timeless architectural detailing highlight the exterior of this luxury home. The impressive façade boasts of detailed brickwork, multiple gables and a lovely front patio entrance. Expansive interior space which features four bedrooms and four plus baths is highlighted on the home’s interior along with outstanding entertaining space in the approximate 3,670 square feet of living space. A private study is accessible through French doors off the foyer and offers great space for business meetings or a home office. The two story entrance features a handcrafted staircase and leads to the rear great room with warming fireplace, built-in cabinetry and a rear wall of windows. The gourmet kitchen features a snack bar island, walk-in pantry, computer desk and anchors the formal dining room and casual breakfast room. There is a large half bath for guests and the interior laundry room features a coat/storage closet, sink area and space for a freezer which is conveniently located off the three car, side entry garage. The luxurious master suite occupies one wing of the main floor and offers a private retreat with a coffered ceiling master bedroom which has private rear patio access. Double oversized walk-in closets sit on either side of the luxurious bath for convenience. The master bath is highlighted by dual vanities, a linen closet, a compartmentalized toilet and an oversized shower with seating area.
An open loft area with balcony overlooks has a wall of windows, built-in shelving and storage room; this second story space could be used as a playroom, homework station for the children or a teen-age lounge. There are three extravagant bedroom suites; each enjoys a large footprint, a private full bath and walk-in closets. This beautiful home features an abundance of private family space which is comfortable and fully functional.
