Ranch House Plan 5633-00158

Sq Ft2,420
Beds4
Baths3
1/2 Baths1
Stories1
Cars2
Width78' 0"
Depth59' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

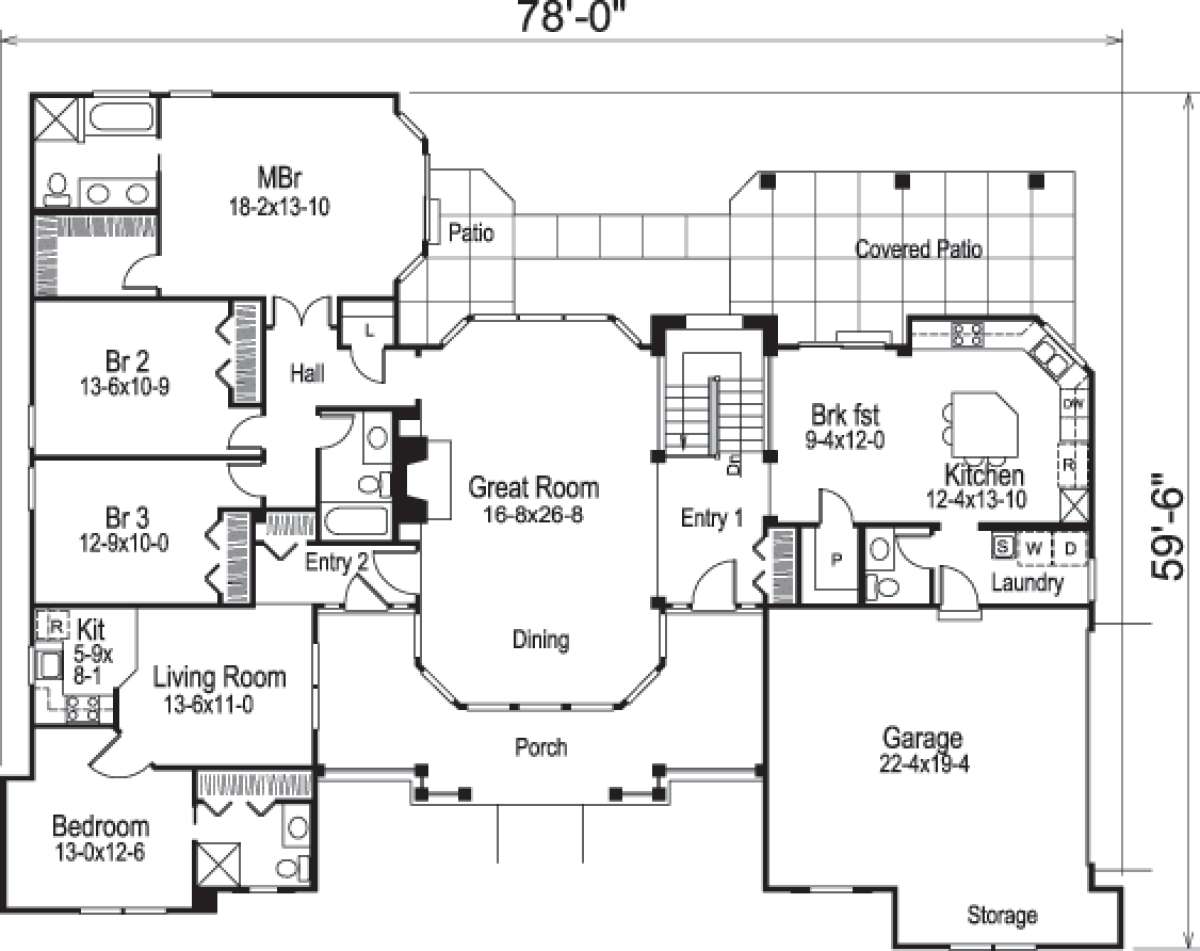

Floorplan 1 for House Plan #5633-00158

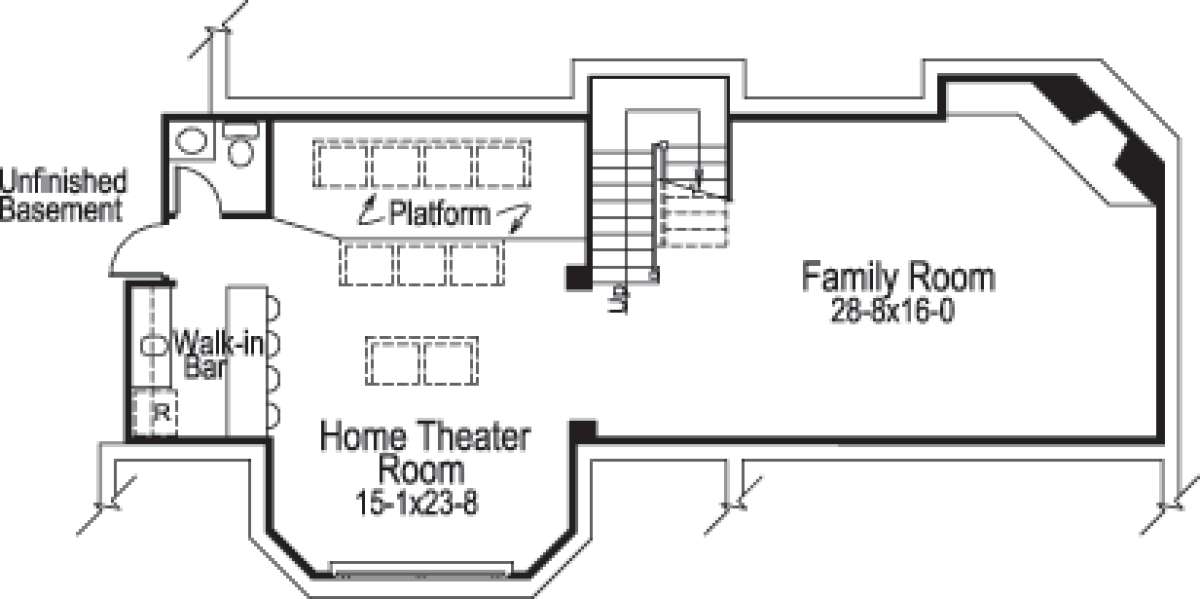

Floorplan 2 for House Plan #5633-00158
Floorplan 1
Floorplan 1 for House Plan #5633-00158
Floorplan 2
Floorplan 2 for House Plan #5633-00158


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

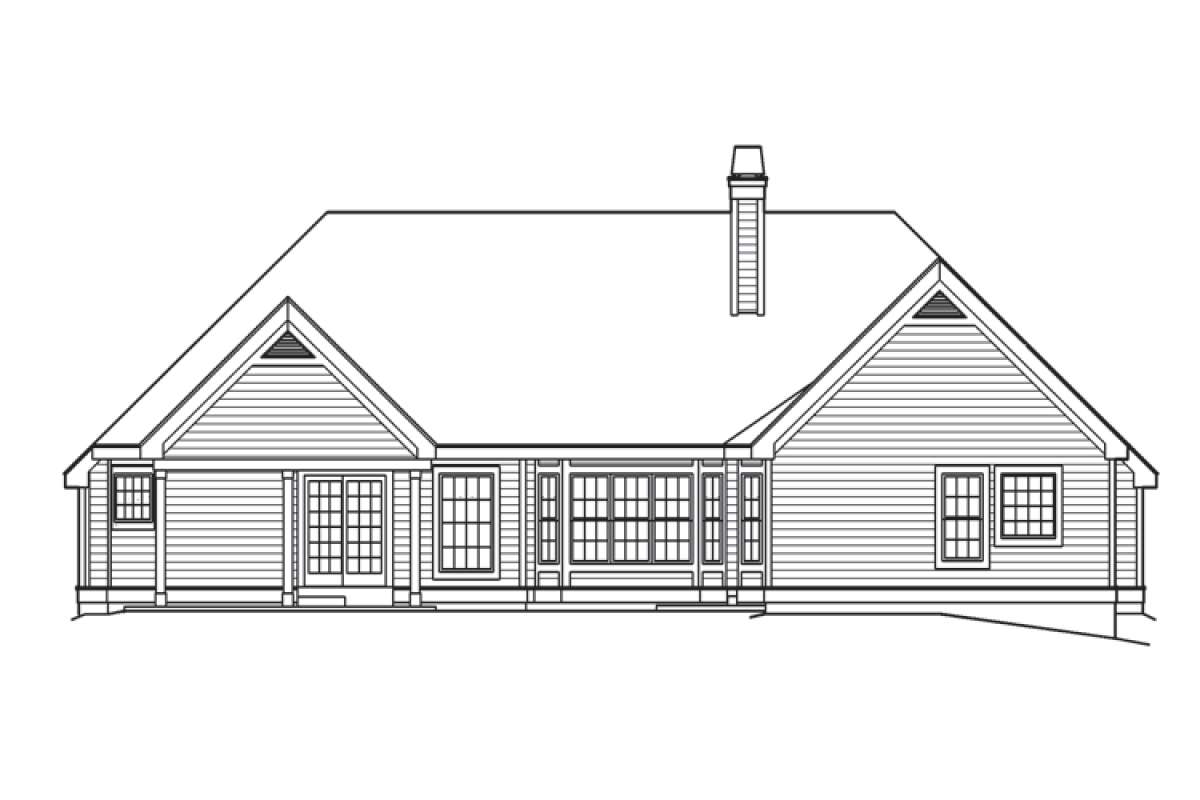

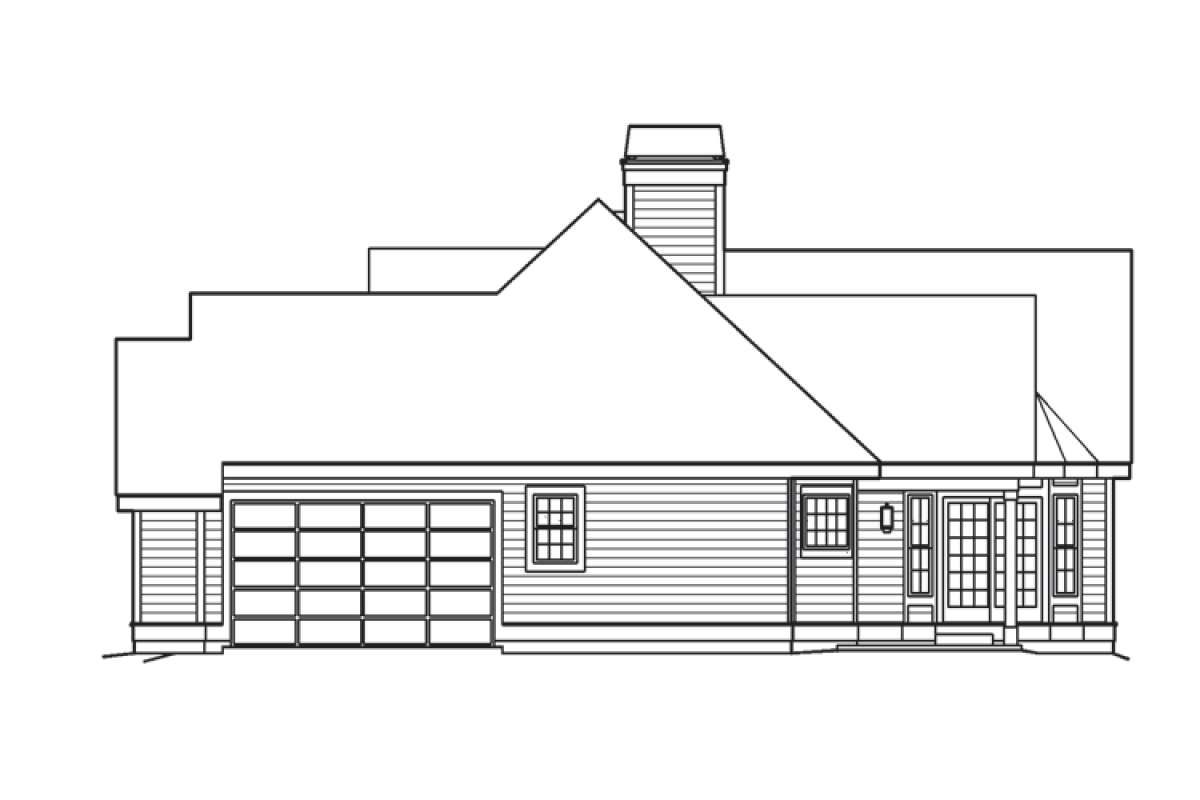

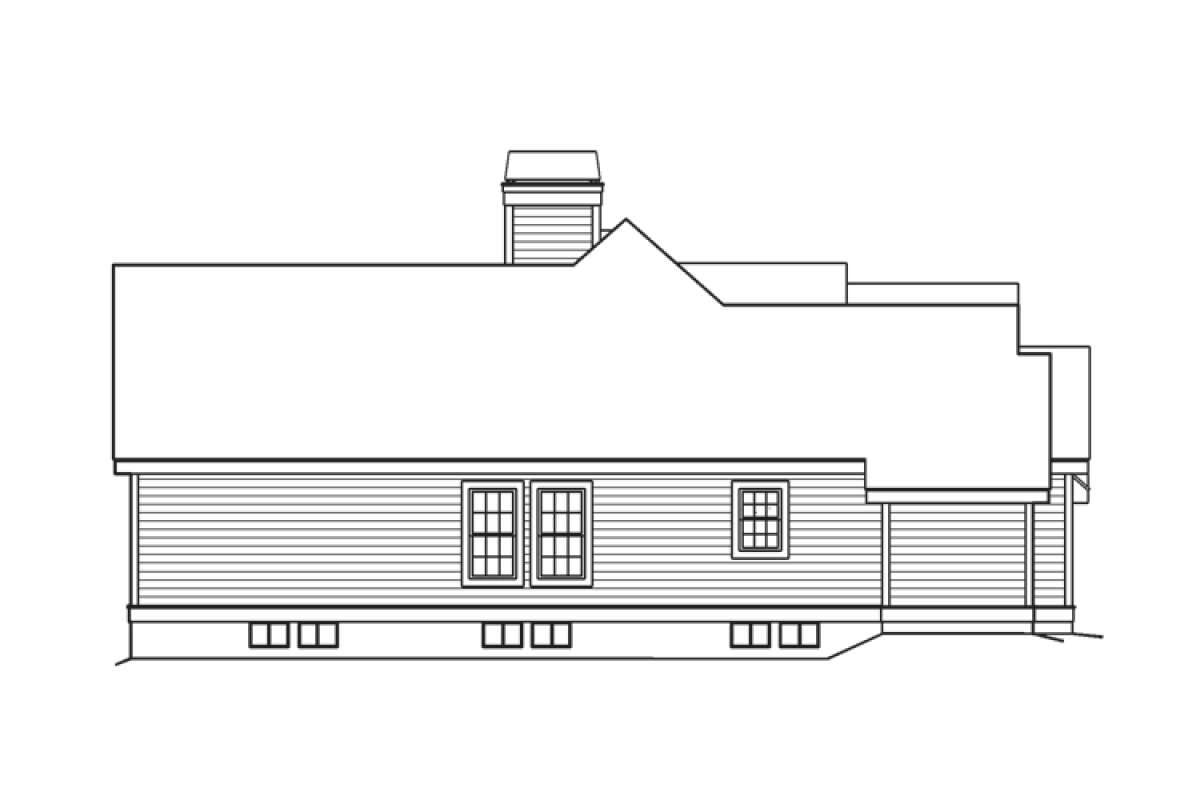

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This sprawling Ranch house plan exhibits a gorgeous exterior façade with generously scaled wide eaves, multiple gables, two window dormers and a fabulous covered front porch. The interior house plan features in excess of 2,420 square feet of living space and a separate apartment on the main floor of the home while situated on a basement foundation. This optional lower living area features a large family room with corner fireplace and a home theater room with walk-in bar and a powder room. This is a great space for entertaining large groups of family and friends effortlessly. The main floor of the home boasts of an apartment with its own exterior entrance and 484 square feet of total living area including a large bedroom, private full bath, a kitchenette and living room; this would be ideal as an in-law or teen-ager suite. An expansive great room with dining space is vast and airy and features an abundance of bayed windows at each end of the room. There is a spacious breakfast room with covered patio access and the gourmet kitchen exceeds industry standards for excellence with its center breakfast island, separate walk-in pantry and a plethora of counter and cabinet space. The conveniently located laundry room and powder room for guests is situated off the two car garage which features additional storage space. The master suite is located at the far back end of the home for privacy and is highlighted with French door access into the master bedroom which encompasses a large space and includes a large bayed window with private patio access. There is an oversized master walk-in closet as well as an en suite bath offering dual vanities, a separate shower and large soaking tub. Two additional bedrooms are spacious with generous closets and there is an adjacent hall bath. This beautiful home offers a functional floor plan with additional space for an elderly or infirmed family member situated on the main floor for ease and comfort along with a basement foundation and plenty of entertaining and private family spaces.
