Contemporary Plan 5633-00153

What's Included in these plans?

• Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
• Artist Rendering
• Foundation & Floor Plans (1/4"=1')
• Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
• Kitchen and Bath Elevations (1/4"=1') **
• Miscellaneous Details (1/4" to 3/4"=1')
• Stair Section (1/4" to 3/8" = 1')
• Roof Overview Plan (scale varies) **
  ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
• FLOOR PLANS

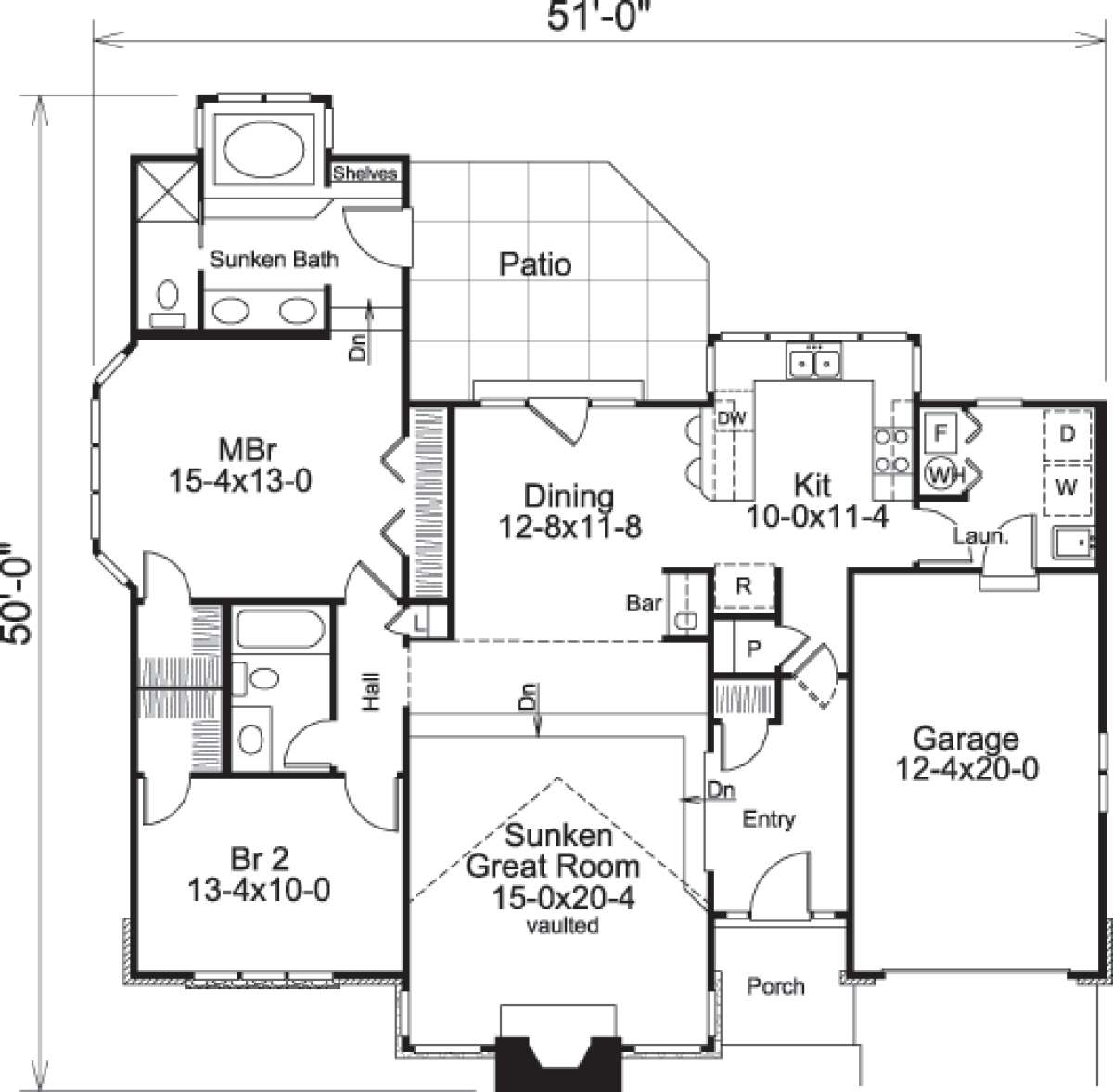

  This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
• SET OF ELEVATIONS

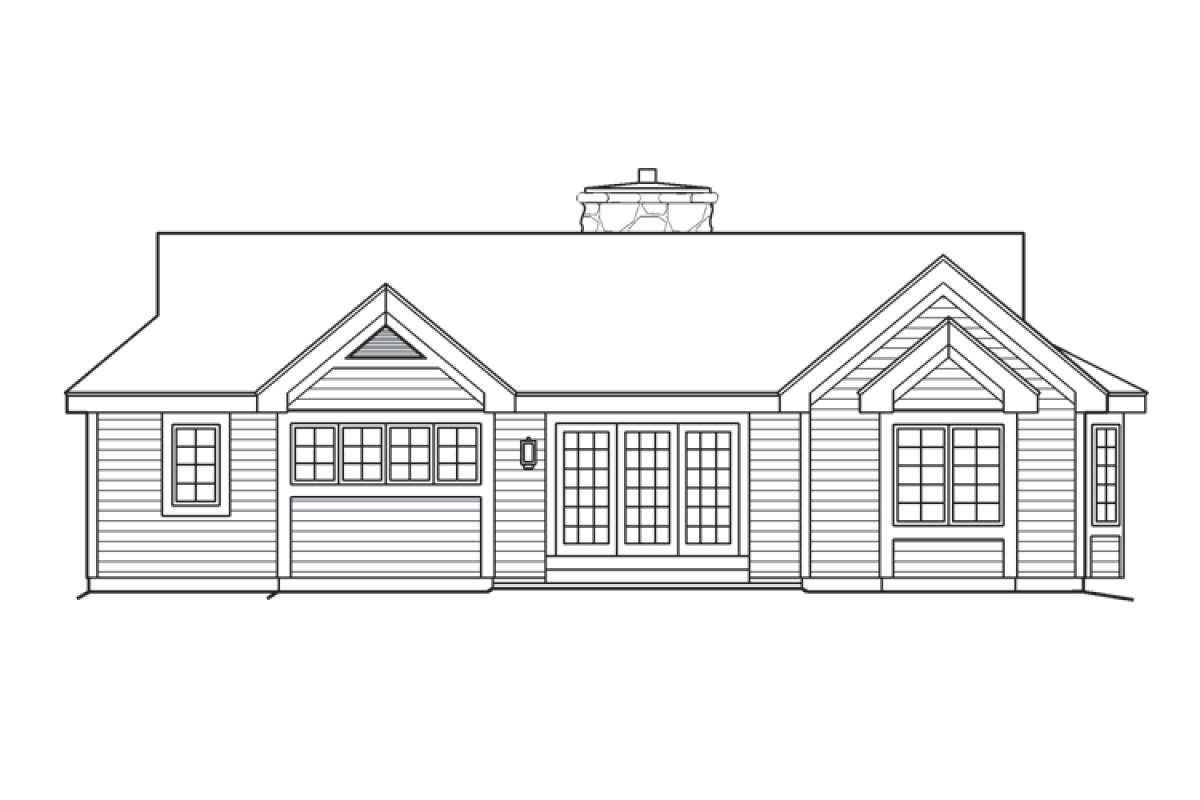

  This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  KITCHEN AND BATH ELEVATIONS
  The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
• MISCELLANEOUS DETAILS
  Some details are included for interior and exterior conditions that require more specific information for their construction.
• ROOF OVERVIEW PLAN
  This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.
