Country Plan 5633-00147


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,568
Beds 2
Bath 2
1/2 Baths 0
Car 3
Stories 1
Width 72' 8"
Depth 44' 4"

Floorplan Drawings

Floorplan 1

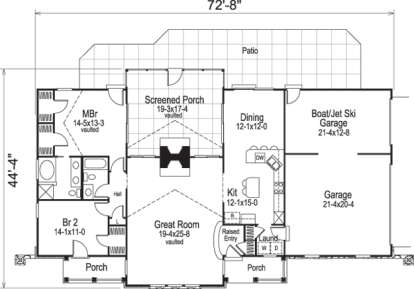

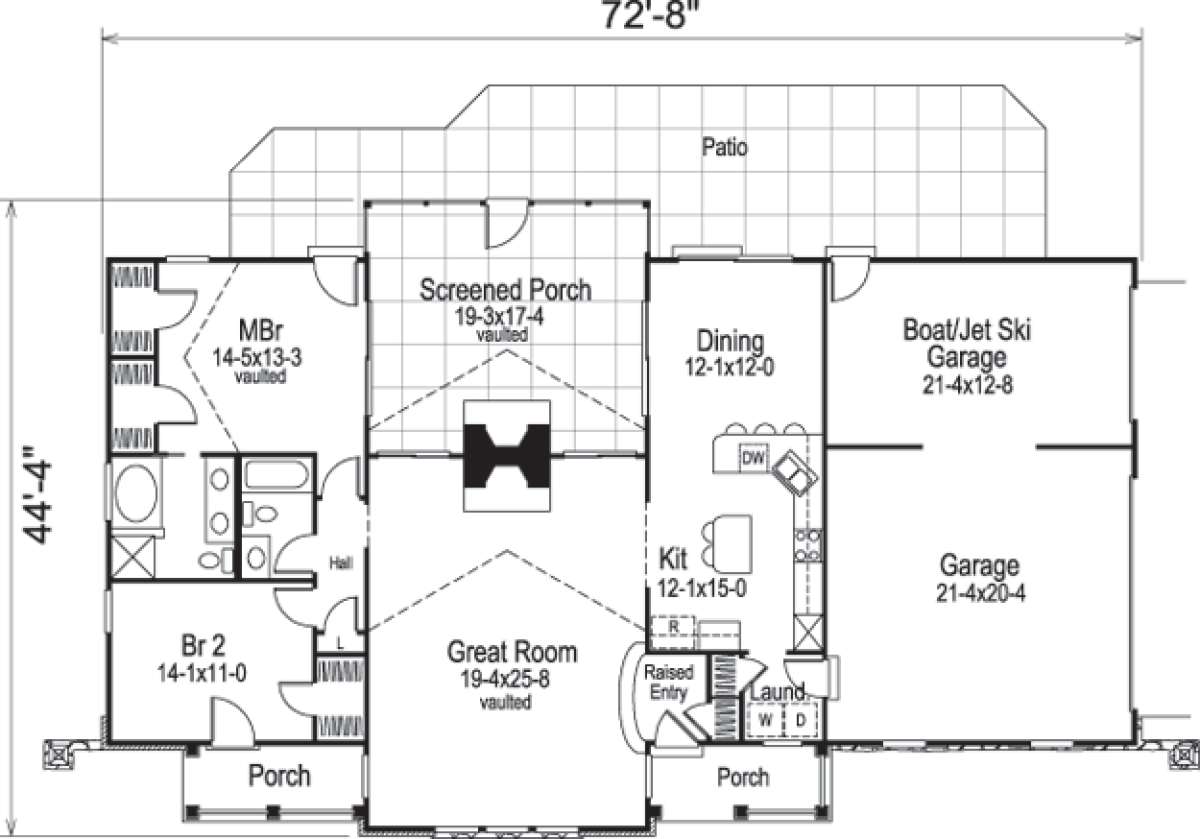

Floorplan 1 for House Plan #5633-00147

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

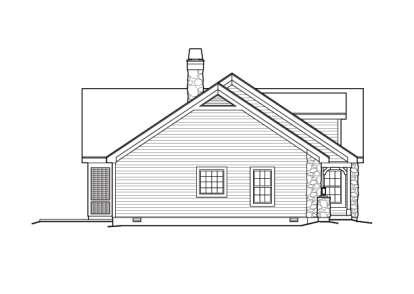

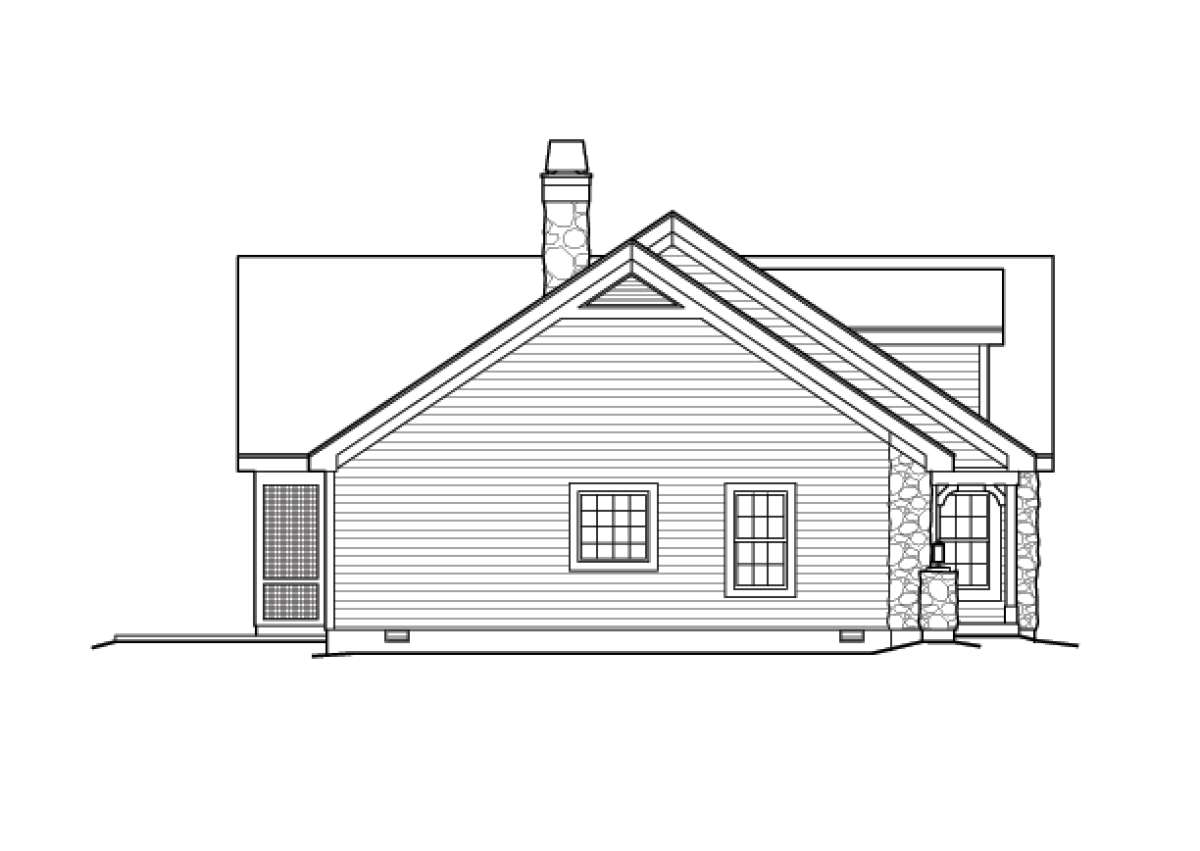

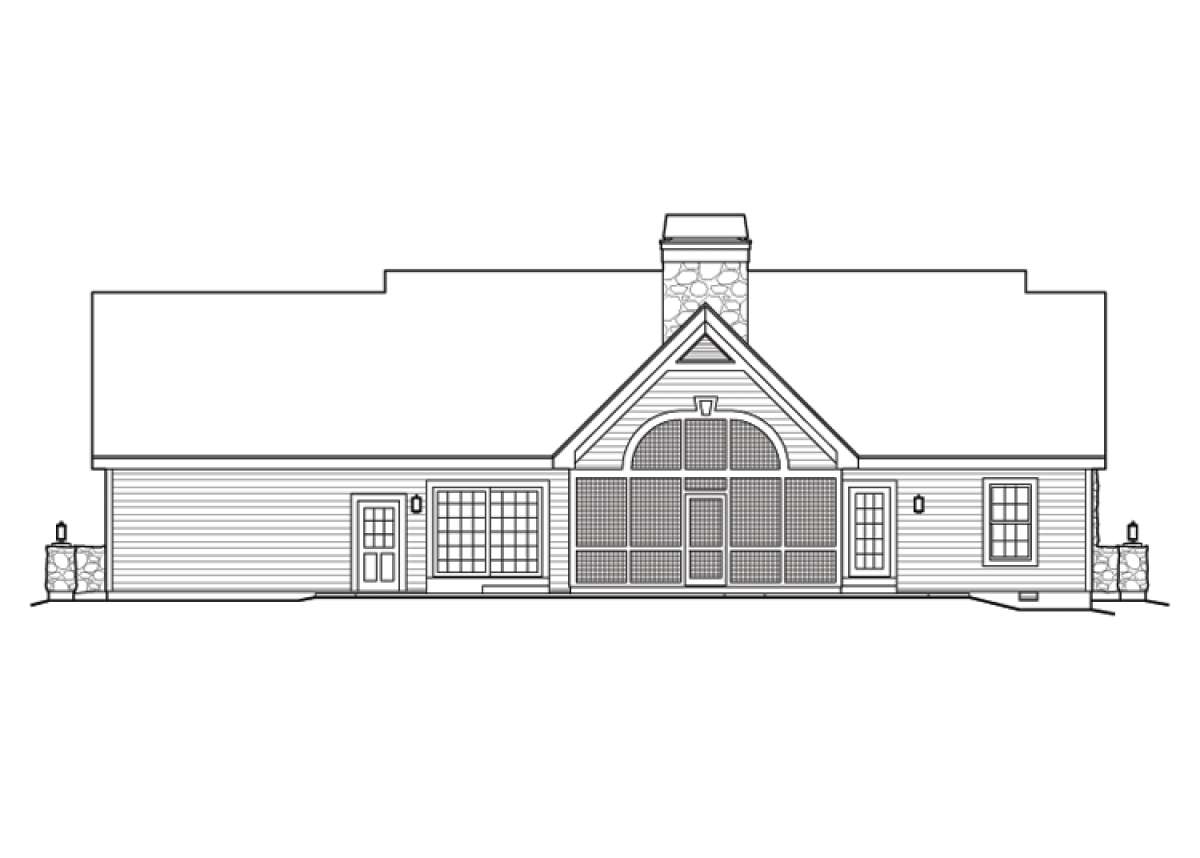

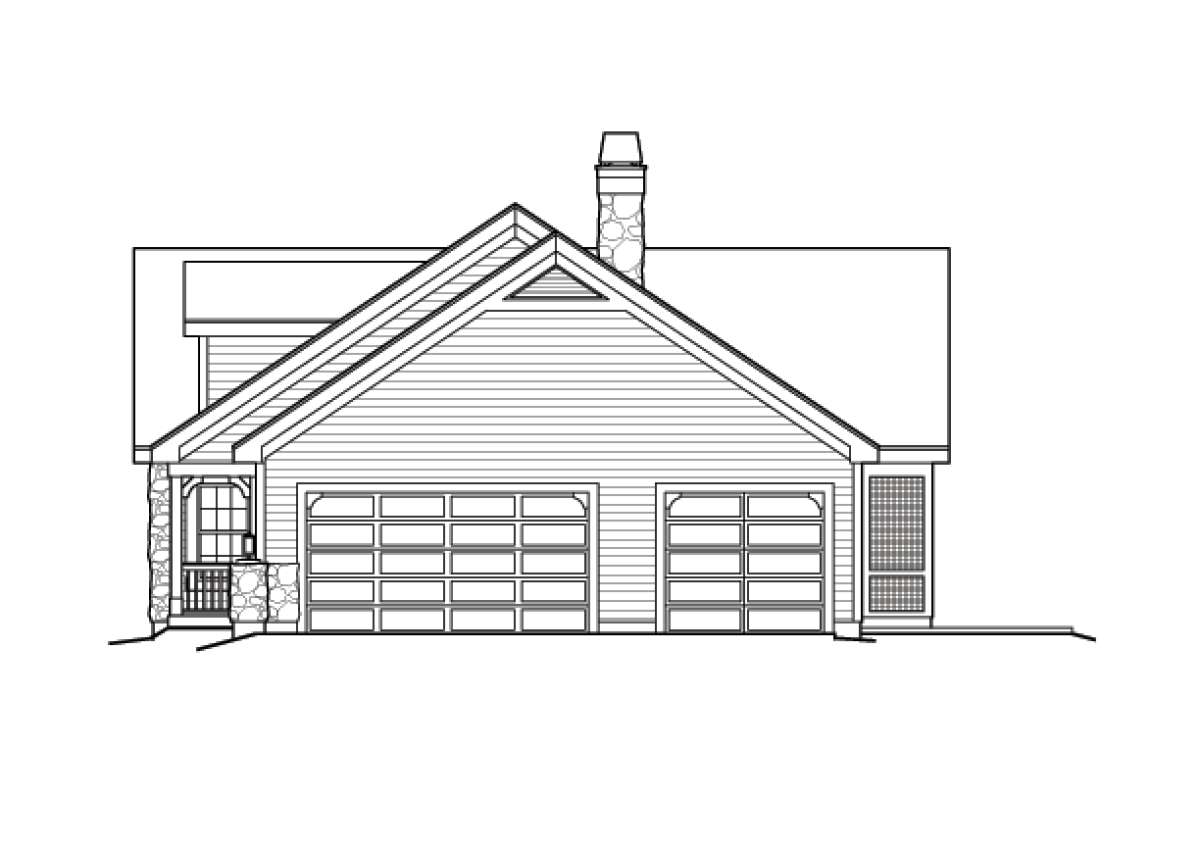

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This home features a spectacular exterior façade with bold architectural features which provide enormous curb appeal. There is a striking center Palladian style window feature, highlighted by stone work, which is flanked by double porches, two window dormers and a stone wall feature that enhance and create an inviting front entrance to the home. The interior floor plan is highlighted by approximately 1,568 square feet of living space which houses two bedrooms and two baths. There is a side entry garage, comprised of a single and double bay, which contains an additional 711 square feet of space. This space is enormous and features enough room for vehicles, a jet ski or boat and/or a multitude of storage space. Entrance into the home is off one of the two front covered porches which subsequently opens onto the vaulted great room. This space is enormous, measuring in excess of 19’x25, has great window views through the Palladian window feature and houses a handsome fireplace that is flanked by additional window views overlooking the rear screened porch. This home is drenched in light and great outdoor spaces which open onto the interior floor plan providing a sense of outdoor/indoor living spaces. The vaulted screened porch is also an oversized room and provides, at the very least, a three season additional living space. At the rear of the screened porch is access to an enormous patio spanning the length of the home; this combination of outdoor living space offers a multitude of entertaining options for family and friends. The casual dining space has two point access onto the outdoor space and is open to the gourmet kitchen which is highlighted by a peninsula breakfast bar, a center island bar and a plethora of additional counter and cabinet space. The interior laundry room is situated off the garage for ease and convenience.
Bedroom two is oversized and enjoys access to the second front covered porch and has a walk-in closet. There is a hall linen closet and an adjacent hall bath which features a vanity space, toilet area and a tub/shower combination. The master suite is elegantly designed with a vaulted master bedroom which features private screened porch and patio access. There are his and her walk-in closets available along with an en suite master bathroom. The bathroom is highlighted by dual vanities, a toilet area, a separate shower and a garden tub with a window view. This gorgeous home is brimming with sunlight and amazing window features, has outstanding outdoor space and a three car garage ideal for multiple vehicles and outdoor toys.
