Traditional House Plan 5633-00146

Sq Ft1,532
1/2 Baths0
Width71' 8"
Depth38' 0"

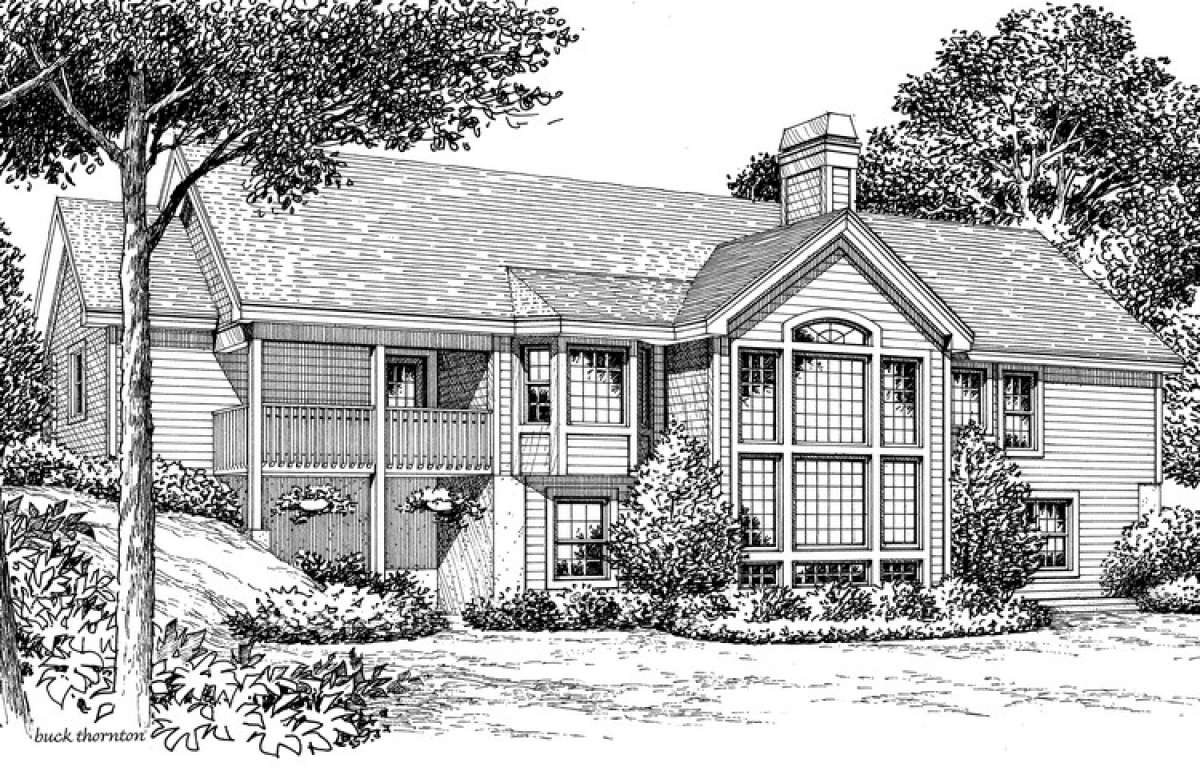

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

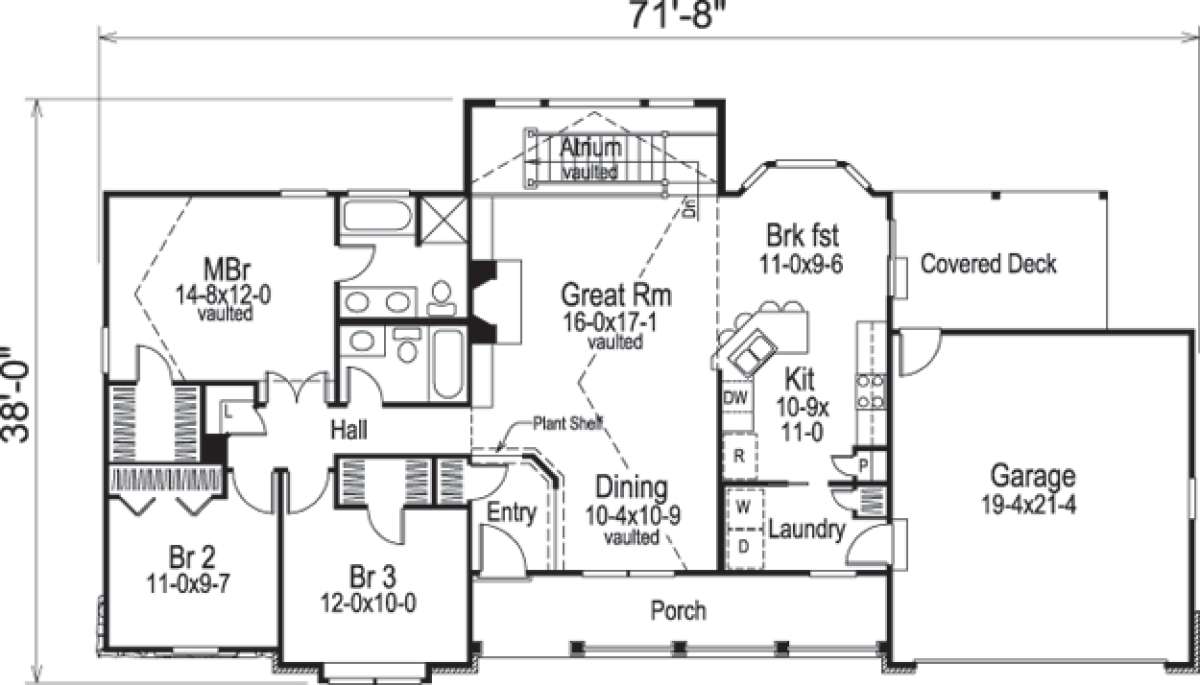

Floorplan 1 for House Plan #5633-00146

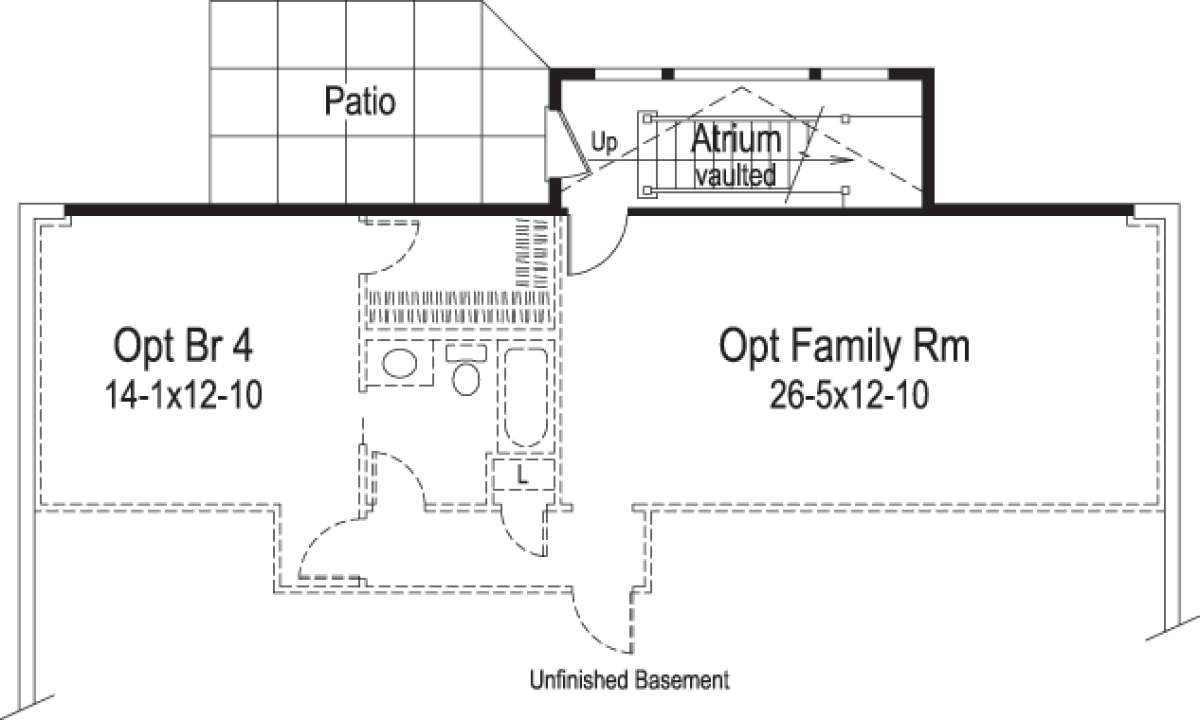

Floorplan 2 for House Plan #5633-00146
Floorplan 1
Floorplan 1 for House Plan #5633-00146
Floorplan 2
Floorplan 2 for House Plan #5633-00146

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')

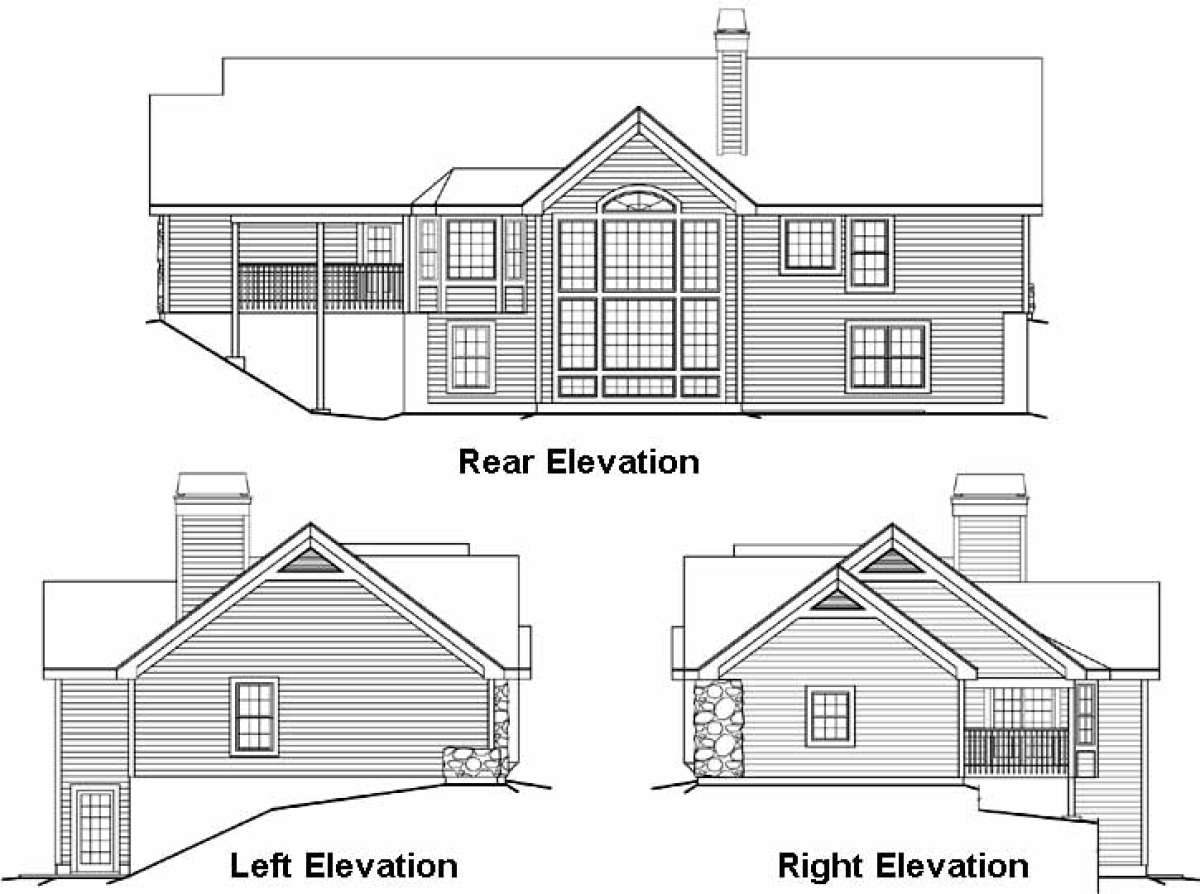

  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This traditional house plan has an exterior façade brimming with aesthetically pleasing architectural design features. An expansive front country porch with open railing and column beams, a Palladian style window feature and stone work accents blend beautifully to create an exterior chocked full of curb appeal. The use of wide decorative eaves in a multitude of gables and a triple window dormer enhance the charm of the home adding value and visual interest. There are in excess of 1,530 square feet of living space featuring three bedrooms and two baths along with a two car garage containing an additional 412 square feet of space. The home’s drawings include a walk-out basement foundation which features another 740 square feet of optional living space. This space has plenty of room for an enormous family recreation room, full bath and linen closet along with a fourth bedroom and outdoor patio space.
