Sq Ft 2,046

Beds 4

Bath 2

1/2 Baths 1

Car 2

Stories 2

Width 37' 8"

Depth 50'

See What's Included

Select Package

PDF (Single Build)

$1,149.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,549.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,149.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,249.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

Select Foundation

Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Mirrored Reverse $15.00

Reverses the plan, however, the text and dimensions will not read correctly.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

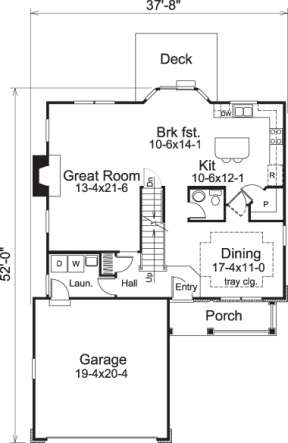

Floorplan 1

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')
Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS

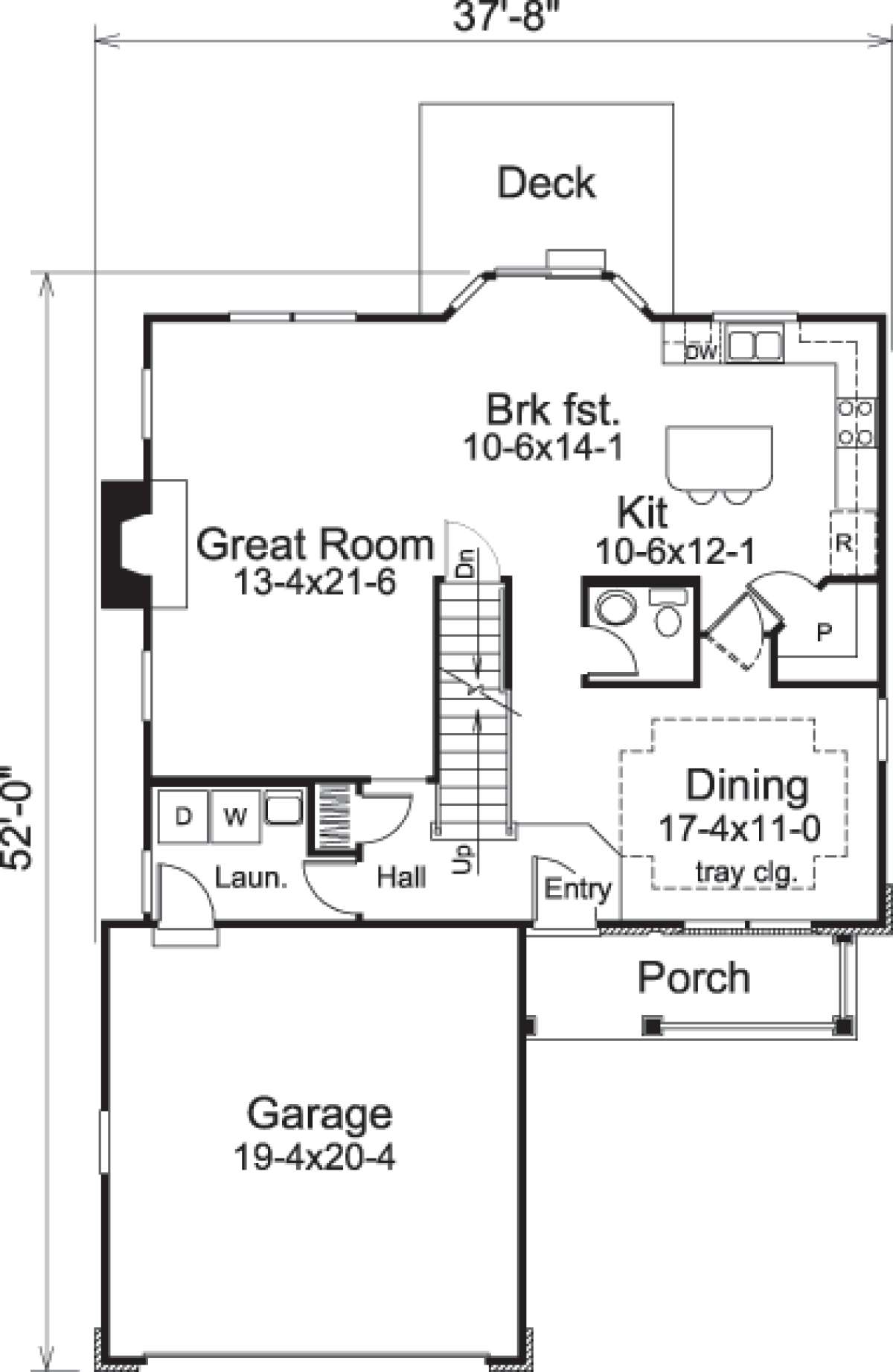

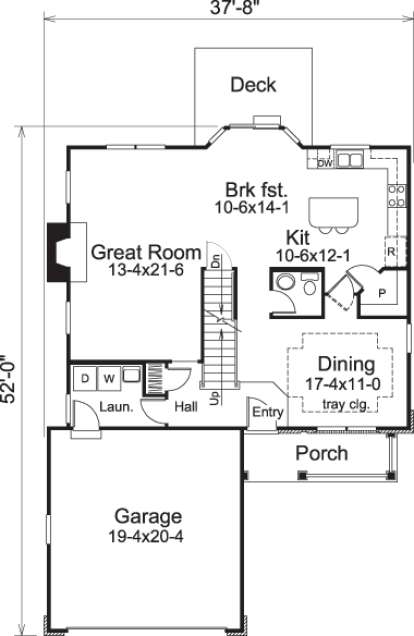

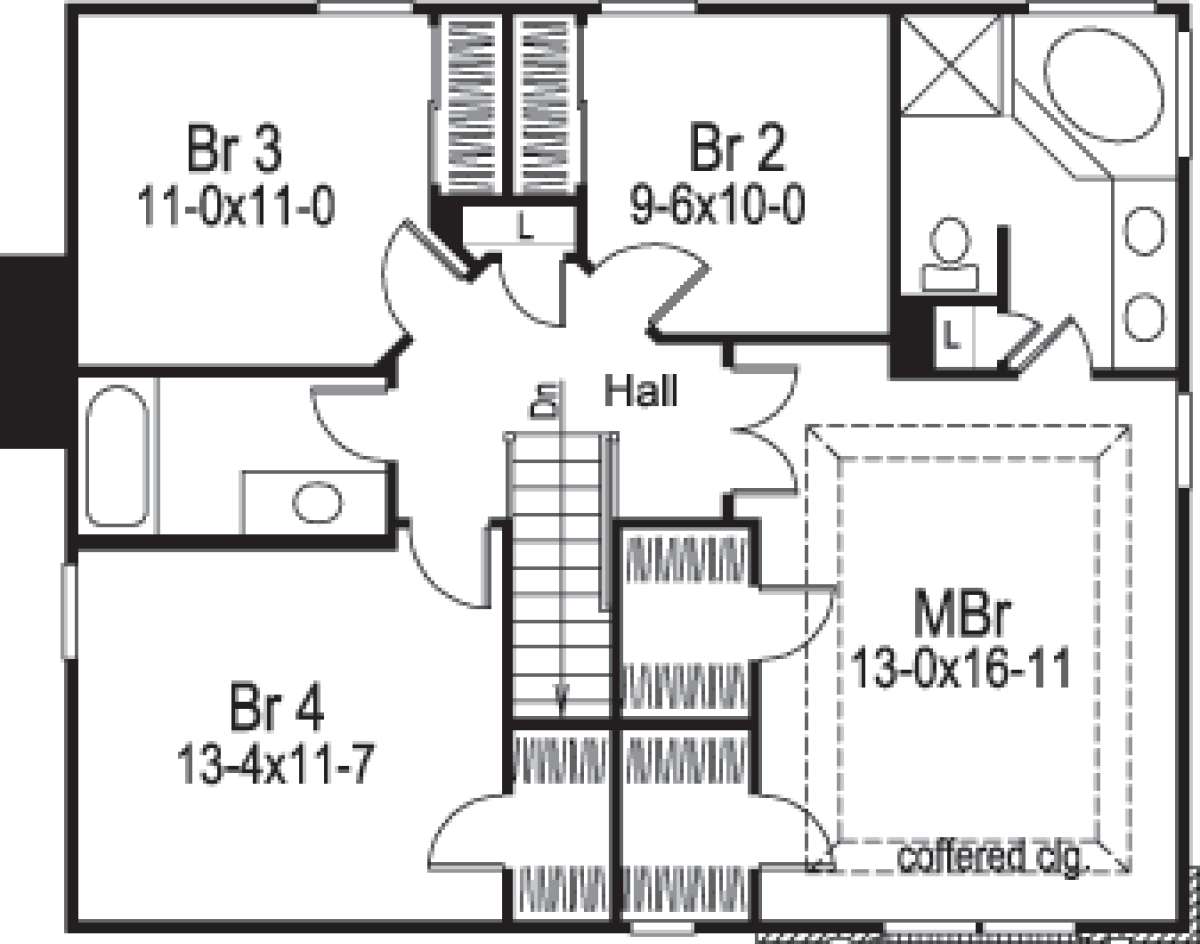

This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
SET OF ELEVATIONS

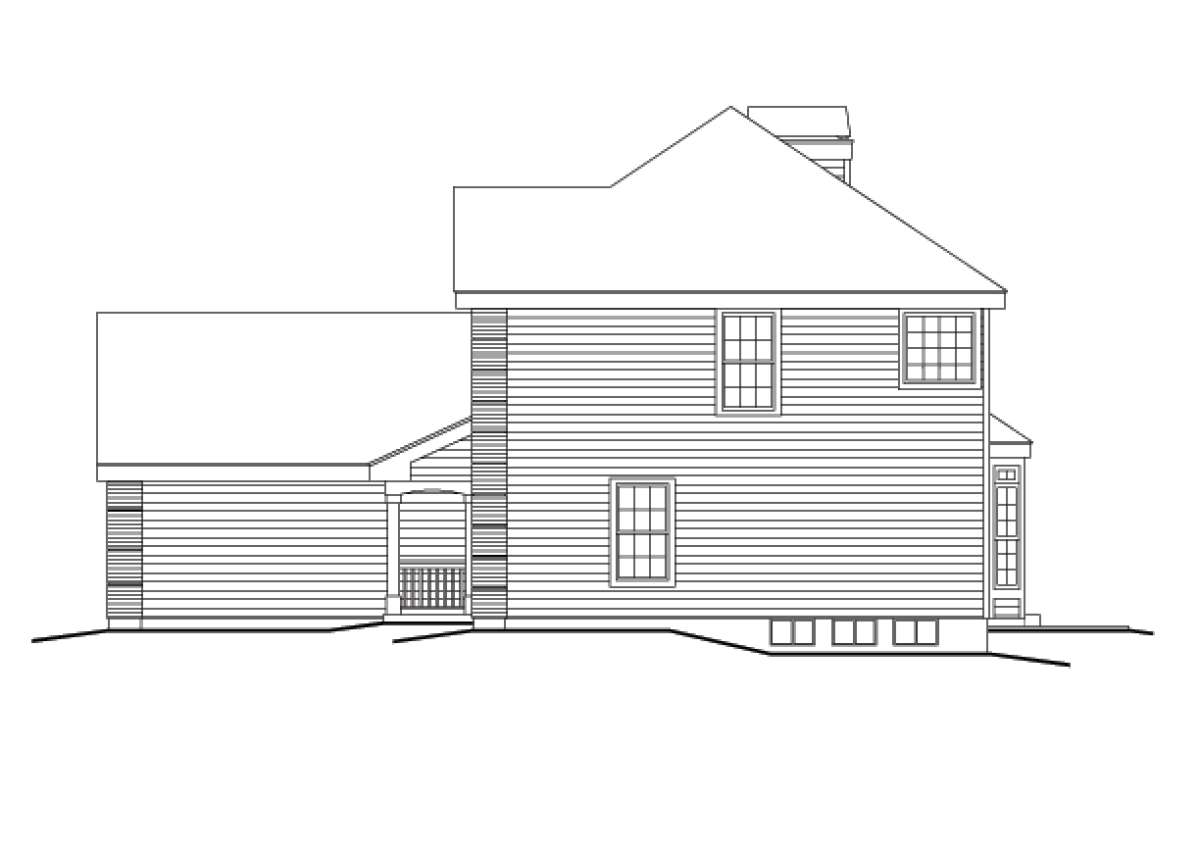

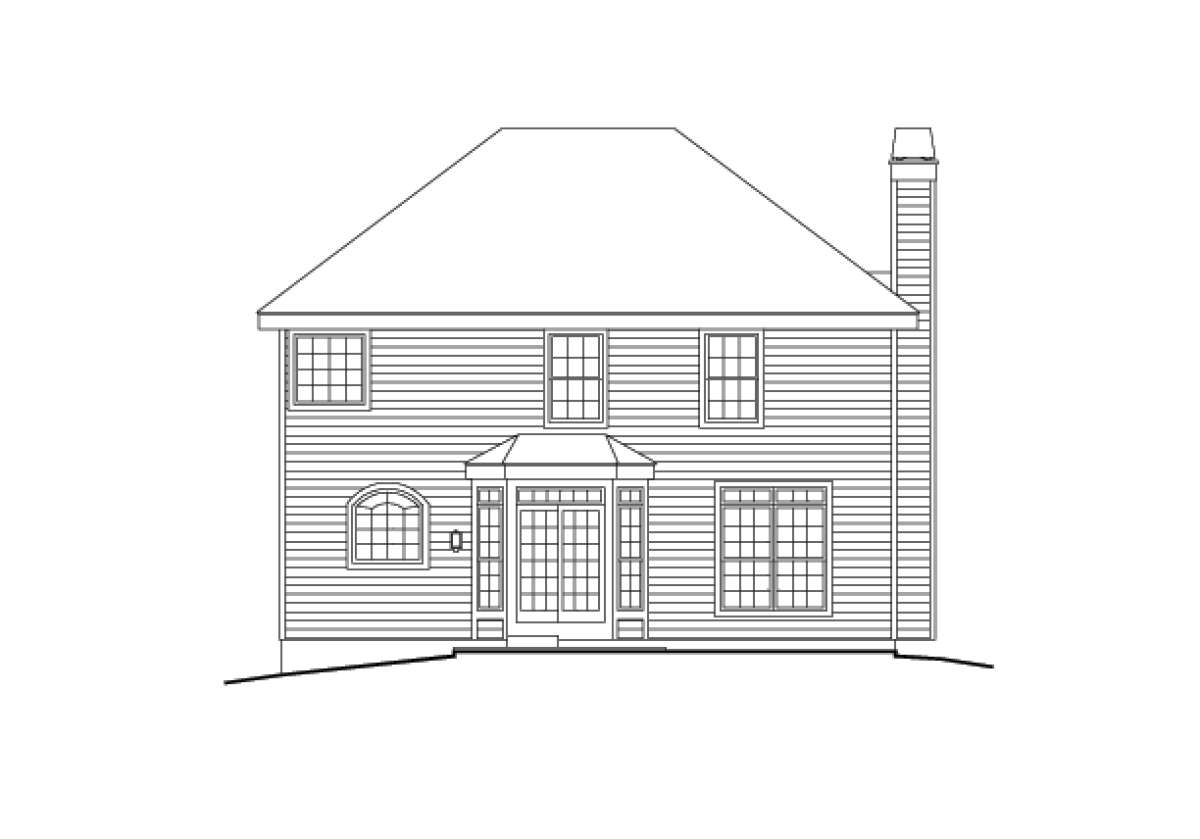

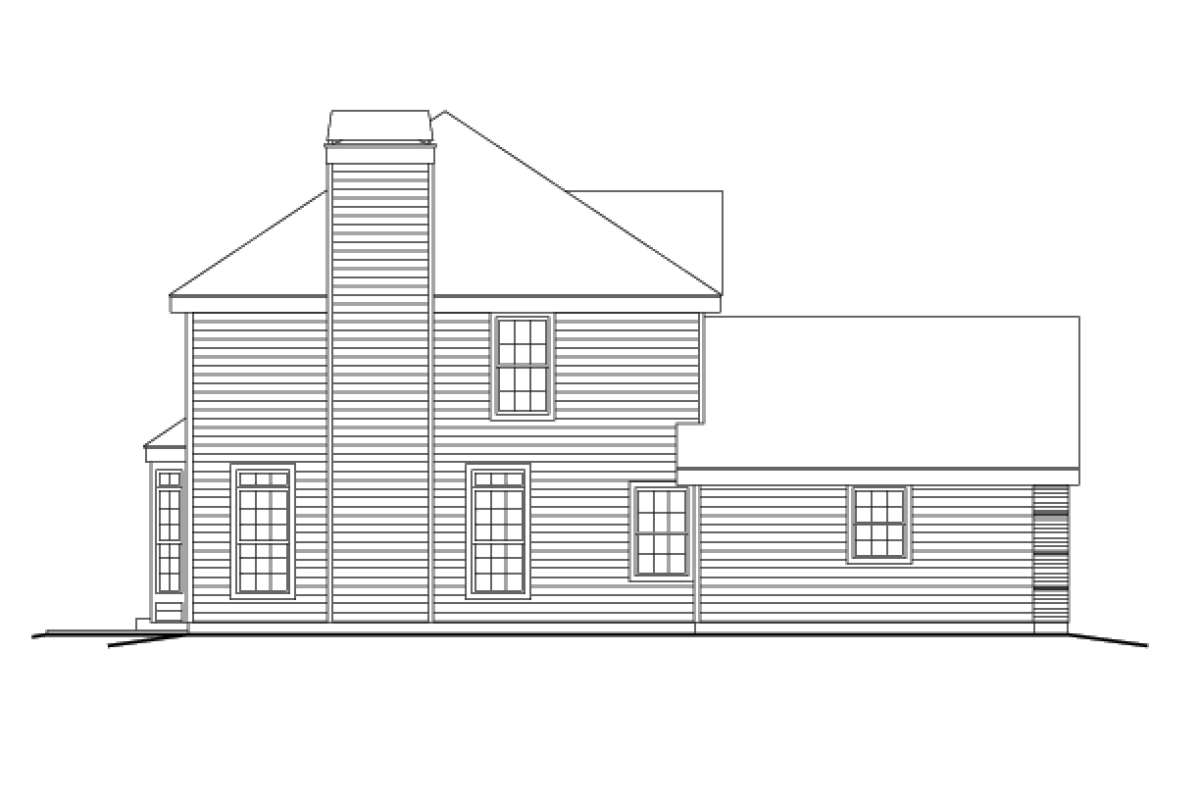

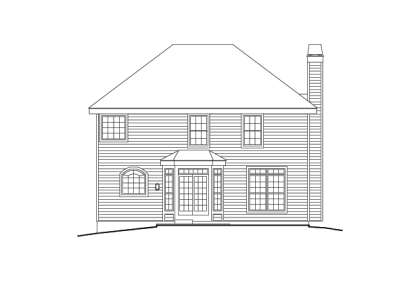

This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

This stylishly efficient house plan features a traditional exterior full of charm and character. The brick and siding exterior blend beautifully with the front covered porch adding loads of curb appeal. An abundance of interior floor space allows for gracious entertaining and excellent private family space. There are approximately 2,046 square feet of living space on two floors and the basement foundation increases the square footage substantially and could function as casual entertaining space, an in-law suite or a teen-age suite. The two car, front loading garage is directly adjacent to the interior laundry room, which includes a sink area; thereby, maintaining tidiness and ease of cleaning. Entertaining is effortless and enjoyable in the open concept design where a front-facing dining room features a striking trey ceiling. The chef’s delight kitchen features an oversized walk-in pantry, a center island for meal prep and casual dining and there is a plethora of additional counter and cabinet space. The sun-kissed breakfast room is nestled into a large bayed window with rear deck access. An enormous great room with fireplace is a great place to “hang out”, play board games or watch movies. A powder room for guests and double staircase to the upper and lower levels complete the main level of the home.
Sleeping quarters and additional bathrooms are featured on the second floor of the home. Bedrooms two and three are comfortablely sized with generous closet space. The fourth bedroom is spacious with a walk-in closet. There is a shared hall bath and linen closet for the family bedrooms. The master suite is a welcoming retreat; the master bedroom is highlighted by a gorgeous coffered ceiling and French door access into the suite. There are oversized his and her master walk-in closets adjoining the bedroom. The elegant master bath features dual vanities, a separate shower, linen closet, private toilet area and a corner garden tub enveloped in window views. This home offers tremendous value, space and versatility.
