Country Plan 5633-00139

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,080
Beds 4
Bath 3
1/2 Baths 0
Car 2
Stories 2
Width 43'
Depth 33'

Floorplan Drawings

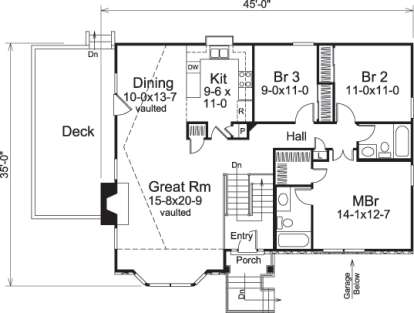

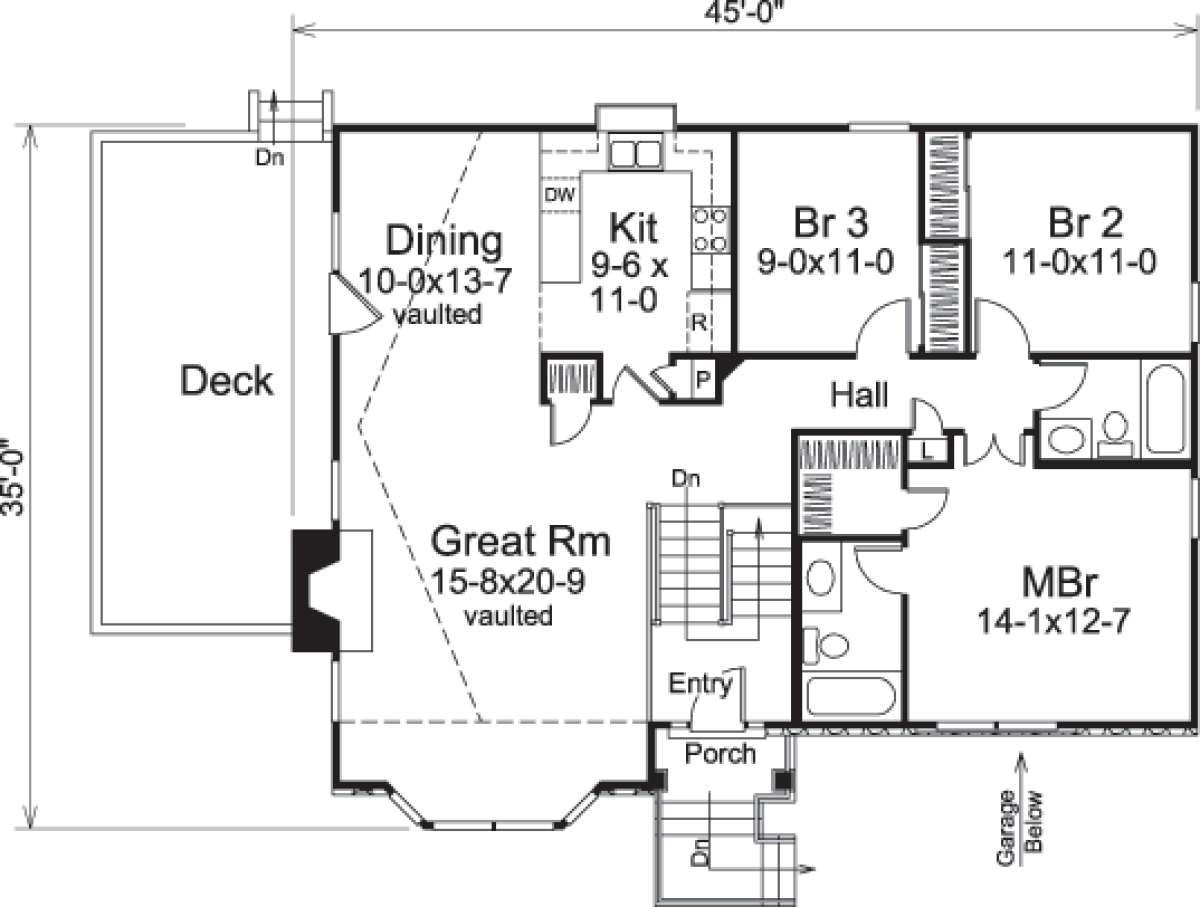

Floorplan 1
Floorplan 1 for House Plan #5633-00139

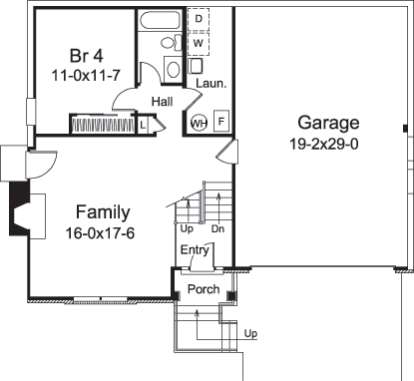

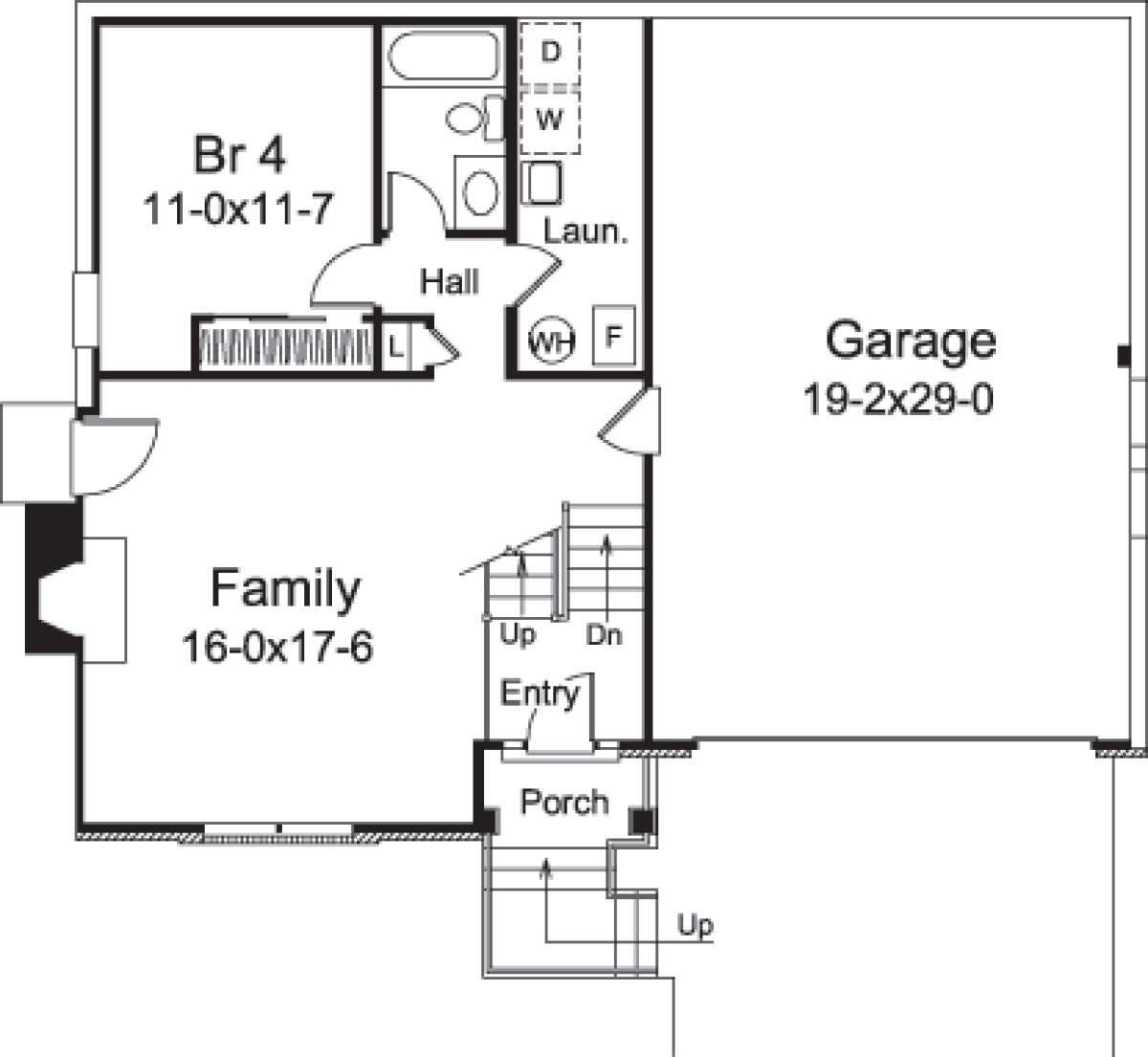

Floorplan 2
Floorplan 2 for House Plan #5633-00139


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

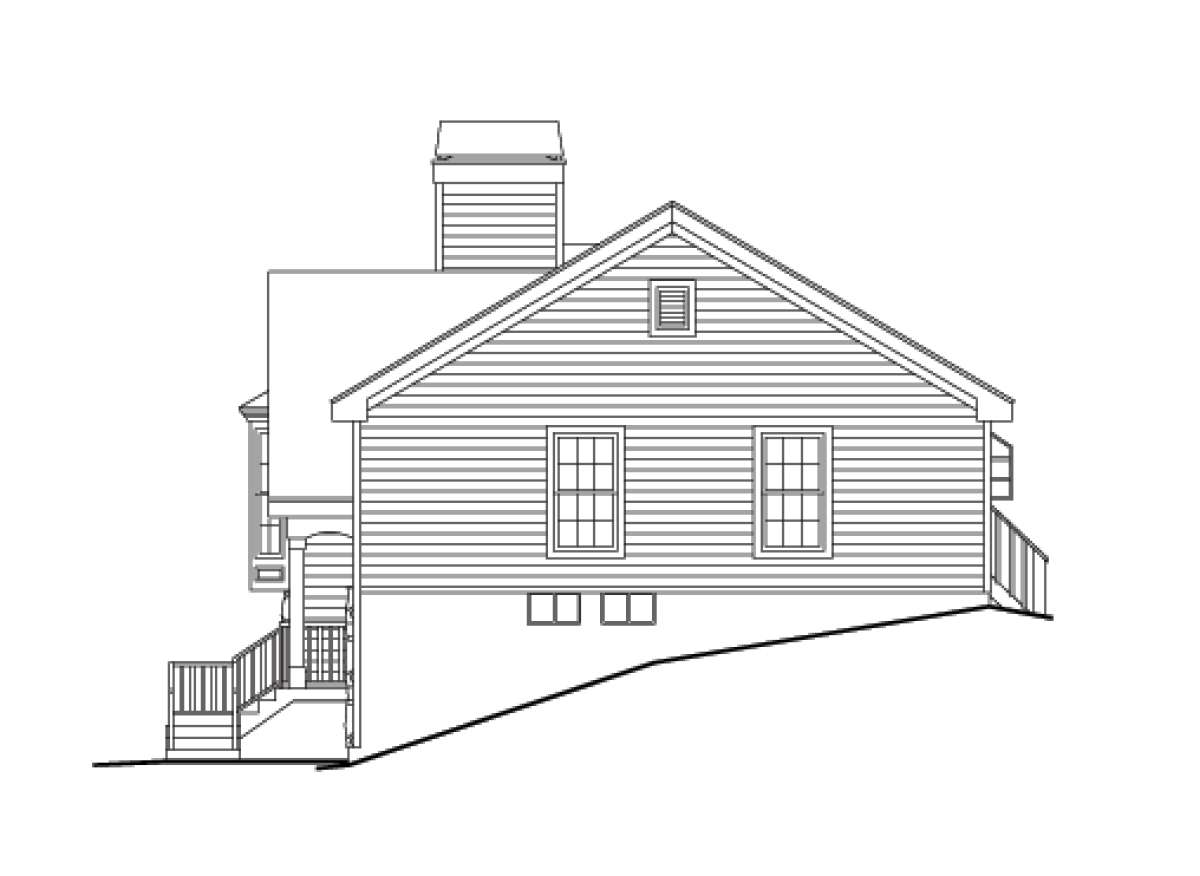

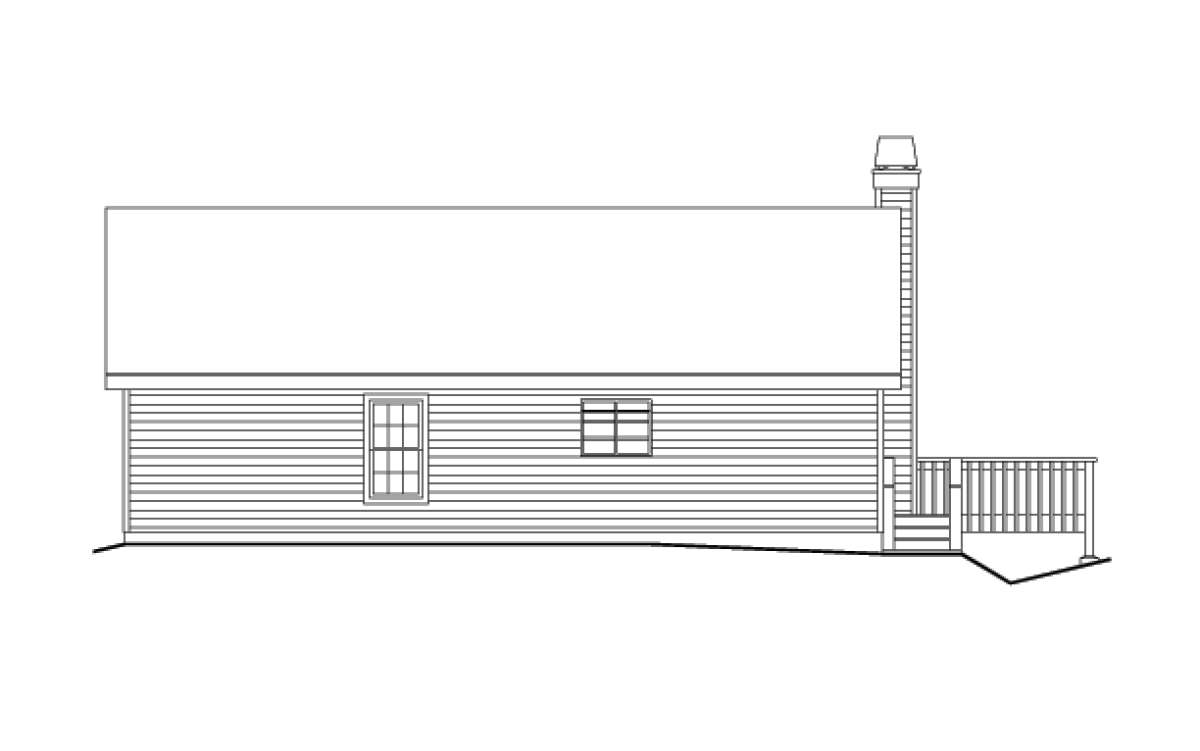

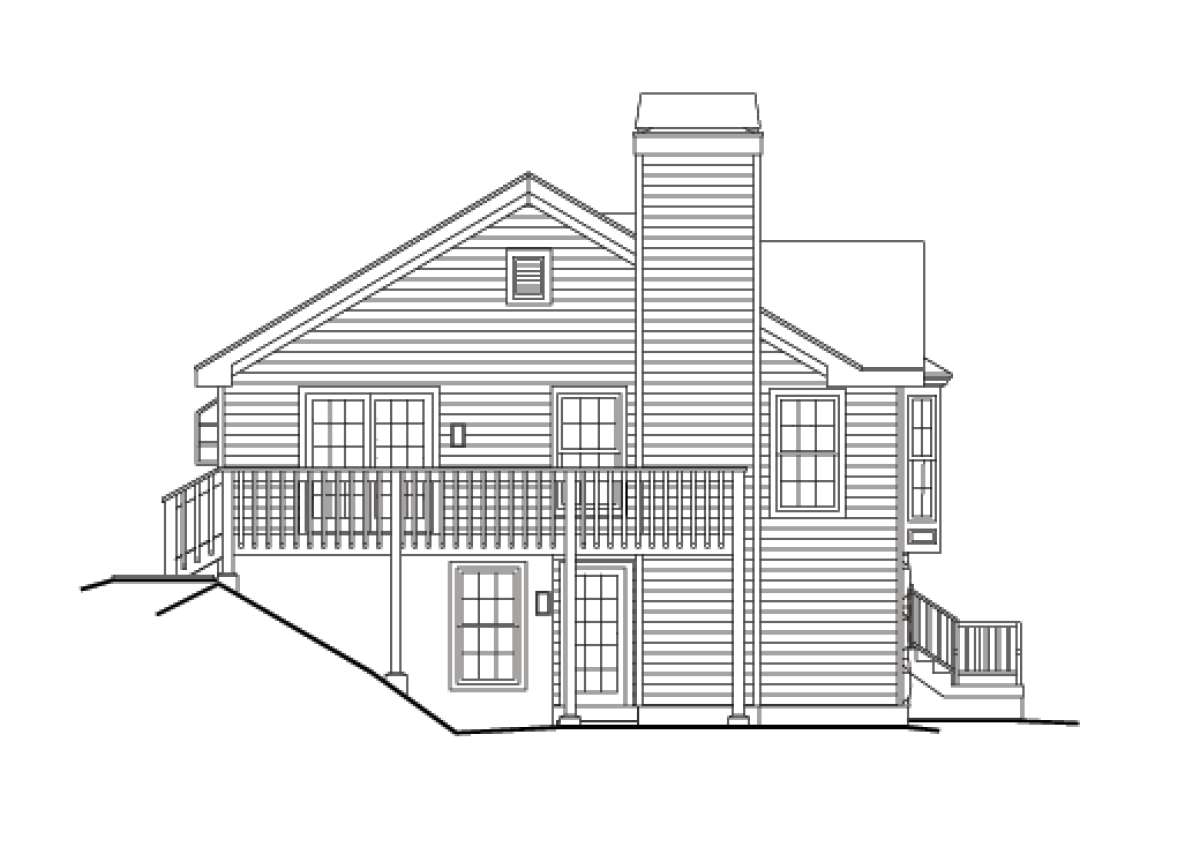

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This spacious hillside home is ideal for a sloping lot and contains a walk-out basement with substantial living space and a drive under garage. The exterior façade features stonework, a bay window and a fabulous timber deck ideal for casual entertaining. The total square feet contained in the home is in excess of 2,800 square feet which consists of four bedrooms and three bathrooms resulting in an tremendous amount of space for a large and active family. The vaulted great room and dining room are adjacent to one another and the adjoining deck access features a large and comfortable space for effortless and enjoyable entertaining. The great room has an expansive bayed window and handsome fireplace while the dining space is proximate to the U-shaped kitchen. The kitchen has a lovely garden window, a separate pantry and plenty of counter and cabinet space. There are two spacious bedrooms located off the hallway; both have window views and generous closet space. A hall linen closet and shared hall bath are available for the bedrooms. The master suite has French door access and a spacious bedroom with window views. There is an oversized master walk-in closet and en suite master bath which features a large vanity, private toilet area and a tub/shower combination.
The lower level of the home offers great space for family relaxing or could function as an in-law or teen-age suite. The fourth bedroom is spacious with ample closet space and there is an adjacent bath and linen closet. The laundry room is situated on this floor and includes a sink area for clean-up and tidiness. There is a large family room with fireplace, side yard access and double window views. This space would be ideal for family relaxing and/or casual entertaining. This stylish home features an abundance of living space and a striking exterior façade.
