Ranch House Plan 5633-00135

Sq Ft1,302
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width43' 8"
Depth58' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

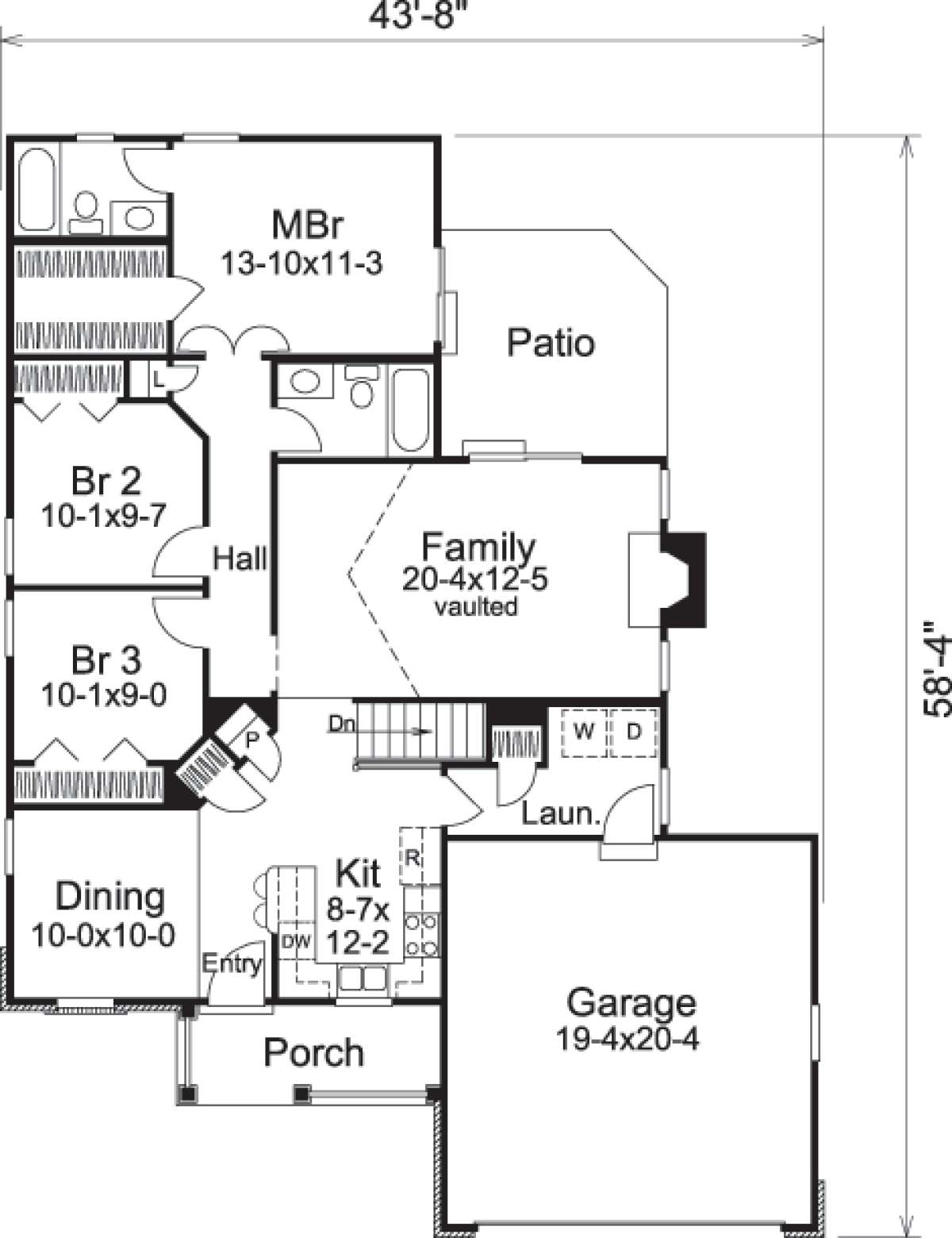

Floorplan 1 for House Plan #5633-00135
Floorplan 1
Floorplan 1 for House Plan #5633-00135


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

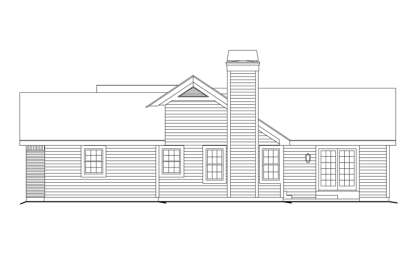

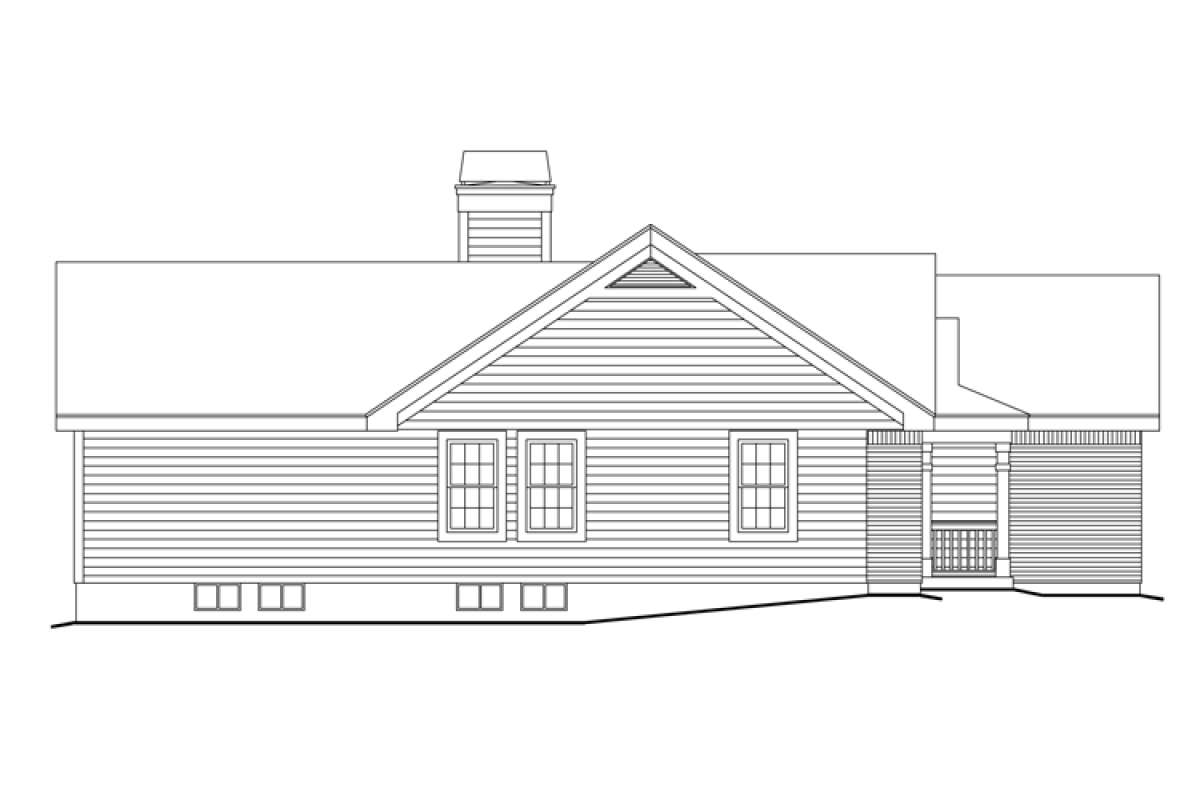

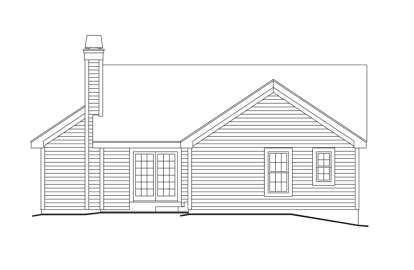

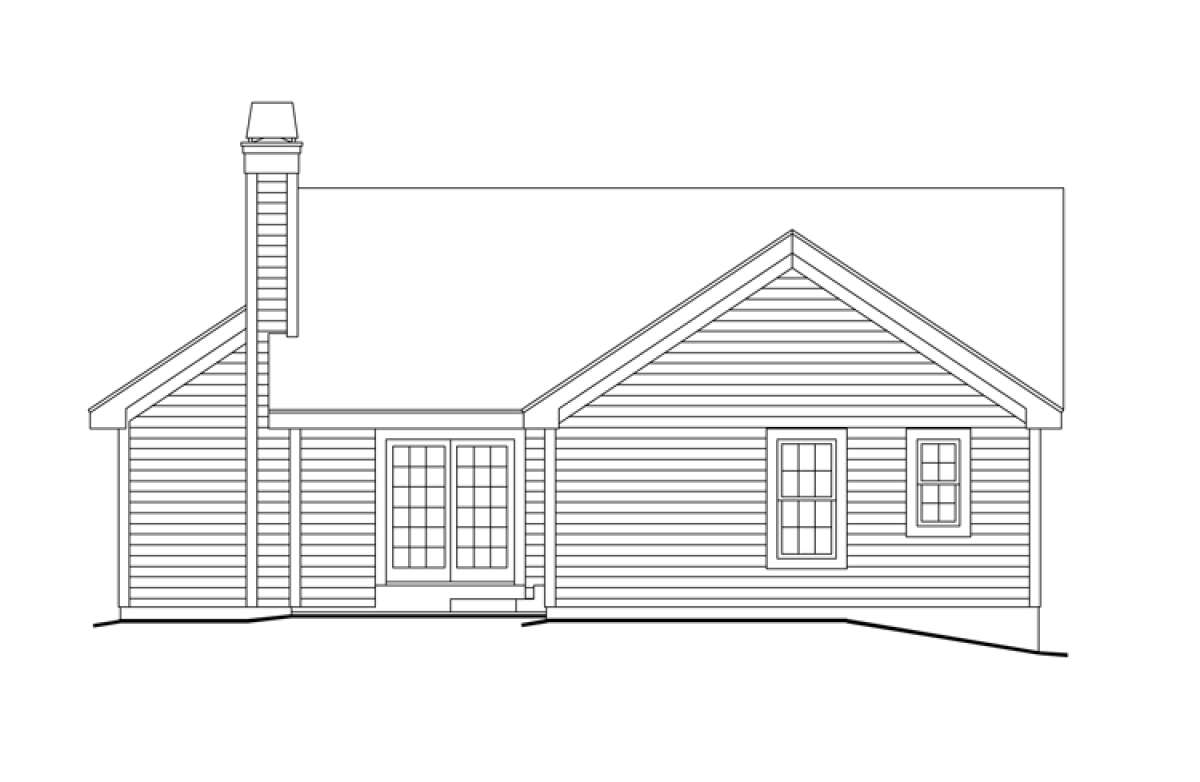

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch house plan features an inviting and spacious front covered porch and an interior floor plan comprised of three bedrooms and two bathrooms. There are approximately 1,302 square feet of living space in the home and the two car garage adds an additional 393 square feet of space for vehicle storage. The home sits on a basement foundation which adds value and unlimited expansion possibilities. The exterior of the home is highlighted by triple gables, brickwork, siding and columned beams atop open railing on the front covered porch. The greeting foyer is open to the formal dining room which features wonderful window views onto the front and side yards. There is a U-shaped kitchen featuring a breakfast bar, a built-in pantry and an abundance of additional counter and cabinet space. The interior laundry room is situated off the garage for ease and convenience and there is a separate coat closet as well. An open wood crafted staircase leads to the basement level where additional space mirrors the square footage of the main level of the home. The vaulted family room measures in excess of 20’x12’ and features a handsome fireplace with flanking picturesque windows. Sliding glass doors leads to the outdoor patio making this combination space ideal for entertaining large gatherings of family and friends.
The main hallway features the sleeping quarters and family bathrooms. Two family style bedrooms are spacious; each has window views and generous closet space. There is a shared hall bath which offers a large vanity space, toilet area and a tub/shower combination. The linen closet sits directly across from the bathroom for storage. The master suite features French door access into the bedroom which is spacious with great window views and private access to the rear patio. There is an enormous master walk-in closet and the en suite bath contains a large vanity, a toilet area and a tub/shower combination. This family friendly home is comfortable and versatile and possesses unlimited expansion possibilities in the lower level basement.
