Traditional House Plan #5633-00133 Elevation Photo

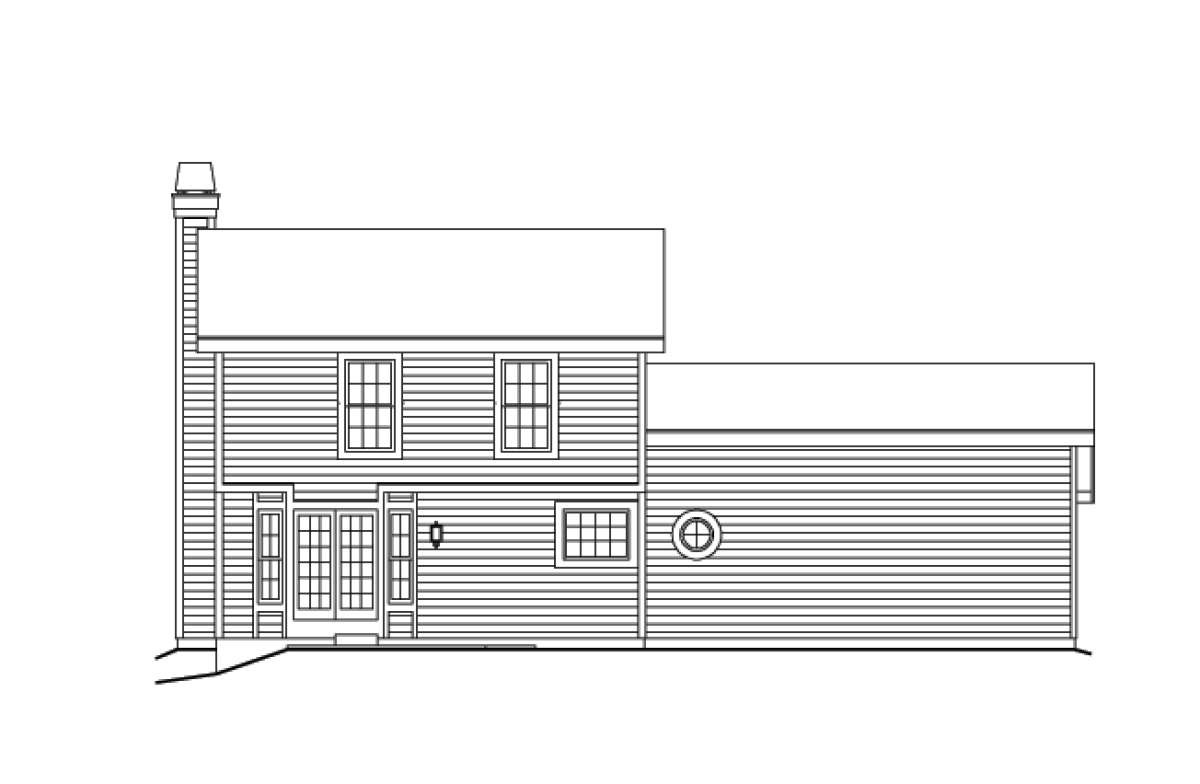

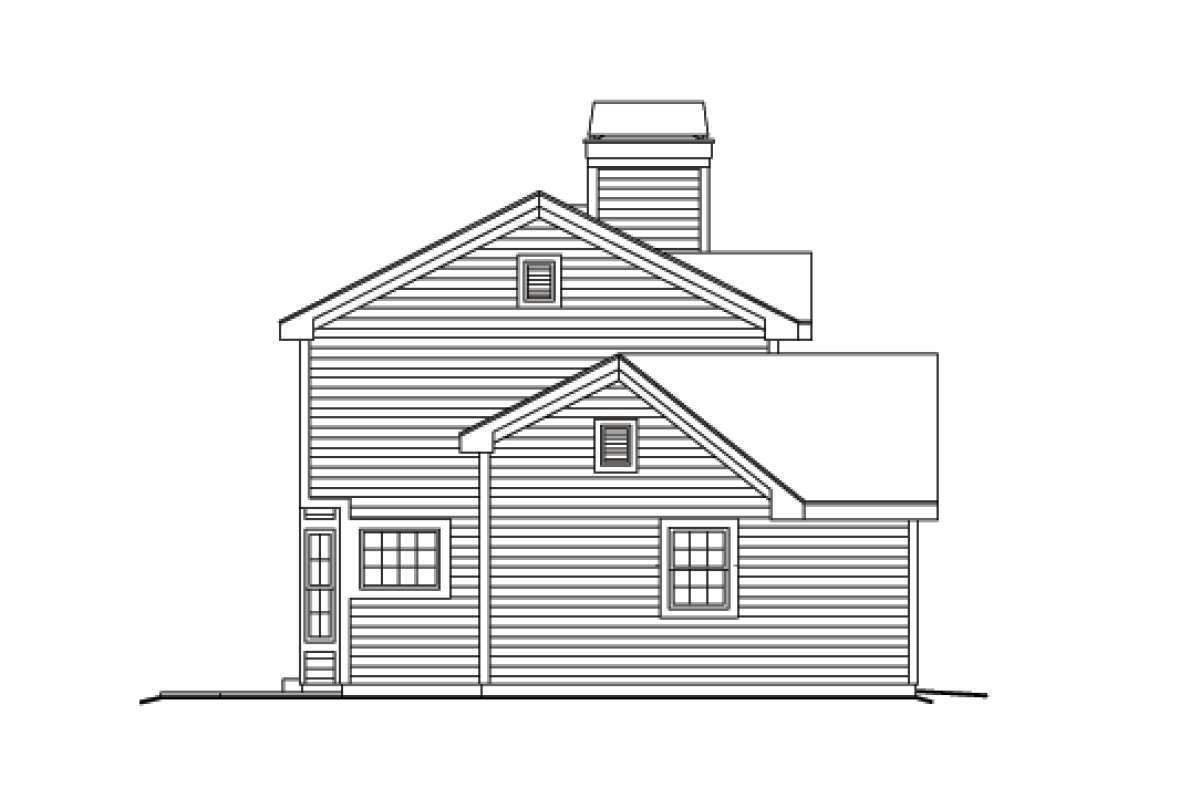

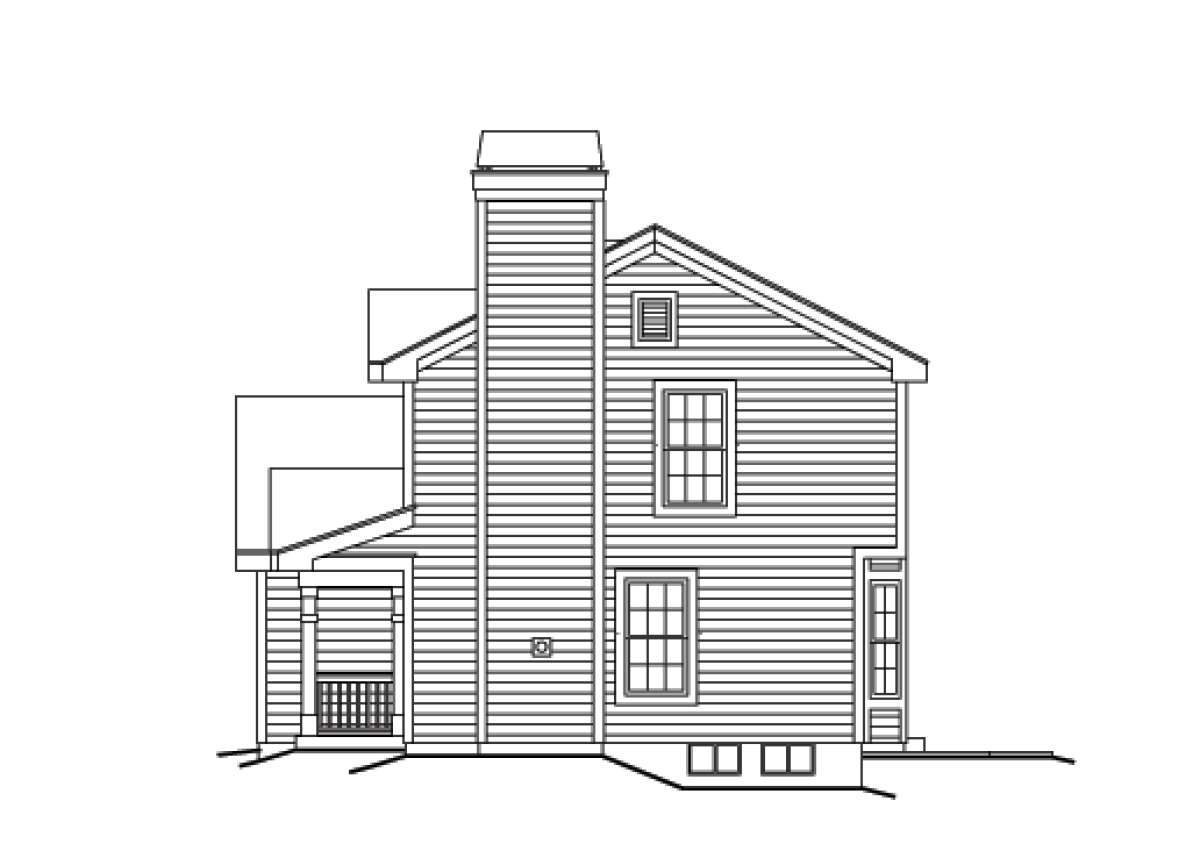

Traditional House Plan #5633-00133 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,308

Beds 3

Bath 1

1/2 Baths 2

Car 2

Stories 2

Width 54' 4"

Depth 31'

See What's Included

Select Package

PDF (Single Build)

$949.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,299.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$949.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,049.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

Select Foundation

Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Mirrored Reverse $15.00

Reverses the plan, however, the text and dimensions will not read correctly.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

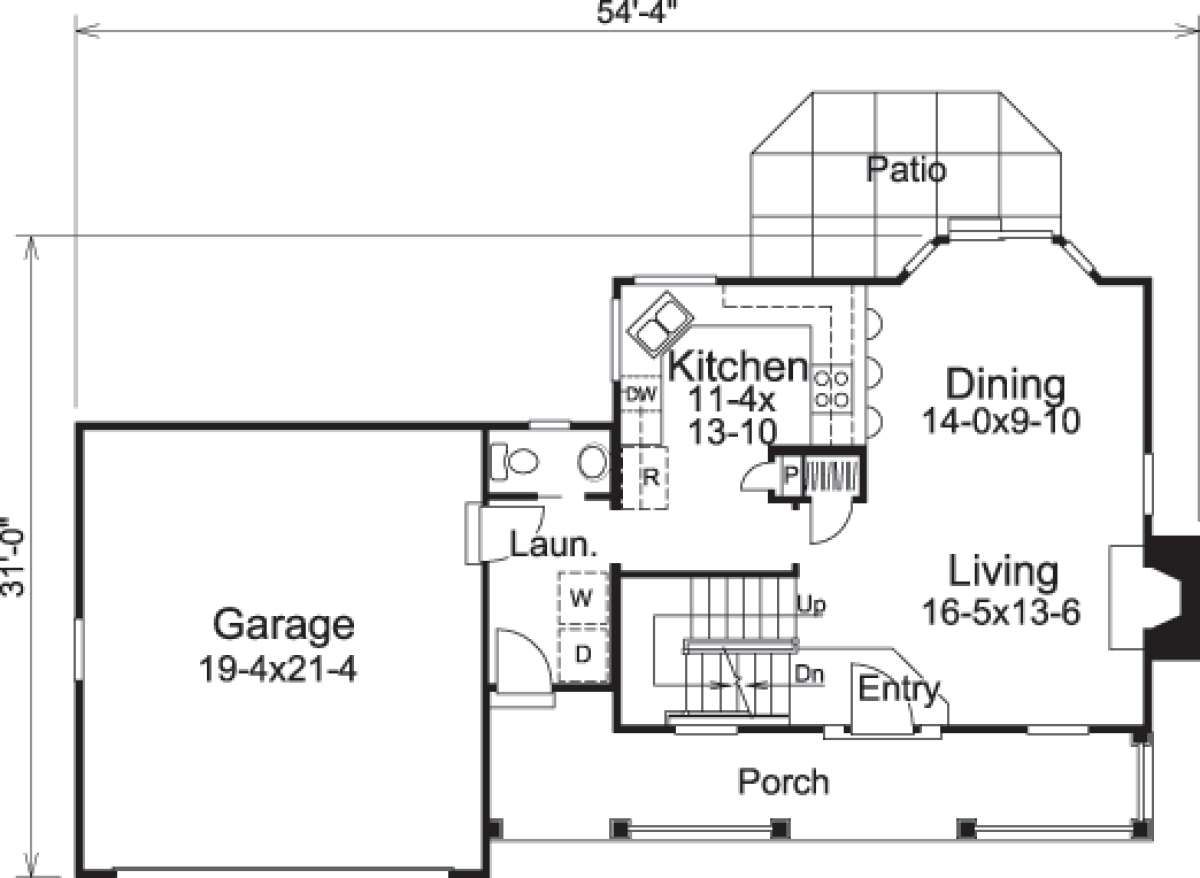

Floorplan 1

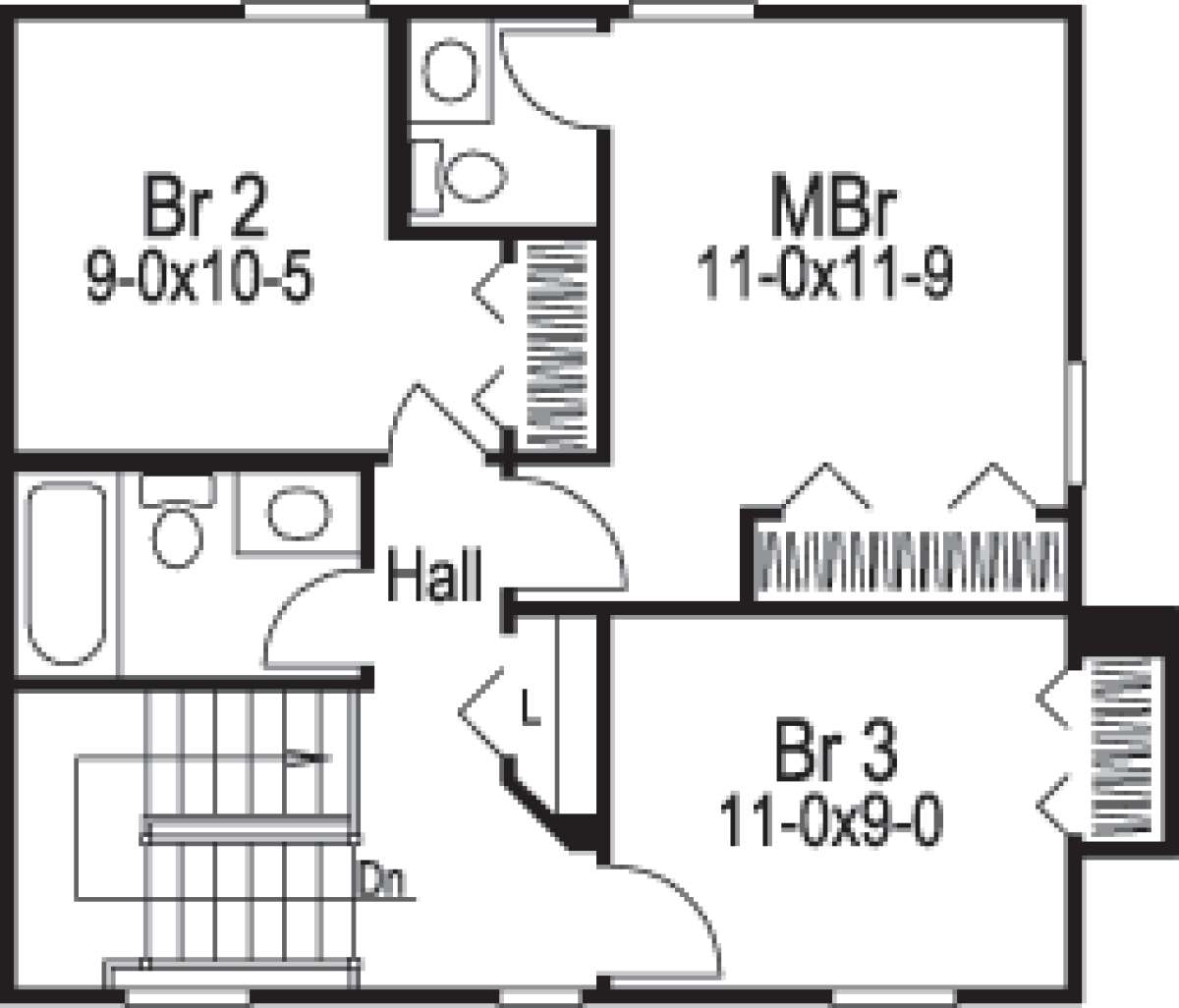

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')
Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
SET OF ELEVATIONS
This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

This traditional house plan features an exquisite exterior brimming with character and charm. The multi-gabled façade and expansive front covered porch with open railing and columned beams blend beautifully to create an aesthetically pleasing front facade. Decorative eaves and wonderful window views enhance the charm of the home and feature an inviting presence to the home. There are approximately 1,308 square feet of living space which offers an open concept design and three bedrooms, one full bath and two half baths in the two storied home. The basement foundation features an additional 652 square feet of living space and there is a two car garage offering plentiful space for vehicle and other gear storage. The greeting foyer houses the double staircases to the upper and lower levels and subsequently opens onto an expansive living room. The large living room is highlighted by a handsome fireplace and great window views. The dining room features great space and a triple bay window overlooking the side yard along with rear patio access. These combination spaces provide excellent entertaining options for large gatherings of family and friends. The U-shaped kitchen features a separate pantry, an open breakfast bar, corner sink window views and an abundance of additional counter and cabinet space. There is a powder room for guest and a large interior laundry room is situated off the garage for ease and convenience.
The second story landing fans out in multiple directions and contains an oversized linen closet. Bedroom two is spacious with a window view and ample closet space while the third bedroom also features window views and plentiful closet space. There is a shared hall bath containing a large vanity space, a toilet area and a shower/tub combination. The master suite is comfortable with multiple window views, generous closet space and a private half bath. This lovely home design is accentuated with a gorgeous exterior façade, plenty of interior floor space and the basement foundation features value and limitless expansion possibilities.
