Traditional Plan 5633-00129

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,621
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 62'
Depth 35'

Floorplan Drawings

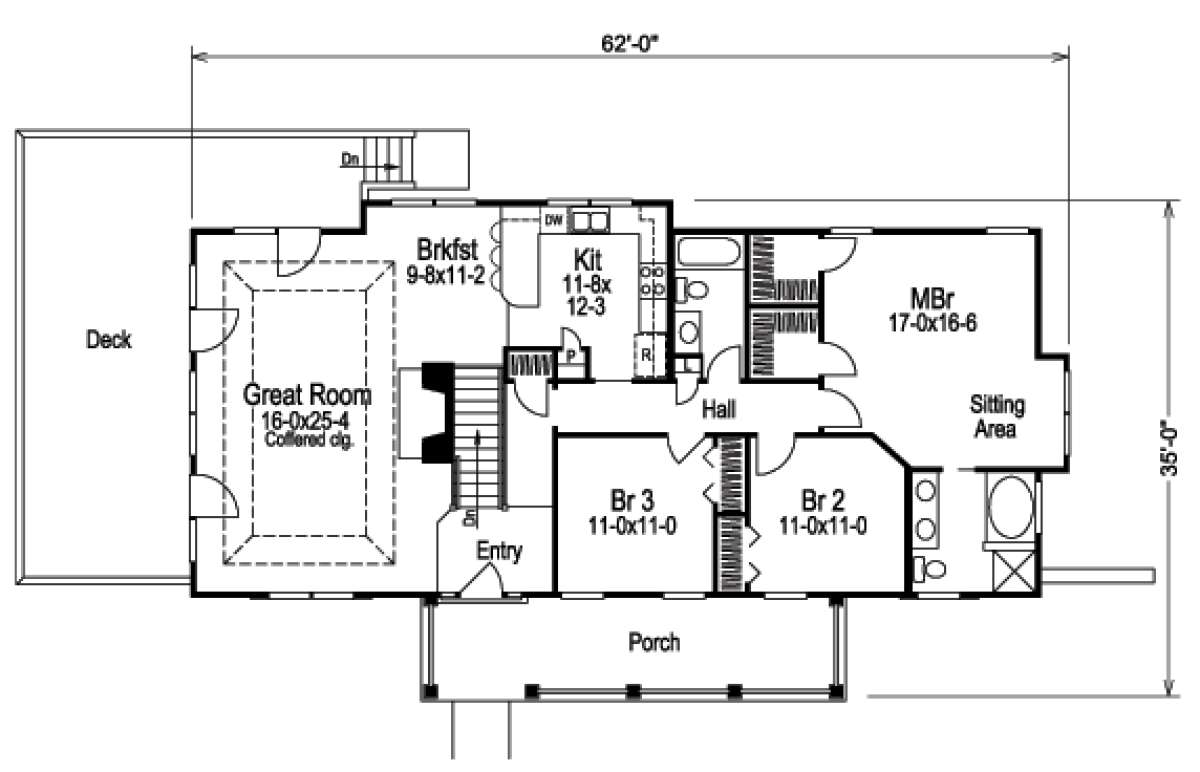

Floorplan 1
Floorplan 1 for House Plan #5633-00129

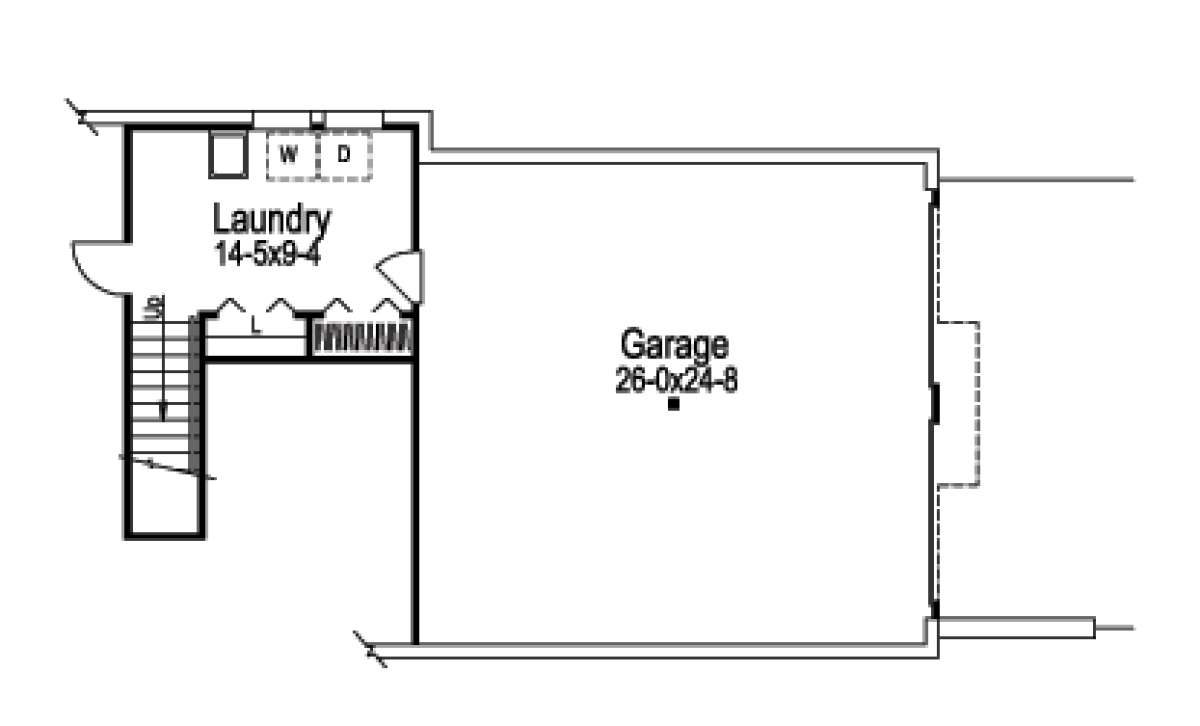

Floorplan 2
Floorplan 2 for House Plan #5633-00129


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

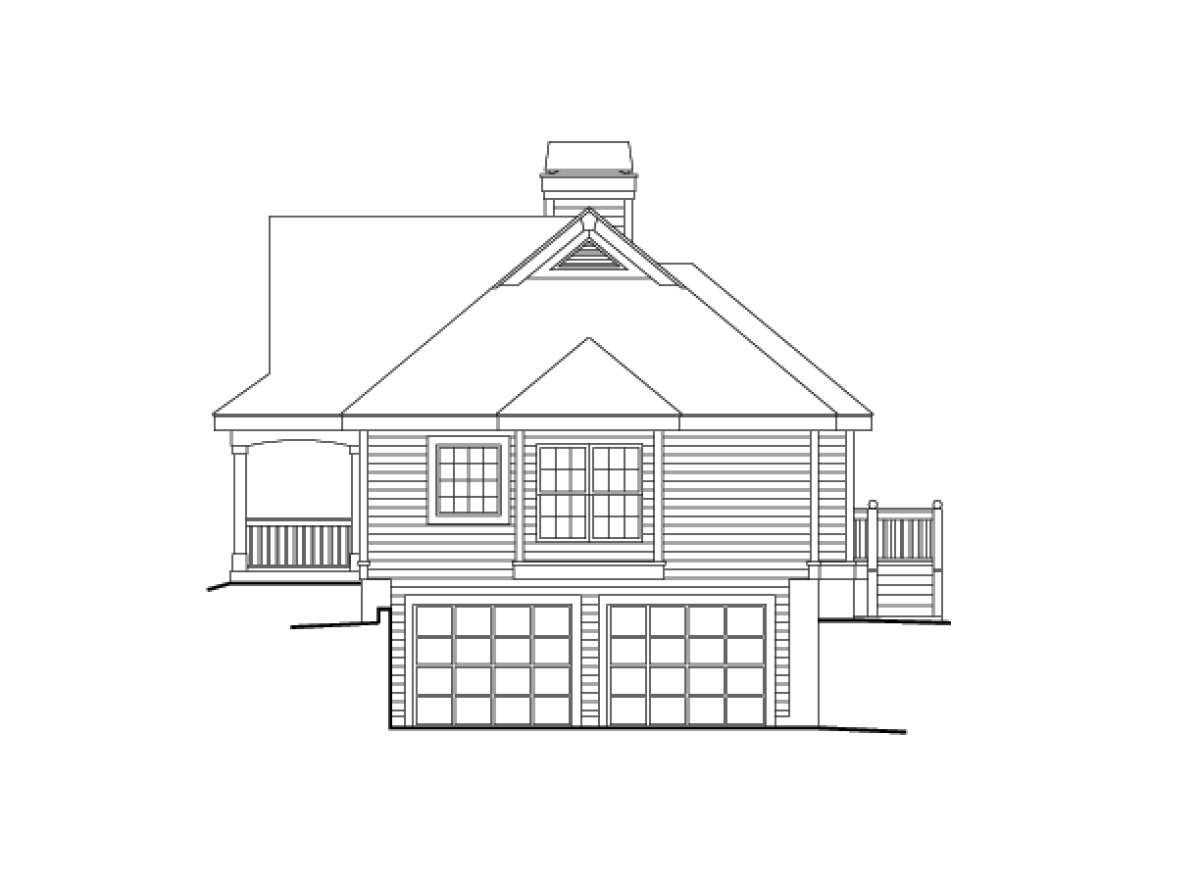

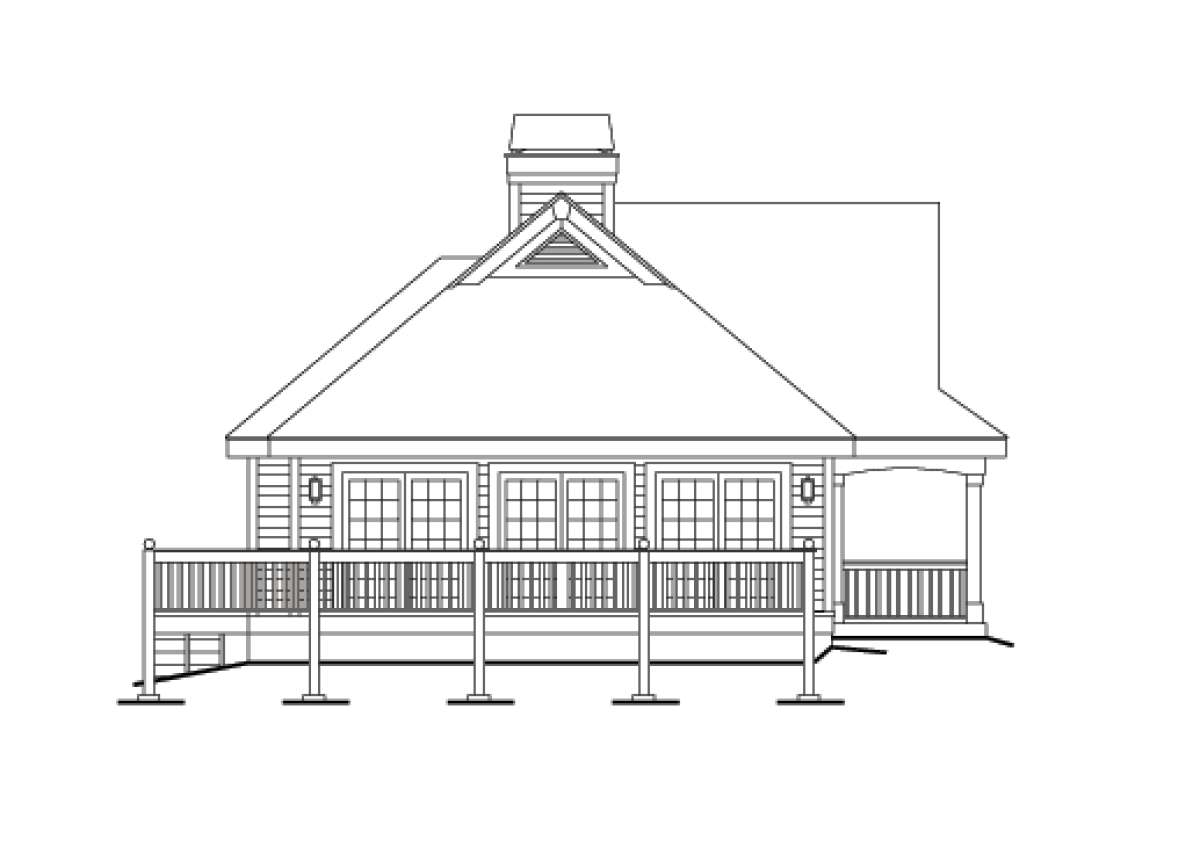

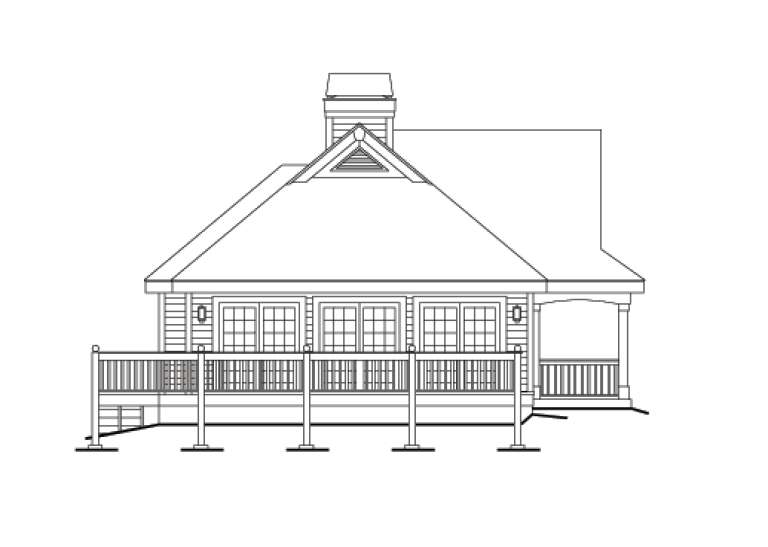

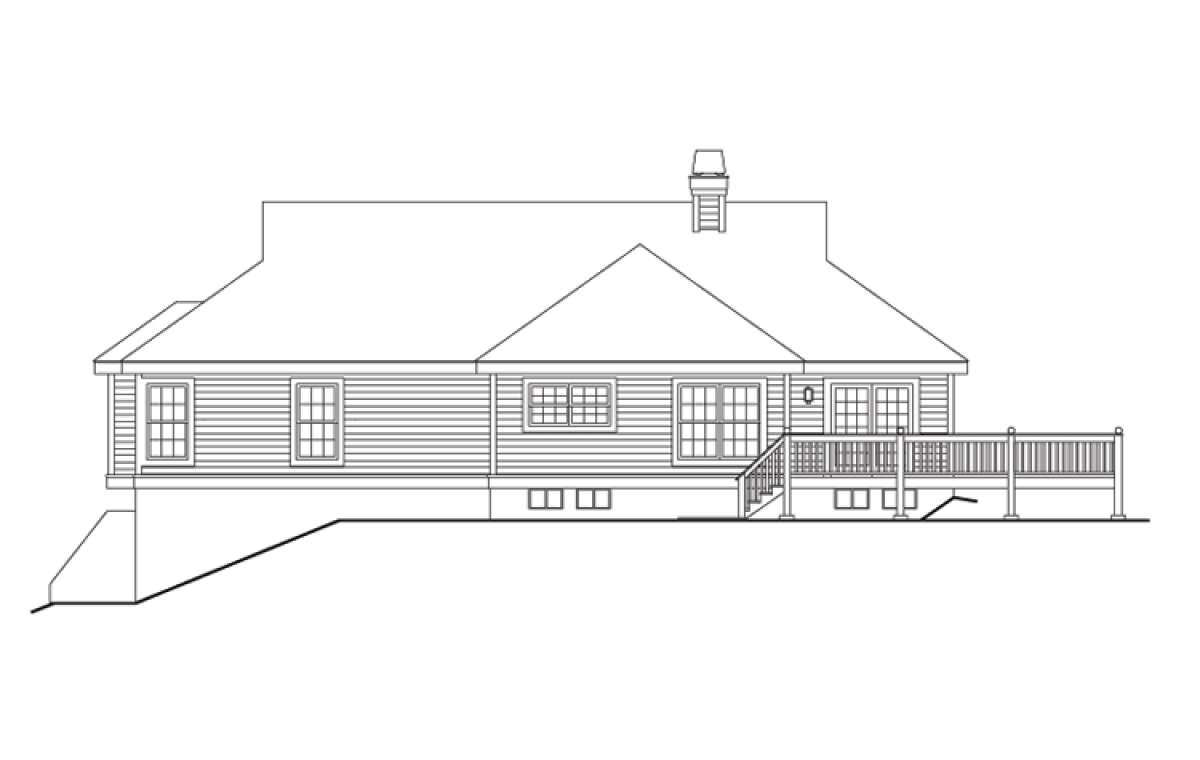

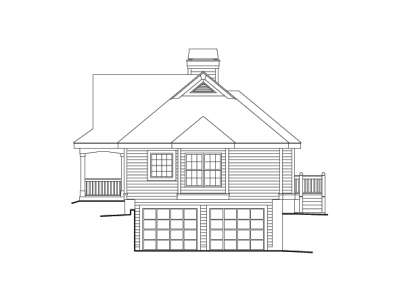

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Traditional house plan with country inspired design elements is a perfect choice for taking advantage of outstanding views whether of a mountain or lakefront property lot. The expanded front covered porch and side wraparound open deck are the perfect accompaniments to the stylish horizontal siding and an overhead gable end window, not to mention, providing fabulous entertaining space. The interior is no less stunning and features approximately 1,621 square feet of living space that incorporates three bedrooms and two baths into the space. There is a two car garage with 641 square feet of vehicle and other gear storage space and a lower level laundry room that is spacious with a closet and plenty of room. The main level of the home is highlighted with a front foyer that houses the lower level staircase and a split entryway to both sides of the home. One side features the common rooms while the other holds the family bedrooms and baths. There is an expansive great room, measuring in excess of 16’x25’, that is highlighted with a double step trey ceiling, a warming fireplace, amazing vista window views and triple points of entry/exit onto the open deck. The adjacent breakfast room is bright and airy and there is an open peninsula bar in the grand kitchen along with a separate pantry and great counter and cabinet space.
The main hallway of the home features a coat closet before accessing two family style bedrooms and the shared hall bath. The bedrooms are of equivalent size, feature plentiful closet space and window views. The hall bath has a vanity space, a toilet area and a tub/shower combination as well as a hall linen closet. The master suite is nicely appointed with an enormous master bedroom and adjoining sitting room encased in window views. There are his and her attached walk-in closets and an en suite bath which boasts of dual vanities, a separate shower and a garden tub. Family friendly and creatively designed to take advantage of spectacular views, this Traditional home boasts of outstanding outdoor space and an interior floor plan that is functional and comfortable.
