Cabin Plan 5633-00125

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 588
Beds 1
Bath 1
1/2 Baths 0
Car 2
Stories 1
Width 47' 8"
Depth 24'

Floorplan Drawings

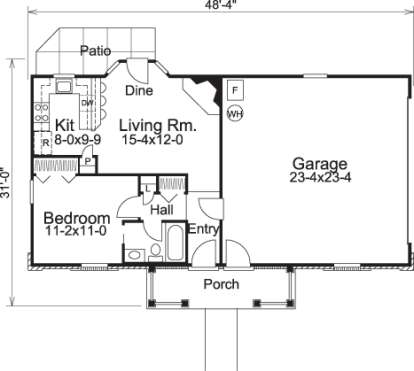

Floorplan 1
Floorplan 1 for House Plan #5633-00125


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

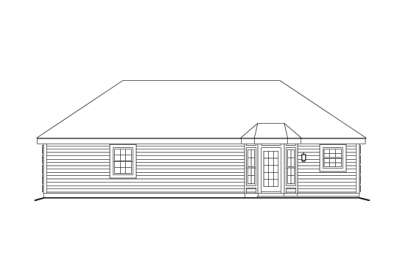

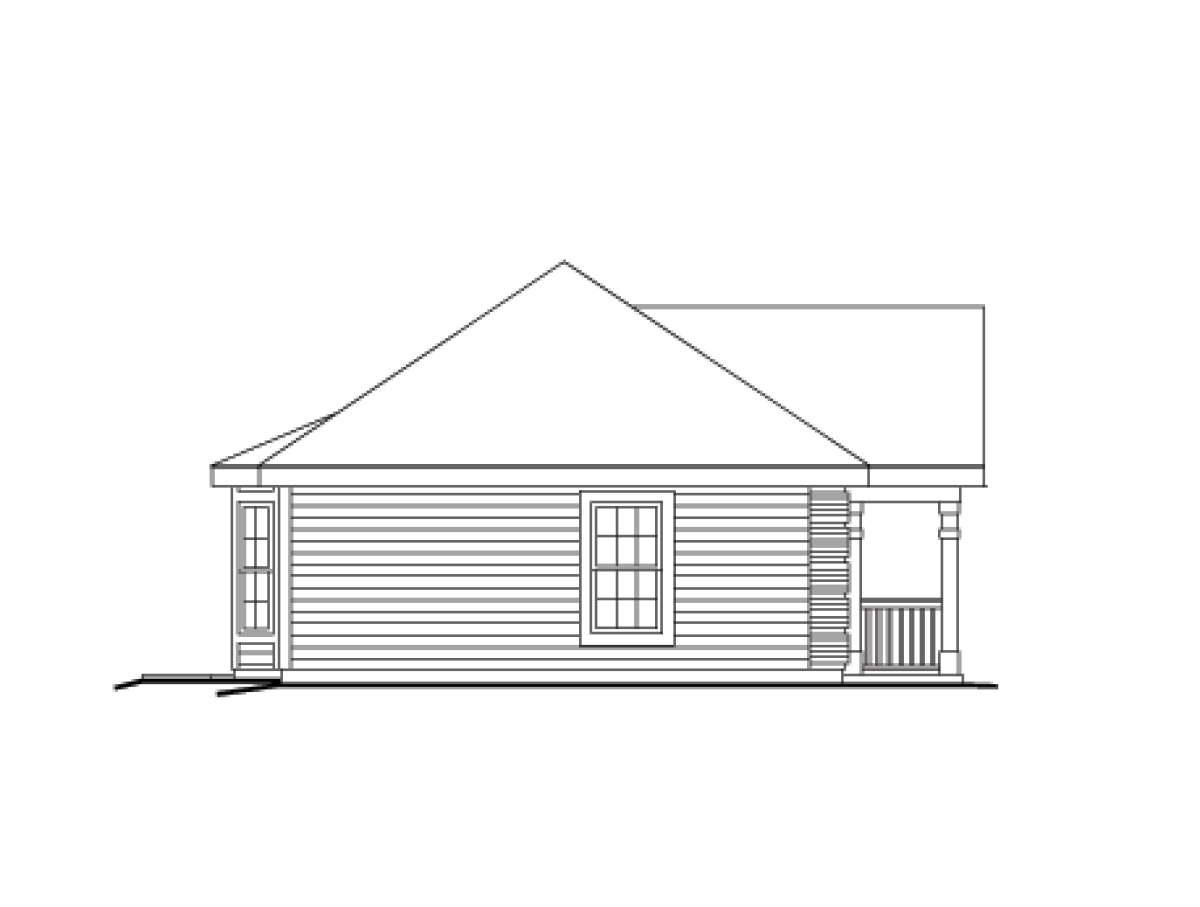

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This diverse floor plan has its roots in affordability and conversion as it’s designed to be a single family dwelling, duplex or multi-car garage. There are approximately 588 square feet of living space in the home which includes one bedroom and one bath. The two car garage features an additional 544 square feet of living space which could easily be converted into a second living space. The attractive exterior façade features brick and siding along with a country front covered porch highlighted with open railing and columned beams. The entry foyer leads to a side hallway which contains a coat closet, linen closet and accessibility to a bathroom. Beyond this space, is the spacious bedroom which features ample closet space and private access to the full bath with vanity and a tub/shower combination. The main living spaces are off the entry foyer and include a large living room with corner fireplace. The dining nook features a triple bay window and access to the rear patio. A separate pantry, beautiful breakfast bar and additional counter and cabinet space are highlighted in the practical kitchen. This combination of indoor and outdoor living space provides the perfect space in which to relax or entertain with family and friends. The expansive garage is large and houses enough room for vehicle or lawn equipment storage or, as mentioned, could be converted into either a duplicate living space or four vehicle garage. This home is ideally suited for a small family, empty nesters or investment minded individuals.
