Small House Plan 5633-00124

Sq Ft1,671
1/2 Baths1
Width32' 0"
Depth39' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00124
Floorplan 2 for House Plan #5633-00124

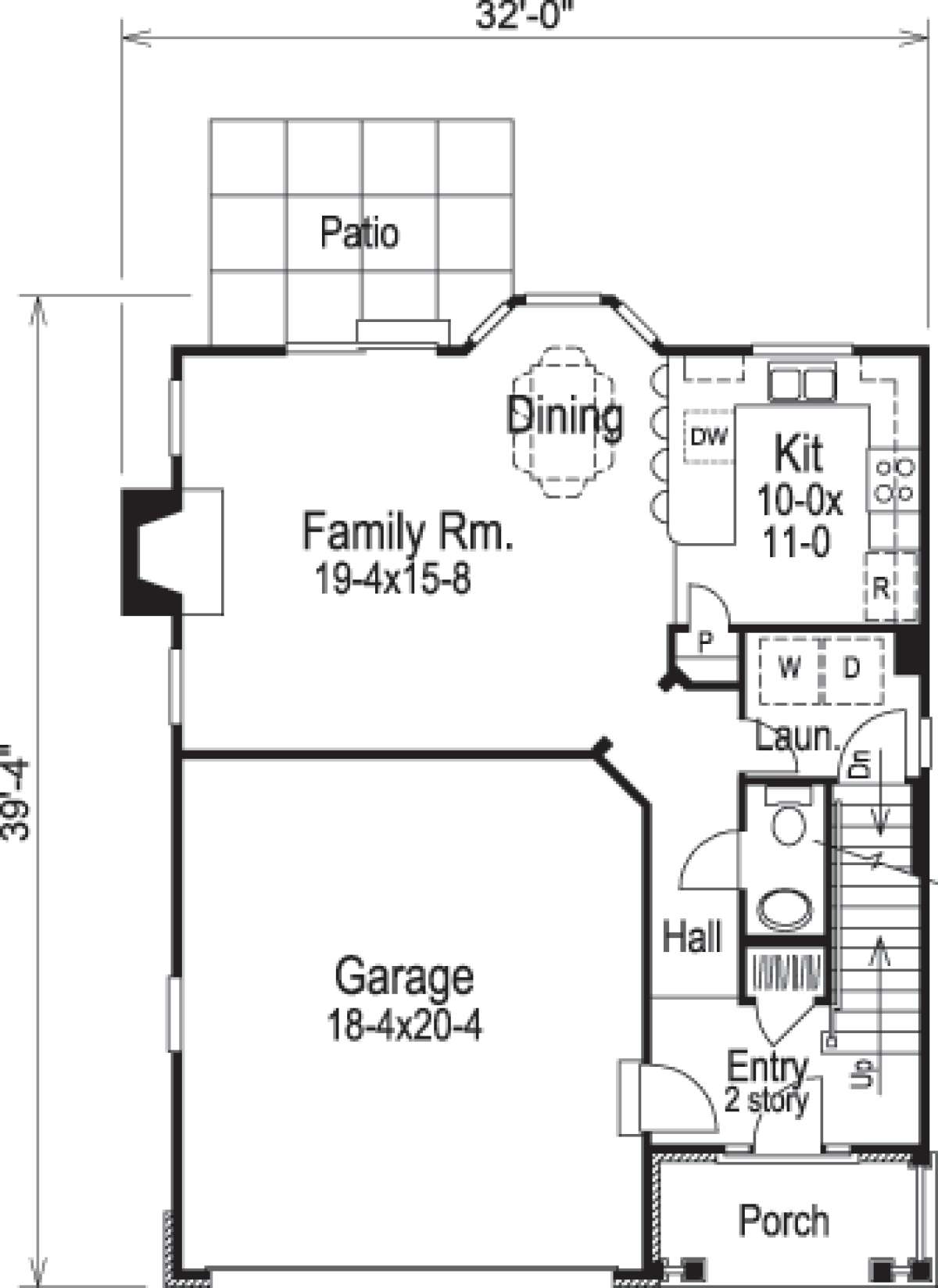

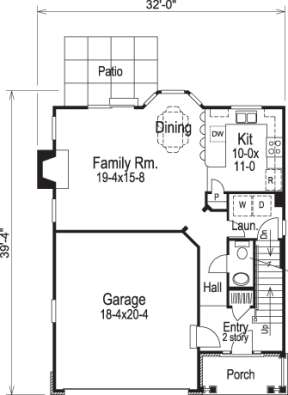

Floorplan 1
Floorplan 1 for House Plan #5633-00124

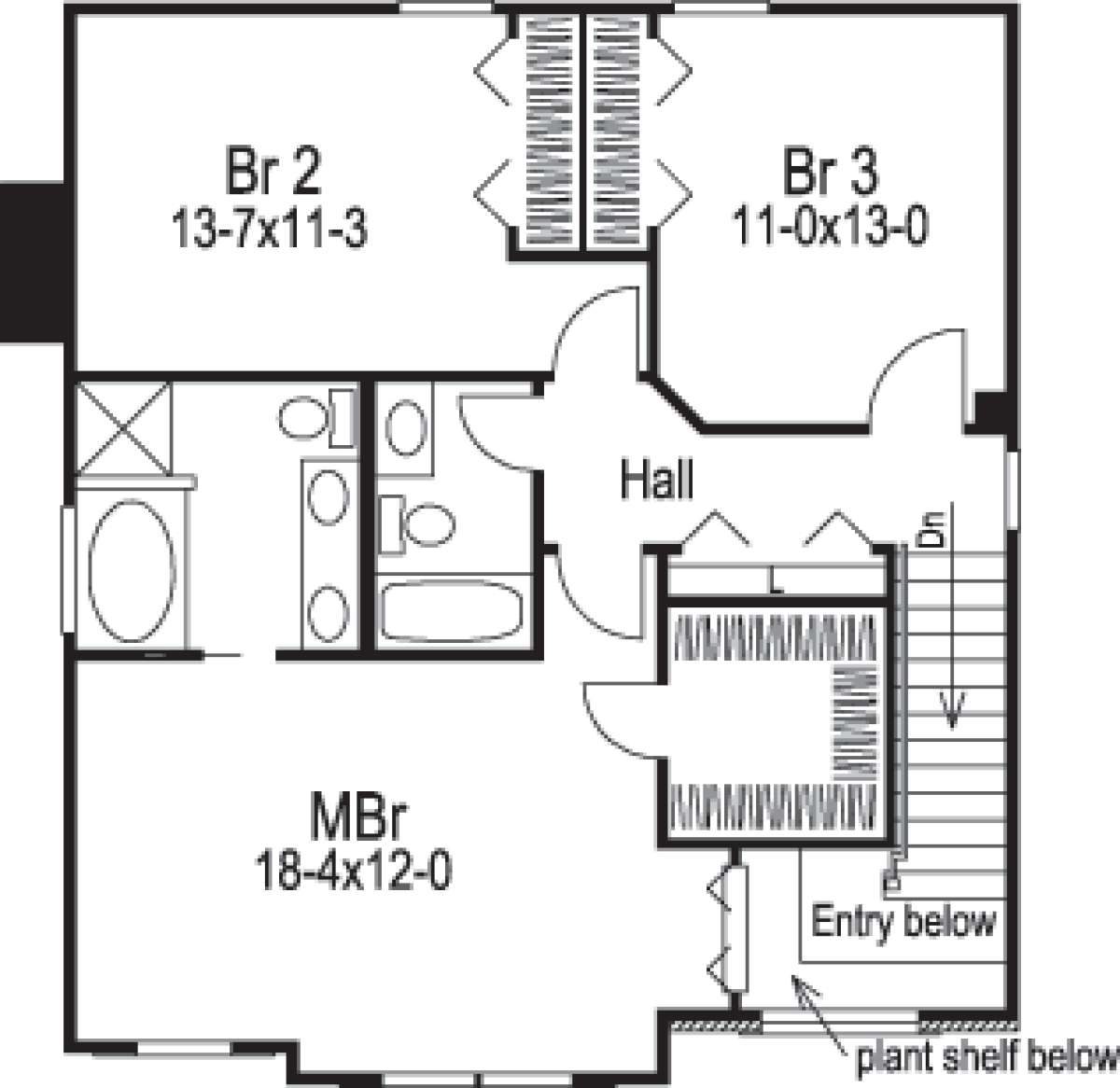

Floorplan 2
Floorplan 2 for House Plan #5633-00124

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

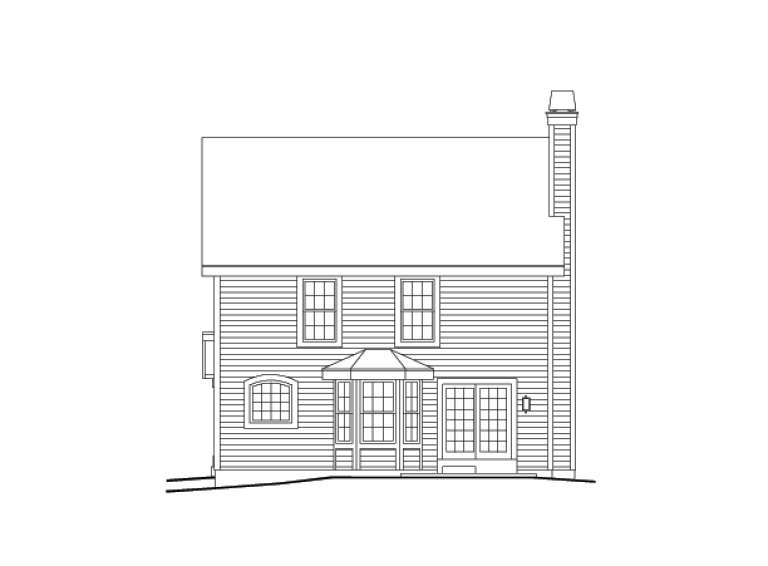

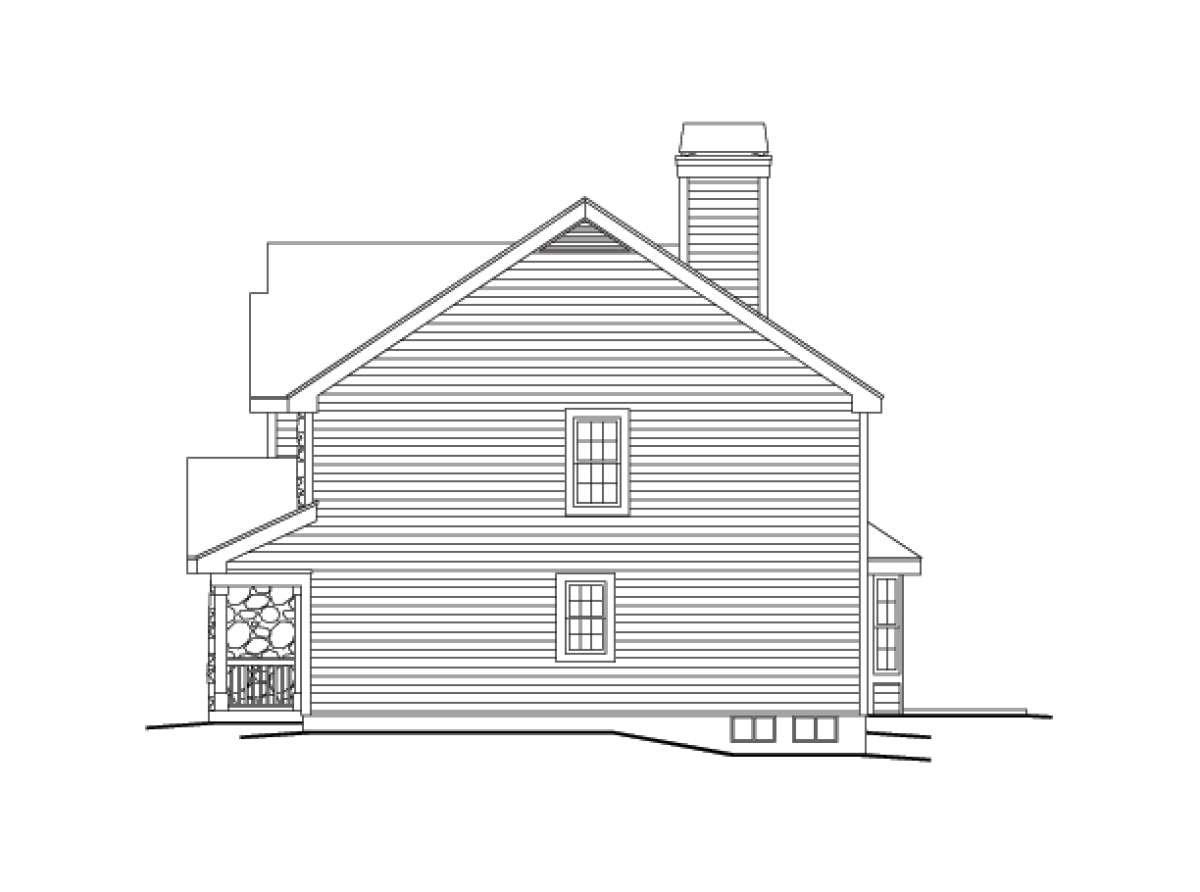

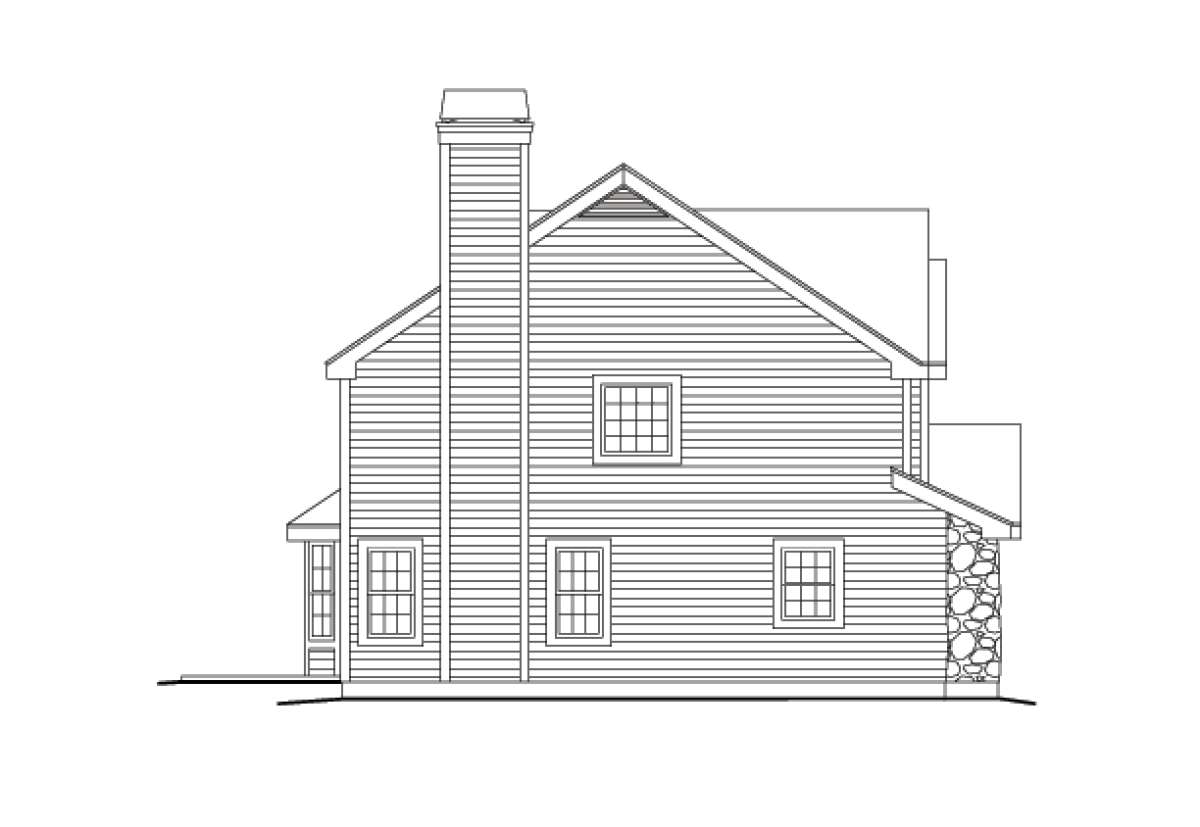

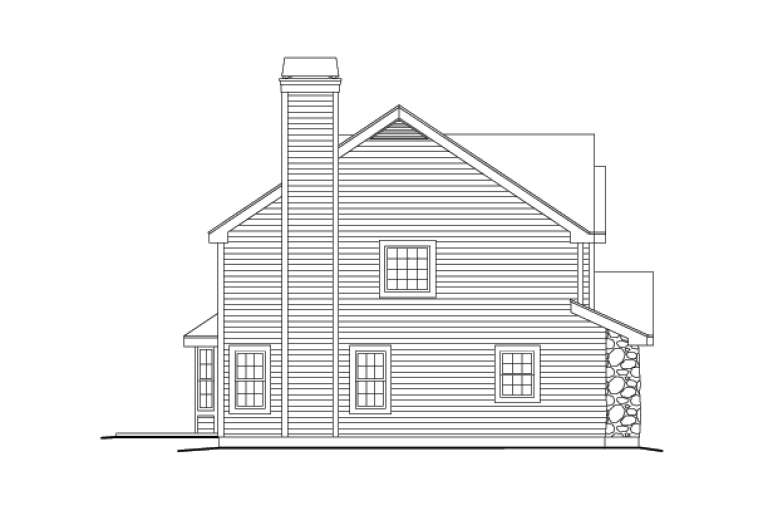

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Cottage plan is ideal for a narrow lot with its 32’ width and yet, there is an abundance of space featured in the interior floor plan. There are approximately 1,672 square feet of living space which incorporates three bedrooms and two plus baths into the plan. The home’s drawings include a basement foundation which features an additional 688 square feet of space and adds value and versatility to the home. There is a two car garage, as well, which provides 373 square feet of vehicle and storage space. The exterior façade of the home is simply stunning with multiple gables, wide eaves and a stone accent wall feature. The front covered porch is highlighted with columned beams, open railing and a decorative arched opening that blend to create visual interest and curb appeal. A gorgeous front door opens onto the two story foyer which houses a coat closet and the second story staircase. The hallway extends into the open concept plan and features a powder room for guests. The main living areas are spacious and include the family room, measuring in excess of 19’x15’, which includes a handsome fireplace flanked by picturesque window views and rear patio access. The dining space is nestled into a triple bay window that overlooks the rear patio and yard. The U-shaped kitchen is highlighted by an open breakfast bar, separate pantry and an abundance of additional counter and cabinet space. There is a laundry nook and lower level staircase to complete the main level of living.
The second story landing features an overlook onto the foyer and the plant shelf below. Bedrooms two and three are large with window views and generous closet space. There is a shared hall bath with a vanity space, toilet area, a tub/shower combination and there is an oversized hall linen closet as well. The master suite is highlighted by an oversized bedroom space with a “bump-out”, gorgeous window views and a large master walk-in closet. The master bath is elegantly designed with dual vanities, a separate shower, a toilet area and a garden tub with window views. Expansion possibilities, an attractive exterior and a functional floor plan contribute to the home’s value and versatility.
