Traditional House Plan 5633-00122

Sq Ft1,062
1/2 Baths0
Width42' 8"
Depth45' 0"

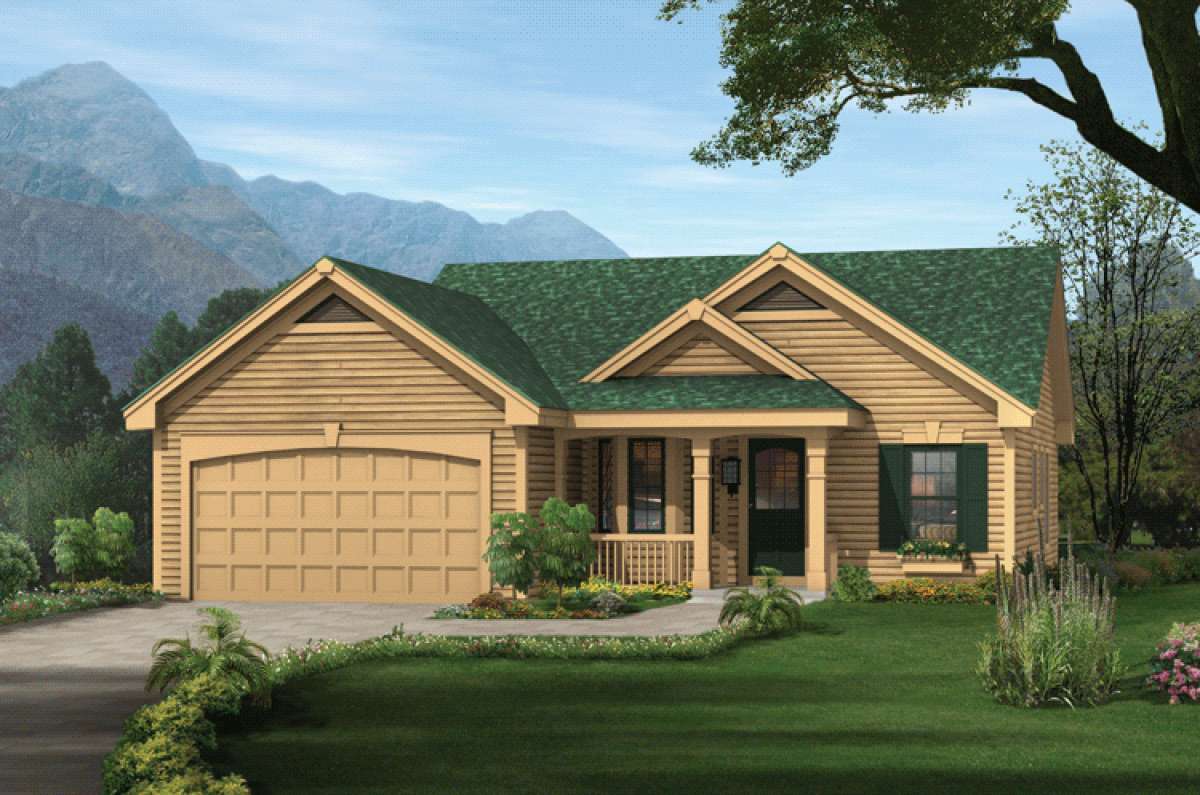

Traditional House Plan #5633-00122 Elevation Photo
Floorplan 1
Floorplan 1 for House Plan #5633-00122
Traditional House Plan #5633-00122 Elevation Photo
Traditional House Plan #5633-00122 Additional Photo
Traditional House Plan #5633-00122 Additional Photo
Traditional House Plan #5633-00122 Elevation Photo
Floorplan 1 for House Plan #5633-00122
Traditional House Plan #5633-00122 Elevation Photo
Traditional House Plan #5633-00122 Additional Photo
Traditional House Plan #5633-00122 Additional Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

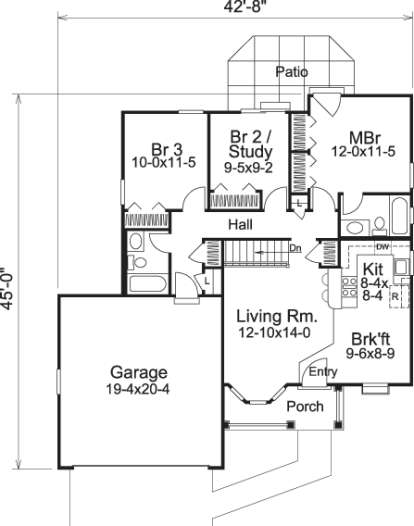

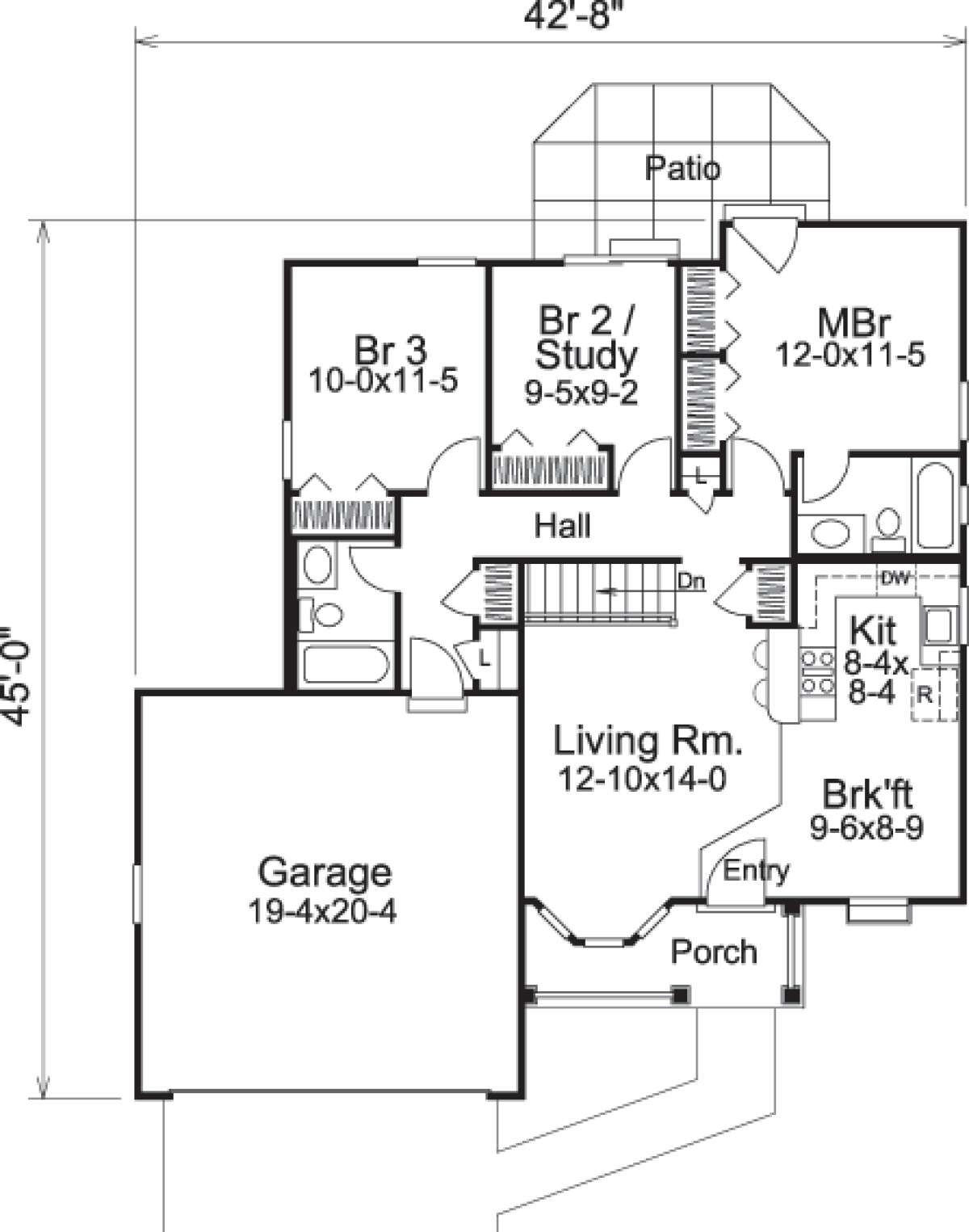

Floorplan 1 for House Plan #5633-00122
Floorplan 1
Floorplan 1 for House Plan #5633-00122

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

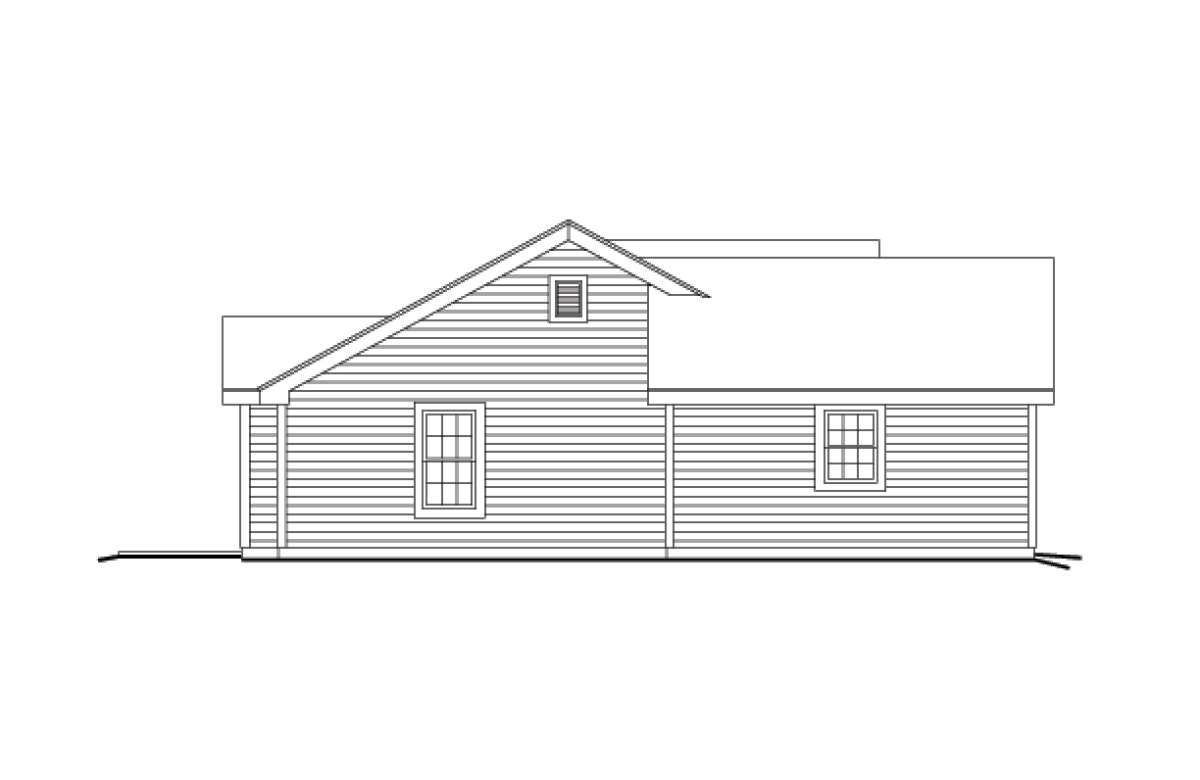

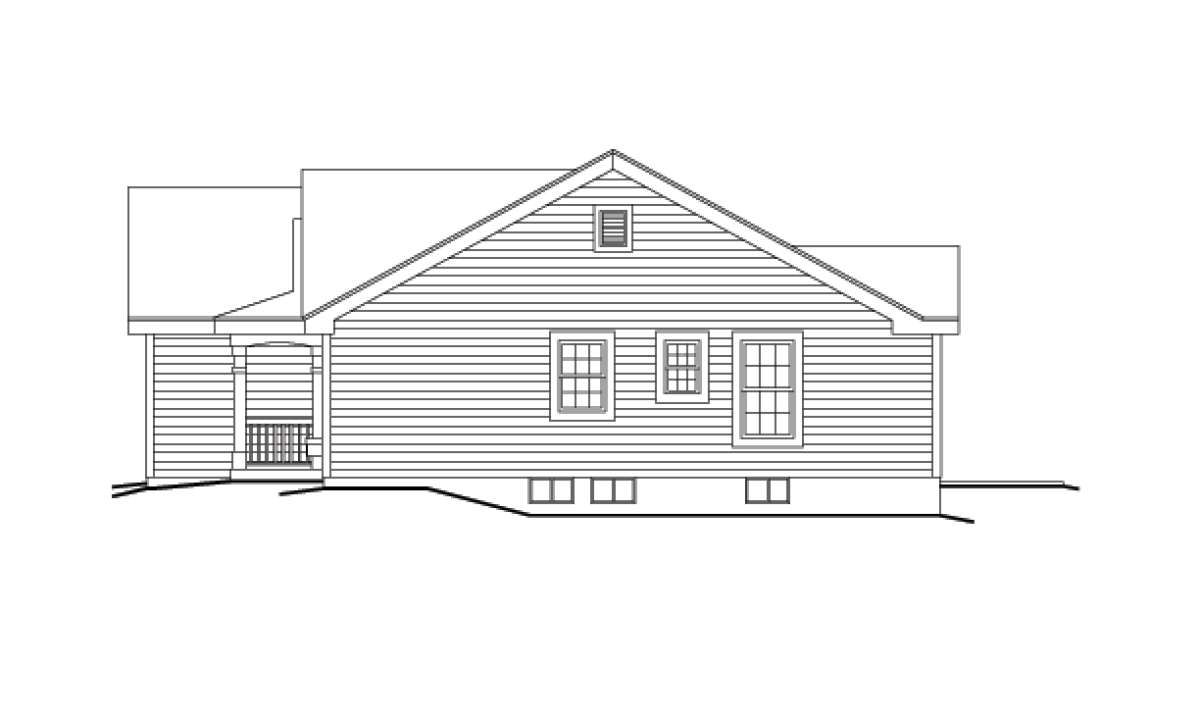

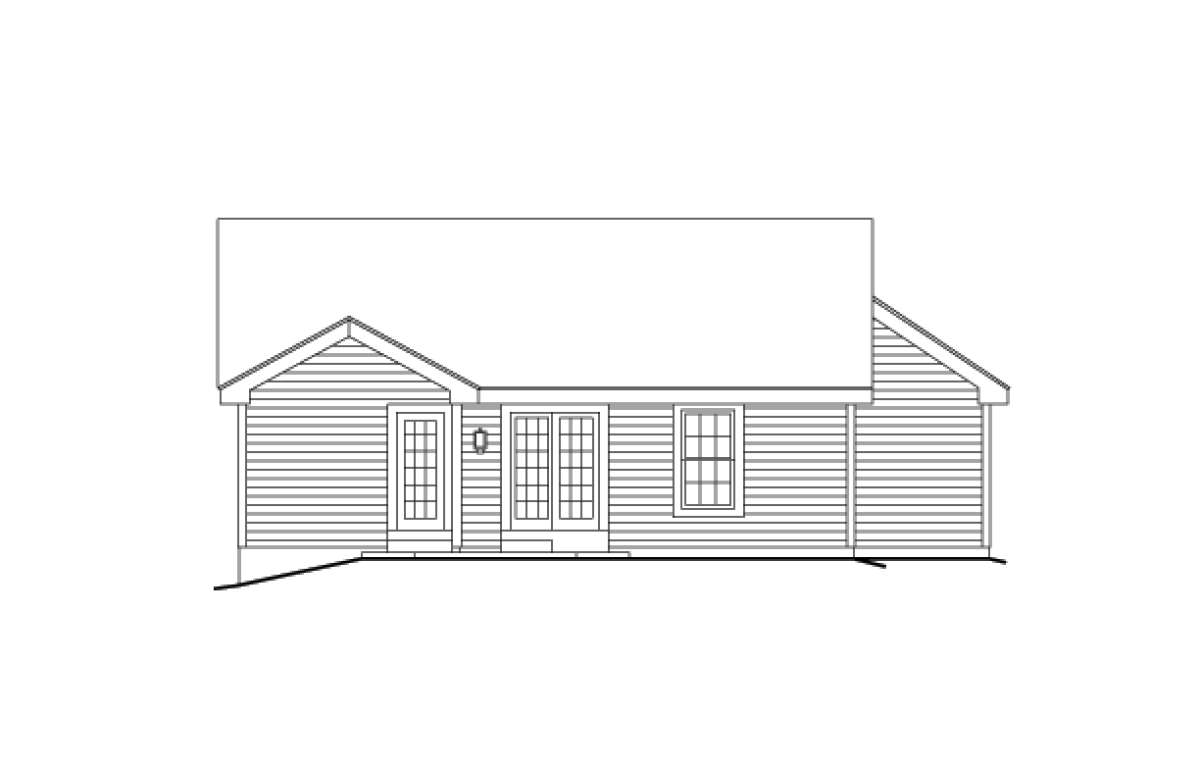

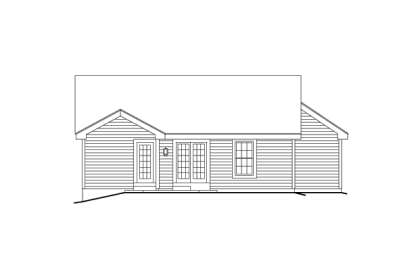

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This quintessential American home features a traditional exterior façade loaded with outstanding curb appeal and a lovely interior floor plan which features three bedrooms and two baths. The Ranch styled home has approximately 1,062 square feet of living space and the two car garage features an additional 393 square feet. Additionally, there is a basement foundation which mirrors the square footage of the home and offers a great expansion option and increased home value. The handsome exterior boasts of attractive gabled roof lines and an inviting front covered porch with open railing and columned beams. The front porch leads to the entry foyer and subsequent open floor plan; there is a large living room with triple bay window. This is a great space to entertain guests or relax as a family and open onto the dining and kitchen space featuring a breakfast bar and plenty of additional counter and cabinet space. Passing through to the hallway, there is a coat closet and staircase which leads to the basement level and family laundry room. The master suite is spacious with great double closets and private access to the rear patio. The master bath features a vanity, toilet area and shower/tub combination. Two additional bedrooms and one bath are situated along the hallway as well as a linen closet. Bedroom two could function as a study or home office, has good closet space and private access onto the rear patio while the third bedroom is spacious with ample closet space. There is a shared hall bath which features a vanity, toilet, tub and shower combination and an additional linen closet along with a storage closet. This is an excellent home for a small family, young professional couple or empty nesters with loads of space for future expansion and a handsome exterior facade.
