Cottage House Plan #5633-00121 Elevation Photo

Cottage House Plan #5633-00121 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,498

Beds 2

Bath 2

1/2 Baths 1

Car 1

Stories 2

Width 24'

Depth 50' 6"

See What's Included

Select Package

PDF (Single Build)

$949.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,299.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$949.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,049.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,449.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$1,799.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Walkout Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $150.00

Convert the exterior framing to 2x6 walls.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

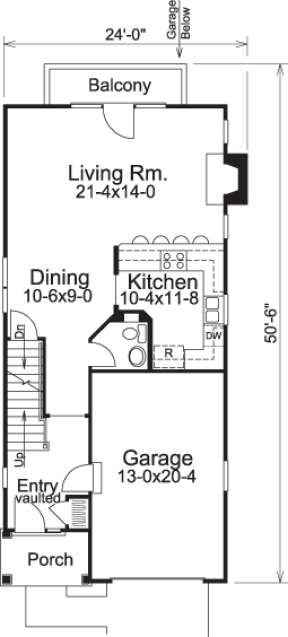

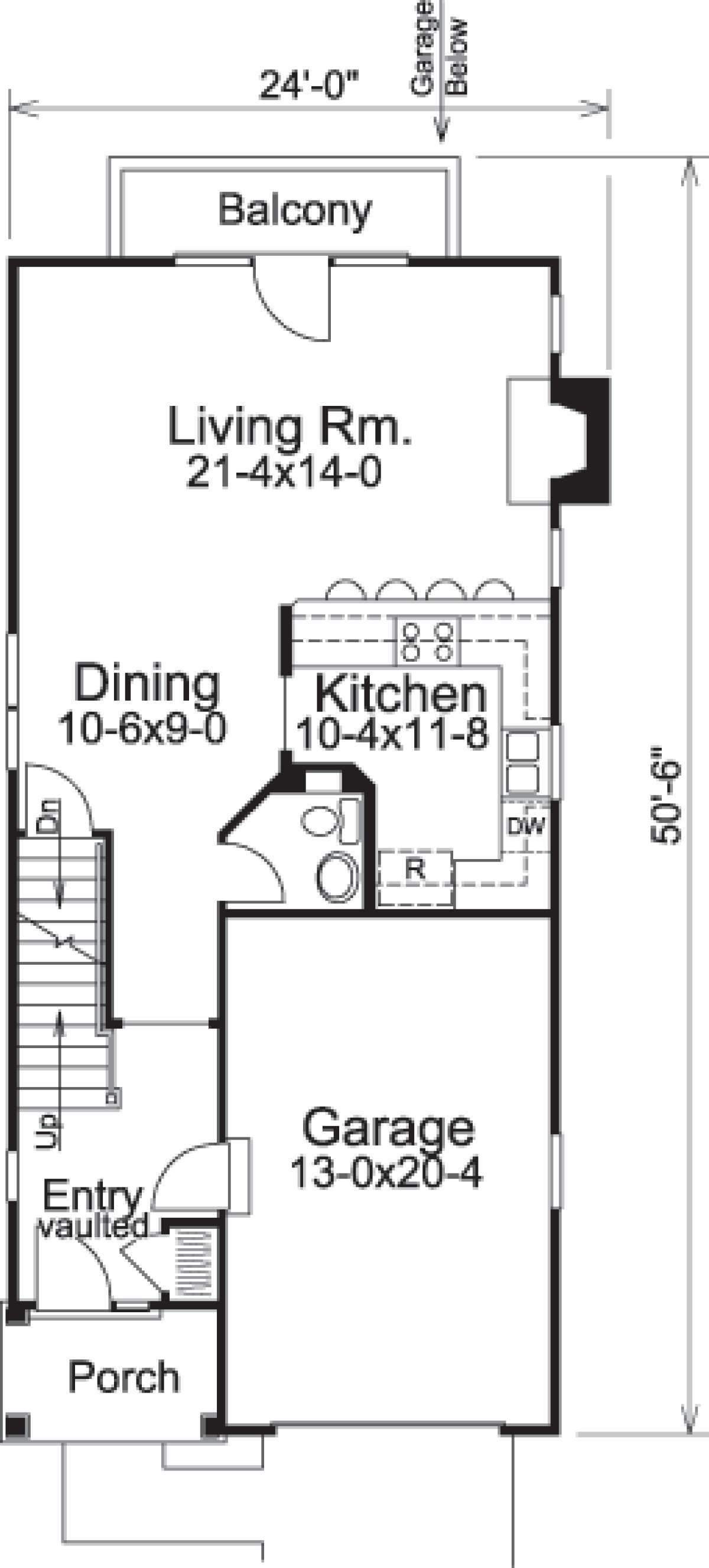

Floorplan 1

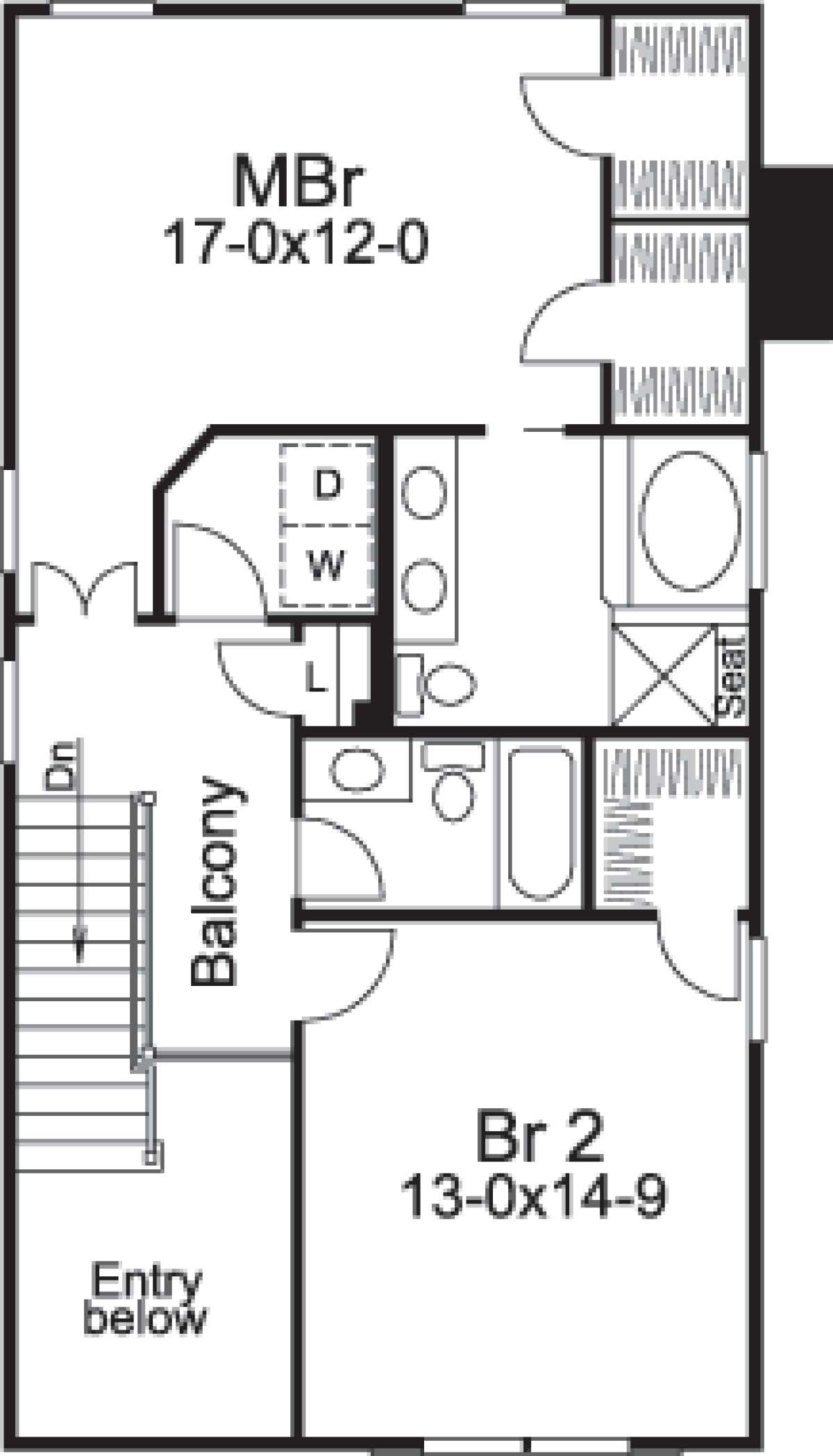

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')
Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
SET OF ELEVATIONS

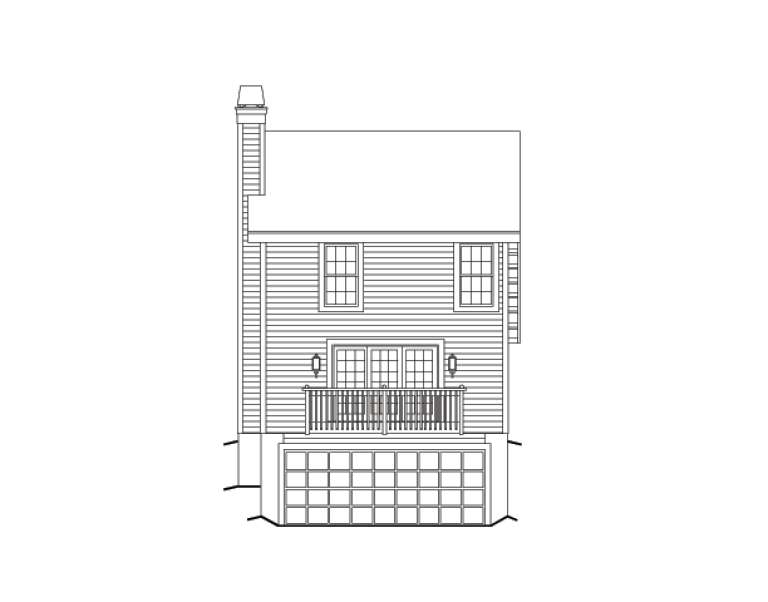

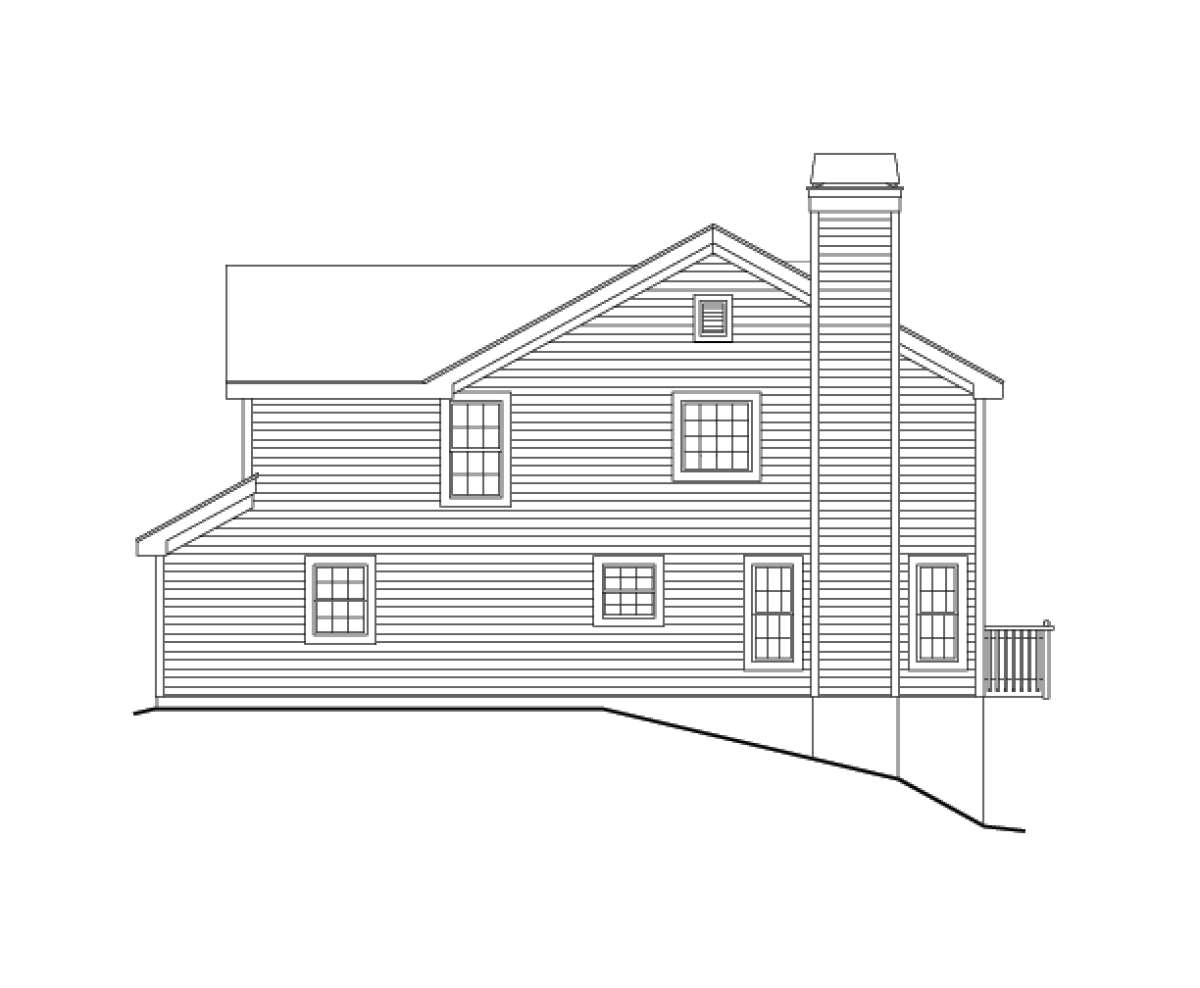

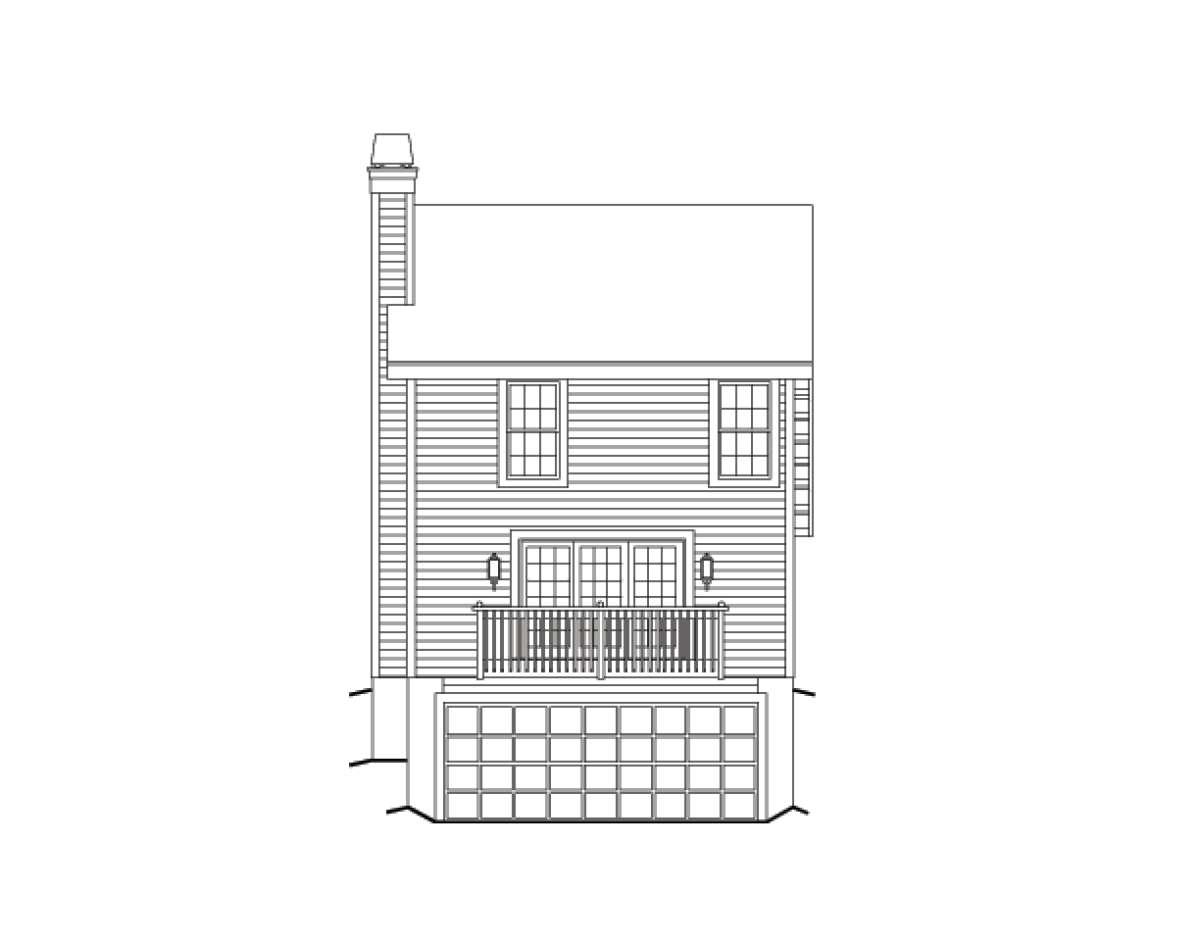

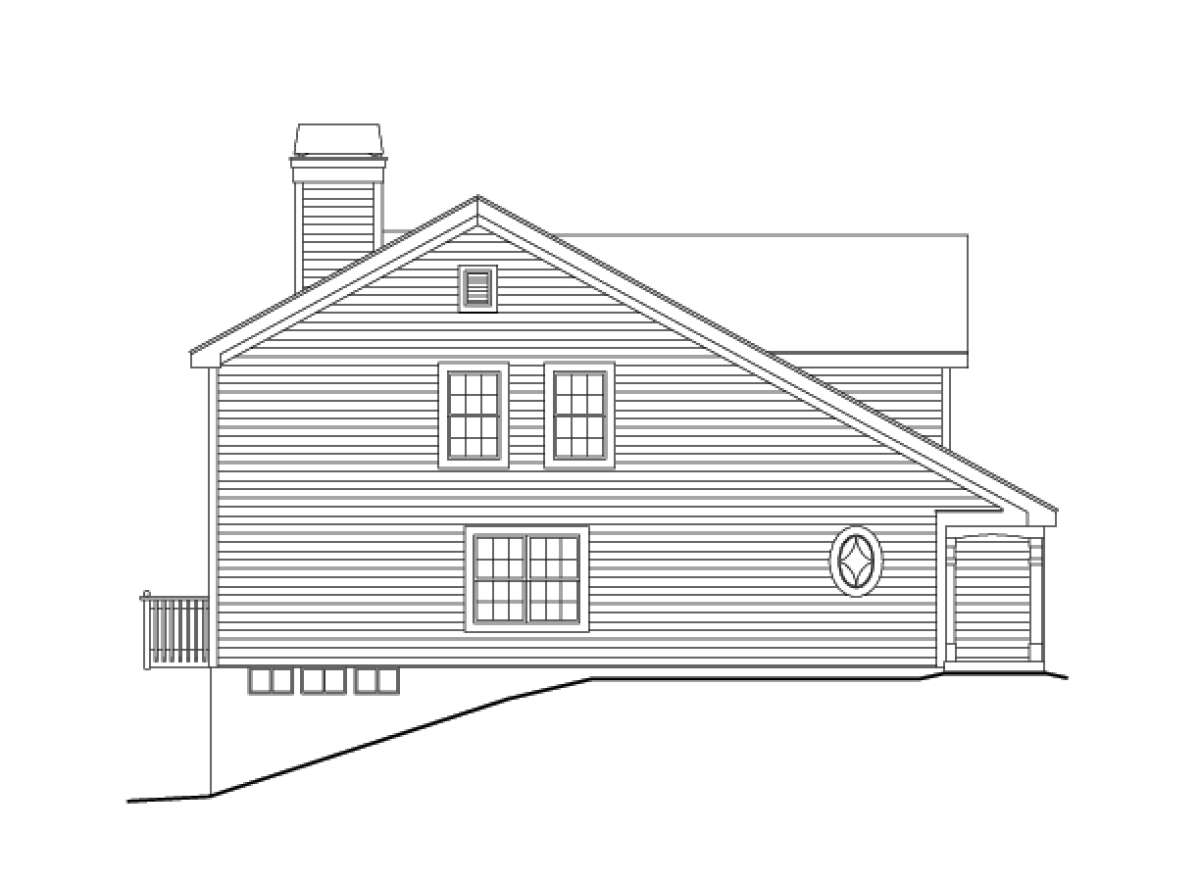

This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

This is a perfect lake front home with an expansive rear entry, drive under garage space and a front entry garage, as well. This combination of space is equivalent to 797 square feet which provides plenty of room for a boat, jet skis and vehicles. The interior floor plan of the home features approximately 1,498 total square feet of living space which incorporates two bedrooms and two and a half bathrooms into the plan. The home’s foundation includes a walk-out basement with an additional 294 square feet of space and the home is designed for a narrow and sloping lot with its 24’ width dimension. The Cottage home has an attractive exterior façade brimming with architectural details such as wide eaves, a window dormer and a front covered porch highlighted with columned beams. Entrance into the home is off the front porch into the vaulted greeting foyer which houses a coat closet and the second story staircase. The open concept living spaces include a large living room with a handsome fireplace flanked with picturesque window views and rear balcony access. The dining space is bright and airy while the U-shaped kitchen features an open breakfast bar and loads of additional counter and cabinet space. There is a powder room for guests before travelling the staircase to either the lower level basement or second story landing.
The staircase features second story foyer views and subsequently leads to the bedrooms and bathrooms. The second bedroom is quite spacious with a large walk-in closet and great window views. There is an adjacent hall bath which features a vanity space, toilet area and a shower/tub combination along with a hall linen closet. The master suite features French door access and a large bedroom space with his and her walk-in closets. The master bath is elegantly designed with dual vanities, a separate shower, garden tub and a toilet area. The family laundry room is situated upstairs for ease and convenience. This home has an attractive exterior, functional floor plan, loads of vehicle and other gear space for an active and healthy lifestyle.
