Traditional Plan 5633-00120


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,169
Beds 3
Bath 2
1/2 Baths 0
Car 1
Stories 1
Width 37' 4"
Depth 46' 8"

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00120

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

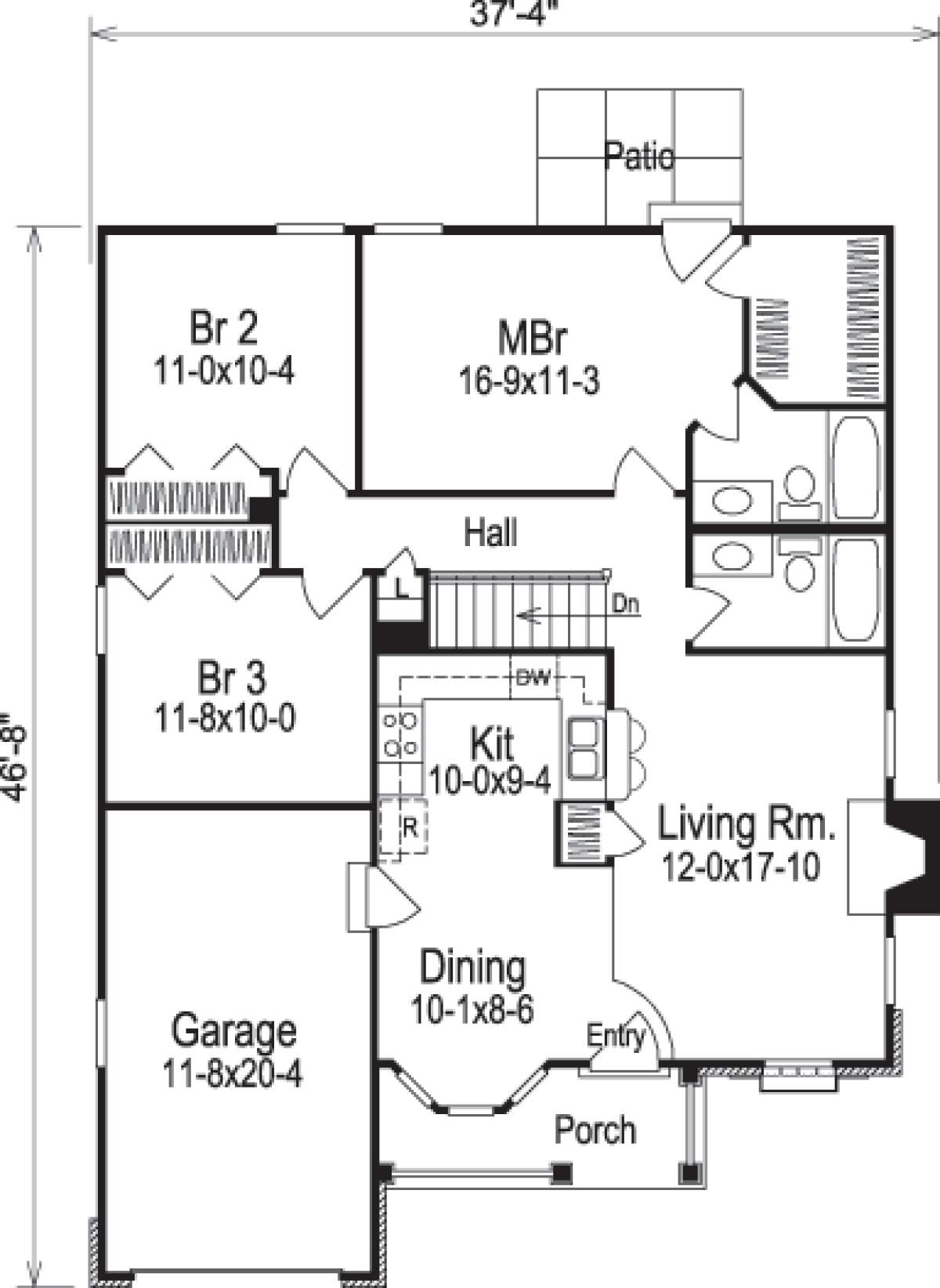

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

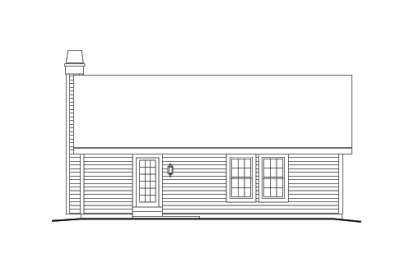

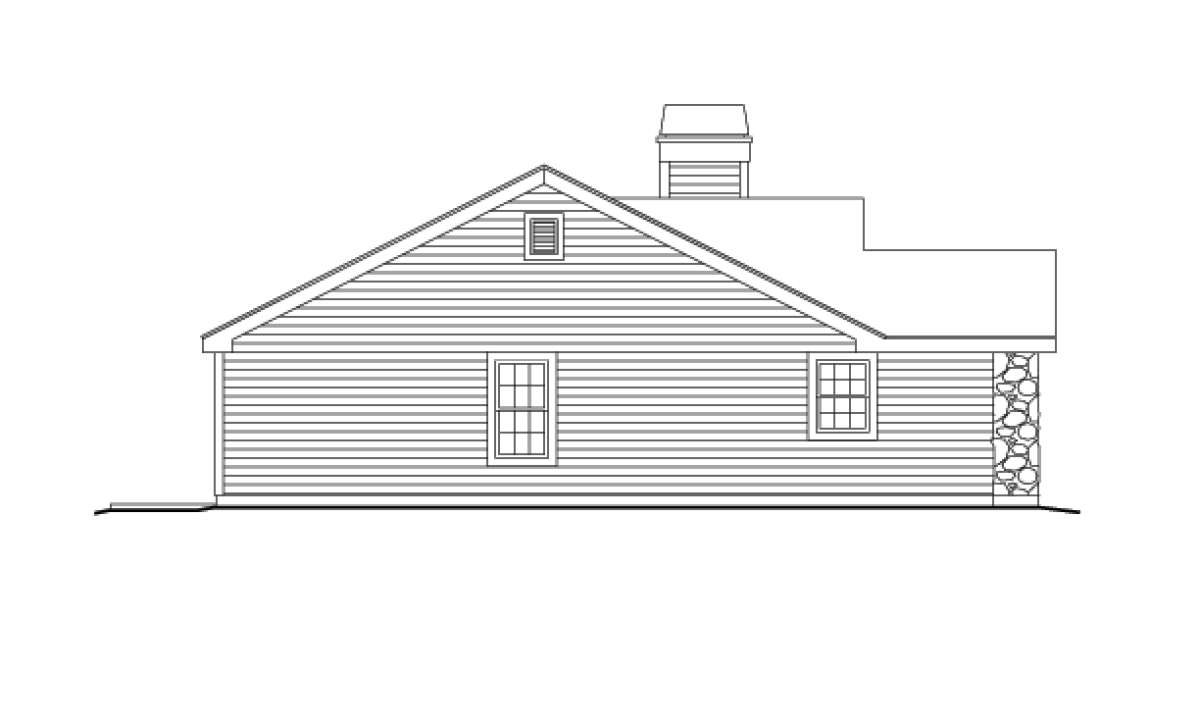

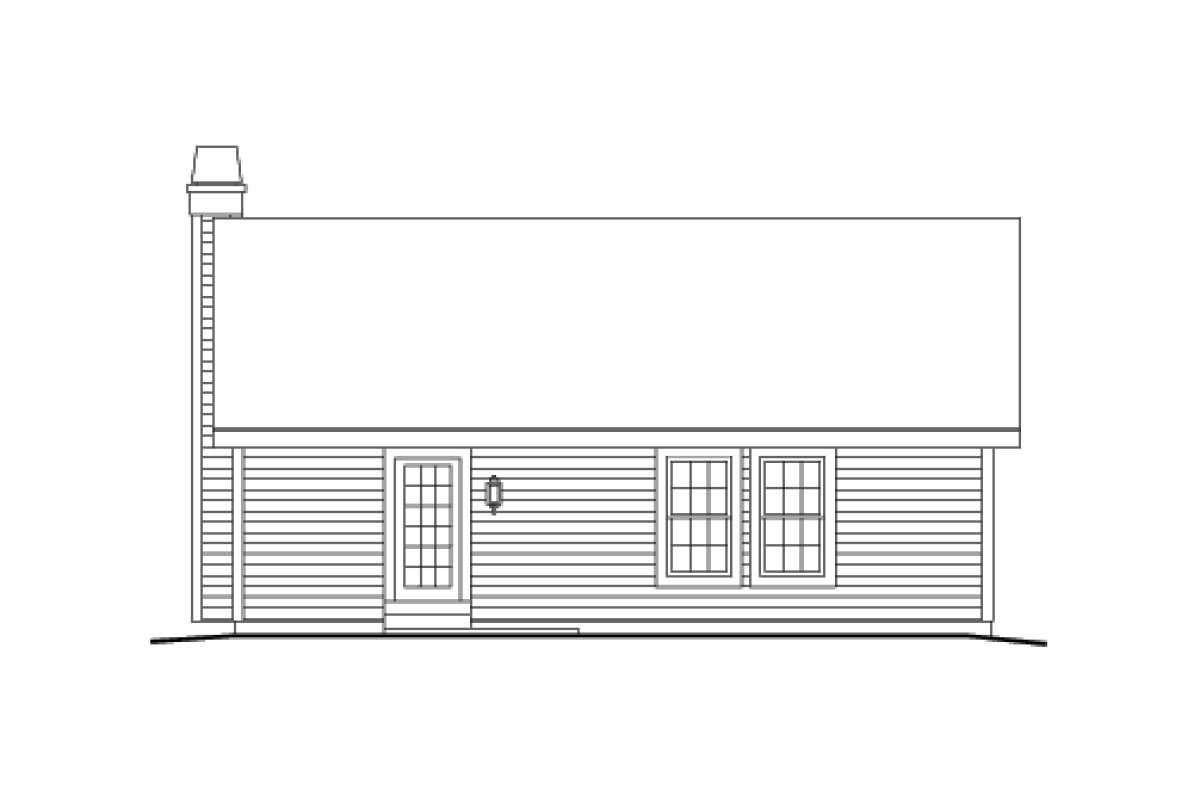

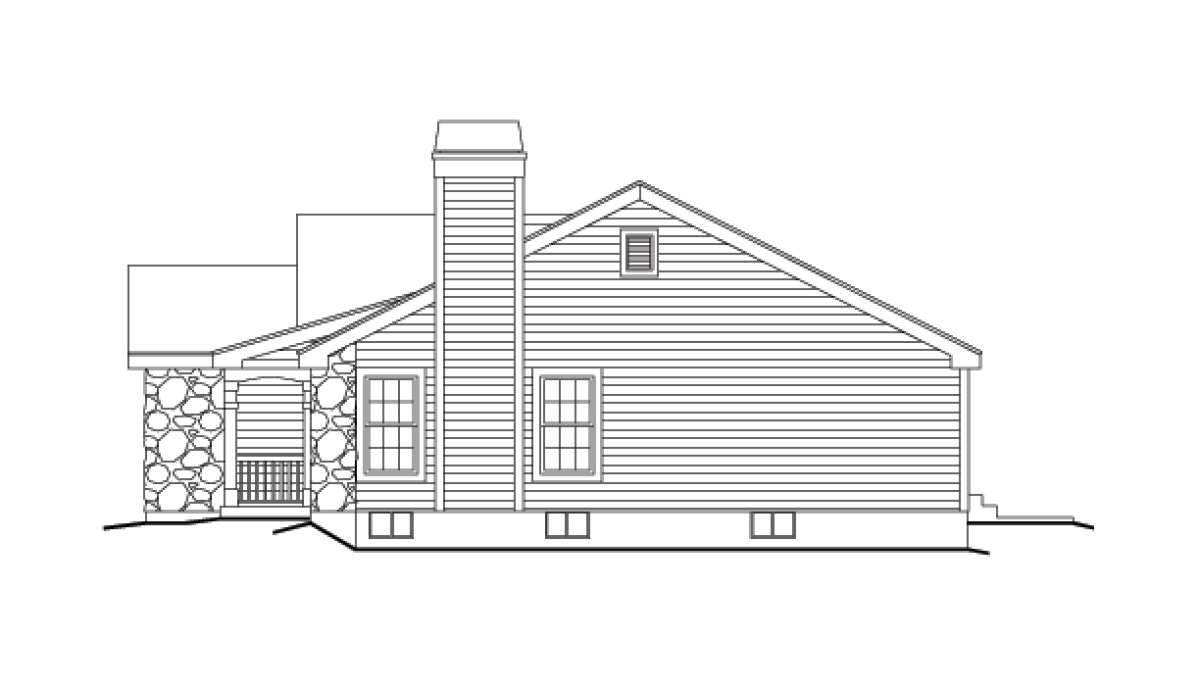

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This attractive traditional house design features an exterior façade with amazing curb appeal and the interior floor plan is both comfortable and functional. The exterior of the home is highlighted by stacked stone and an inviting front covered porch perfect for greeting family and friends. The interior floor plan is spacious and incorporates in excess of 1,160 square feet of living space with three bedrooms and two baths in the one story home. The basement foundation provides an additional 1,159 square feet; perfect for future expansion and unlimited design possibilities. Additionally, there is a one car garage with 237 square feet and this floor plan is ideal for a narrow lot with its 37’ plus width. Entry into the home is into the open concept living and dining space. There is a large living room with a handsome fireplace flanked by picturesque window views. The dining room features a large triple bay window and anchors the living room and kitchen. The U-shaped kitchen has a breakfast bar which is open to the living room and plenty of additional counter and cabinet space. The combination living and dining spaces in this home present the ideal environment in which to entertain family and friends graciously and effortlessly. There is a shared hall bath with good vanity space, a toilet and a shower/tub combination along with a hall linen closet for the two family style bedrooms. Both bedrooms are spacious, have great window views and contain generous closet space. The master suite is situated at the rear of the home for privacy and features an oversized bedroom with private patio access. There is an enormous master walk-in closet and the private master bath is highlighted by a large vanity, toilet area and a shower/tub combination. This is a wonderful home ideally suited for a small family, young professionals or empty nesters with its open and functional floor plan and unlimited basement expansion possibilities.
