Country Plan 5633-00119

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 888
Beds 2
Bath 1
1/2 Baths 0
Car 1
Stories 1
Width 35'
Depth 38'

Floorplan Drawings

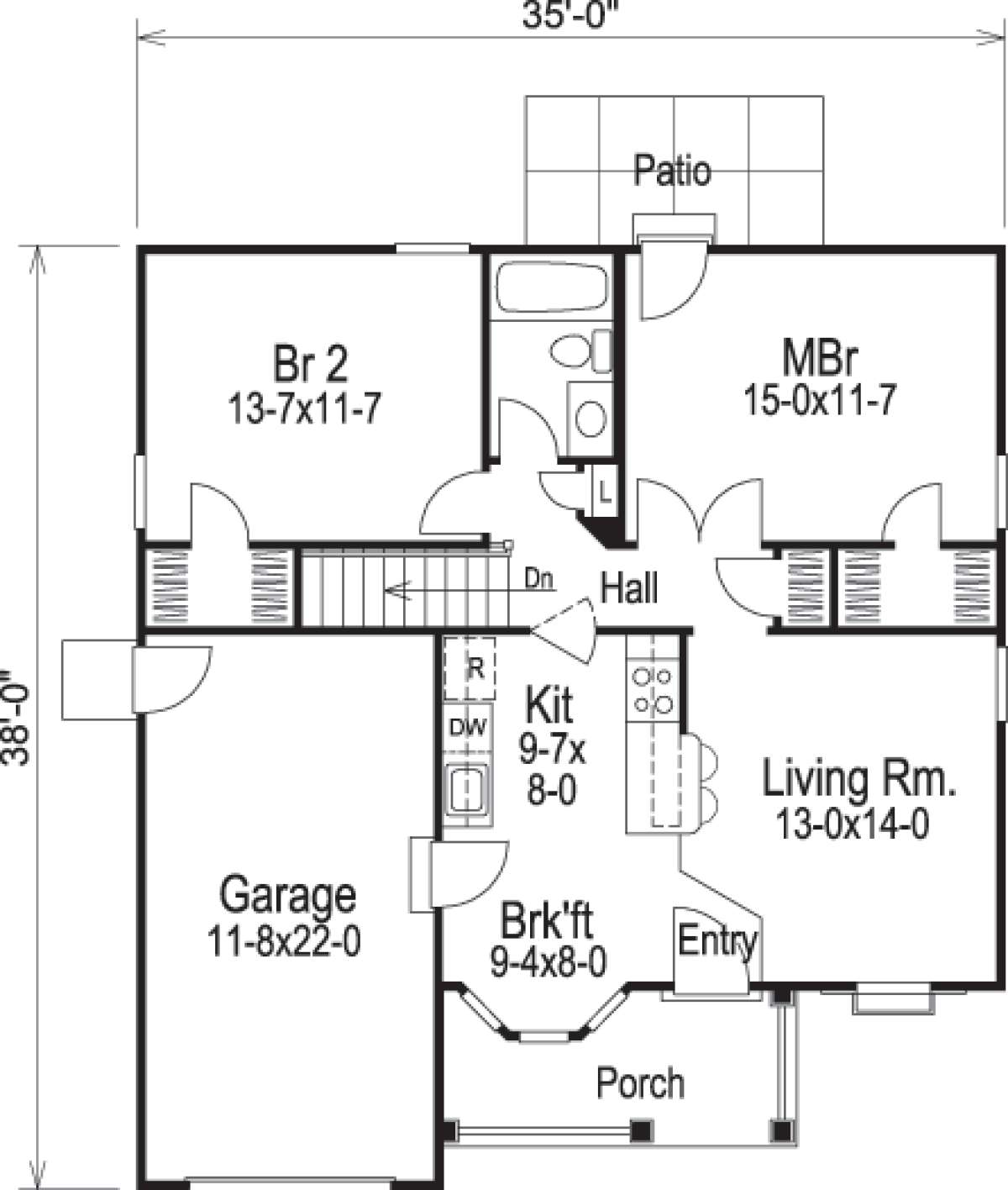

Floorplan 1

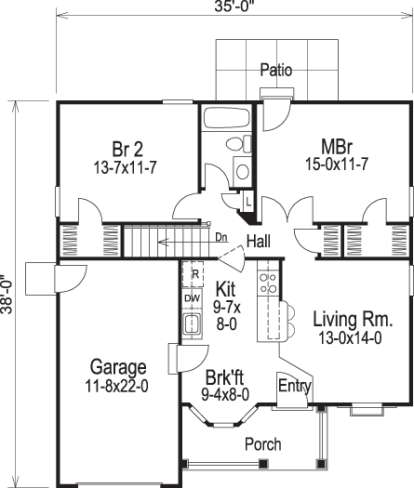

Floorplan 1 for House Plan #5633-00119


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

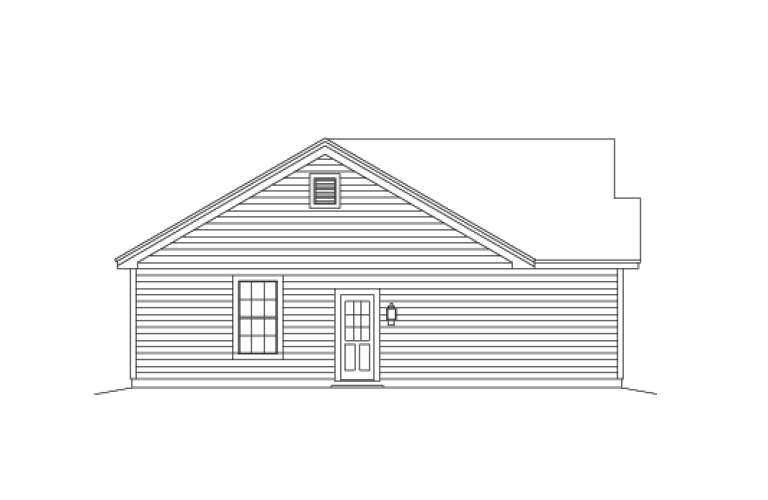

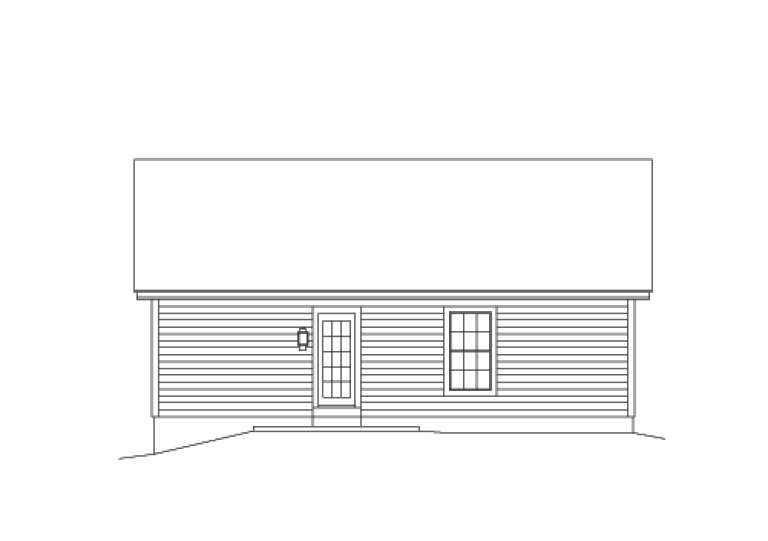

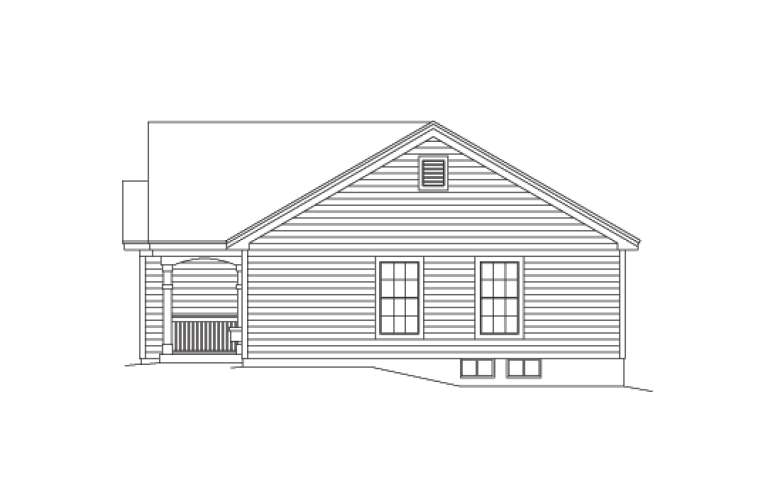

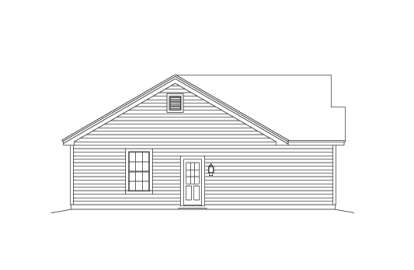

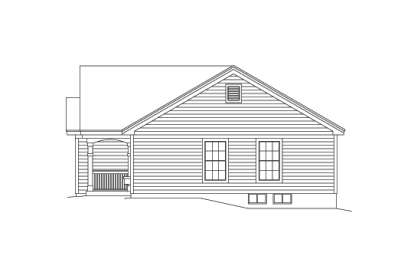

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Great space in a small family home and an attractive exterior façade are highlighted in this Country home. Interesting roof lines, plenty of window views and a front covered porch which features open railing and plenty of relaxing and greeting space are spectacular features of the home. The interior floor plan features in excess of 880 square feet of living space incorporating two bedrooms and one bath into the plan. The one car garage adds an additional 257 square feet to the plan and the basement foundation could be expanded at a further date. This house plan is naturally suited for a narrow or small lot with width and depth dimensions measuring 35’ and 38’, respectively. Entry off the “eye catching” front porch leads to the open concept living and dining spaces; the living room is a spacious area and the kitchen has a breakfast bar which is open to the living room. The U-shaped kitchen features additional counter and cabinet space and the dining room is bright and sunny with its triple bay window. The garage features access into the home and yard access, as well, for convenience while the laundry room is situated in the basement level. The rear of the home contains the two bedrooms and bath for privacy; the second bedroom is spacious with double window views and a walk-in closet. The hall bath has a linen closet, great vanity space, a toilet and a tub/shower combination. The master bedroom is accessed through French doors, has great bedrooms space, a walk-in closet and private access to the rear patio. This cozy home has a charming exterior façade with an elegantly designed interior floor plan and is an ideal retirement home, small family home or a vacation home.
