Ranch House Plan 5633-00117

Sq Ft1,161
Beds3
Baths2
1/2 Baths0
Stories1
Cars0
Width30' 0"
Depth44' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

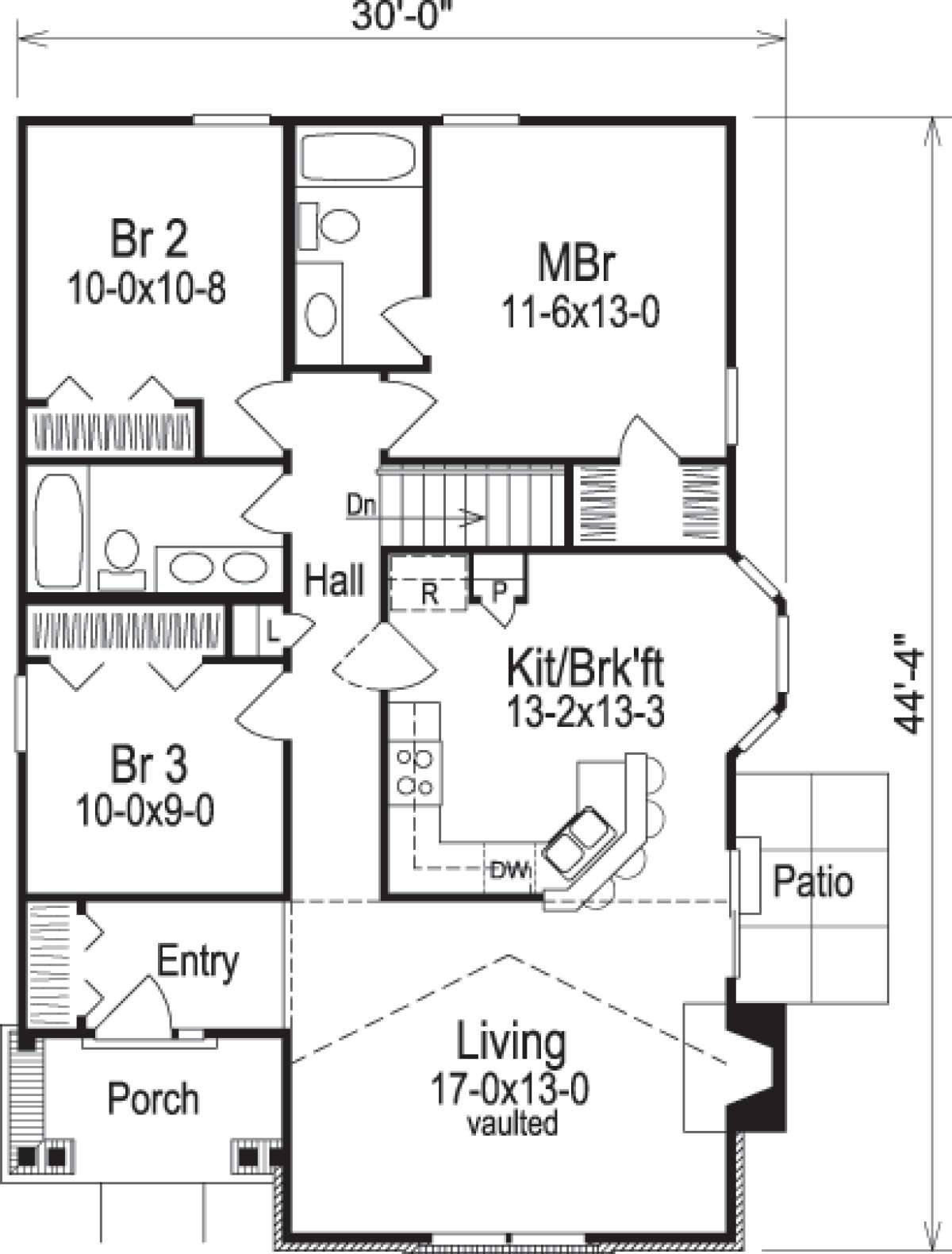

Floorplan 1 for House Plan #5633-00117
Floorplan 1
Floorplan 1 for House Plan #5633-00117


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

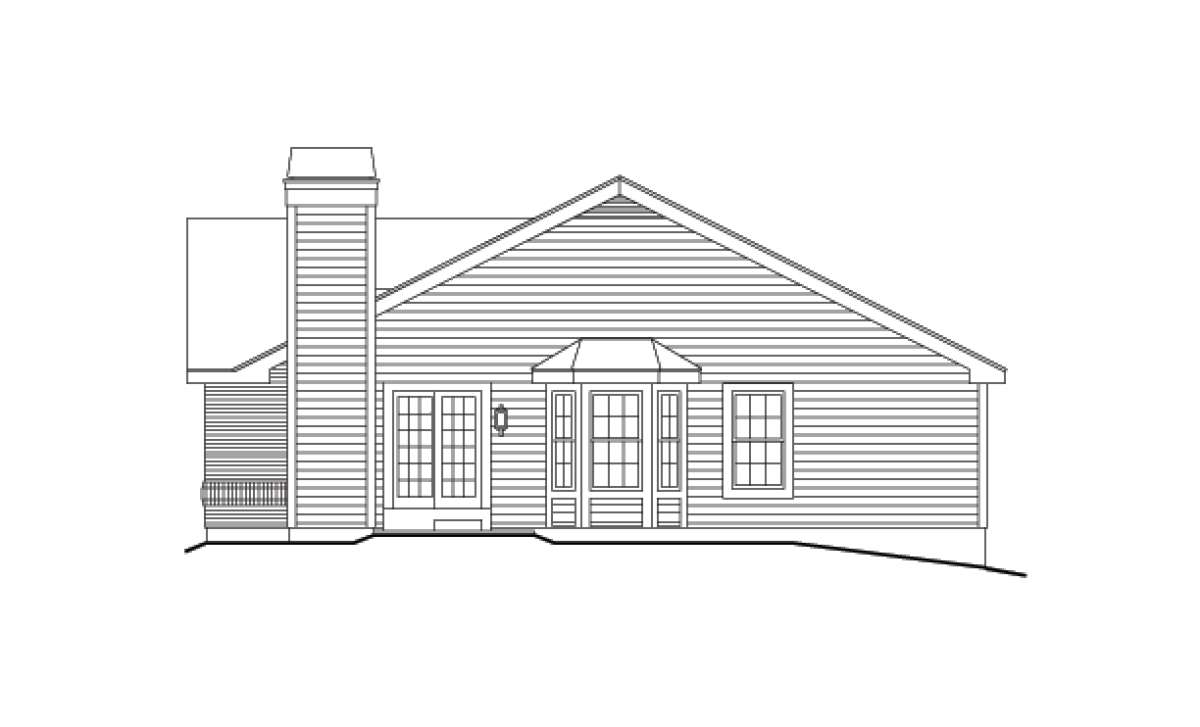

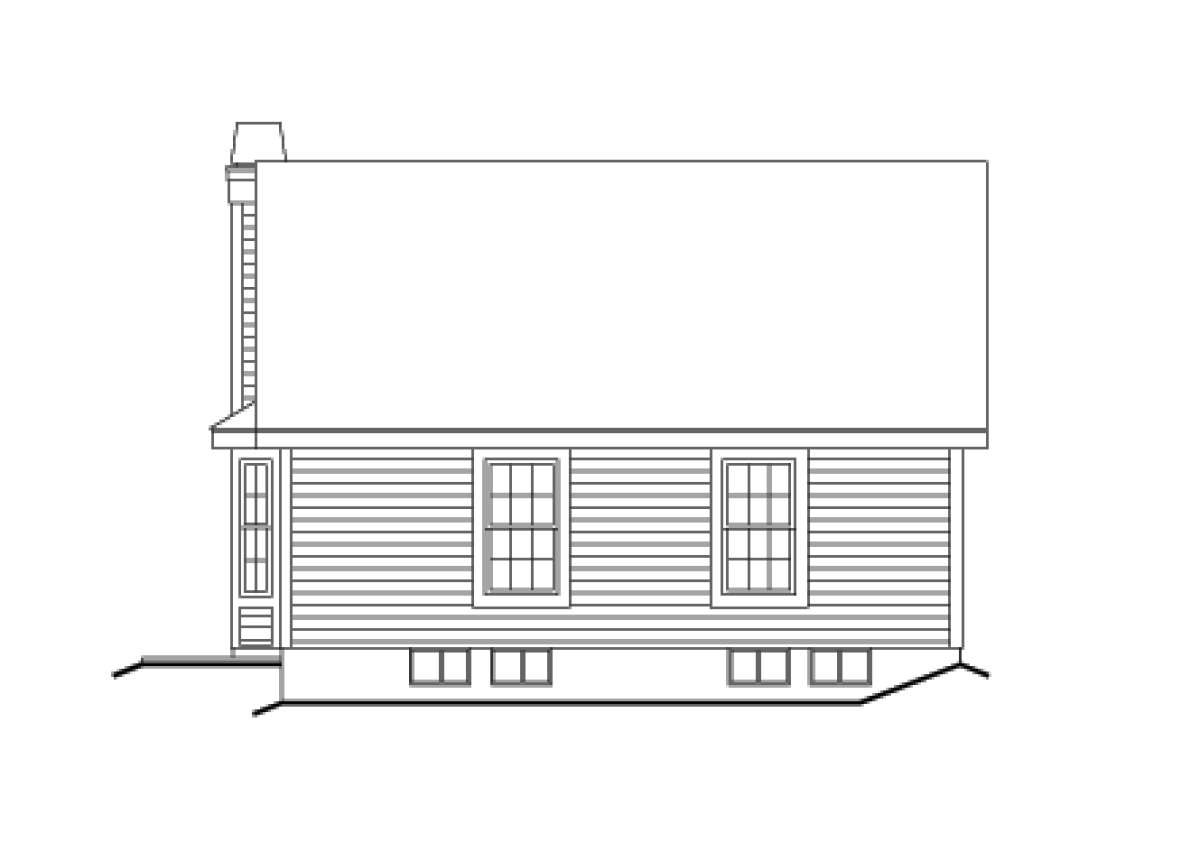

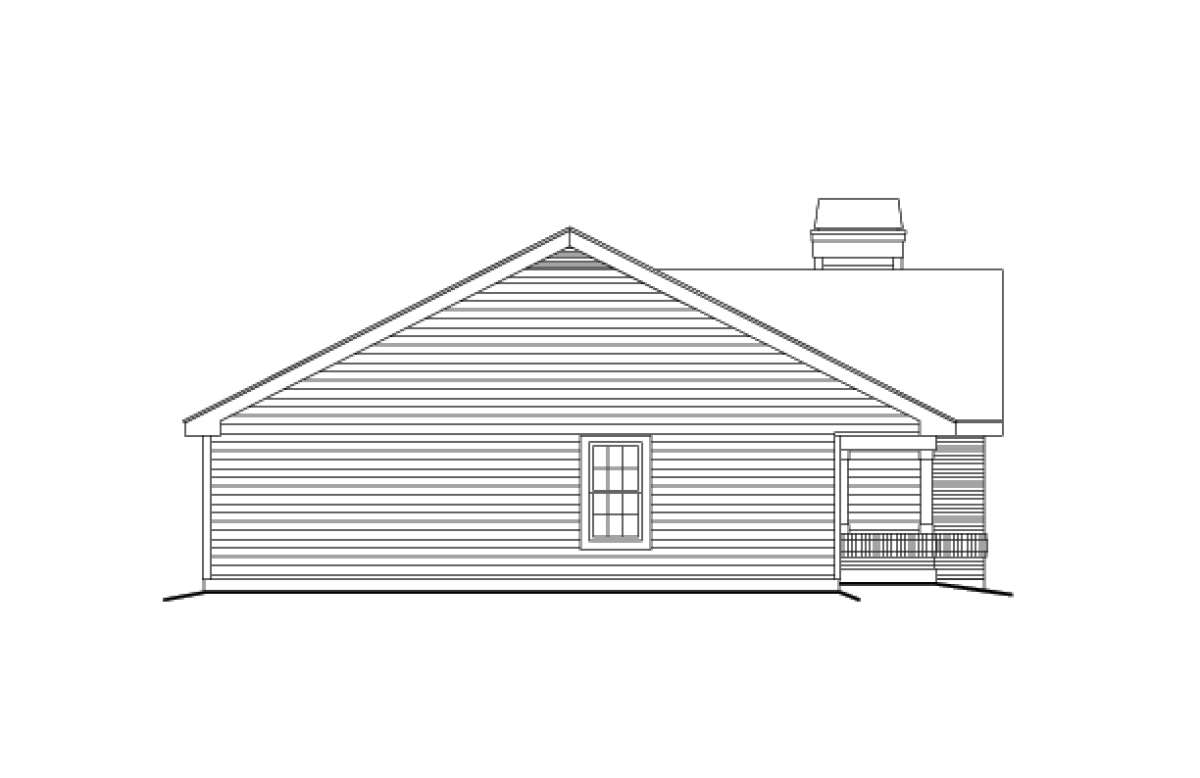

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Ranch house design has a gorgeous exterior façade and an interior floor plan comprised of light filled common living spaces and plenty of private family spaces. The exterior of the home is highlighted by siding and a front brick wall feature enveloping a Palladian style window. The front covered porch is both inviting and practical and features an arched opening supported by wide columned beams and a beautiful front door highlighted with wonderful window features. The interior floor plan features in excess of 1,160 square feet of living space and the basement foundation offers an additional 1,149 square feet; almost doubling the square footage and offering unlimited expansion possibilities along with added value and function. This floor plan offers three bedrooms and two bathrooms and the 30’ width makes it ideal for a narrow lot. The front covered porch leads to the spacious foyer with a coat closet and subsequent open concept living and dining spaces. The vaulted living room is large; measuring 17’x13’, has a handsome fireplace and is highlighted by the Palladian style window. There is an angled breakfast bar, separate pantry and plethora of additional counter and cabinet space in the family friendly kitchen. The casual breakfast room features a triple bay window and accentuates the space with loads of light and space. The patio is accessible from the living/dining space and features great entertaining and family relaxing space.
The main hallway houses the family bedrooms and baths; the shared hall bath features double vanities, good space and there is a shared hall linen closet, as well. Bedrooms two and three are spacious with generous closet space and great window views. The master suite features double window views and a large bedroom with an oversized master walk-in closet. The master bath is highlighted by spacious modern conveniences and accommodations. This home has an outstanding exterior façade with loads of curb appeal and an interior floor plan that is functional and versatile with the basement foundation.
