Traditional House Plan 5633-00116

Sq Ft1,469
Beds2
Baths1
1/2 Baths0
Stories1
Cars0
Width33' 8"
Depth48' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

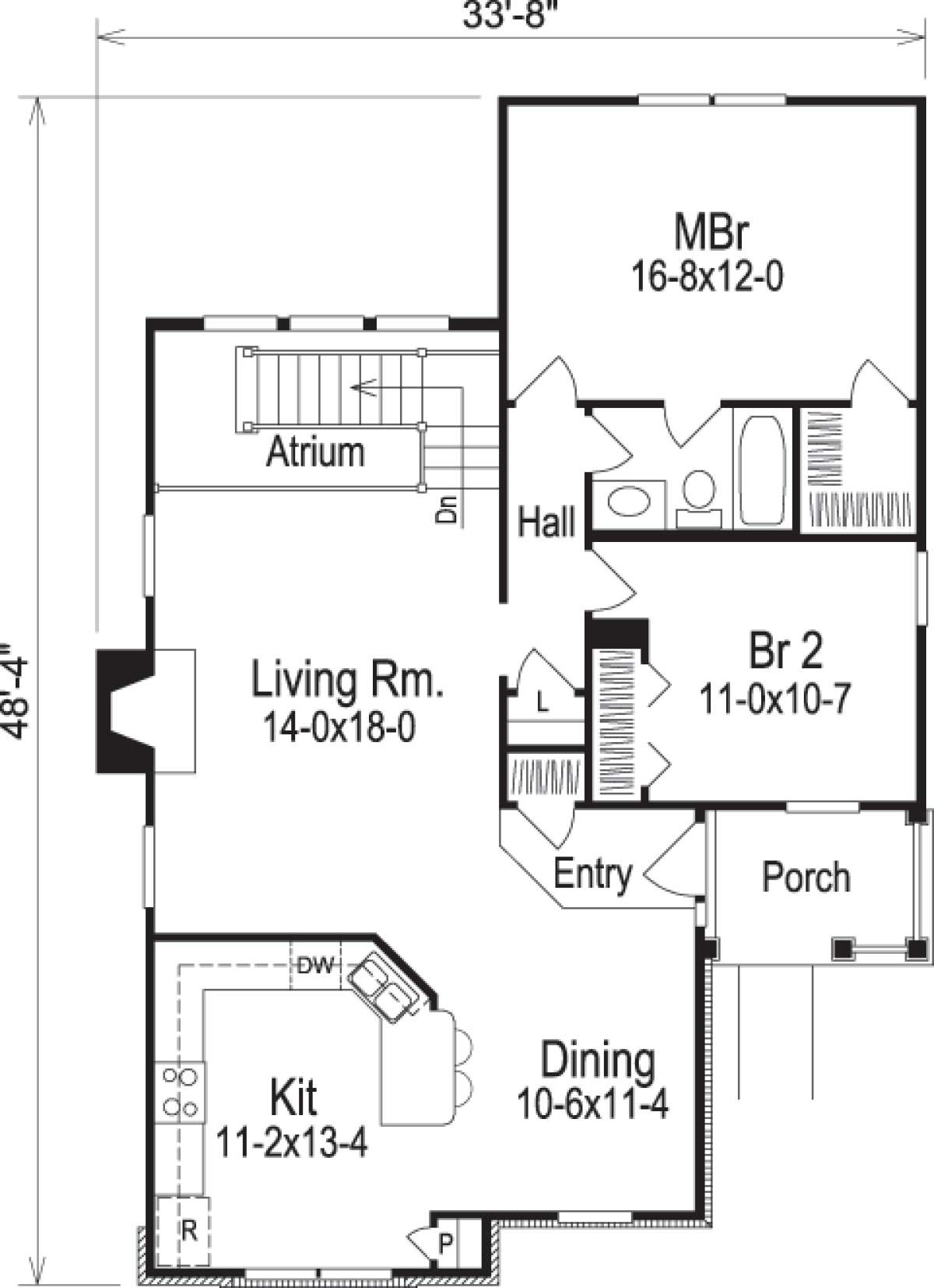

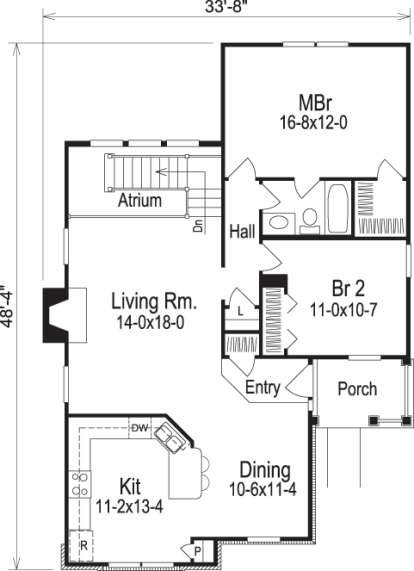

Floorplan 1 for House Plan #5633-00116

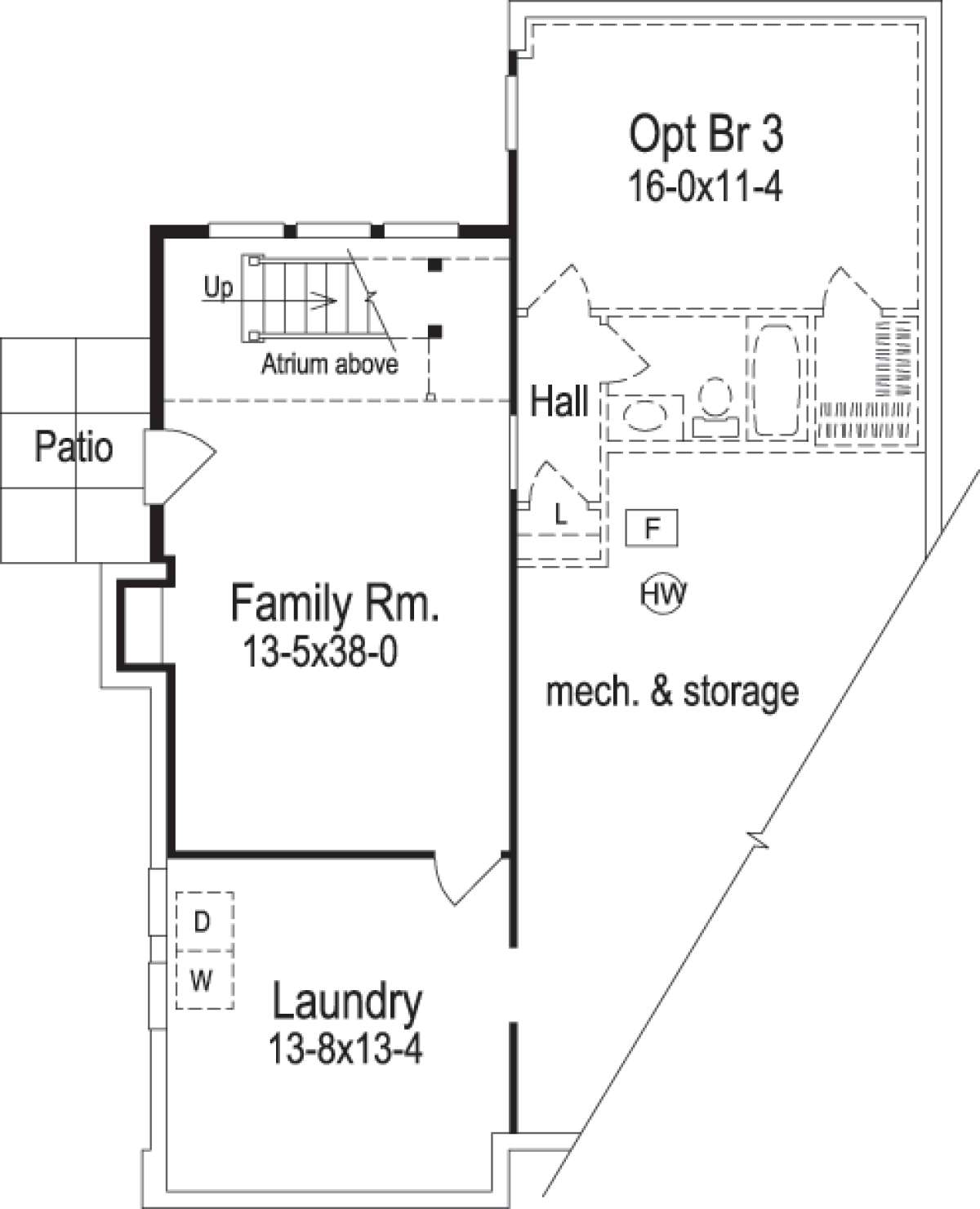

Floorplan 2 for House Plan #5633-00116
Floorplan 1
Floorplan 1 for House Plan #5633-00116
Floorplan 2
Floorplan 2 for House Plan #5633-00116


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

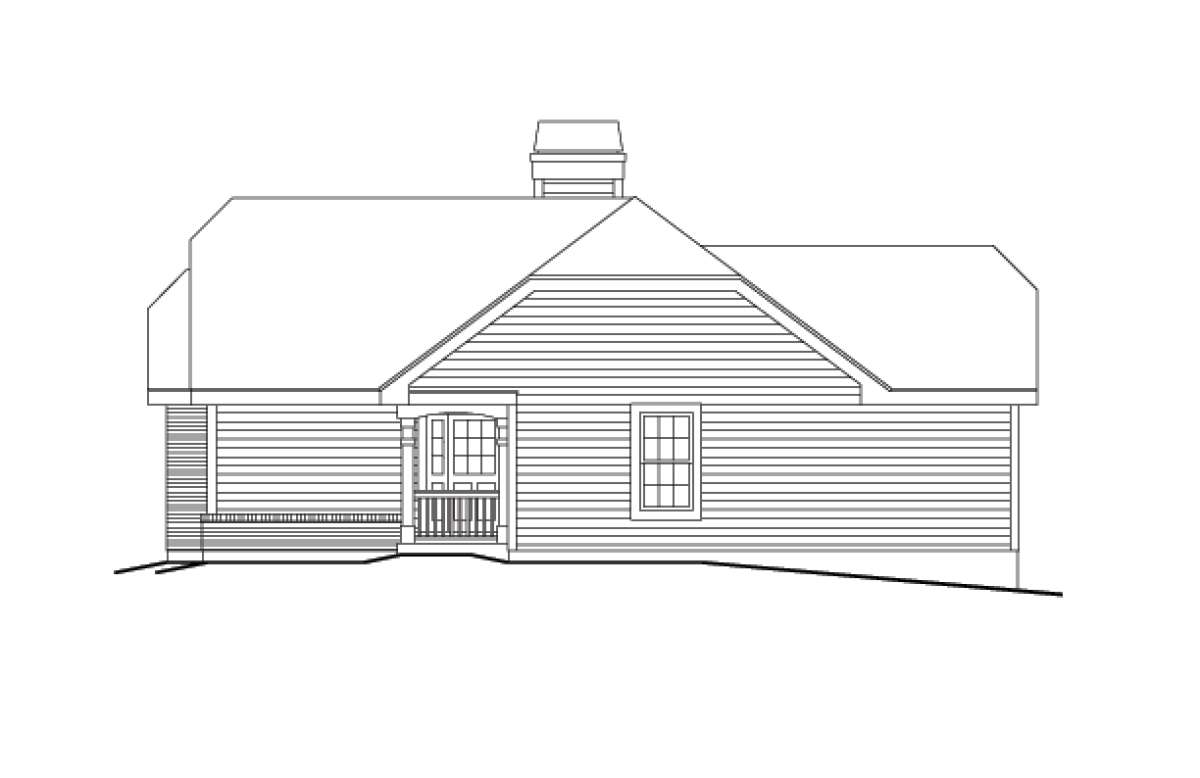

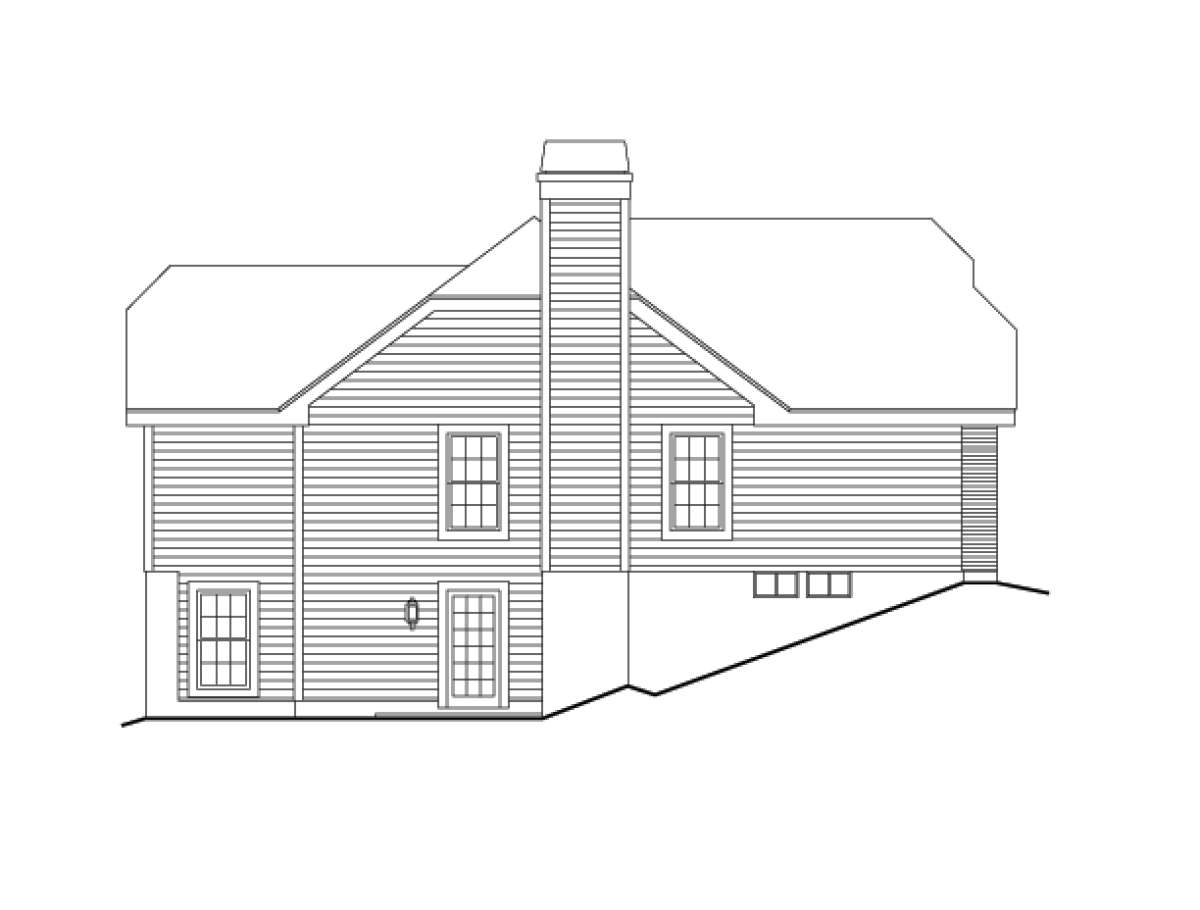

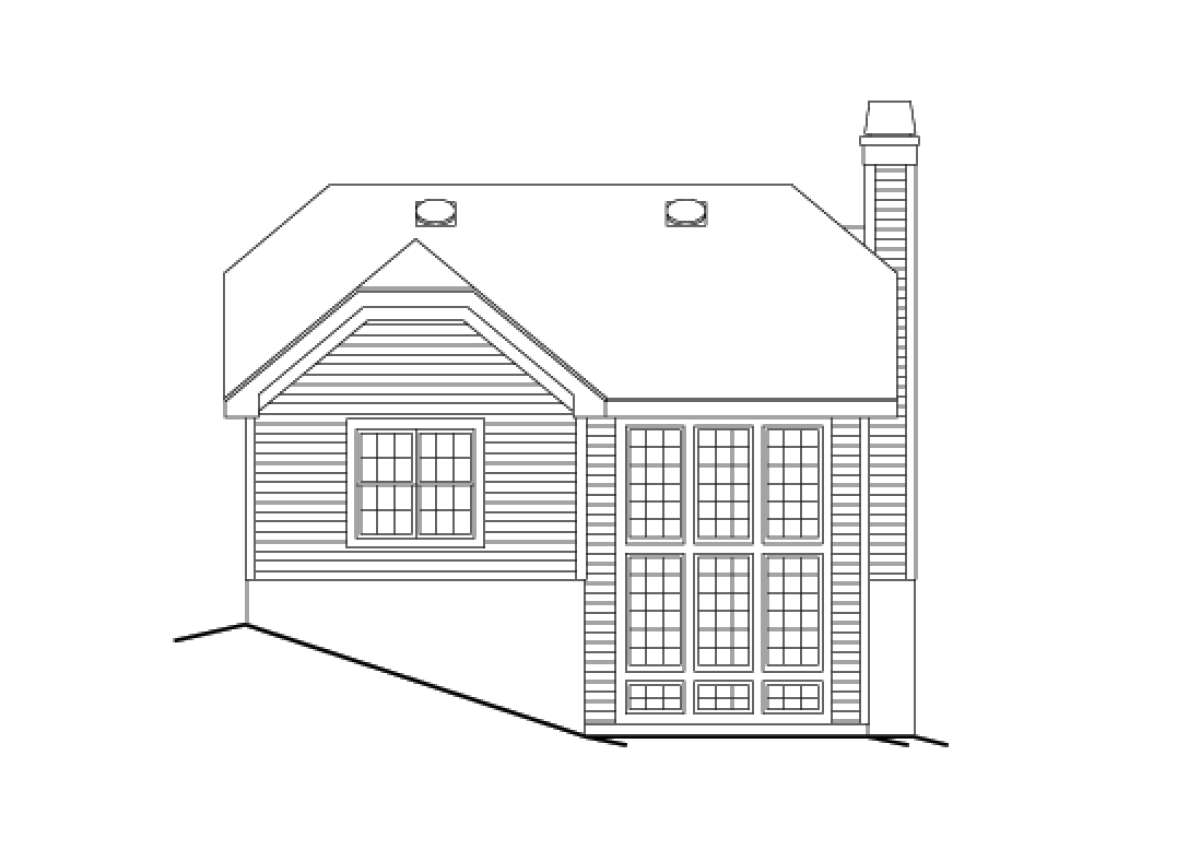

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This home offers exciting living space for a narrow sloping lot with its 33’ plus width dimension. There are a total of 1,469 square feet of living space in the home which includes two bedrooms and one bath on the main level. The home sits on a walkout basement foundation which offers an additional 306 square feet of optional living space. The exterior façade of the home has a brick front wall featuring a Palladian style window, siding, brick accents and a front covered porch highlighted with bold columned beams. The entrance into the home features a greeting foyer before spilling into the open concept floor plan. A spacious dining room offers window views and is open to the gourmet kitchen. The kitchen is quite spacious with an angled breakfast bar, a separate pantry and loads of additional counter and cabinet space. There is a massive living room which houses a handsome fireplace flanked by picturesque window views and the two story atrium fills the space with light. The main hallway contains a linen closet and the sleeping quarters and bathroom. The second bedroom is spacious with great window views and impressive sized closet space. The master bedroom is generously sized with a double window view, an oversized master walk-in closet and private access to the full bath. The bath features a large vanity space, a toilet area and a tub/shower combination.
There is an oversized family room on the lower level, measuring in excess of 13’x38’, which would function well as a family recreation room or a multi-purpose family space and it provides lower level patio access. The third bedroom is substantially sized, has an oversized walk-in closet and there is an adjacent hall linen closet and full bath. The bathroom features a large vanity space, a toilet area and a tub/shower combination bathing space. There is an abundance of storage space along with an oversized laundry room on the lower level as well. Travelling the staircase to the main living floor is a two story atrium with an expansive window wall which drenches the staircase and main level living room with sunlight. This beautiful home is comfortable and versatile with an attractive exterior façade.
