Ranch House Plan 5633-00115

Sq Ft1,084
1/2 Baths0
Width35' 0"
Depth40' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

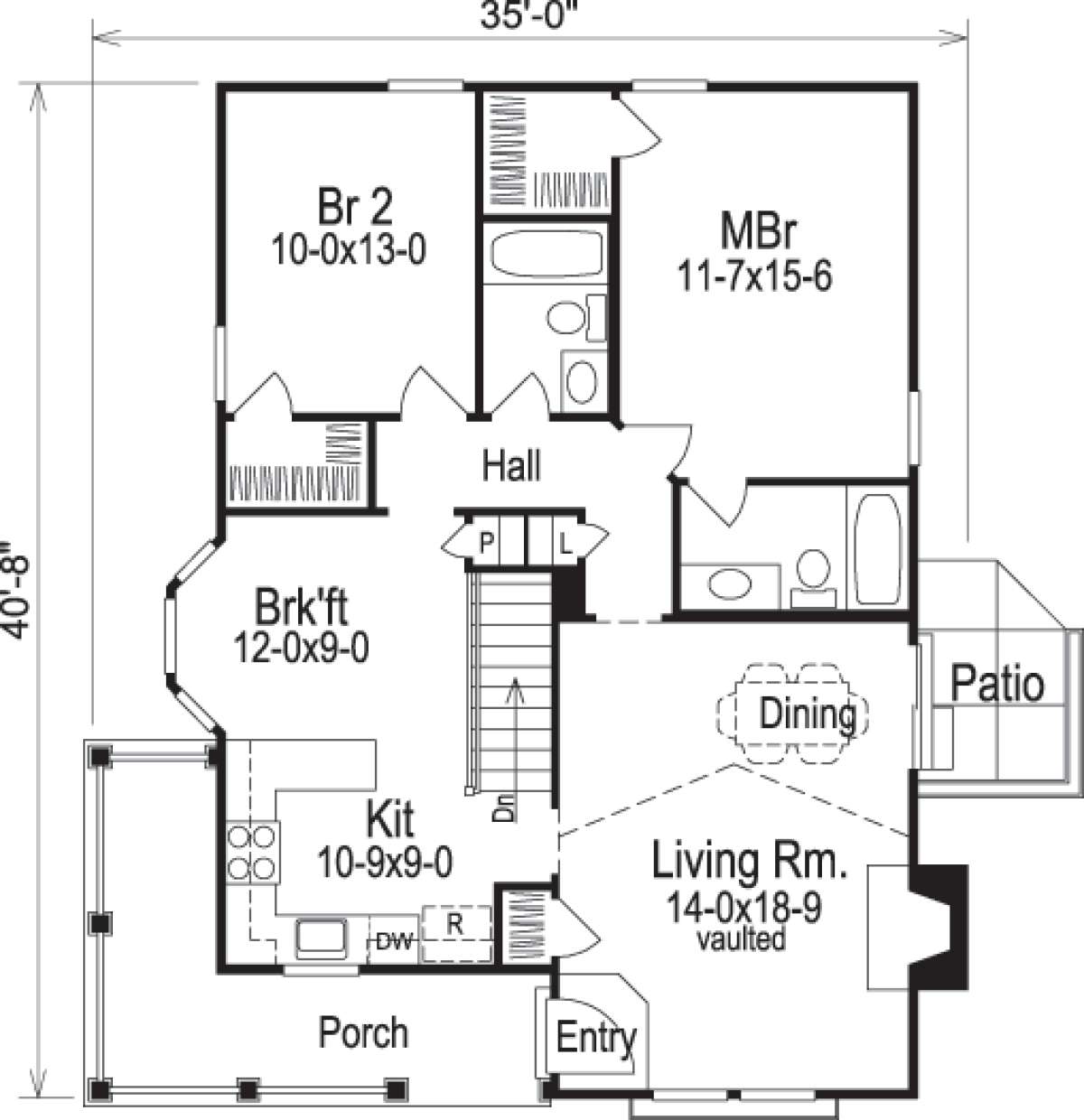

Floorplan 1 for House Plan #5633-00115
Floorplan 1
Floorplan 1 for House Plan #5633-00115

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

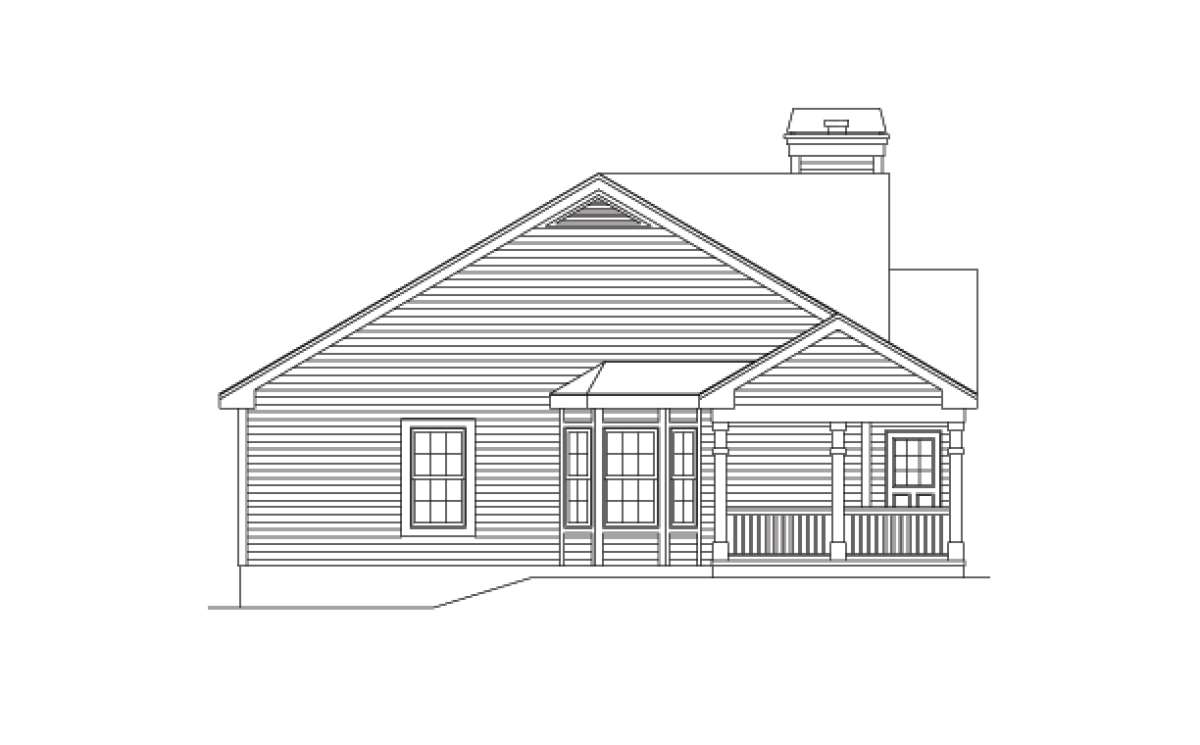

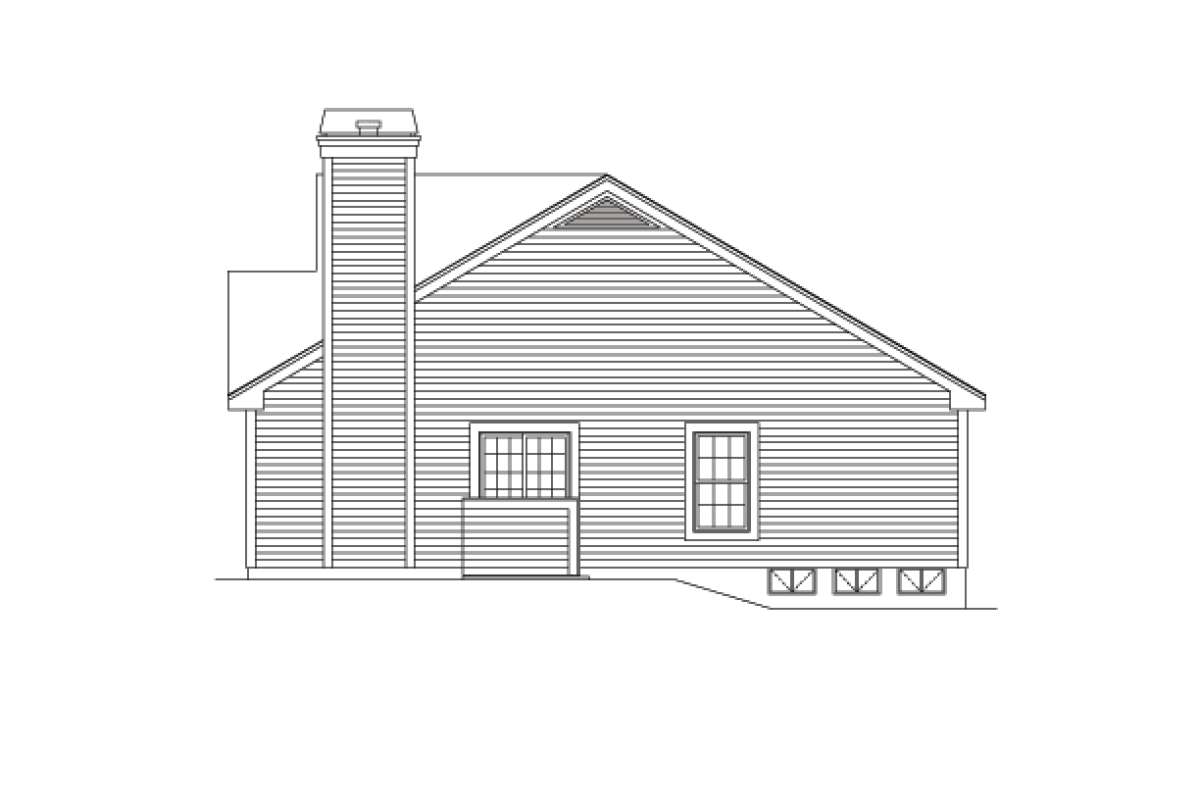

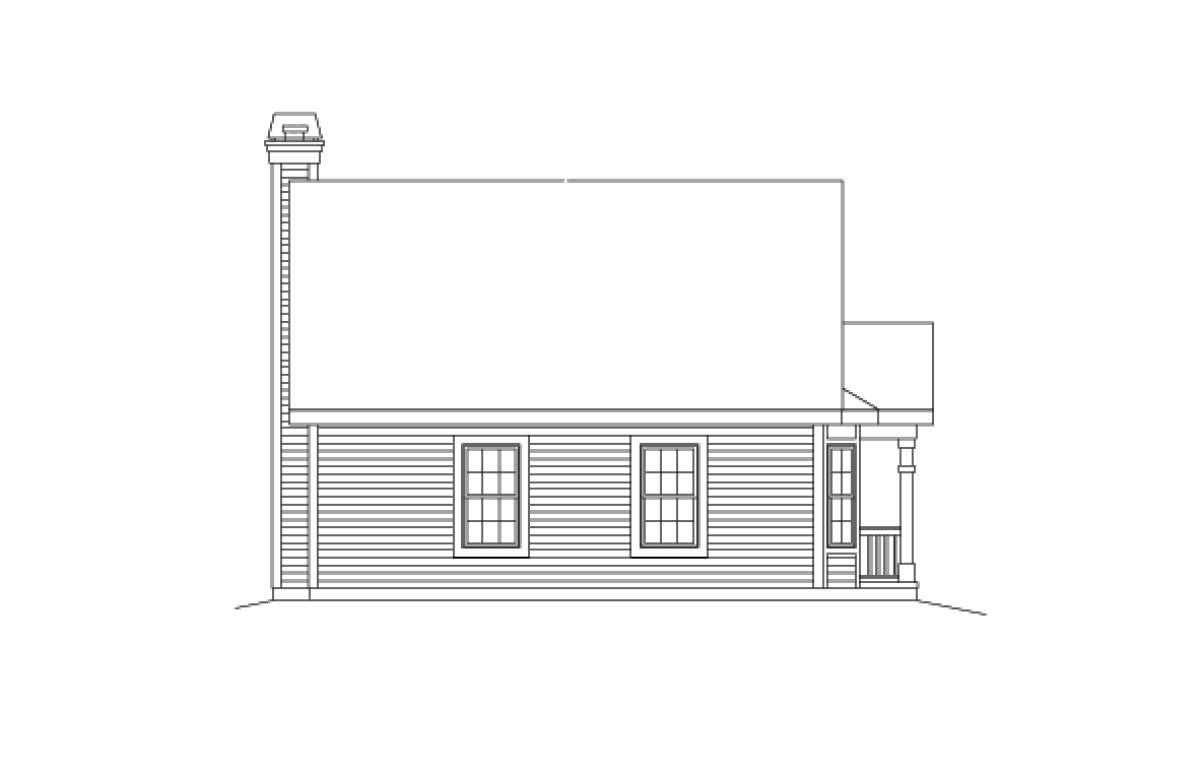

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch house design has a gorgeous exterior and an interior floor plan which is spacious and comfortable for a small family, professional couple or empty nesters. There are approximately 1,084 square feet of living space on the single floor and the basement foundation offers future expansion of an additional 1,072 square feet making this an exciting option in house plan designs. Two bedrooms, two baths and two dining spaces make the home a comfortable space. The home is ideally suited for a narrow lot with its 35’ width and 40’+ depth; however, this attractive Cottage would be “at home” in any setting. The Cottage style home features charming architectural features highlighted by a Palladian style window, great roof lines and a front covered porch with open railing and decorative support beams.

The wraparound porch offers entrance into the home through the greeting foyer and subsequent vaulted living room. This is a large open space with a handsome fireplace, side patio accessibility and a dining area. The basement level staircase is situated between the living/dining space and the U-shaped kitchen where modern amenities and loads of counter and cabinet space are highlighted. The casual breakfast nook has a triple bay window, a separate pantry and is open to the kitchen providing lots of space to cook and enjoy effortless entertaining and family time. Bedroom two features a spacious floor plan, a walk-in closet and two great window views to the side and rear yard. A hall bathroom has a vanity, toilet area, shower/tub combination and there is a hall linen closet as well. The owner's suite enjoys a large bedroom, wonderful window views and an oversized walk-in closet. The primary bath features great vanity space, a toilet and a tub/shower combination. This is a comfortable and versatile floor plan with a charming exterior façade.
