Craftsman Plan 5633-00112


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,452
Beds 4
Bath 2
1/2 Baths 0
Car 0
Stories 1
Width 32'
Depth 51'

Floorplan Drawings

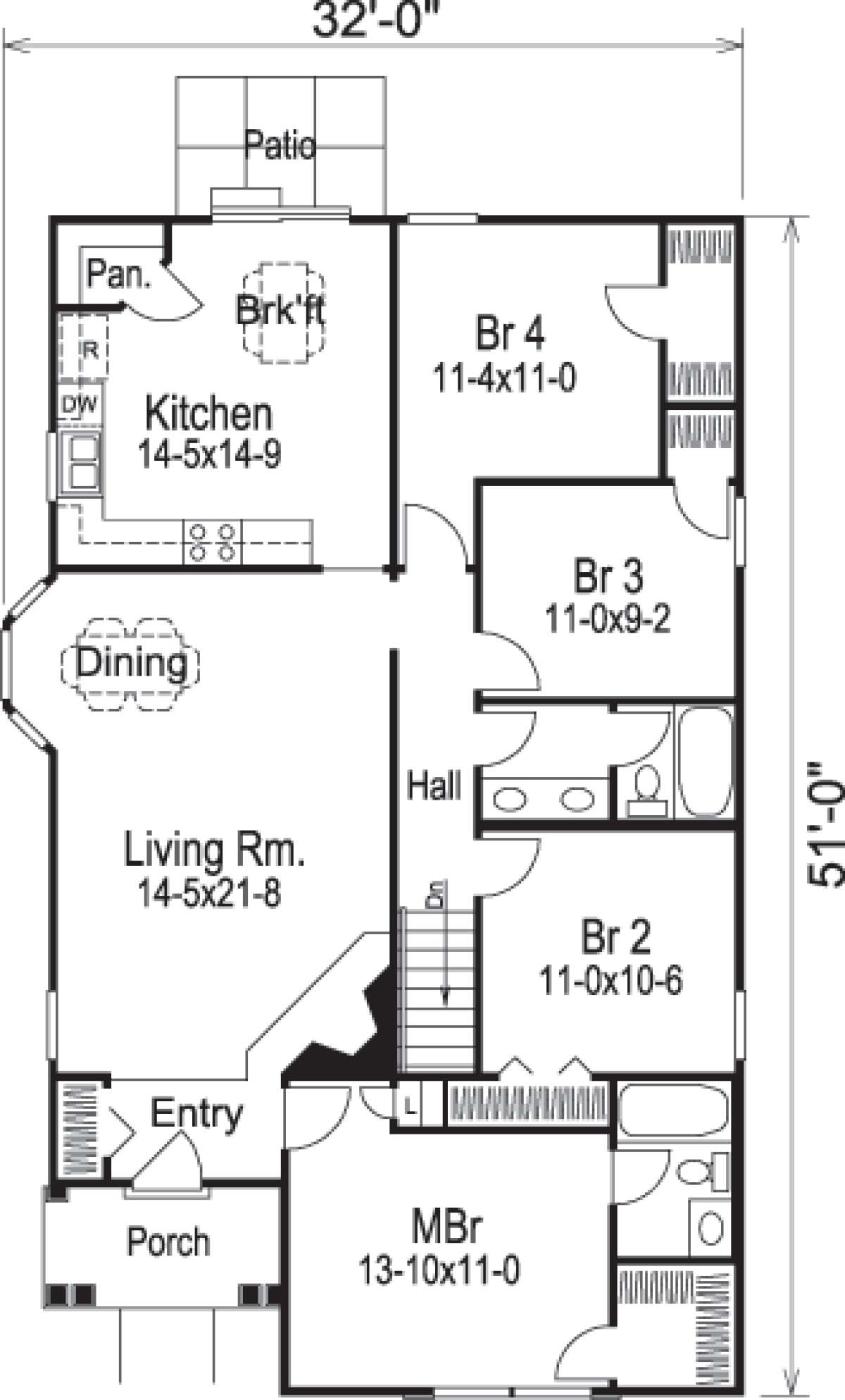

Floorplan 1
Floorplan 1 for House Plan #5633-00112

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

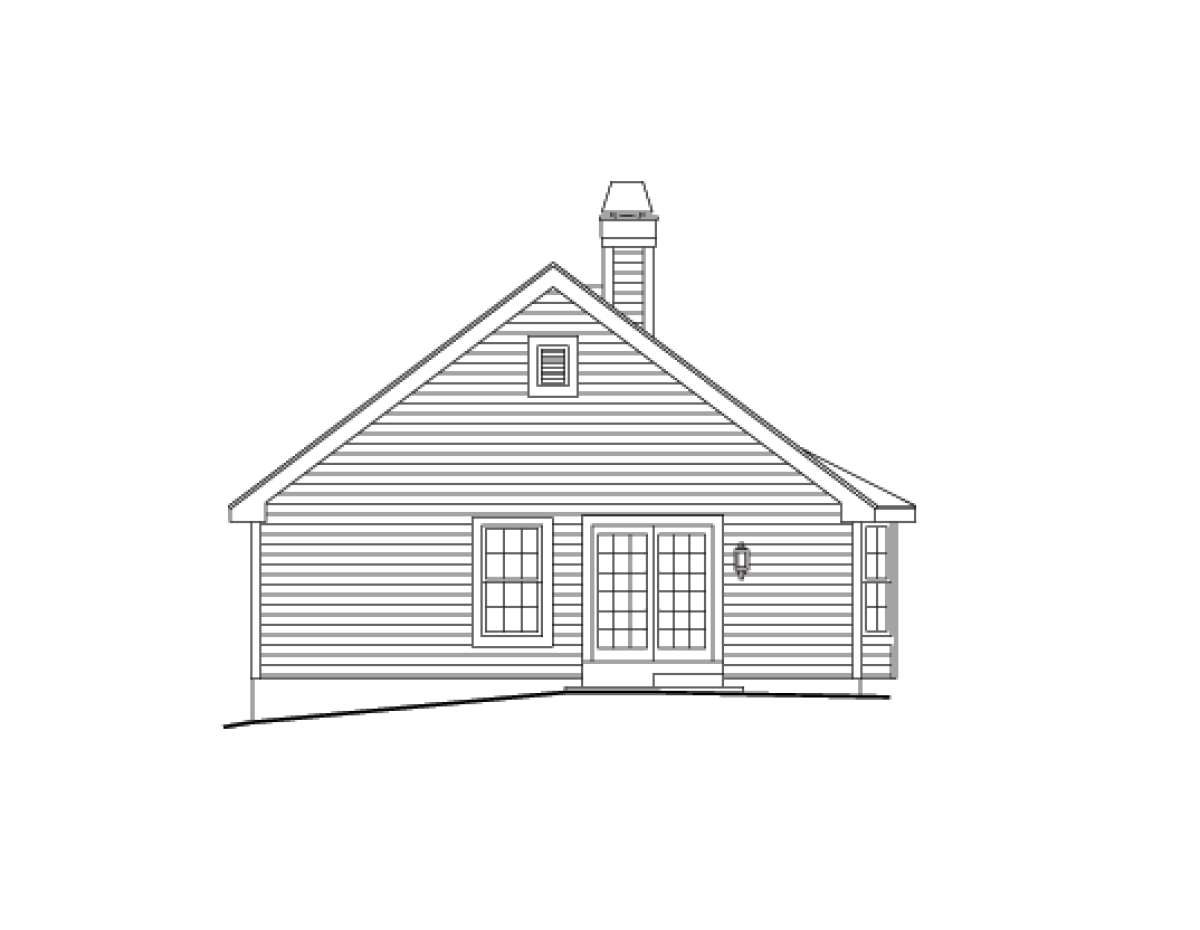

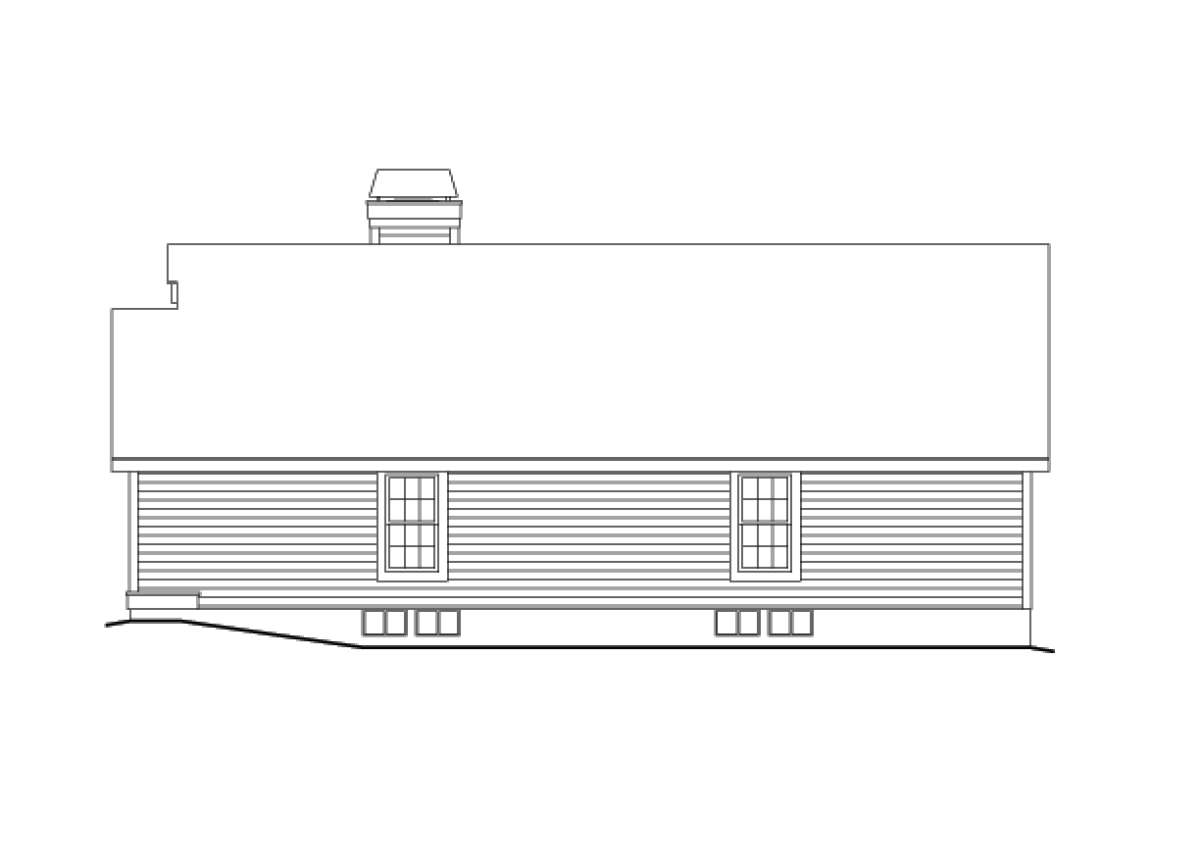

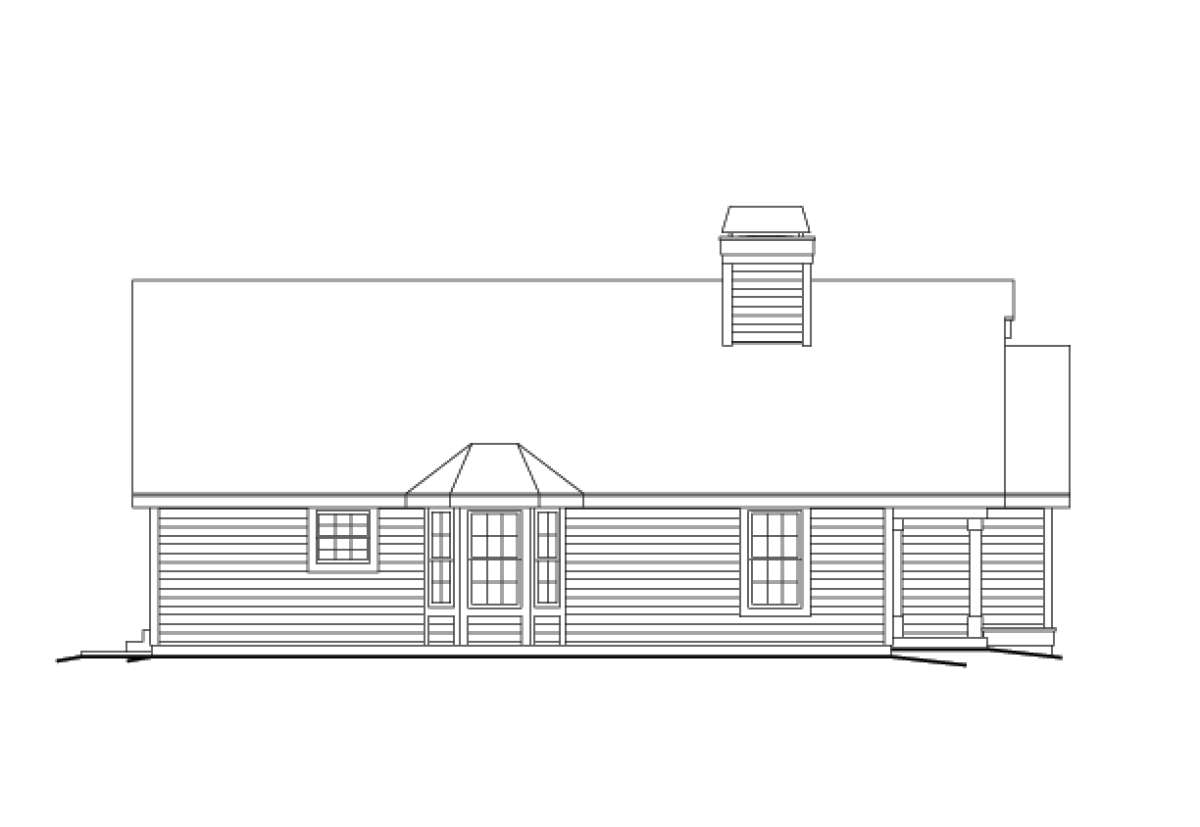

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Craftsman house plan is ideally suited for a narrow lot with its 32’ width and yet, the interior floor plan offers an abundance of space. There are approximately 1,452 square feet of living space which incorporates four bedrooms and two baths in the ranch level home. Additionally, the home has a basement foundation which would considerably add to the value and versatility of the floor plan by almost doubling the square footage. The exterior of the home exudes charm and character with its wide eaves, decorative gables and a front covered porch highlighted by columned beams and an arched opening. Off the front covered porch is a spacious foyer with convenient coat closet. Beyond the foyer is the expansive living room which measures in excess of 14’x21’, houses a handsome corner fireplace and is open to the dining room. The dining room features a triple bay window and great entertaining space. The gourmet kitchen is quite large with space for a breakfast nook along with a separate pantry, an abundance of counter and cabinet space and provides rear patio access.

The main hallway of the home features the family sleeping quarters and bathrooms along with the lower level staircase. Bedroom two is spacious with a window view and generous closet space while the third bedroom features a window view and a walk-in closet. The fourth bedroom is also spacious, has a window view and an oversized walk-in closet. There is a shared hall bath featuring double vanities, a toilet area and a tub/shower combination. The primary suite enjoys a generous footprint with a large walk-in closet and beautiful window views. There is a linen closet and a private en suite bath containing a vanity space, a toilet area and a tub/shower combination. The home has a beautiful exterior, functional interior floor plan and limitless expansion possibilities on the lower level.
