Traditional House Plan 5633-00110

Sq Ft2,409
Beds4
Baths2
1/2 Baths1
Stories2
Cars3
Width70' 8"
Depth49' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00110
Floorplan 2 for House Plan #5633-00110

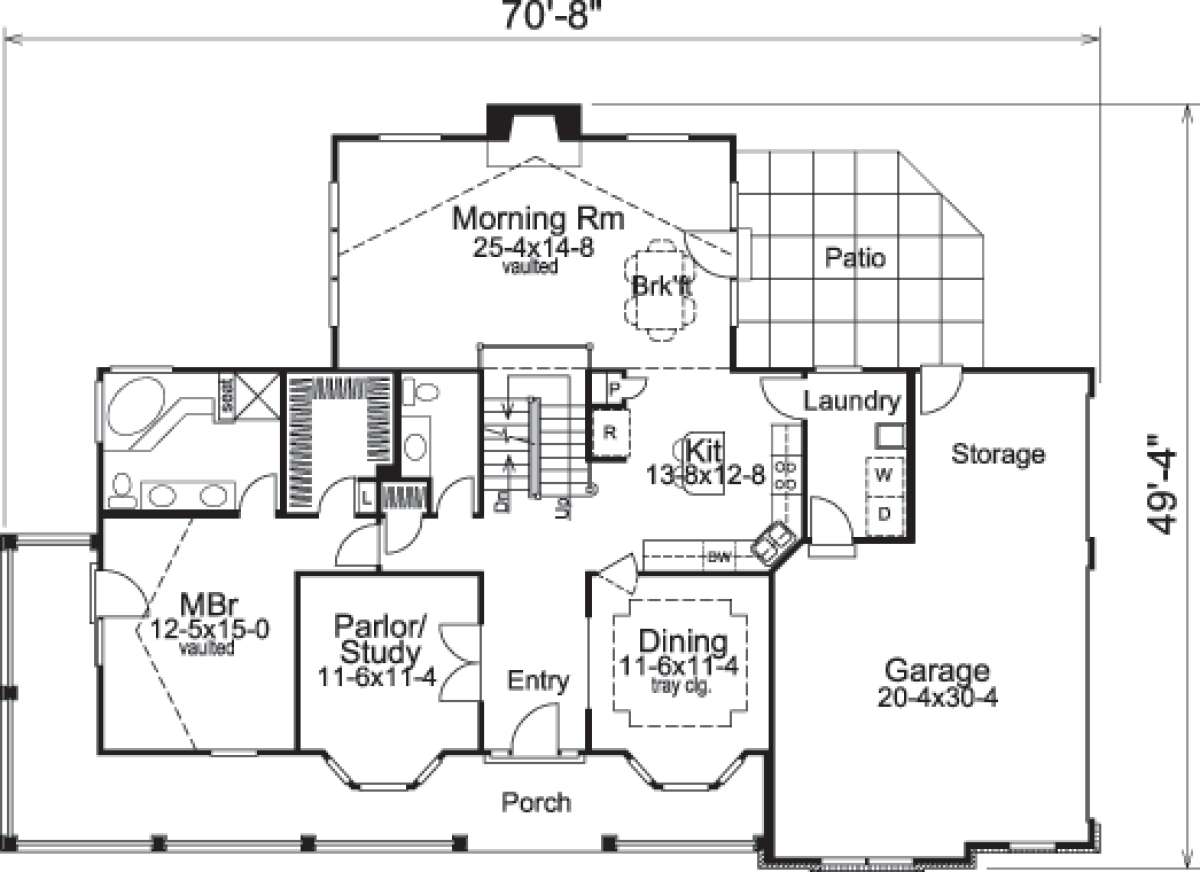

Floorplan 1
Floorplan 1 for House Plan #5633-00110

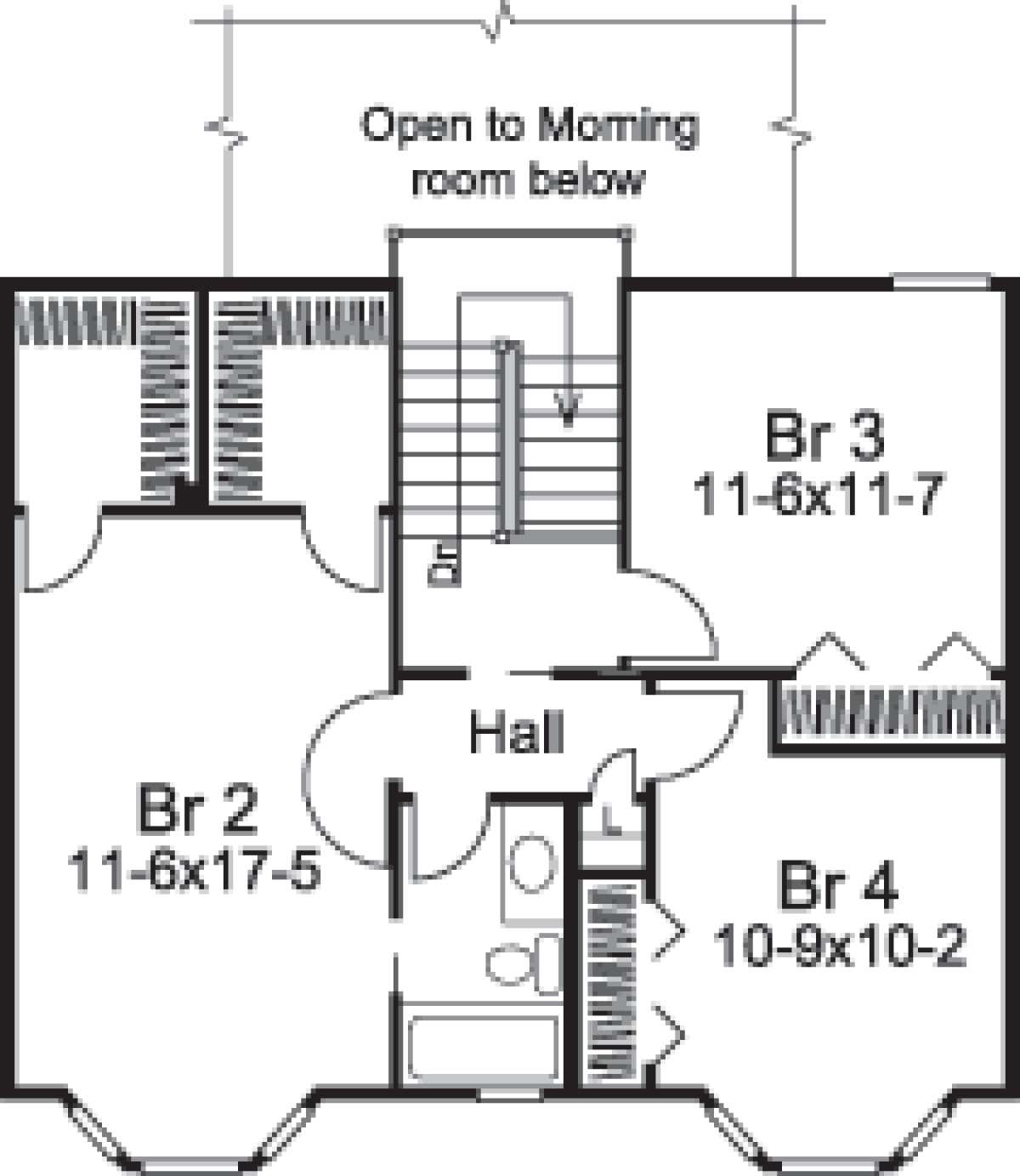

Floorplan 2
Floorplan 2 for House Plan #5633-00110


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

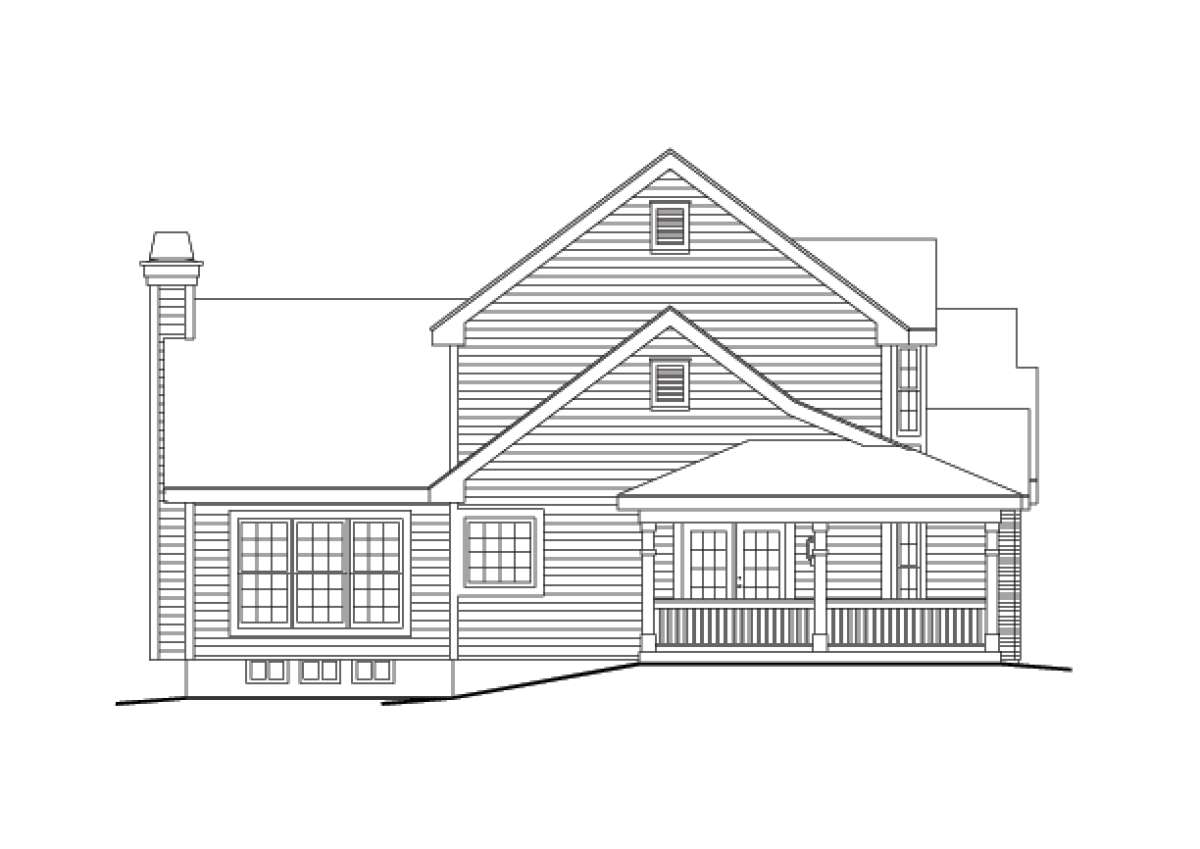

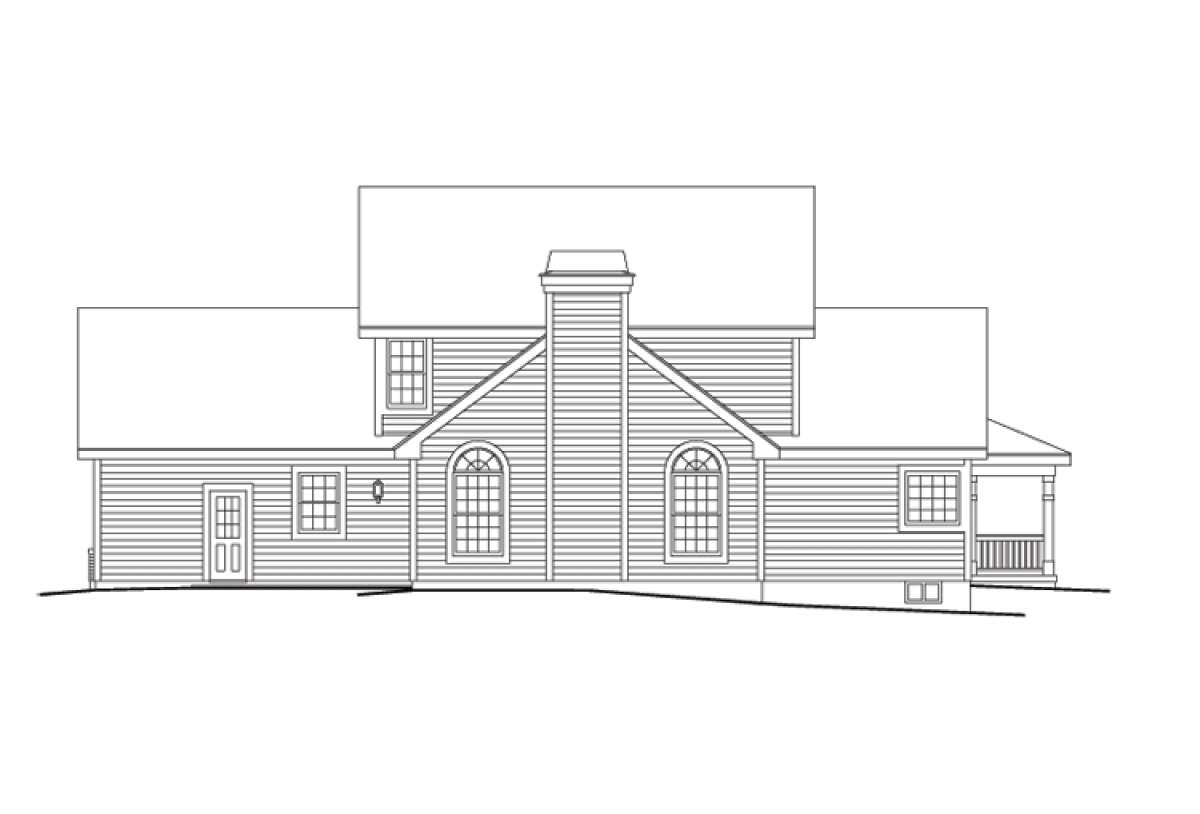

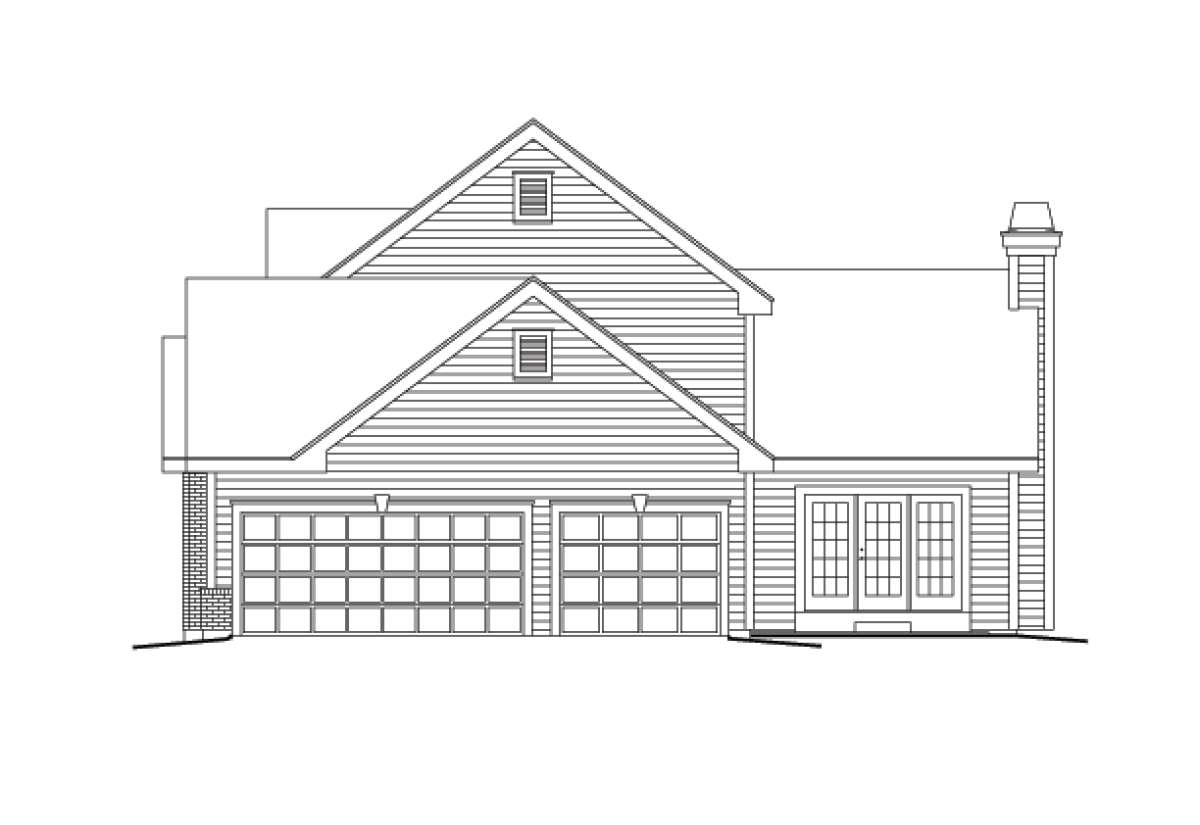

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A dramatic interior floor plan blends beautifully with the charming Country exterior façade which features unique double second story bay windows and a wraparound covered porch. The grand scale foyer features a 40’ extended view to the stunning rear morning room; this space is equally expansive, measuring in excess of 25’x14’ with vaulted ceilings, a rear wall fireplace and gorgeous Palladian windows along with a balcony overlook. There is a casual breakfast space, as well, allowing for excellent al fresco dining and access to the side patio is provided. A formal dining room with a trey ceiling and double access points is situated off the foyer along with a parlor/study which features French door access into the room and houses a triple bay window. The gourmet kitchen is another great home feature and has a center breakfast bar, separate pantry and loads of additional counter and cabinet space. The interior laundry room is conveniently located off the three car, side entry garage which provides additional storage room for lawn and/or sporting equipment. The master suite is situated on the main floor for privacy and is highlighted with soaring ceiling heights, private access to the wraparound porch and an oversized walk-in master closet. The beautifully designed master bath features a corner garden tub with surrounding window views, a separate shower with seating and dual vanities.
The second story of the home features a balcony overlook into the morning room and three additional bedrooms and a bath. Bedroom two would be enviable as a master suite; the room measures in excess of 11’x17’, has a triple bay window and double walk-in closets. Bedrooms three and four feature spacious footprints and generous closet space and the fourth bedroom also features a bay window. There is a shared hall bathroom and linen closet as well. This magnificent home design features an abundance of space with its approximate 2,400 square feet of space and there is a basement foundation which houses an additional 1,574 square feet of space and unlimited expansion options.
