Mediterranean House Plan 5633-00108

Sq Ft2,398
Beds3
Baths2
1/2 Baths0
Stories1
Cars3
Width78' 8"
Depth51' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

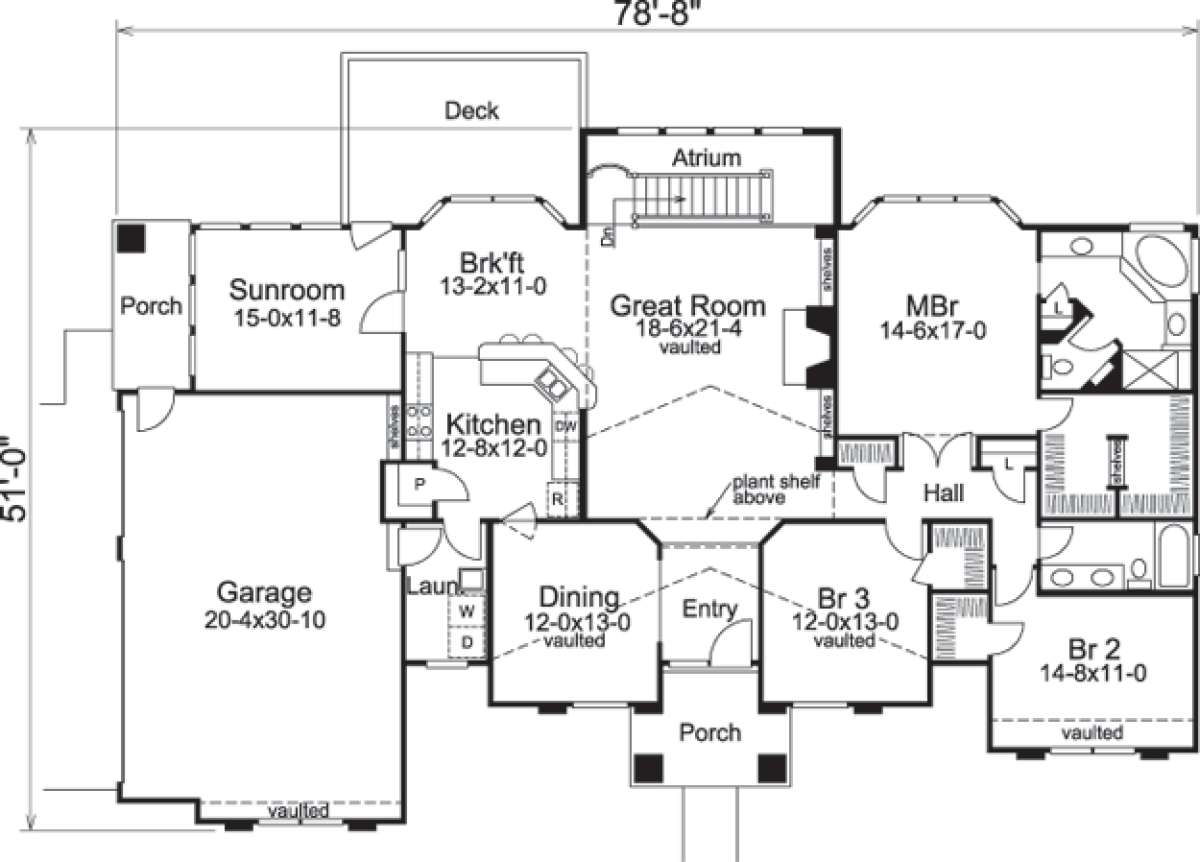

Floorplan 1 for House Plan #5633-00108

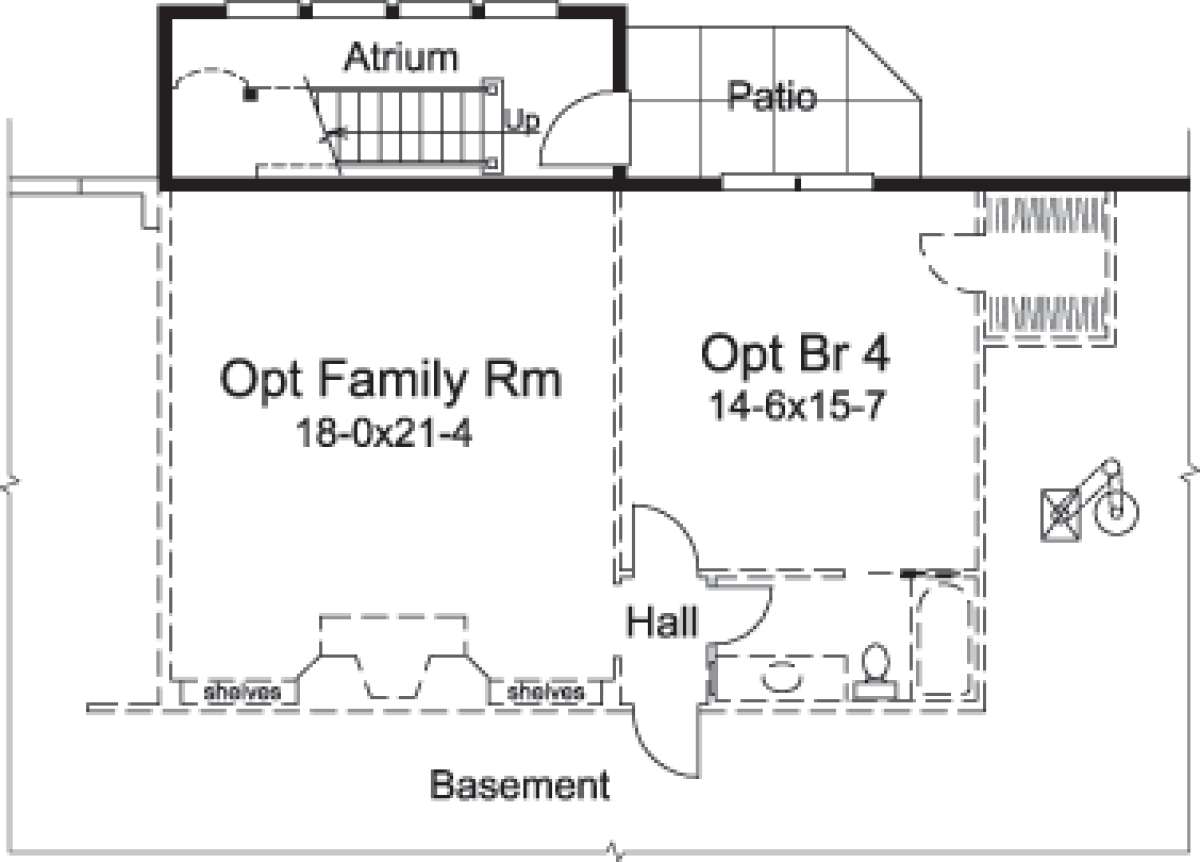

Floorplan 2 for House Plan #5633-00108

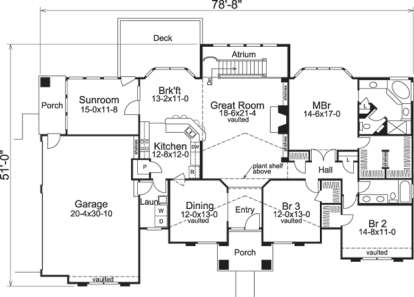

Floorplan 1
Floorplan 1 for House Plan #5633-00108
Floorplan 2
Floorplan 2 for House Plan #5633-00108


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

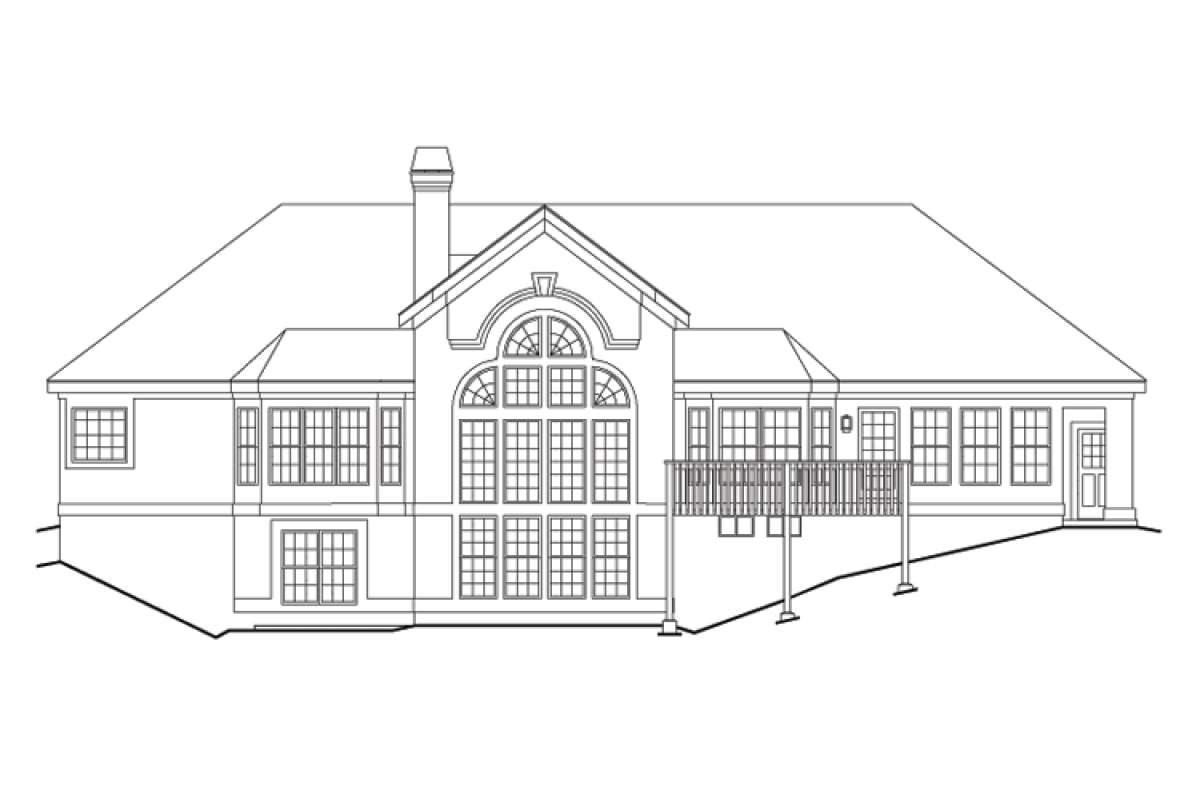

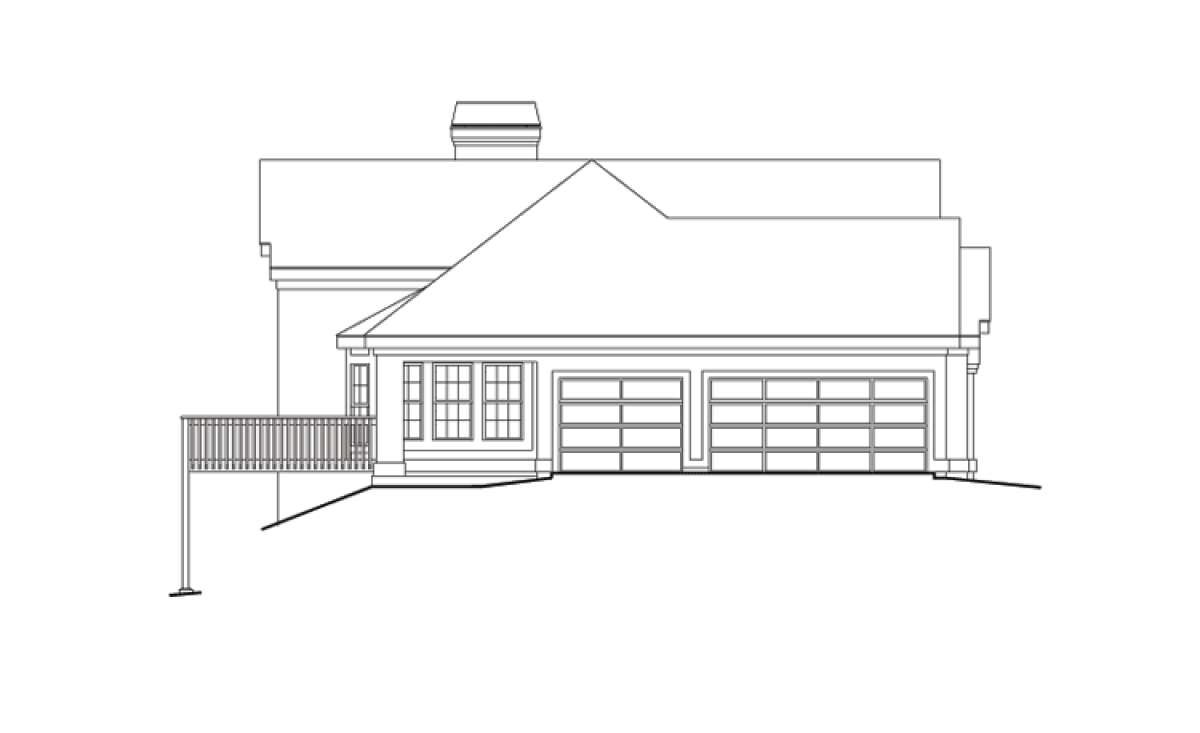

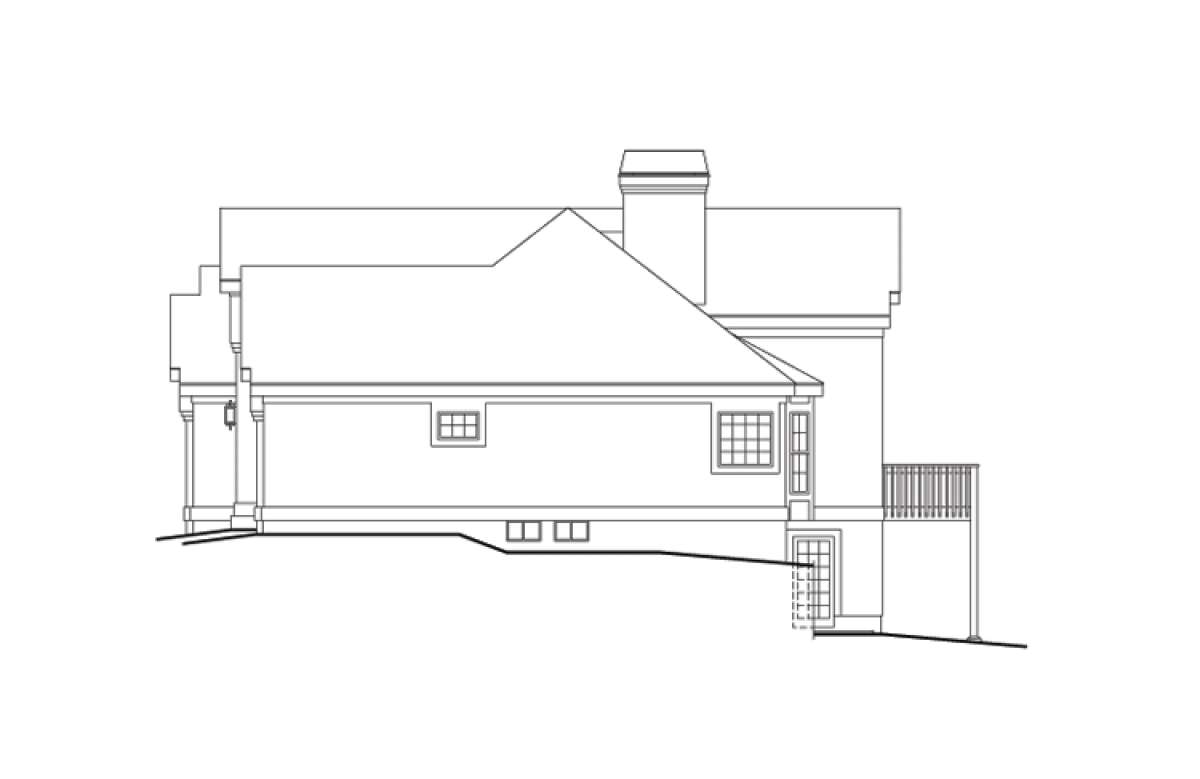

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This home design has an adaptable exterior façade which would be equally suitable for various climate regions. A soaring grand entrance is highlighted on the exterior along with stunning window features creating a home filled with light and pizzazz. The interior floor plan is equally striking and offers three bedrooms and two bathrooms in approximately 2,398 square feet of living space. The Ranch style home also features a walkout basement where an additional 763 square feet of space is available for expansion including space for a recreation or multi-purpose room with a fireplace and built-in cabinetry. Additional space is found in an oversized fourth bedroom with walk-in closet, an adjacent full bath and rear patio access. A vaulted entry foyer with a planter shelf opens onto the great room which enjoys 12’ vaulted ceiling heights and a rear wall atrium featuring 2.5 story windows and a fireplace flanked by built-in cabinetry. The conveniently located sunroom and side porch adjoin the breakfast room and are directly accessible to the rear deck. This sun drenched space is highly coveted for its entertaining value and provides quiet family time as well for relaxing and reading. The home’s kitchen provides enjoyable space in which to create fantastic family meals with its modern conveniences such as a corner angled breakfast bar, an oversized walk-in pantry and swinging door access to the formal dining room. The vaulted dining room is spacious and is situated off the front entry foyer. A large interior laundry room with sink access if located off the three car, side entry garage.
Spacious family bedrooms are highlighted in the home along with bathrooms which enjoy large footprints and modern amenities. Bedrooms two and three feature a large vaulted space with walk-in closets and the shared hall bath has double vanities and there is a hall linen closet as well. The master suite features a gorgeous entrance through French doors into the master bedroom highlighted with an expansive rear wall of windows. An enormous walk-in master closet features center shelving and the master bath is elegantly designed. There is a corner garden tub with surrounding window views, a separate shower, dual vanities, a linen closet and a compartmentalized toilet room. This home offers a functional and comfortable interior floor plan with outstanding outdoor space and expansion options.
